Rittal 8619803 VX cable entry plate, W: 1200 mm,

Your rating:
Average rating
product review for Rittal 8619803 VX cable entry plate, W: 1200 mm,
( 4.4 / 5 ) 14 ratings
Rittal 8619803
This image may differ from the desired article.
Rittal 8619803Rittal 8619803Rittal 8619803Rittal 8619803
62,02 EUR 62,03 EUR
( 73,80 EUR incl. VAT )
≈ £51.91  |  ≈ $68.16
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 8619803 VX cable entry plate, W: 1200 mm,
Datasheet:file_download Download
Lieske Part No.:1441055
Mfg Part No: 8619803
UPC/EAN: 4028177921016
Weight:2.176 kg
Type:VX 8619.803

Product information for Rittal 8619803:

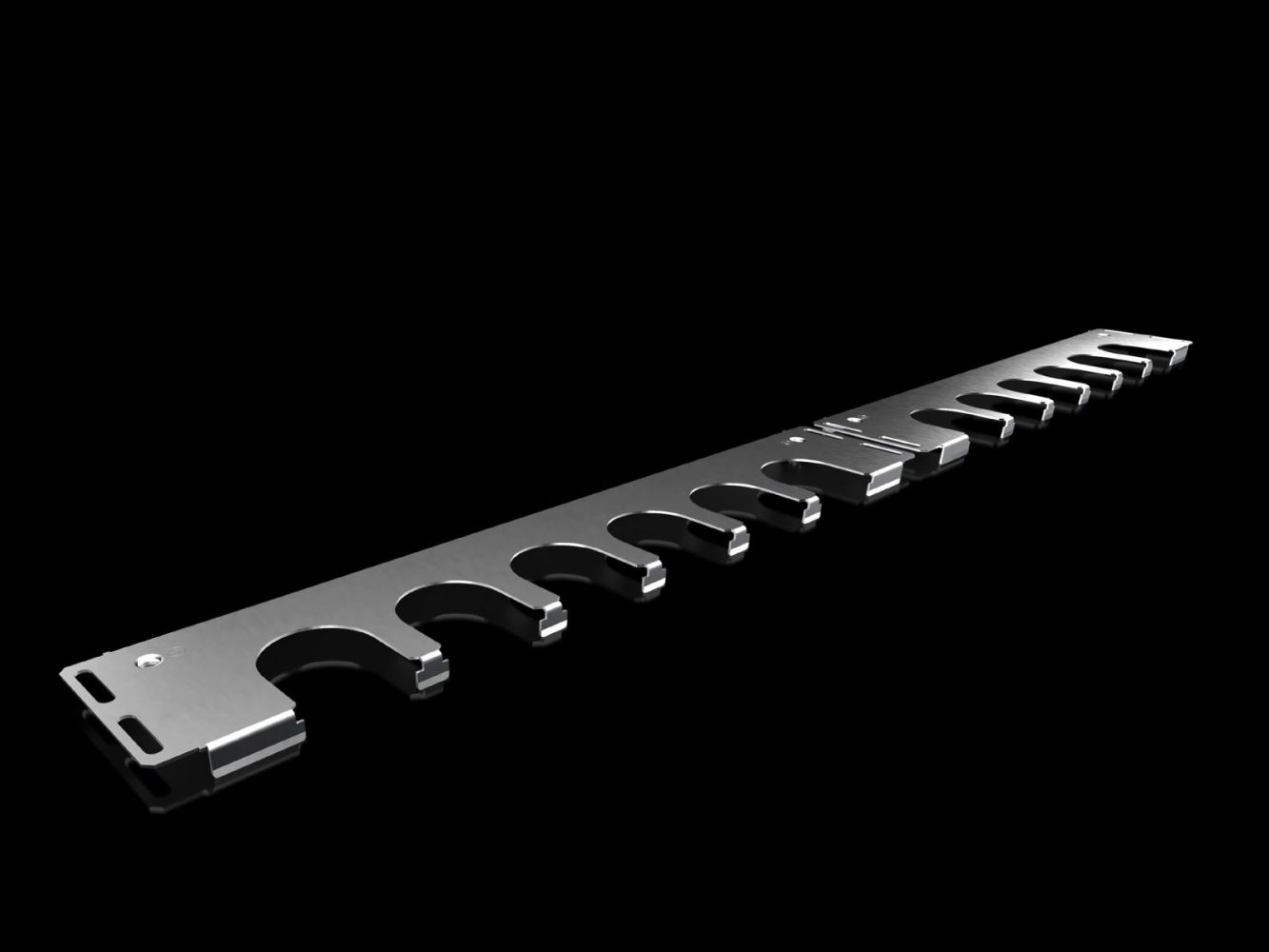

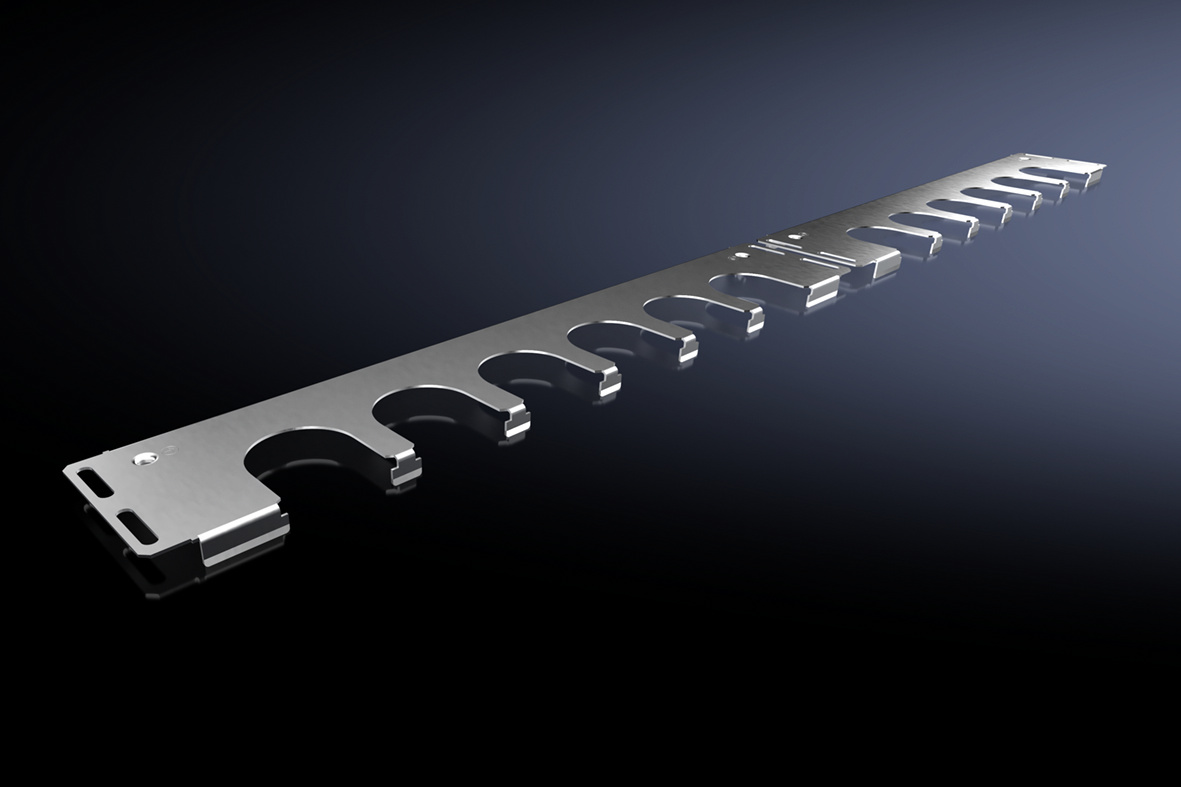

The Rittal VX 8619.803 is a cable entry plate made of sheet steel with a zinc-coated surface, specifically designed for enclosures of type VX with a width of 1,200 mm as well as for the VX SE variant. It serves as a replacement for the standard split base plates and enables organized and protection-compliant cable and connector entry into the enclosure. The plate features 6 cutouts, intended for mounting cable entry glands or connector passage glands. The use of these glands is necessary to achieve the protection rating IP 55 in accordance with IEC 60 529, which provides dust and splash water protection and thus makes it suitable for use in industrial environments.

Applications

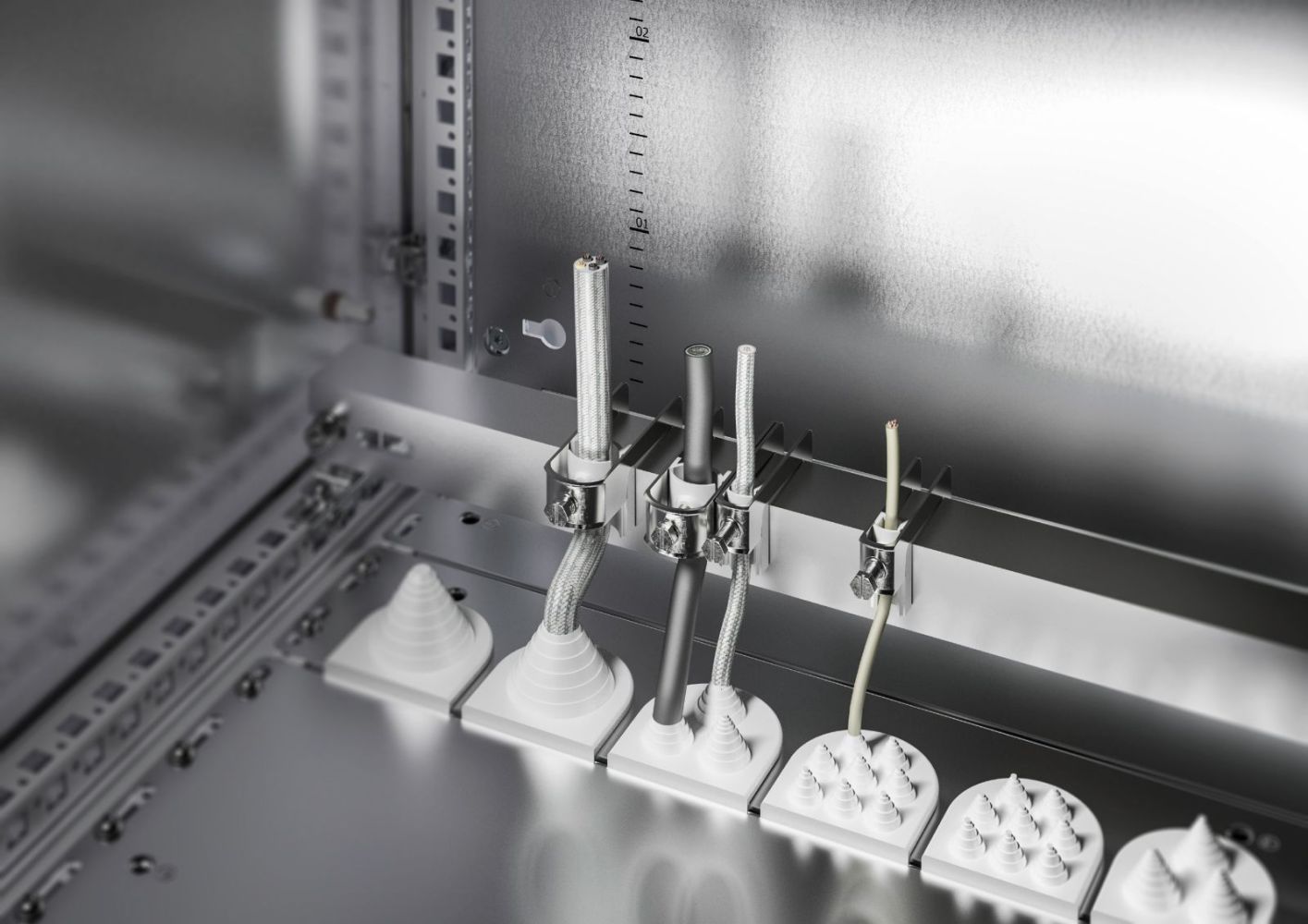

The cable entry plate is used in industrial electrical engineering where structured and secure cable entry into enclosures is required. It is particularly suitable for installations operated in environments with increased contamination risk or occasional splash water exposure, such as production halls, manufacturing plants, or machine building. Use in outdoor environments is not intended, as the IP 55 protection rating does not provide full weather resistance.

Functions and Equipment in Detail

The plate is made of sheet steel and features a zinc-coated surface to prevent corrosion and ensure a longer service life. The 6 cutouts are arranged standard and allow for the mounting of cable entry glands or connector passage glands. The fastening materials are included in the delivery scope, enabling immediate installation. The plate is mounted in place of the standard split base plates, resulting in a uniform and clean cable and connector entry.

Technology Explained Simply

The protection rating IP 55 means the device is protected against dust and splash water. However, this is only achieved if the cutouts are sealed with appropriate cable entry glands or connector passage glands. Without these glands, the IP protection class is not guaranteed. The zinc-coated surface provides corrosion protection, which is important in industrial environments with humidity or aggressive media. The material sheet steel offers sufficient strength to withstand mechanical loads during operation.

Compatibility and Accessories

The cable entry plate is compatible with enclosures of type VX with a width of 1,200 mm as well as with the VX SE variant. As accessories, various cable entry glands are available, including glands with diameters of 13 mm and 21 mm, as well as connector passage glands. These glands are required to achieve the IP 55 protection rating. The cable entry glands can also be used for cables with a maximum diameter of 47 mm, with the exact fit varying depending on the gland.

Installation and Mounting

Mounting is done in place of the standard split base plates supplied with the enclosure. The plate is fastened using the included fastening materials. The cutouts are pre-formed, allowing direct installation of cable entry glands or connector passage glands.

Operational Advantages

The cable entry plate provides a structured and clean cable entry, which facilitates maintenance and inspection of enclosures. The use of cable entry glands ensures a secure and protection-compliant connection, enhancing operational safety. The zinc-coated surface extends the service life of the plate in industrial environments. Compatibility with standard enclosure types VX and VX SE enables easy integration into existing systems.

General
Materialsteel sheet
Surface protectionZinc-plated
Scope of deliveryIncluding mounting hardware
Number of breaks6
Suitable forEnclosure type: VX: = 1.200 mm, Enclosure type: VX SE
Degree of protection IP according to IEC 60 529IP 55 in combination with cable gland or connector gland


Product data sheet
Datasheet for Rittal 8619803, EAN: 4028177921016

Questions & answers

What is the delivery time of Rittal 8619803 VX cable entry plate, W: 1200 mm, ?

The article Rittal 8619803 VX cable entry plate, W: 1200 mm, is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8619803 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8619803 VX cable entry plate, W: 1200 mm, always at the best possible price. We can give you a discount of 2% on Rittal 8619803 VX cable entry plate, W: 1200 mm, if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
