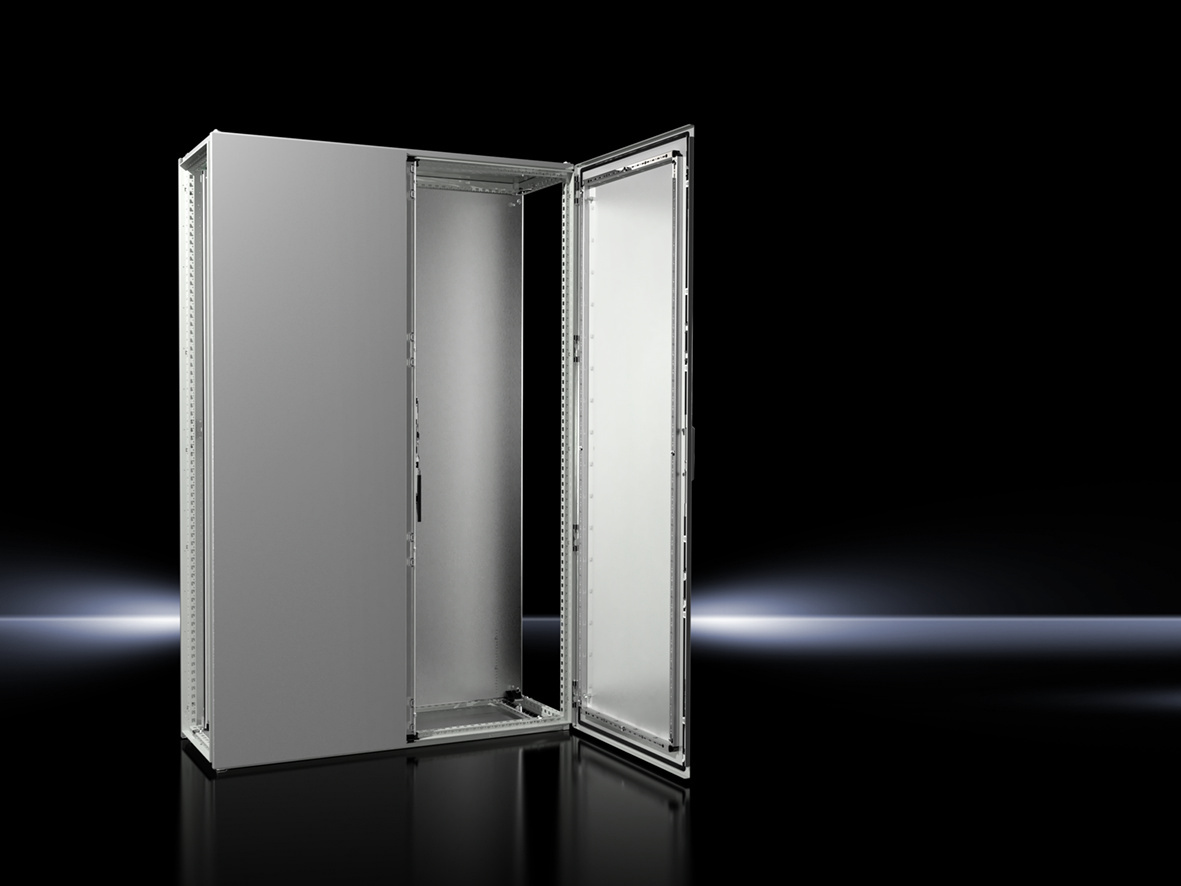

Rittal 8284000 VX bayed enclosure system, 2-door, W x H x D 1200x1800x400 mm (freight shipping)
|
779,92 EUR |
|
|
( 928,10 EUR incl. VAT ) ≈ £652.79 | ≈ $857.13 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1440721 |
| Mfg Part No: | 8284000 |
| UPC/EAN: | 4028177813533 |
| Weight: | 165.6 kg |
| Type: | VX 8284.000 |
Product information for Rittal 8284000:
Applications
This enclosure system is designed for use in industrial environments where high mechanical stability and protection against dust and splashing water are required. It is suitable for installations in the manufacturing industry, power supply, automation technology, and machine building. The protection rating IP 55 according to EN 60 529 ensures protection against dust and splashing water, making it suitable for indoor use under normal operating conditions. The NEMA classification includes NEMA 1 and NEMA 12, allowing use in dry indoor environments as well as in areas with light splashing water or dirt. The type rating according to UL 50E includes Type 1 and Type 12, confirming compliance with North American safety standards. The IK code IK10 indicates high mechanical resistance against impacts such as shocks or vibrations.
Functions and Equipment in Detail
The enclosure system consists of an enclosure frame made of sheet steel with a wall thickness of 1.5 mm, coated with a dip-primed and powder-coated structural paint in RAL 7035. The doors are made of 2.0 mm thick sheet steel and are also powder-coated, providing high corrosion resistance and optical quality. The rear panel and roof plate are also made of 1.5 mm sheet steel and are powder-coated. The base plates are divided into three parts, made of 1.5 mm sheet steel and galvanized, enabling easy mounting and replacement. The mounting plate is made of 3.0 mm thick sheet steel and galvanized, ensuring high load capacity and corrosion resistance. The mounting plate is depth-adjustable in 25 mm increments and features integrated plastic gliding pieces as well as reusable mounting rails. The doors are equipped with a 3 mm double-barrel lock, ensuring secure latching. Door hinges are standard right-hand mounted but can be toollessly repositioned to left-hand. The door opening angle is 130° and can be toollessly extended to 180°. The clearance from the floor is 17 mm.
Technology Explained Simply
The construction of the enclosure system is based on a symmetrical profile frame made of closed and profiled hollow profiles. The profiles feature a hole pattern with a 25 mm grid, enabling flexible mounting of components. The horizontal profiles include an additional groove above the PU foam seal, ensuring better sealing. The entire construction is equipped with integrated blind rivet nuts M6, allowing protection-rated fastening of fittings. The profile edges are rounded, ensuring safe handling and preventing injuries. The mounting plate is C-bent on the sides and provides a stable base for mounting components. The rear panel, roof plate, and base plates are electrically connected to the frame, enabling automatic equipotential bonding according to DIN 62 208. This is important for electrical safety and preventing voltage differences.
Compatibility and Accessories
The enclosure system is compatible with various accessories that meet individual requirements for enclosure expansion. These include levelling feet M12 with an adjustment height of 18–43 mm, mounting plate spacers for TS, TS mounting brackets for external mounting plane, C-profile rails 30/15 according to EN 60715, transport eyes for VX, TS, SE, VX base plates, VX comfort handles, dust protection strips, cable entry ferrules in various diameters, multi-locking mechanisms, circuit diagram pockets, AS Multitool AX/VX, VX side panels with screw connections, VX baying connectors, and VX internal baying brackets. These accessories allow individual adaptation of the enclosure system to specific requirements, such as cable mounting, base plate reinforcement, or expansion of the mounting surface.
Mounting and Installation
The mounting of the enclosure system is performed via integrated mounting planes accessible from inside and outside. The mounting plate is depth-adjustable, allowing flexible positioning of components. The base plates are removable and replaceable, enabling easy maintenance and cleaning. The doors are fitted with a PU foam seal, ensuring tight sealing. The rear panel and roof plate are removable and secured with screws, allowing easy mounting and maintenance. The entire construction is designed for anchoring to the floor, with the 17 mm floor clearance ensuring sufficient stability.
Advantages in Operation
The enclosure system offers high mechanical stability and a high protection rating, making it suitable for demanding environments. The modular construction allows flexible adaptation to individual requirements. The integrated mounting planes and depth-adjustable mounting plate simplify component installation. The conductive connection of flat parts to the frame ensures a secure electrical connection and automatic equipotential bonding. The tool-free adjustment of door hinges and extension of door opening angle simplifies installation and maintenance. The use of galvanized and powder-coated sheet steel ensures high corrosion resistance and long service life of the enclosure system.
| General | |
| Material | Cabinet frame: steel sheet, 1.5 mm, roof: steel sheet, 1.5 mm, door: steel sheet, 2.0 mm, rear panel: steel sheet, 1.5 mm, base plates: steel sheet, 1.5 mm, mounting plate: steel sheet, 3.0 mm |
| Surface protection | Cabinet frame: dip-primed, door, roof and rear panel: dip-primed, externally powder-coated, textured lacquer, mounting plate and base sheets: galvanised |
| Colour | RAL 7035 |
| Scope of delivery | cabinet frame, door(s), door hinge right, reversible to left, roof sheet, rear panel, floor sheets, mounting plate, 2 mounting rails 18 x 39 mm, lock: 3 mm double bar |
| Width | 1.200 mm |
| Height | 1.800 mm |
| Depth | 400 mm |
| Mounting plate dimensions (W x H) | 1.099 mm x 1.696 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK10 |
| Number of doors | 2 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 437.96 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 8284000 VX bayed enclosure system, 2-door, W x H x D 1200x1800x400 mm (freight shipping)?
The article Rittal 8284000 VX bayed enclosure system, 2-door, W x H x D 1200x1800x400 mm (freight shipping) is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8284000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 8284000 VX bayed enclosure system, 2-door, W x H x D 1200x1800x400 mm (freight shipping) always at the best possible price. We can give you a discount of 2% on Rittal 8284000 VX bayed enclosure system, 2-door, W x H x D 1200x1800x400 mm (freight shipping) if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
