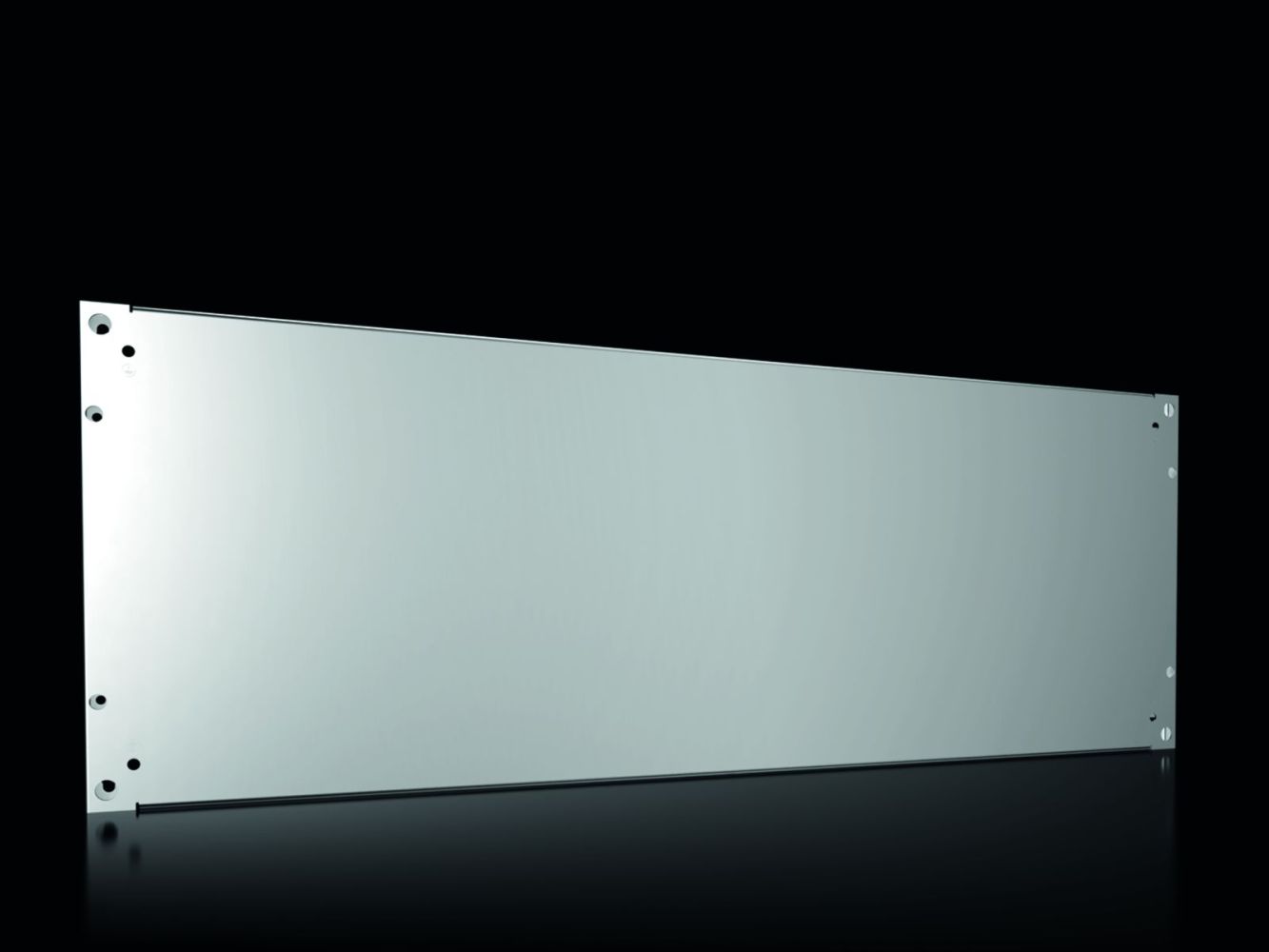

Rittal 8617630 VX partial mounting plate, W x H: 1100x400 mm

Your rating:
Average rating
product review for Rittal 8617630 VX partial mounting plate, W x H: 1100x400 mm
( 4.6 / 5 ) 8 ratings
Rittal 8617630
This image may differ from the desired article.
Rittal 8617630Rittal 8617630
73,60 EUR
( 87,58 EUR incl. VAT )
≈ £61.60  |  ≈ $80.89
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 8617630 VX partial mounting plate, W x H: 1100x400 mm
Datasheet:file_download Download
Lieske Part No.:1440927
Mfg Part No: 8617630
UPC/EAN: 4028177919488
Weight:11.12 kg
Type:VX 8617.630

Product information for Rittal 8617630:

The Rittal VX 8617.630 is a partial mounting plate made of sheet steel with a thickness of 2.5 mm, designed for use in enclosures of type VX, VX SE and PC. The plate serves as a mounting surface for additional electrical or electronic components inside the enclosure and enables flexible arrangement of assemblies. With dimensions of 1,100 mm width and 400 mm depth, it provides sufficient space for a variety of devices and is specifically designed for enclosures with a minimum width of 1,200 mm and a minimum depth of 500 mm.

Applications
The partial mounting plate is used in industrial plants, automation systems and control technology where modular and flexible mounting of assemblies is required. It is particularly suitable for applications where multiple components must be integrated into a cabinet without reconfiguring the entire cabinet. The plate can be mounted both vertically and horizontally, allowing adaptation to different spatial conditions within the cabinet.

Functions and Equipment in Detail
Mounting is done directly to the cabinet profile, using the included mounting hardware. In pre-assembled constructions, the plate can be attached to system chassis at any mounting level within the cabinet. For installation in enclosures of types VX SE, PC and IW, the use of a VX adapter rail is required. In multi-level mounting configurations, where multiple partial mounting plates are arranged in sequence, a swivelling version with hinge mounting can be chosen to enable quick access to the levels behind.

Technology Explained Simply
The plate is made of galvanised sheet steel, providing high mechanical stability and corrosion protection. The galvanisation protects the material from moisture and oxidation, which is particularly important in industrial environments. The dimensions of 1,100 mm width and 400 mm depth are chosen to fit optimally into standard enclosure sizes that are at least 1,200 mm wide and 500 mm deep. Mounting is flexible and can be done vertically or horizontally depending on requirements, allowing the plate to be used as both a wall- and floor-mounting surface.

Compatibility and Accessories
The partial mounting plate is specifically developed for enclosures of types VX, VX SE and PC. For installation in VX SE, PC and IW enclosures, the VX adapter rail is required. The plate is not intended for other enclosure types not listed in the compatibility list. The use of system chassis enables flexible positioning within the cabinet, independent of the standard mounting level.

Mounting and Installation
Installation is carried out by securing the plate to the cabinet profiles using the mounting hardware included in the delivery. In pre-assembled constructions, the plate is mounted via system chassis, allowing positioning at any mounting level within the cabinet. In multi-level arrangements, the plate can be configured with hinge mounting for swivelling, facilitating access to levels behind. Mounting requires no additional tools beyond standard screw and nut tools.

Advantages in Operation
The flexible mounting enables optimal utilisation of cabinet volume and easy adaptation to changing requirements. The swivelling version in multi-level installations improves maintainability, as components behind the plate are accessible without complete disassembly. The use of galvanised sheet steel ensures long service life and high reliability in industrial environments. The plate is thus a platform-based solution for integrating additional components into existing enclosure systems.

General
MaterialSheet steel, 2.5 mm
Surface protectionZinc-plated
Scope of deliveryIncluding mounting hardware
Mounting optionsInstallation can be either vertical as upright mounting surface or horizontal as flat floor; mounting is directly to cabinet profile; with pre-assembled construction, mounting is via system chassis at any mounting level within the cabinet; with multi-level installation of partial mounting plates in sequence, these can be hinged for quick access to rear levels
NoteFor installation in VX SE, PC, IW, the VX adapter rail is required
Width1.100 mm
Depth400 mm
Suitable for housing typeVX, VX SE, PC
Suitable forEnclosure type: VX, VX SE, PC, width: = 1,200 mm, depth: = 500 mm
PCF/VE (Cradle-to-Gate)41.9 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 8617630, EAN: 4028177919488

Questions & answers

What is the delivery time of Rittal 8617630 VX partial mounting plate, W x H: 1100x400 mm?

The article Rittal 8617630 VX partial mounting plate, W x H: 1100x400 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8617630 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8617630 VX partial mounting plate, W x H: 1100x400 mm always at the best possible price. We can give you a discount of 2% on Rittal 8617630 VX partial mounting plate, W x H: 1100x400 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
