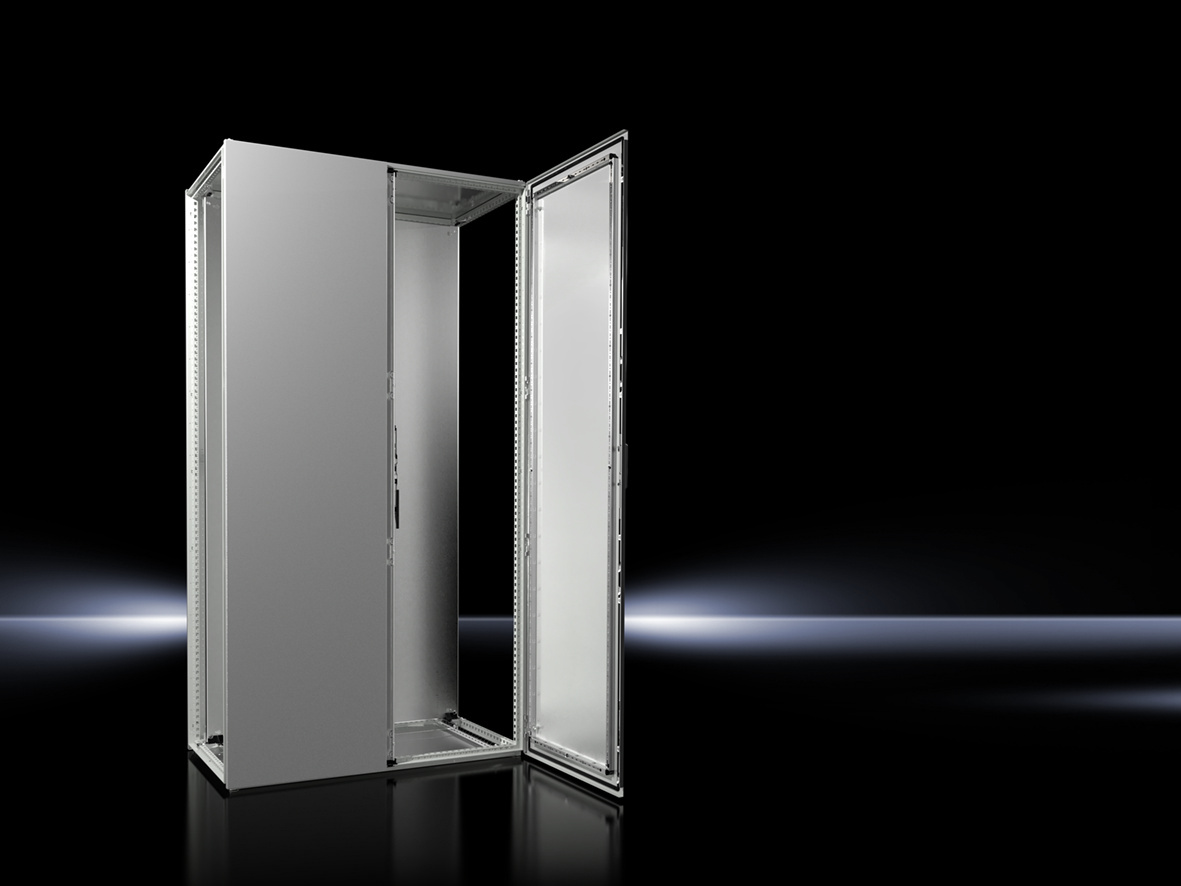

Rittal 8226000 VX bayed enclosure system, 2-door, W x H x D: 1200x2200x600 mm,
|
1.014,30 EUR 1.014,79 EUR |
|
|
( 1.207,02 EUR incl. VAT ) ≈ £848.97 | ≈ $1,114.72 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1440695 |
| Mfg Part No: | 8226000 |
| UPC/EAN: | 4028177813571 |
| Weight: | 204.2 kg |
| Type: | VX 8226.000 |
Product information for Rittal 8226000:
Applications
This enclosure system is suitable for use in industrial environments, particularly in areas requiring high mechanical load capacity and protection against dust and splashing water. It can be mounted for baying on all sides and is therefore ideal for use in rows of enclosures in production facilities, power supply systems, or automation systems. The load capacity is up to 15,000 N, ensuring secure mounting even under high static loads.
Functions and Equipment in Detail
The enclosure system consists of a sheet steel frame with a wall thickness of 1.5 mm, dip-primed. The doors are made of 2.0 mm thick sheet steel and are externally powder-coated with a textured lacquer in RAL 7035. The door hinges are standardly arranged on the right side but can be toollessly repositioned to the left. The doors are fitted with a PU foam seal to ensure a tight seal. The locking mechanism uses a 3 mm double-barrel lock according to DIN 43668, with the lock door being quadruple-locked and the secondary door additionally double-locked with a swing lever. The door opening angle is 130° and can be toollessly extended to 180°. The clearance from the floor is 17 mm.
Technology Explained Simply
The protection rating IP 55 according to EN 60 529 protects the interior of the enclosure against dust and splashing water from all directions, making it suitable for outdoor use or in damp indoor environments. The protection ratings NEMA 1 and NEMA 12, as well as the type rating according to UL 50E (Type 1 and Type 12), comply with international standards for protection against mechanical influences and environmental conditions. The IK code IK10 guarantees high protection against mechanical impacts, such as shocks or vibrations. The rear panel, roof plate, and base plates are removable and fitted with PU foam seals to ensure a tight seal. The mounting plate is C-flanged on the sides and depth-adjustable in 25 mm increments via integrated plastic glides. The mounting rails (18 x 39 mm) allow for flexible positioning of components.
Compatibility and Accessories
The enclosure system is compatible with a wide range of accessories to meet individual installation and operational requirements. These include levelling feet M12 with an adjustment height of 18–43 mm, C-profile rails 30/15 according to EN 60715, transport eyes for freight shipping, cable routing spaces, additional base plates, comfort handles for various locking systems (e.g. half cylinder, ASSA, padlock), dust protection strips, mounting brackets, cable entry ferrules in various diameters (e.g. 13 mm, 21 mm, max. 47 mm), multi-locking systems, circuit diagram pockets in various depths (T600 mm, T90 mm), and a multitool for maintenance.
Mounting and Installation
Mounting is done via the integrated enclosure frame with closed and profiled hollow profiles, which are perforated in a 25 mm grid. The profiles are fitted with blind rivet nuts M6 to securely attach fittings in accordance with the protection rating. The horizontal profiles feature an additional groove above the seal to ensure secure mounting. The mounting plate is depth-adjustable, enabling flexible positioning of components. The base plates are three-piece, removable, and replaceable, facilitating easy maintenance and cleaning. The rear panel and roof plate are removable and fitted with seals to ensure a tight seal.
Operational Advantages
The enclosure system offers high mechanical stability and reliable protection against environmental influences. The depth-adjustable mounting plate and integrated mounting rails enable flexible and space-saving installation of components. The removable doors, rear panel, and roof plate facilitate maintenance and component replacement. The automatic equipotential bonding connection between rear panel, roof, base plates, and frame according to DIN 62 208 ensures safe earthing. The tool-free repositioning of door hinges and extension of the door opening to 180° reduces installation effort. Integrated QR codes on the roof, door, and mounting plate allow quick access to technical information.
The surface of the enclosure system consists of dip-primed sheet steel for the frame, powder-coated textured lacquer for doors, roof, and rear panel in RAL 7035, and galvanized mounting plates and base plates. The material thickness is 1.5 mm for the frame, roof, rear panel, and base plates, 2.0 mm for the doors, and 3.0 mm for the mounting plate. The delivery includes the enclosure frame, two doors, right-hand hinges (reversible), roof plate, rear panel, base plates, mounting plate, two mounting rails 18 x 39 mm, and a 3 mm double-barrel lock. The PCF values (Cradle-to-Gate) are 534.46 kg CO2 eq (Category B).
| General | |
| Material | Cabinet frame: steel sheet, 1.5 mm, roof: steel sheet, 1.5 mm, door: steel sheet, 2.0 mm, rear panel: steel sheet, 1.5 mm, base plates: steel sheet, 1.5 mm, mounting plate: steel sheet, 3.0 mm |
| Surface protection | Cabinet frame: dip-primed, door, roof and rear panel: dip-primed, externally powder-coated, textured lacquer, mounting plate and base sheets: galvanised |
| Colour | RAL 7035 |
| Scope of delivery | cabinet frame, door(s), door hinge right, reversible to left, roof sheet, rear panel, floor sheets, mounting plate, 2 mounting rails 18 x 39 mm, lock: 3 mm double bar |
| Width | 1.200 mm |
| Height | 2.200 mm |
| Depth | 600 mm |
| Mounting plate dimensions (W x H) | 1.099 mm x 2.096 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK10 |
| Number of doors | 2 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 534.46 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 8226000 VX bayed enclosure system, 2-door, W x H x D: 1200x2200x600 mm, ?
The article Rittal 8226000 VX bayed enclosure system, 2-door, W x H x D: 1200x2200x600 mm, is currently in stock
According to our experience the article is ready for dispatch within 4 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8226000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 8226000 VX bayed enclosure system, 2-door, W x H x D: 1200x2200x600 mm, always at the best possible price. We can give you a discount of 2% on Rittal 8226000 VX bayed enclosure system, 2-door, W x H x D: 1200x2200x600 mm, if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
