Rittal 8619720 VX system chassis 14 x 39 mm, door width: 600 mm
|
42,99 EUR |
|
|
( 51,16 EUR incl. VAT ) ≈ £35.98 | ≈ $47.25 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1441073 |
| Mfg Part No: | 8619720 |
| UPC/EAN: | 4028177924697 |
| Weight: | 1.14 kg |
| Type: | VX 8619.720 |
Product information for Rittal 8619720:
Applications
The system chassis is intended for use in various Rittal enclosure types, including VX, VX SE, PC, AX, wall-mounted enclosure AX, 3-piece, console CX and console base CX. Installation options depend on the specific enclosure type: In VX and VX SE enclosures, it is mounted in door width 600 mm. For AX enclosures, it is suitable in enclosure width 500 mm and enclosure height 600 mm; for AX sheet steel, the use of the rail for internal fitting AX is required. In enclosure width 1200 mm, it can be mounted in lock doors. For AX stainless steel, it is suitable in enclosure height 600 mm; for AX plastic, in door width 600 mm. For AX 3-piece, it is usable in enclosure depth 673 mm or in the width of the wall section. In PC and CX enclosures, it is also installed in door width 600 mm.
Functions and Equipment in Detail
The chassis serves as a mounting base for various inserts in the enclosure. The spacing between mounting points is 475 mm, enabling flexible installation. The galvanised surface provides good corrosion protection, especially in industrial environments. The delivery includes the chassis and the necessary mounting hardware, sufficient for installation in the specified enclosure types.
Technology Explained Simply

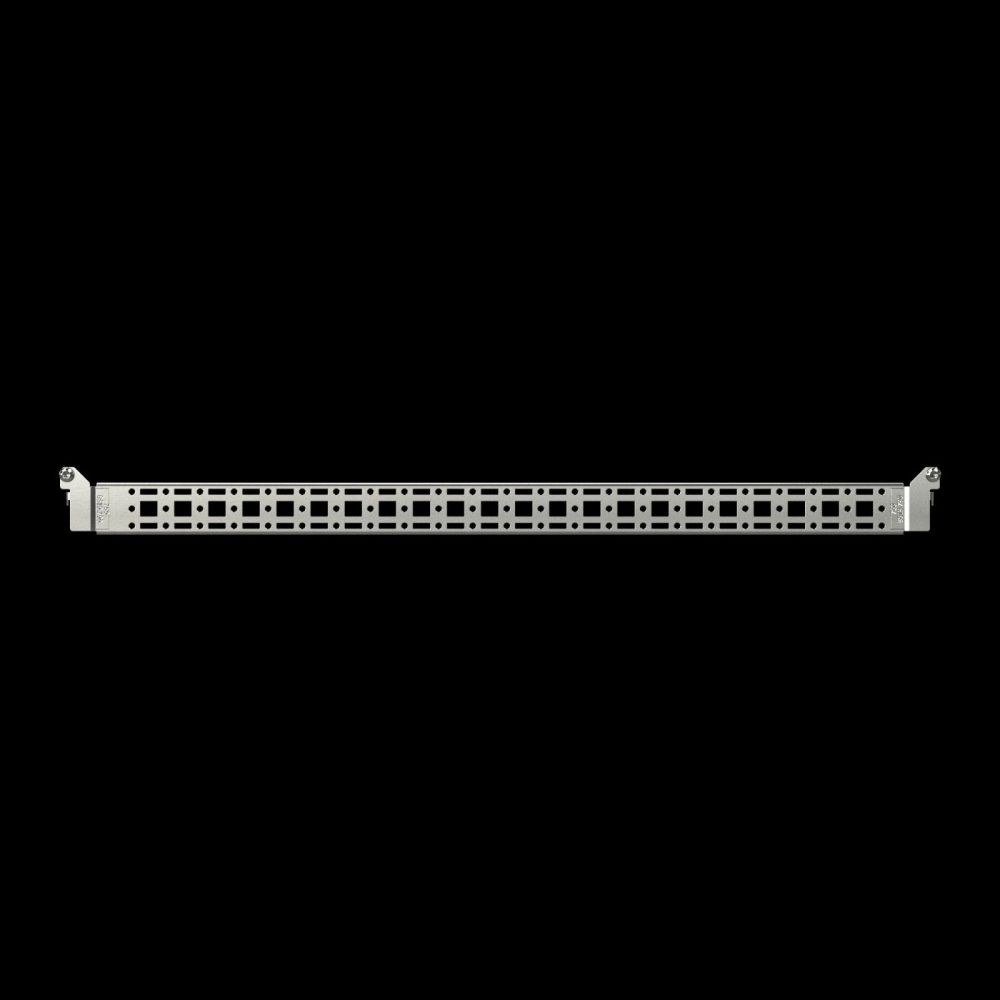

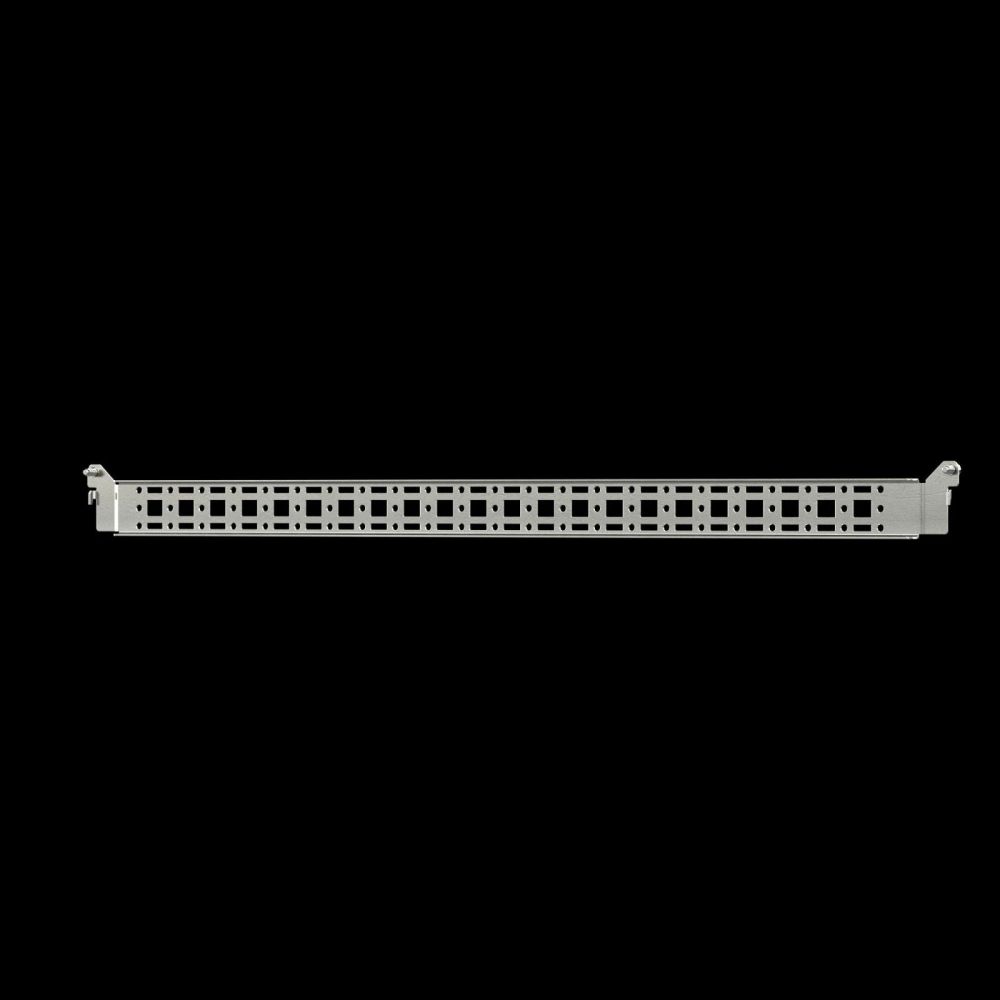

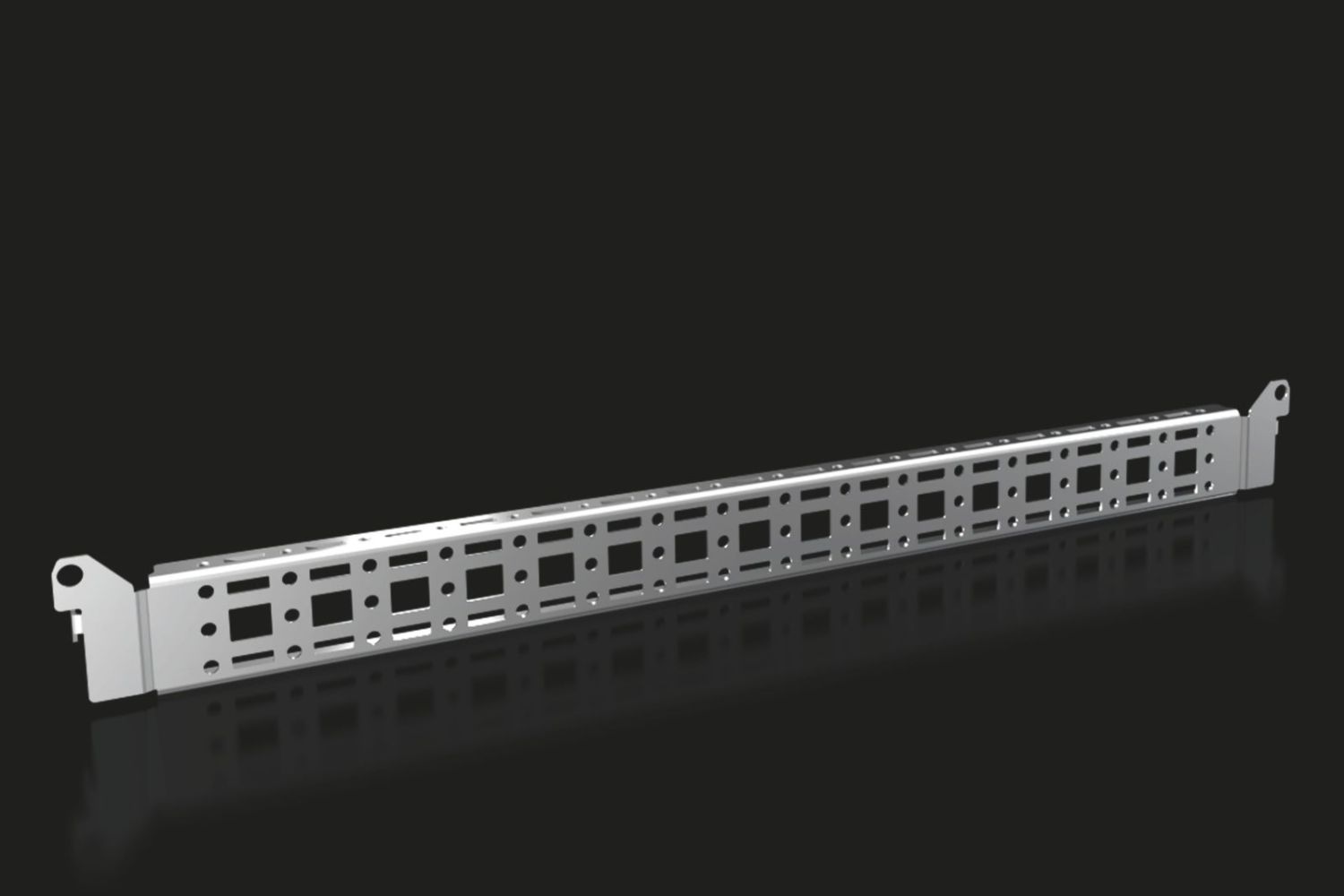

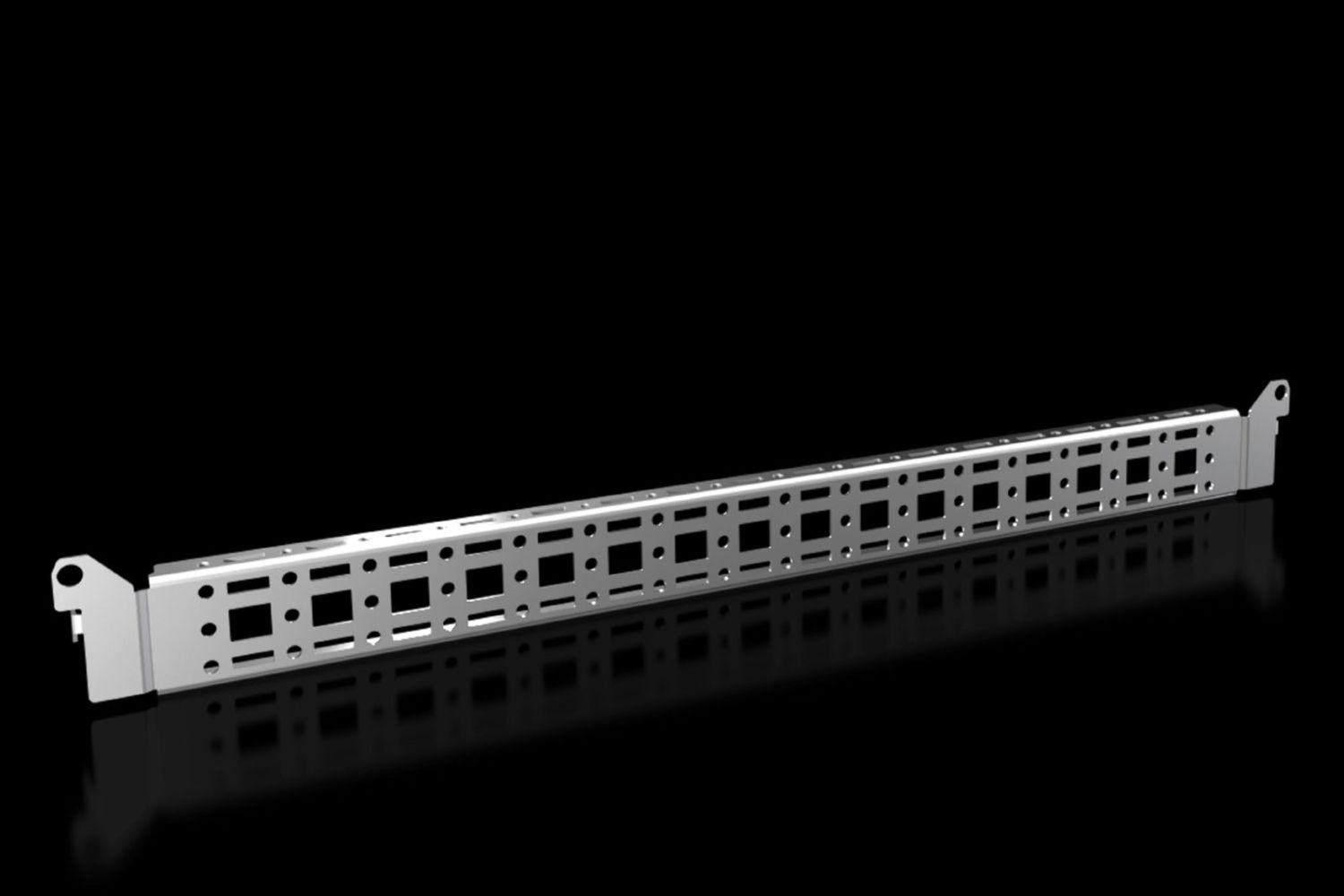

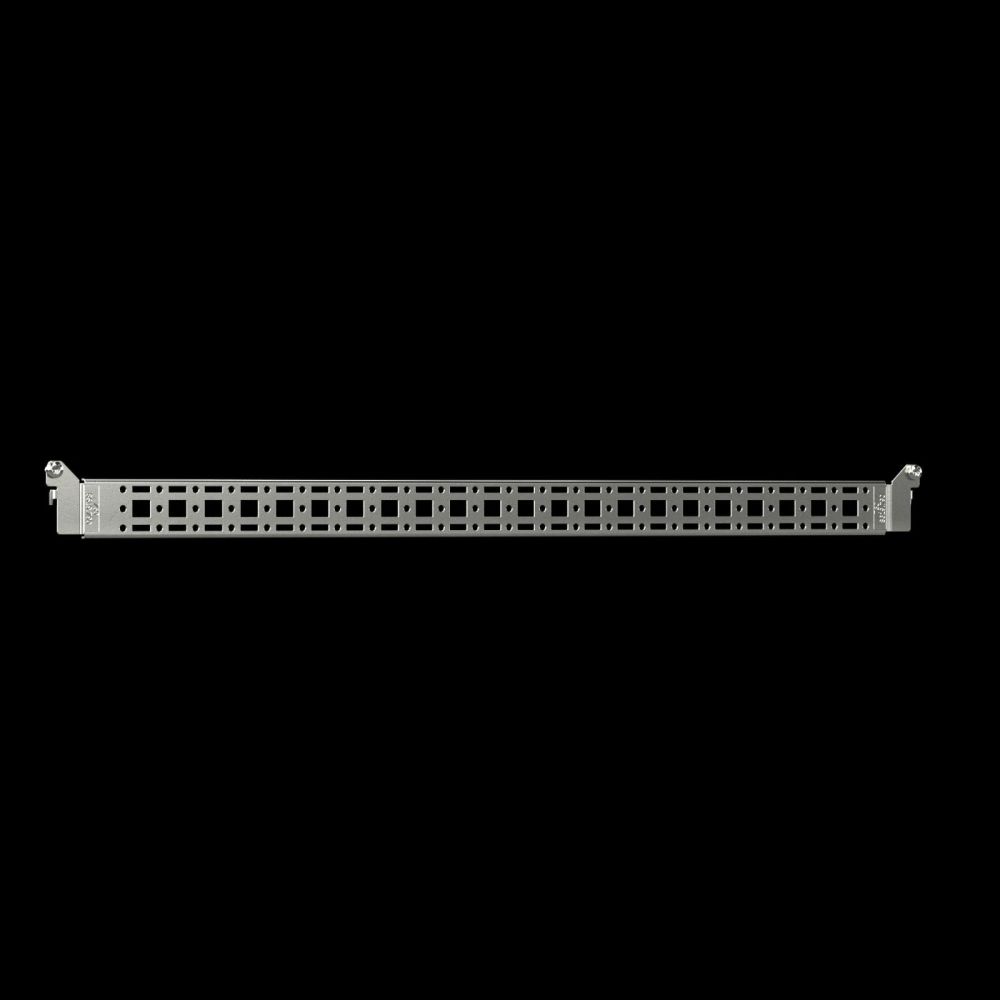

The system chassis is a perforated profile that functions as a mounting base for additional components in the enclosure. The dimensions 14 x 39 mm refer to the profile cross-section, where 39 mm is the height and 14 mm is the width. The galvanisation of the surface protects the sheet steel from oxidation and extends the component’s service life. The predefined mounting points spaced 475 mm apart allow for secure and even load distribution when installing cable ducts or other inserts.
Compatibility and Accessories
The chassis is compatible with a wide range of Rittal enclosure types, as detailed above. For installation in AX sheet steel, the use of the rail for internal fitting AX is required. When mounting custom components to the chassis, sheet metal screws or thread-forming screws M5 are necessary to ensure secure fastening. It is not intended to use the chassis without the specified mounting hardware.

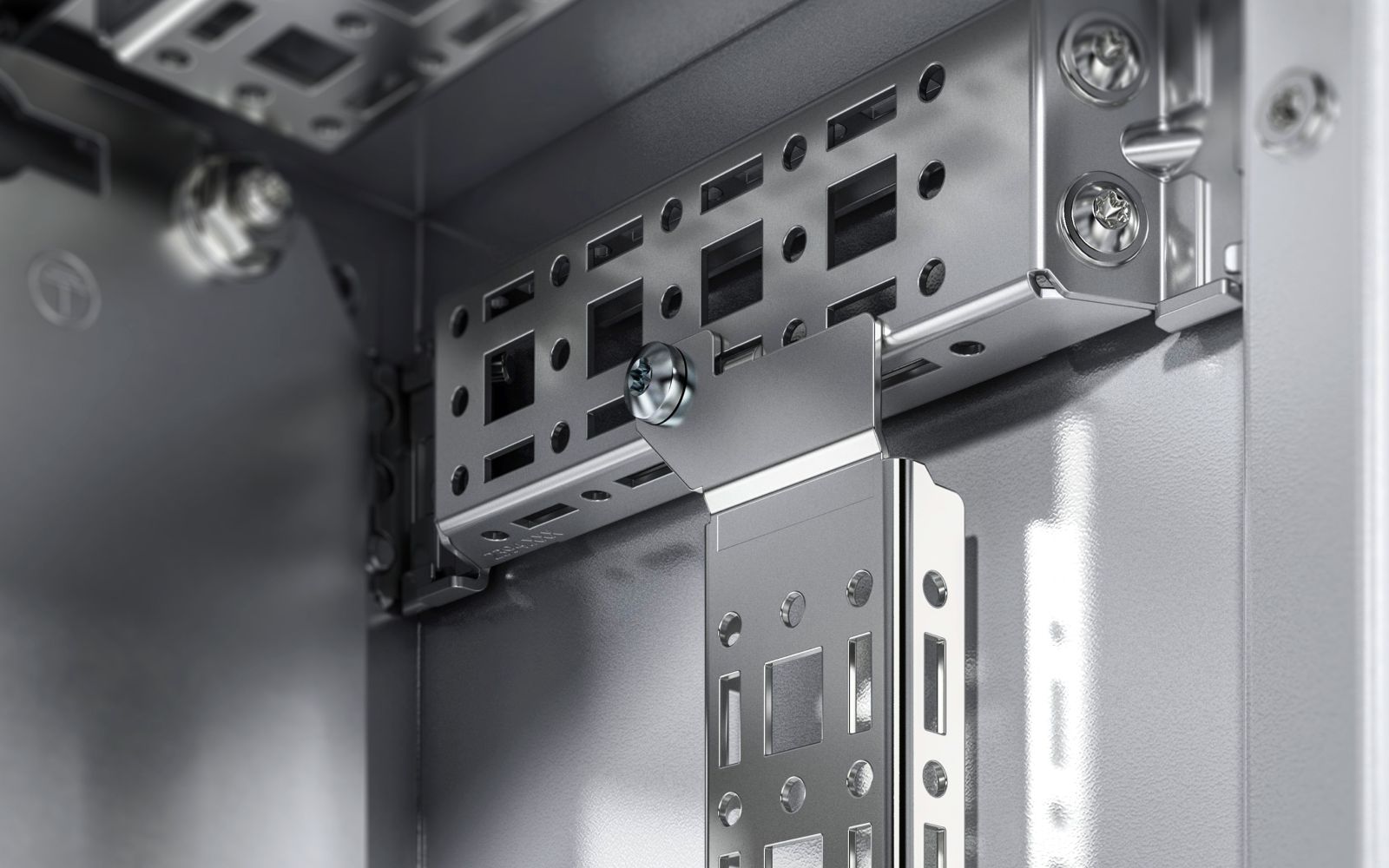

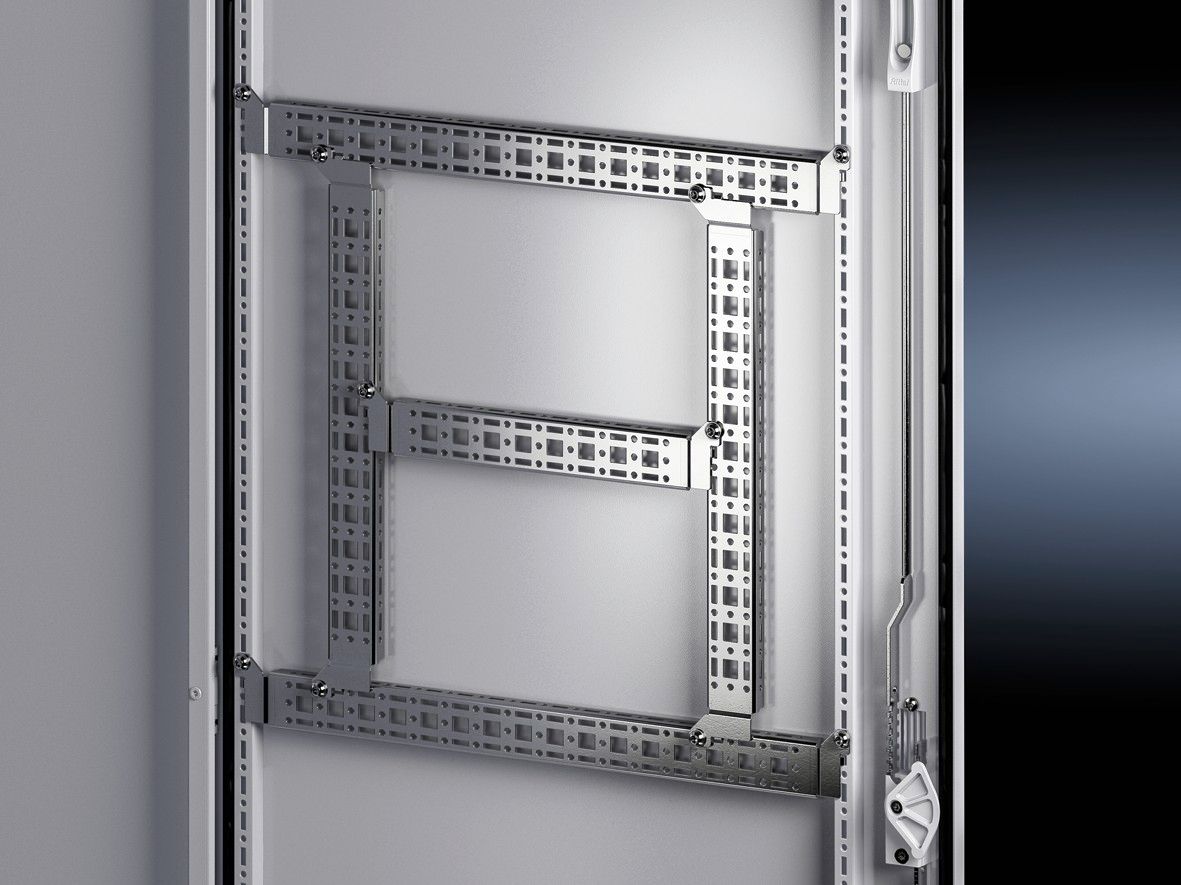

Mounting and Installation
Installation is carried out in the specified enclosure types and dimensions. For AX sheet steel, the rail for internal fitting AX is mandatory. Mounting is done through the pre-drilled holes in the chassis, with the 475 mm spacing determining the position of the mounting points. The included mounting hardware facilitates installation. When using custom components, M5 screws must be used to ensure a secure connection.
Advantages in Operation
The system chassis offers a flexible and secure mounting option for various inserts in the enclosure. The galvanisation ensures high corrosion resistance, increasing service life. The predefined mounting points enable standardised and reliable installation. Compatibility with various enclosure types increases application flexibility. The delivery in a pack of four pieces simplifies planning and installation in larger systems.
| General | |
| Material | steel sheet |
| Surface protection | Zinc-plated |

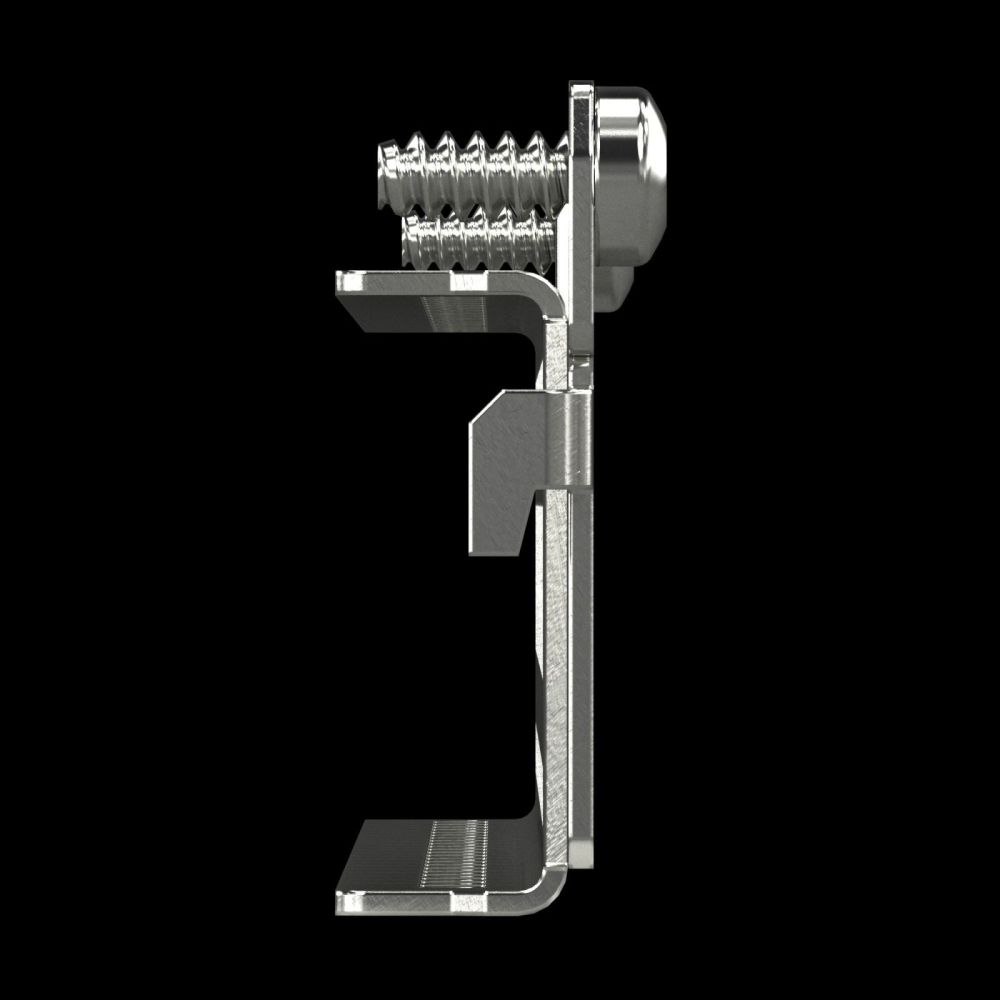

| Scope of delivery | Including mounting hardware |
| Distance between mounting points | 475 mm |
| Suitable for door width | 600 mm |
| Mounting options VX | In door width 600 mm |
| Mounting options VX SE | In door width 600 mm |
| Mounting options AX | In housing width 500 mm and housing height 600 mm, in combination with the rail for internal installation AX, In housing width 1200 mm in door |
| Mounting options AX stainless steel | In cabinet height 600 mm |
| Mounting options AX plastic | In door width 600 mm |
| Installation options AX 3-piece | In housing depth 673 mm or in the width of the wall section |
| PC mounting options | In door width 600 mm |
| Mounting options CX | In door width 600 mm |
| Mounting note | For installation in AX sheet metal only in conjunction with mounting rail for indoor installation AX |
| Note | For expansion with own components on the system chassis, sheet metal screws or thread-forming screws M5 are required |
| Suitable for | Cabinet type: VX, VX SE, PC, AX, AX wall cabinet, 3-piece, CX console, CX console base, suitable for width or height or depth: 600 mm |
| PCF/VE (Cradle-to-Gate) | 7,78 |
