Rittal 2260630 wall-mounted enclosure AX 6 U 3-piece W x H x D: 600x345x373 mm (freight shipping)

Your rating:
Average rating
product review for Rittal 2260630 wall-mounted enclosure AX 6 U 3-piece W x H x D: 600x345x373 mm (freight shipping)
( 0 / 5 ) 0 ratings
Rittal 2260630
This image may differ from the desired article.
Rittal 2260630Rittal 2260630Rittal 2260630Rittal 2260630Rittal 2260630Rittal 2260630
699,65 EUR
( 832,58 EUR incl. VAT )
≈ £585.61  |  ≈ $768.92
plus delivery charges: 235,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 2260630 wall-mounted enclosure AX 6 U 3-piece W x H x D: 600x345x373 mm (freight shipping)
Datasheet:file_download Download
Lieske Part No.:603842
Mfg Part No: 2260630
UPC/EAN: 4028177982956
Weight:22.6 kg
Type:AX 2260630

Product information for Rittal 2260630:

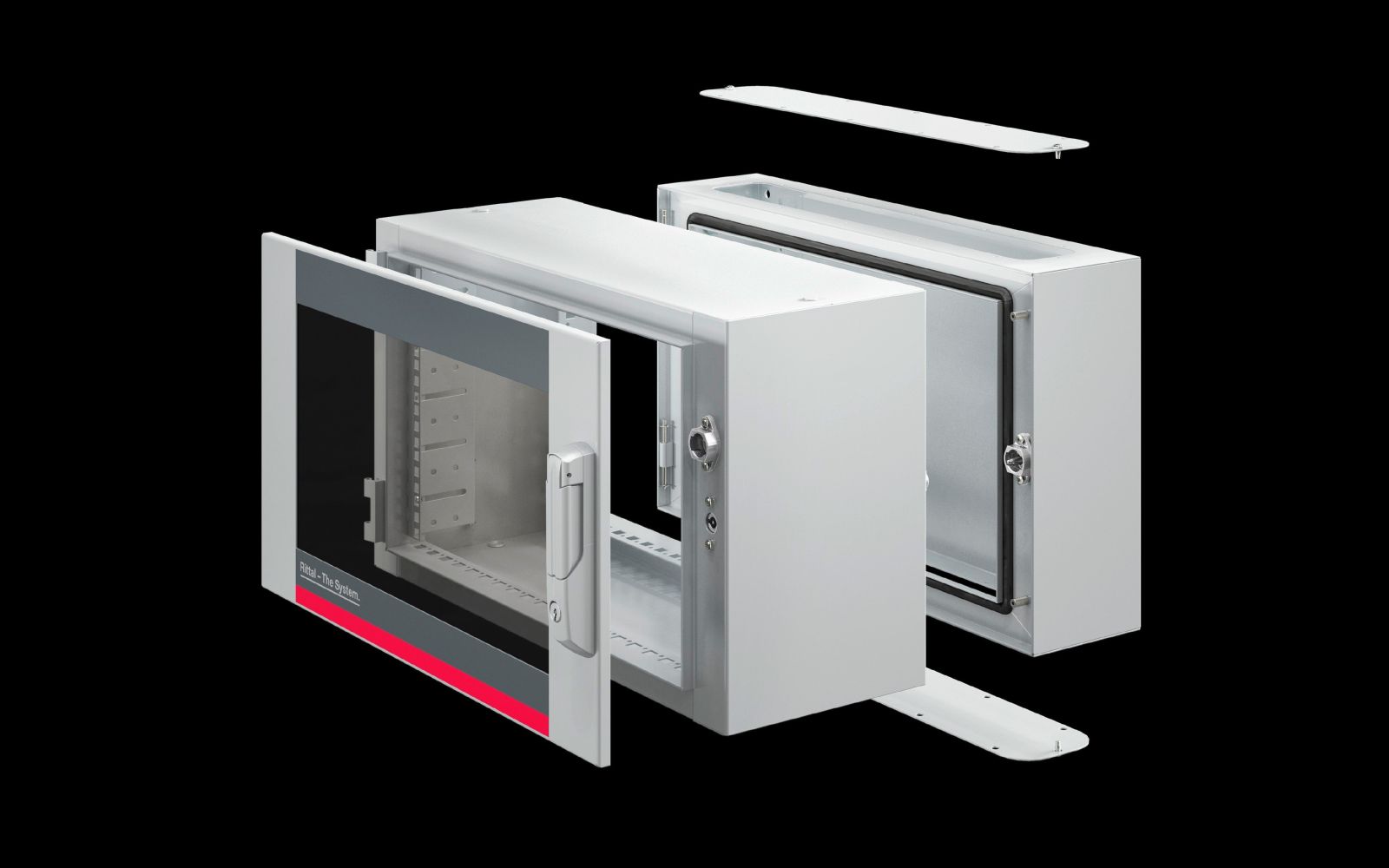

The Rittal AX 2260630 is a 3-piece wall-mounted enclosure of the IT series, designed for use in technical installations and IT infrastructures. It has a total height of 345 mm, a width of 600 mm, and a depth of 373 mm, with an installation depth of 320 mm. The enclosure provides space for 6 height units (HE) and is therefore suitable for mounting standard 48,3 cm ( 19 inch ) devices. The three-part construction consists of a wall section, a swing section, and a design viewing door, enabling easy access to installed components. The wall and swing sections are made of steel sheet with a thickness of 1.5 mm and are powder-coated in the colour RAL 7035. The viewing pane is made of 3 mm thick single-glazed safety glass and is finished in the colour RAL 7035/7015 (slate grey).

Applications
This enclosure is designed for indoor use, particularly in areas where secure and accessible mounting of IT and electrical equipment is required. The protection rating IP 54, achieved in combination with the closed gland plates at the top and bottom, protects against dust and splashing water, making it suitable even for slightly damp environments. Wall mounting allows for flexible placement on walls in server rooms, control rooms, or technical ancillary rooms.

Functions and Equipment in Detail

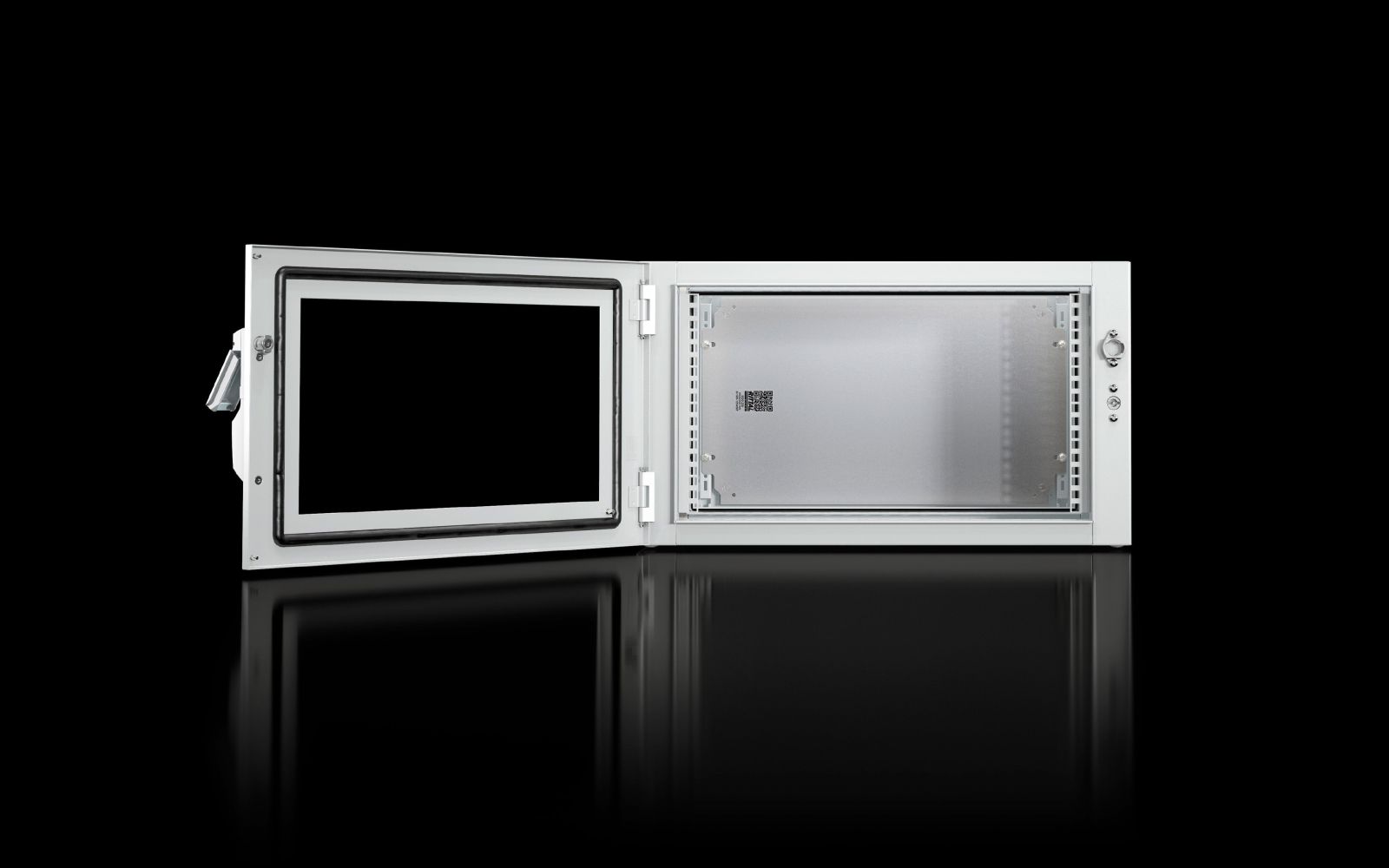

The swing section is equipped with a 25 mm hole raster in the front and rear frame, enabling flexible mounting of devices and accessories. Two 48,3 cm ( 19 inch ) profile rails are mounted at the front, providing a secure mounting option for IT and electronics equipment. The design viewing door is fitted with a mini comfort handle and a safety lock 3524 E, ensuring secure closure. The lock in the middle section is a 3 mm double bar, which securely closes the door. The gland plate on the wall section is closed at the top and bottom, supporting the IP 54 protection rating.

Technology Explained Simply
The static load capacity of the swing section is 300 N, equivalent to a load of approximately 30.6 kg, while the wall section has a load capacity of 100 N (approximately 10.2 kg). The clear dimensions are 502 mm in width and 284 mm in height, defining the effective mounting area for devices. The depth of the swing section is 216 mm, while the wall section has a depth of 135 mm. The powder-coated surface ensures high corrosion resistance and even colour application.

Compatibility and Accessories
The enclosure is part of the AX/VX system kit and can be extended with various accessories. These include, for example, 48,3 cm ( 19 inch ) fasteners, component shelves in various heights and colours, earthing rails, routing panels, C-profile rails, and mounting plates for terminal boxes. The viewing door can optionally be replaced with a mini comfort handle for half cylinder. Wall mounting is achieved via holes in the wall section, with suitable wall mounting brackets available.

Mounting and Installation
Installation is carried out by fixing the wall section to a wall using the designated holes. The swing section is attached to the wall section, with the profile rails and hole raster enabling device mounting. The design viewing door is attached to the swing section and secured with the lock. Installation does not require special tools, although a screwdriver and drill are necessary for wall mounting.

Operational Advantages
The three-part structure allows easy access to installed devices, enabling efficient maintenance and service work. The IP 54 protection rating provides high protection against dust and splashing water, increasing reliability in various environments. The powder-coated surface ensures long service life and resistance to environmental influences. The use of standard 48,3 cm ( 19 inch ) components ensures high compatibility with common IT and electronics equipment.

General
ModelWall-mounted IT enclosure
MaterialWall and swivel part: Sheet steel, 1.5 mm, viewing panel: Single-pane safety glass, 3 mm
Surface protectionPowder-coated
Colourwall and swivel part: RAL 7035, vision door: RAL 7035/7015 (slate grey)
Scope of deliveryWall section: closed flange plate, top and bottom, swivel section with 25 mm hole pattern in front and rear frame and two 19" profile rails, front, fixed installation, design vision door, locking middle section: 3 mm double bar, locking design vision door: safety lock 3524 E, mini comfort handle
Height units6 HE
Width600 mm
Height345 mm
Depth373 mm
Built-in depth320 mm
Light dimensionsClear width: 502 mm, clear height: 284 mm
Depth of swivel part216 mm
Depth of wall part135 mm
Number of locks1
Load capacity of swivel part (static)300 N
Load capacity wall part (static)100 N
Base materialsteel sheet
LockLocking system: Mini comfort handle, lock insert: Security lock insert No. 3524 E
Degree of protection IP according to EN 60 529IP 54 with flange plate closed top and bottom
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 2260630, EAN: 4028177982956
