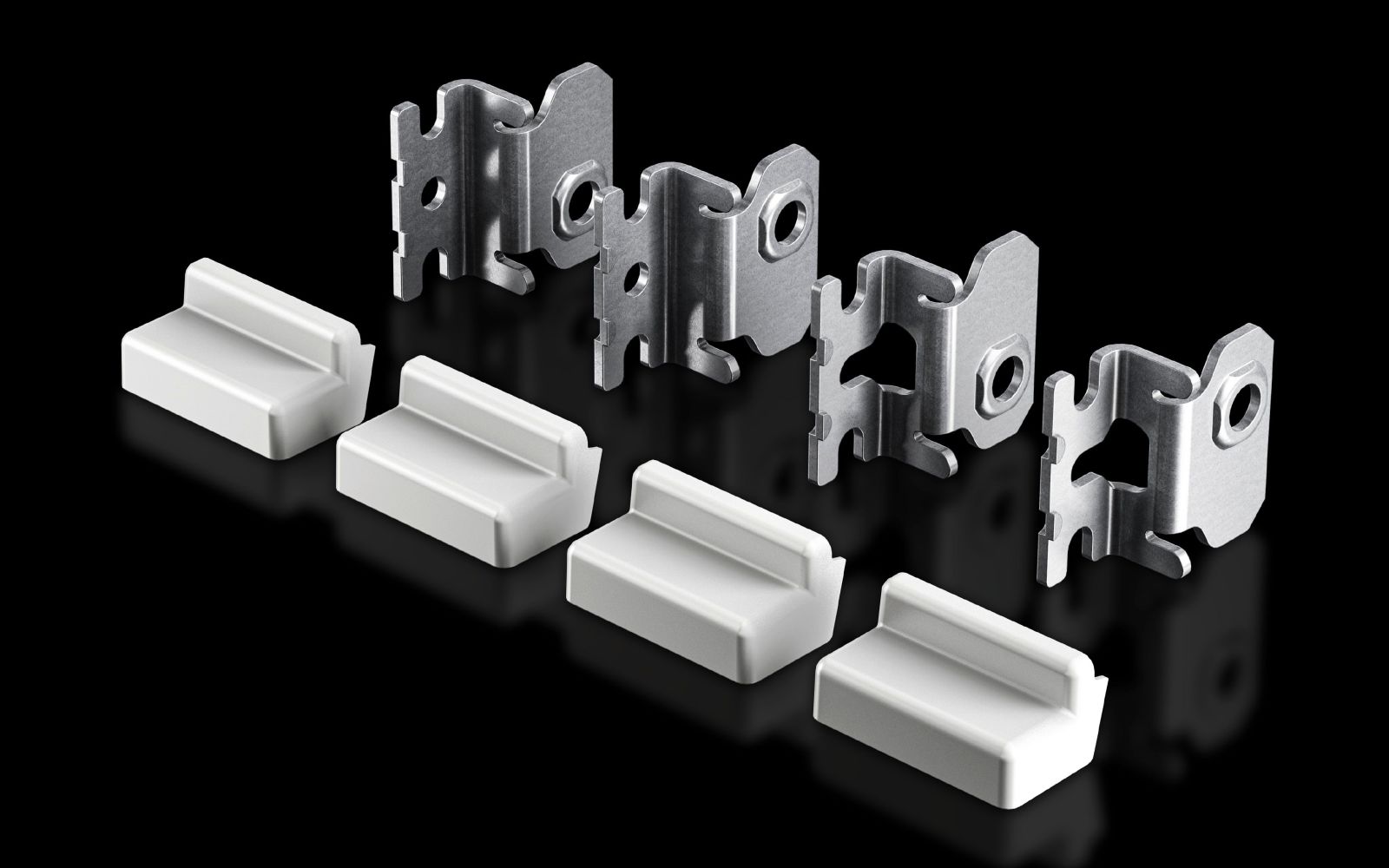

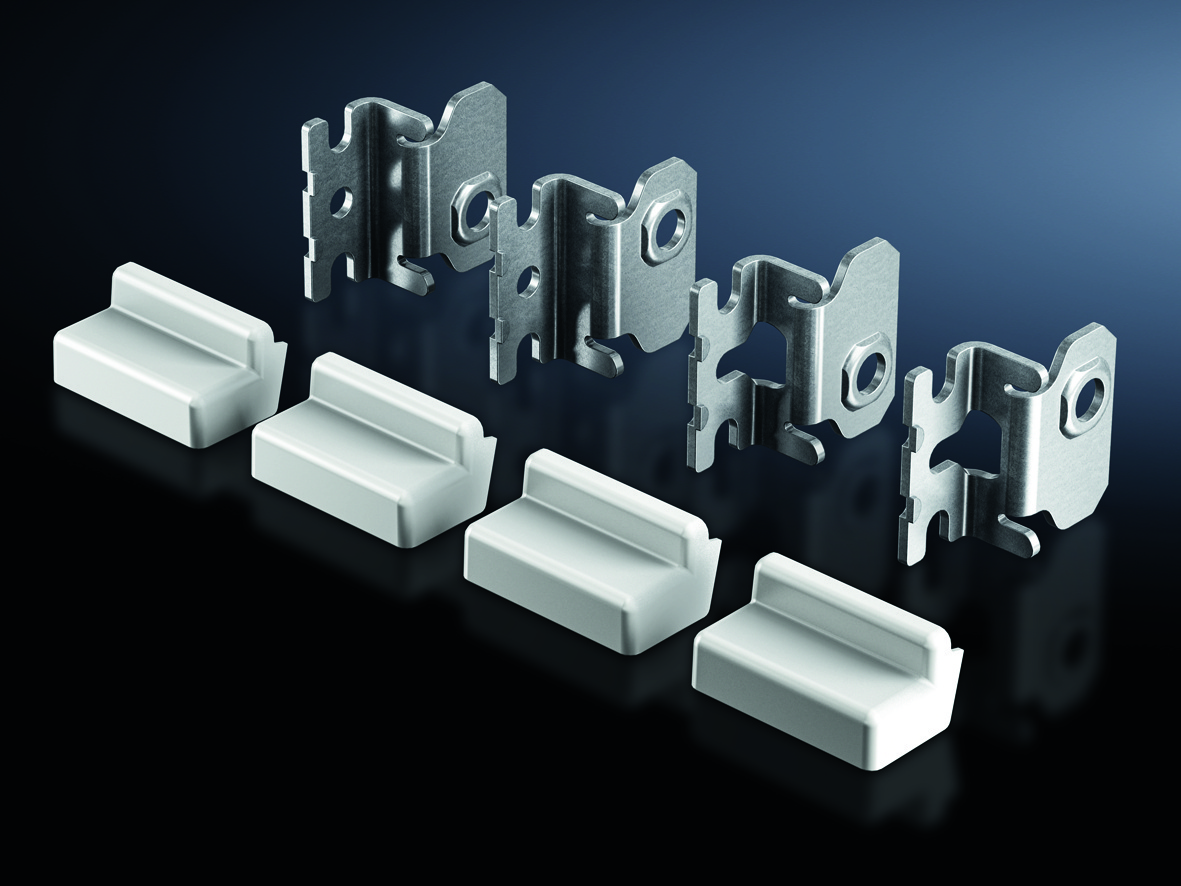

Rittal 2508020 SZ wall mounting holder AX,KX sheet steel pack of 4
|
13,57 EUR 13,64 EUR |
|
|
( 16,15 EUR incl. VAT ) ≈ £11.36 | ≈ $14.91 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >1000 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1598259 |
| Mfg Part No: | 2508020 |
| UPC/EAN: | 4028177938281 |
| Weight: | 0.44 kg |
| Type: | AX 2508020 |
Product information for Rittal 2508020:
Applications
The wall mounting bracket is used in industrial and technical installations where enclosures or cabinets need to be mounted on walls. It is particularly suitable for applications requiring quick and secure installation without the need for additional tools or multiple people. It is used in areas such as machine building, automation technology, building automation, and other environments where wall mounting of enclosures is common.
Functions and Equipment in Detail
The bracket is directly screwed into the aperture of the enclosure from the rear, using a self-tapping screw. Alternatively, it can also be mounted from the inside using a screw and nut, providing an additional installation option. A special feature is the ability to adjust the bracket to different mounting positions, allowing optimal adaptation to local conditions. For dynamic applications requiring additional stability, the bracket can be additionally secured with a nut. The delivery includes the wall mounting bracket, cover caps, and fastening material.
Technology Explained Simply
The galvanised steel sheet provides high mechanical strength and corrosion protection, ensuring the longevity of the bracket in industrial environments. The mounting is done via an aperture in the enclosure, creating a stable connection. The self-tapping screw allows for easy installation without pre-drilling, while the alternative with screw and nut offers a more precise and load-bearing connection. The fixed wall clearance of 20 mm ensures uniform alignment and prevents direct contact between the enclosure and the wall, reducing heat dissipation and mechanical stress.
Compatibility and Accessories
The bracket is compatible with enclosure types AX steel sheet, KX steel sheet, AX IT, EL, and wall enclosures AX in 3-piece configuration. Use is limited to these enclosure types, as the mounting interface is specifically designed for these constructions.
Mounting and Installation
Installation is performed by hanging the wall bracket onto a pre-installed screw in the wall. Subsequently, the bracket is either screwed from the rear into the enclosure aperture using a self-tapping screw, or secured from the inside using a screw and nut. The various mounting positions allow adaptation to different wall conditions. The cover caps serve to aesthetically close the mounting points.
Advantages in Operation
Using the wall mounting bracket reduces installation effort and enables quick, secure mounting of wall enclosures. The use of self-tapping screws reduces installation time, while the alternative with screw and nut offers higher load capacity. The adjustability to different mounting positions increases installation flexibility. The use of galvanised steel sheet ensures high mechanical stability and corrosion resistance, extending the product’s lifespan in industrial environments. Certification to UL 50E in types 1, 3R, 4, and 12 ensures suitability for use in various environments, including humid or dust-laden rooms.
| General | |
| Material | Sheet steel, galvanised |
| Scope of delivery | Wall mounting bracket, end caps, including fastening material |
| Wall distance | 20 mm |
| Suitable for | Enclosure type: AX steel sheet, KX steel sheet, AX IT, EL, wall enclosure AX, 3-piece |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 12 |
| PCF/VE (Cradle-to-Gate) | 1.7 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 2508020 SZ wall mounting holder AX,KX sheet steel pack of 4?
The article Rittal 2508020 SZ wall mounting holder AX,KX sheet steel pack of 4 is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 2508020 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 2508020 SZ wall mounting holder AX,KX sheet steel pack of 4 always at the best possible price. We can give you a discount of 2% on Rittal 2508020 SZ wall mounting holder AX,KX sheet steel pack of 4 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
