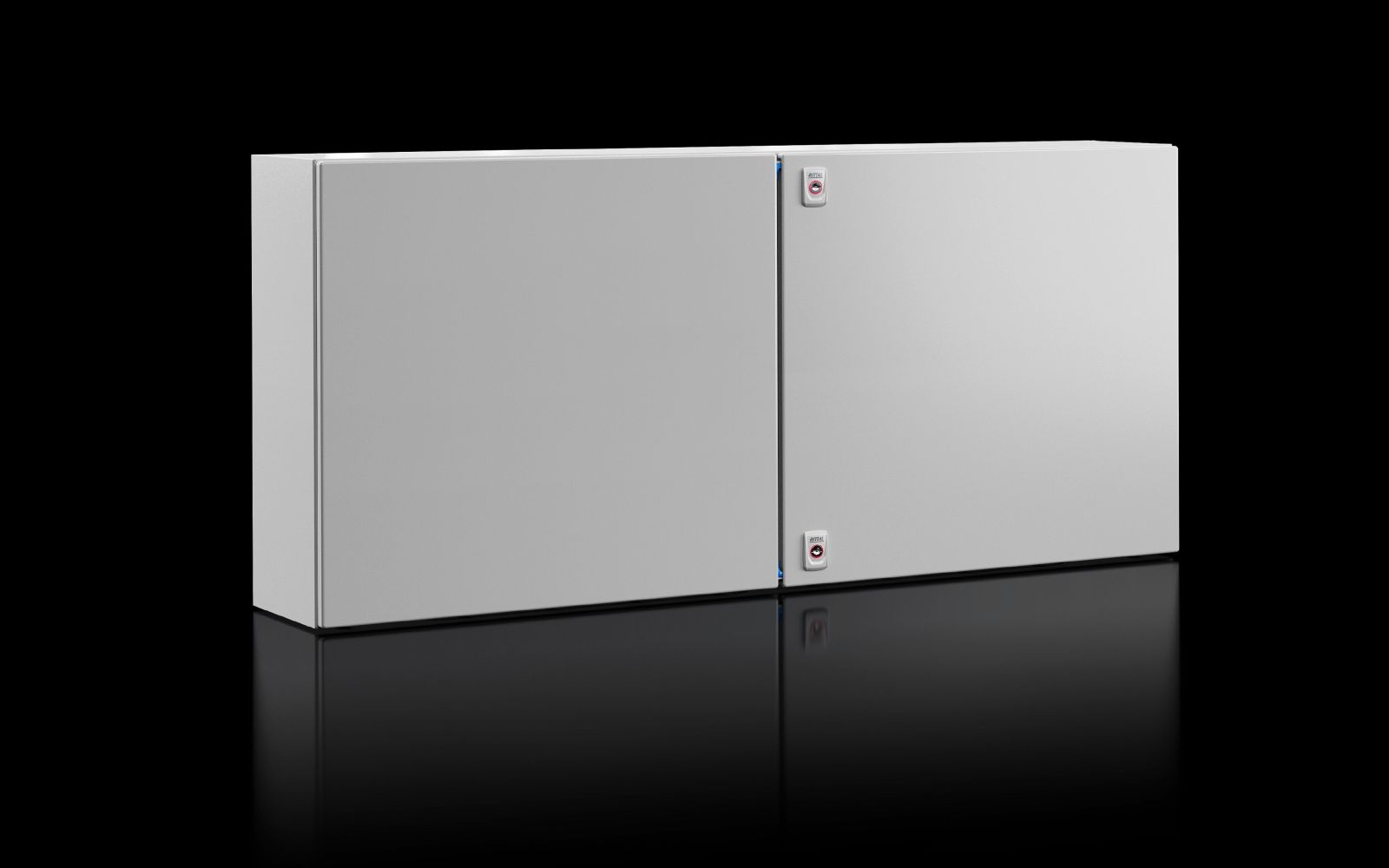

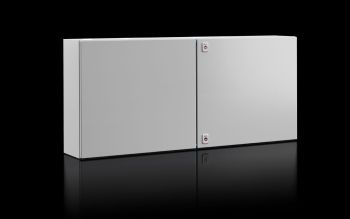

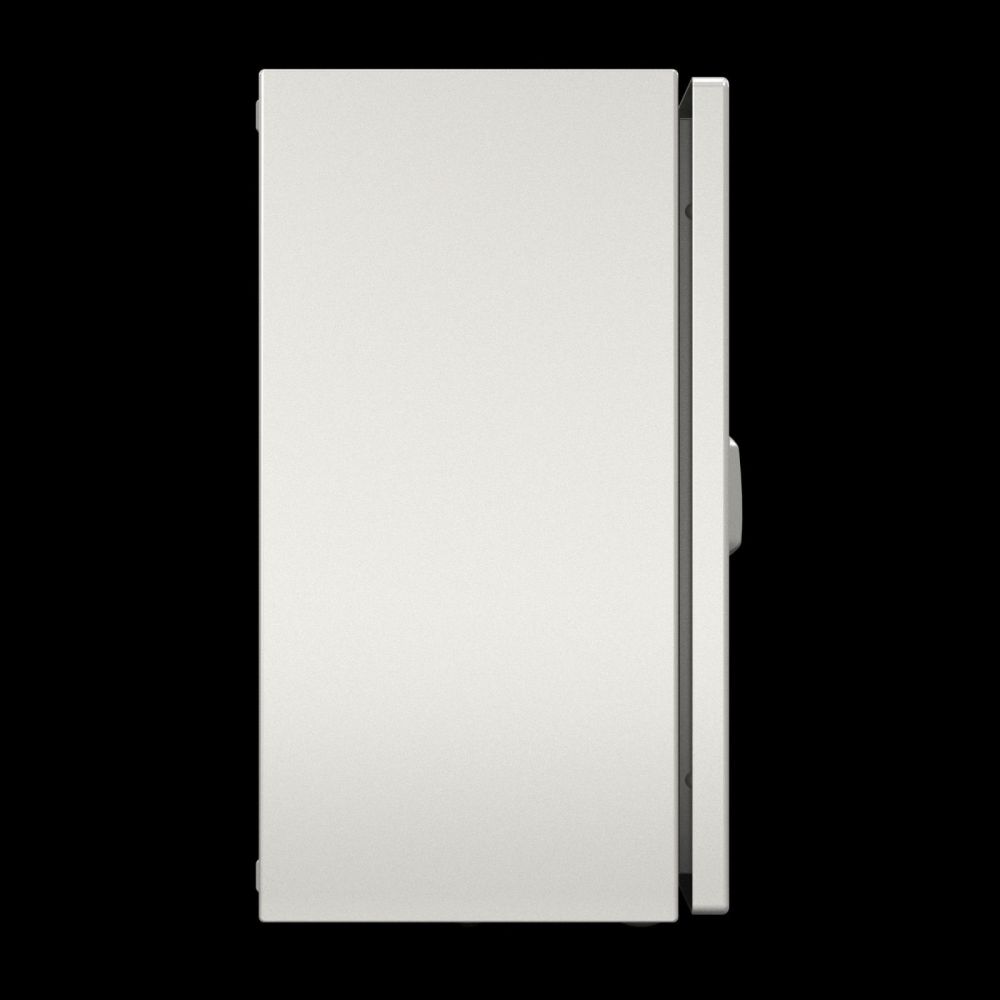

Rittal 1113000 AX compact enclosure steel sheet W x H x D 1200x600x300 mm
|
-10% 430,35 EUR 480,50 EUR |
|
|
( 512,12 EUR incl. VAT ) ≈ £360.20 | ≈ $472.95 plus delivery charges |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1247336 |
| Mfg Part No: | 1113000 |
| UPC/EAN: | 4028177995277 |
| Weight: | 51.317 kg |
| Type: | AX 1113000 |
Product information for Rittal 1113000:
Applications
This enclosure is designed for use in industrial environments where high mechanical strength and protection against dust and splashing water are required. Protection class IP 55 according to EN 60 529 protects against dust and splashing water from any direction, making it suitable for indoor and outdoor applications. UL approval as Type 1 and Type 12 enables use in the USA and Canada, particularly in environments with higher protection requirements. The IK10 rating ensures high protection against mechanical impacts, such as shocks or blows, making it suitable for areas with increased mechanical stress.
Functions and Equipment in Detail
The enclosure features two doors, each equipped with a latch lock. The locks are fitted with a 3 mm double-barrel lock insert according to DIN 43668, ensuring secure and reliable locking. The doors open up to 130° according to VDI, with an option for retrofitting to 180°. The mounting plate is secured with ring-welded nuts and provides a stable base for installing components. Two gland plates of size 7 are integrated into the enclosure base, allowing for the attachment of cable entry plates or other components. The door hole strip enables flexible mounting of accessories.
Technology Explained Simply

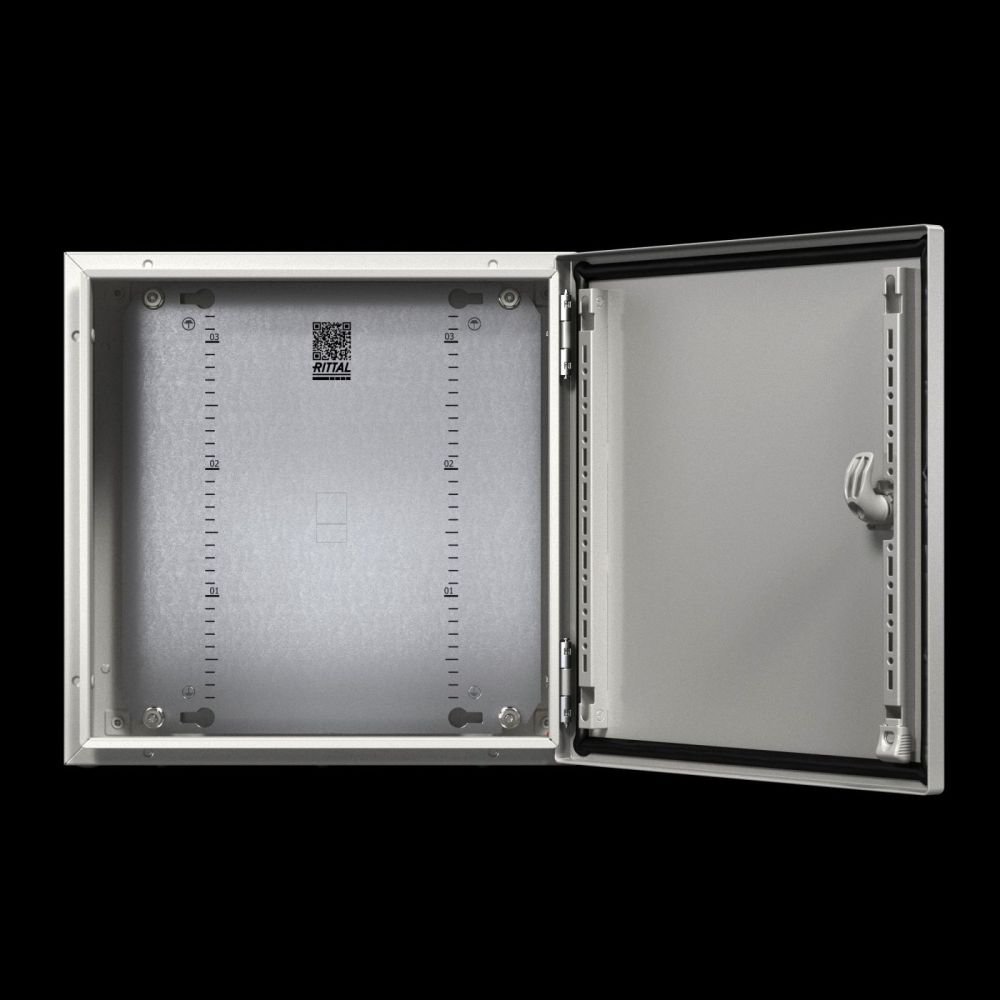

A key feature of the AX 1113000 is the integrated 25 mm system grid, realized through embossed enclosure lugs in the roof, base, and side panels. This system, derived from the VX25 large enclosure, allows for easy and quick installation of internal fitting systems such as rails and accessories without drilling. The base fitting rail provides an additional mounting level and increases load capacity. The surface treatment with nanoceramic coating, electrophoretic dip priming, and powder-coated textured lacquer ensures high corrosion resistance and longevity. Integrated QR codes on the enclosure, door, and nameplate enable unique identification and easy access to product information and documentation.
Compatibility and Accessories
The enclosure is compatible with a wide range of accessories, enabling individual adaptation to specific requirements. Compatible accessories include lock inserts made of zinc die-cast, lock box covers, wall mounting brackets, baying sets for AX, KX, AE, and KL, knob handles, handles with safety cylinder, plinth trim panels in various heights, plinth elements, multitools, and plastic handles. These components extend the functionality and customization options of the enclosure.
Mounting and Installation
Mounting is performed using the integrated gland plates in the enclosure base and the designated openings in the rear panel for wall mounting brackets. The mounting plate is included in the delivery scope and enables secure fastening of components. Internal fitting systems can be mounted without drilling onto the integrated enclosure lugs, simplifying planning and installation. Using the Rittal configurator RiPanel supports easy planning and configuration of the enclosure.
Operational Advantages
The AX 1113000 offers high mechanical stability and protection class, suitable for demanding industrial environments. The integrated enclosure lugs and 25 mm system grid enable flexible and quick adaptation to different fitting and retrofitting scenarios. The surface treatment ensures long service life and high resistance to chemical influences. The integrated QR codes facilitate traceability and maintenance of the enclosure. The combination of robust sheet steel, secure locks, and comprehensive accessories makes this enclosure a reliable solution for industrial applications.
| General | |
| Material | Housing: sheet steel, door: sheet steel, continuous foamed PU seal |
| Surface protection | Casing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized |
| Colour | RAL 7035 |
| Scope of delivery | Enclosure with door(s), flange plate(s) in enclosure base, mounting plate, door hole strip, locking: 3 mm double bar |
| Degree of protection IP according to EN 60 529 | IP 55 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK10 |
| Width | 1.200 mm |
| Height | 600 mm |
| Depth | 300 mm |
| Door material thickness | 2 mm |
| Plate thickness cabinet | 1,5 mm |
| Mounting plate material thickness | 2,5 mm |
| Mounting plate dimensions (W x H) | 1.145 mm x 575 mm |
| Number of doors | 2 |
| Number of locks | 2 |
| Lock | Closure type: push-in, closure insert: 3 mm double barb |
| Flange plate | Size: 7, quantity: 2 |
| Base material | steel sheet |
