Rittal 2567300 Plastic gland plate with membranes, for AX

Your rating:
Average rating
product review for Rittal 2567300 Plastic gland plate with membranes, for AX
( 4.3 / 5 ) 7 ratings
Rittal 2567300
This image may differ from the desired article.
Rittal 2567300Rittal 2567300Rittal 2567300
38,67 EUR 38,68 EUR
( 46,02 EUR incl. VAT )
≈ £32.37  |  ≈ $42.50
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 2567300 Plastic gland plate with membranes, for AX
Datasheet:file_download Download
Lieske Part No.:1598291
Mfg Part No: 2567300
UPC/EAN: 4028177935747
Weight:0.82 kg
Type:AX 2567300

Product information for Rittal 2567300:

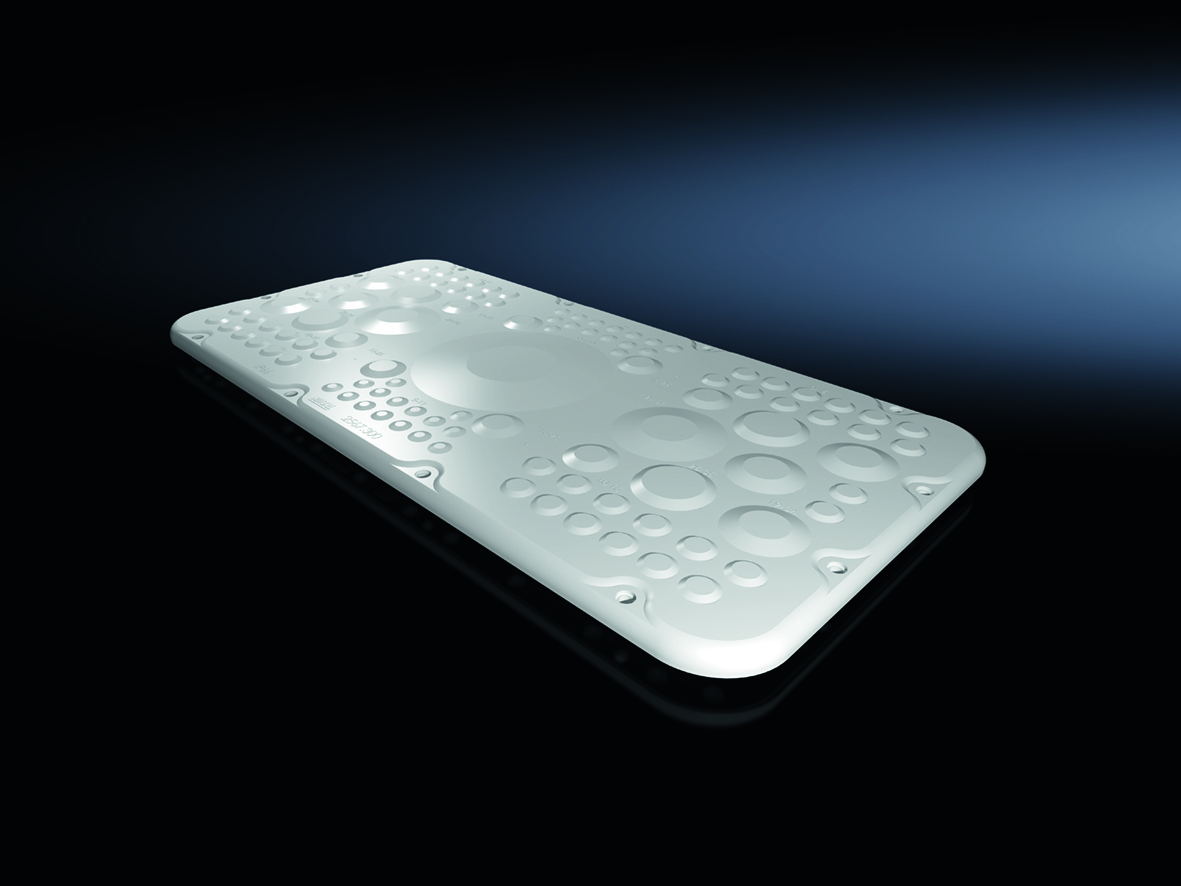

The Rittal AX 2567300 is a plastic gland plate for enclosures of type AX, specifically designed for secure and weather-resistant cable entry. The product serves as a gland plate size 7 and is supplied with integrated membranes that enable simple and clean cable passage. The gland plate has a width of 436 mm and a depth of 221 mm, ensuring precise fit into designated enclosure openings. The material corresponds to plastic according to UL 94-V0, guaranteeing a high flame protection class and self-extinguishing properties. The colour is similar to RAL 7035, a grey tone commonly used in industrial environments.

Applications

The gland plate is intended for use in industrial enclosures, particularly in environments subject to high mechanical stress, dust, or moisture. It is suitable for installations in the manufacturing industry, energy supply, or machine building, where reliable cable supply and protection of electrical components are required. The protection rating IP 66 when installed correctly ensures dust-tight and water-tight shielding, making it suitable for outdoor use as well. The type rating according to UL 50E includes Type 1 and Type 12, indicating suitability for indoor use with limited dirt exposure and environments with splashing water.

Functions and Equipment in Detail

The gland plate features a variety of pre-formed cable entries, dimensioned according to different cable diameters. The number and diameters of the openings are as follows: 30 x 5–11 mm, 52 x 10–15 mm, 8 x 15–25 mm, 6 x 19–34 mm, 4 x 26–35 mm, 2 x 26–54 mm, and 1 x 50–110 mm. The integrated membranes allow for easy installation: the plastic material can be pierced with a pointed tool, and the cable is pulled through. This process is quick and requires no additional tools. The membranes ensure that the IP 66 protection rating is maintained, as long as the cables are correctly inserted and the membranes are not damaged.

Technology Explained Simply

The IP 66 protection rating means the gland plate is completely dust-tight and protected against strong splashing water. This is particularly important to protect electrical components inside the enclosure from contamination and moisture. The UL 50E Type 1 and Type 12 certification refers to the American standard for enclosures and confirms that the product is suitable for indoor use, with Type 12 meeting additional protection requirements against splashing water and dirt. The material UL 94-V0 is a flame-retardant plastic that self-extinguishes quickly when heated, reducing fire hazards in electrical installations.

Compatibility and Accessories

The gland plate is specifically designed for enclosure type AX and fits into corresponding enclosures equipped with gland plates of size 7. The assignment of gland plate size follows the specifications of the respective enclosures. The gland plate is delivered as a single unit without additional mounting accessories.

Mounting and Installation

Installation is performed by inserting cables through the pre-formed openings, where the integrated membranes are pierced with a pointed tool. The gland plate is inserted into the designated opening in the enclosure and secured. Proper installation is essential to ensure the IP 66 protection rating.

Operational Advantages

The gland plate provides fast and secure cable supply without requiring additional tools or components. The integrated membranes ensure a permanent seal that maintains the IP 66 protection rating. The high flame protection class UL 94-V0 enhances safety in electrical installations. The standardized size and fit for AX enclosures simplify planning and installation in industrial environments.

General
MaterialPlastic according to UL 94-V0
ColourSimilar to RAL 7035
NoteThe assignment of flange plate size can be found with the respective enclosures
Width436 mm
Depth221 mm
Suitable forHousing type: AX
Flange plateSize: 7
Degree of protection IP according to EN 60 529IP 66 when installed correctly
Type rating according to UL 50EType 1, Type 12
Number of cable entries and Ø (mm) min.-max.30 x 5-11, 52 x 10-15, 8 x 15-25, 6 x 19-34, 4 x 26-35, 2 x 26-54, 1 x 50-110


Product data sheet
Datasheet for Rittal 2567300, EAN: 4028177935747

Questions & answers

What is the delivery time of Rittal 2567300 Plastic gland plate with membranes, for AX?

The article Rittal 2567300 Plastic gland plate with membranes, for AX is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 2567300 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 2567300 Plastic gland plate with membranes, for AX always at the best possible price. We can give you a discount of 2% on Rittal 2567300 Plastic gland plate with membranes, for AX if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
