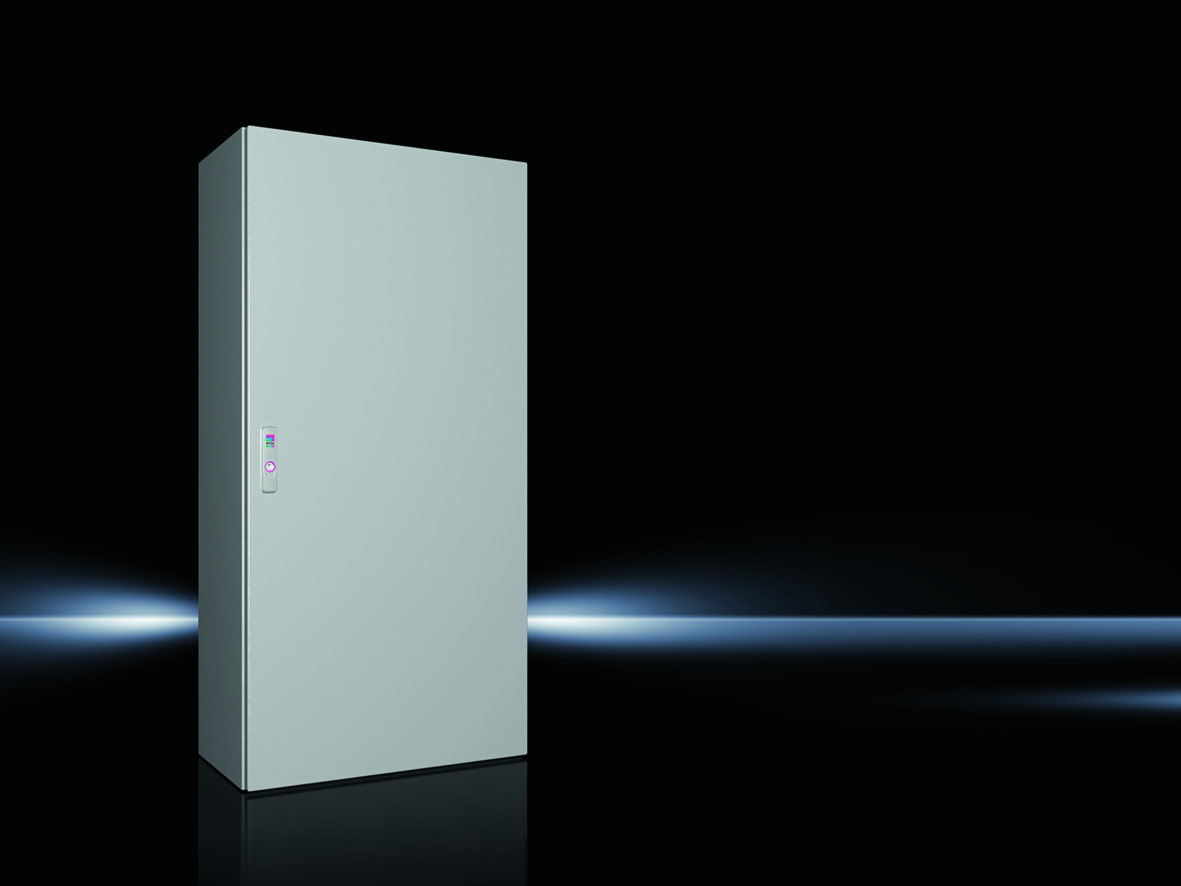

Rittal 1260000 Compact enclosure AX, 1-door, 600x1200x300 mm,
|
251,05 EUR |
|
|
( 298,75 EUR incl. VAT ) ≈ £210.13 | ≈ $275.90 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1598154 |
| Mfg Part No: | 1260000 |
| UPC/EAN: | 4028177813274 |
| Weight: | 50 kg |
| Type: | AX 1260000 |
Product information for Rittal 1260000:
Applications
This enclosure is suitable for use in industrial environments where a high mechanical and environmental protection class is required. It is suitable for indoor and outdoor use, as it has protection rating IP 66 according to EN 60 529, meaning dust-tight and water-tight. The protection ratings NEMA 1, NEMA 3R, NEMA 4 and NEMA 12, as well as the type rating according to UL 50E (Type 1, Type 3R, Type 4, Type 12), allow use in various environments, including humid or dusty rooms. The IK code IK10 guarantees high protection against mechanical impacts, such as shocks or vibrations.
Functions and equipment in detail
The enclosure features integrated enclosure lugs in a 25 mm system grid, arranged in the roof, base and side panels. These allow flexible and tool-free mounting of internal components, such as rails and accessories, without drilling. The base mounting rail provides an additional mounting level and increases load capacity. The door is fitted with an interchangeable hinge system, allowing the door swing direction to be changed from right to left. The 3-point locking system with a 3 mm double bar lock insert ensures secure closure.
Technology explained simply
The integrated enclosure lugs in the 25 mm grid enable modular and flexible internal fitting. System components such as rails or mounting brackets can be mounted without drilling, preserving the protection rating (UL approval). The PU seal ensures a tight seal against dust and water, supporting the IP 66 protection rating. The powder-coated surface provides corrosion protection and is resistant to mineral oils. The mounting plate with keyhole slots allows secure earthing of installed devices.
Compatibility and accessories
The enclosure is compatible with an extensive range of system accessories. Suitable accessories include lock inserts made of zinc die-cast, wall mounting brackets made of sheet steel, VX system chassis, dust protection strips made of UV-resistant plastic, baying sets for AX, KX, AE, KL, TS, mounting brackets for internal mounting level, plinth trim panels in various heights, and mounting brackets for VX, TS, VX SE, TP, AX. These components extend the functionality and adaptability of the enclosure.
Mounting and installation
Mounting is done via the integrated enclosure lugs and the base mounting rail. Rails can be mounted without drilling, reducing installation time and maintaining the protection rating. The gland plate in the enclosure base allows secure fastening to a wall or floor. The mounting plate is fitted with keyhole slots to ensure secure earthing of installed devices.
Advantages in operation
The enclosure offers high flexibility in internal fitting thanks to the 25 mm system grid. Tool-free mounting of accessories reduces installation time. The IP 66 protection rating and IK10 code ensure high reliability in demanding environments. The integrated enclosure lugs allow easy retrofitting and adaptation to changing requirements. The powder-coated surface provides long-term corrosion protection. Using the Rittal configurator RiPanel simplifies planning and configuration of the enclosure.
| General | |
| Material | Housing: sheet steel, door: sheet steel, continuous foamed PU seal |
| Surface protection | Casing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized |
| Colour | RAL 7035 |
| Scope of delivery | Enclosure with door(s), flange plate(s) in enclosure base, mounting plate, door hole strip, locking: 3 mm double bar |
| NEMA degree of protection | NEMA 1, NEMA 3R, NEMA 4, NEMA 12 |
| Degree of protection IP according to EN 60 529 | IP 66 |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 12 |
| IK code | IK10 |
| Width | 600 mm |
| Height | 1.200 mm |
| Depth | 300 mm |
| Door material thickness | 2 mm |
| Plate thickness cabinet | 1,5 mm |
| Mounting plate material thickness | 2,5 mm |
| Mounting plate dimensions (W x H) | 545 mm x 1.175 mm |
| Number of doors | 1 |
| Lock | Closure type: 3-point locking system, number of closures: 1, closure insert: 3 mm double barb |
| Flange plate | Size: 7, Quantity: 1 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 165.39 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
| Reversible door hinge | |
