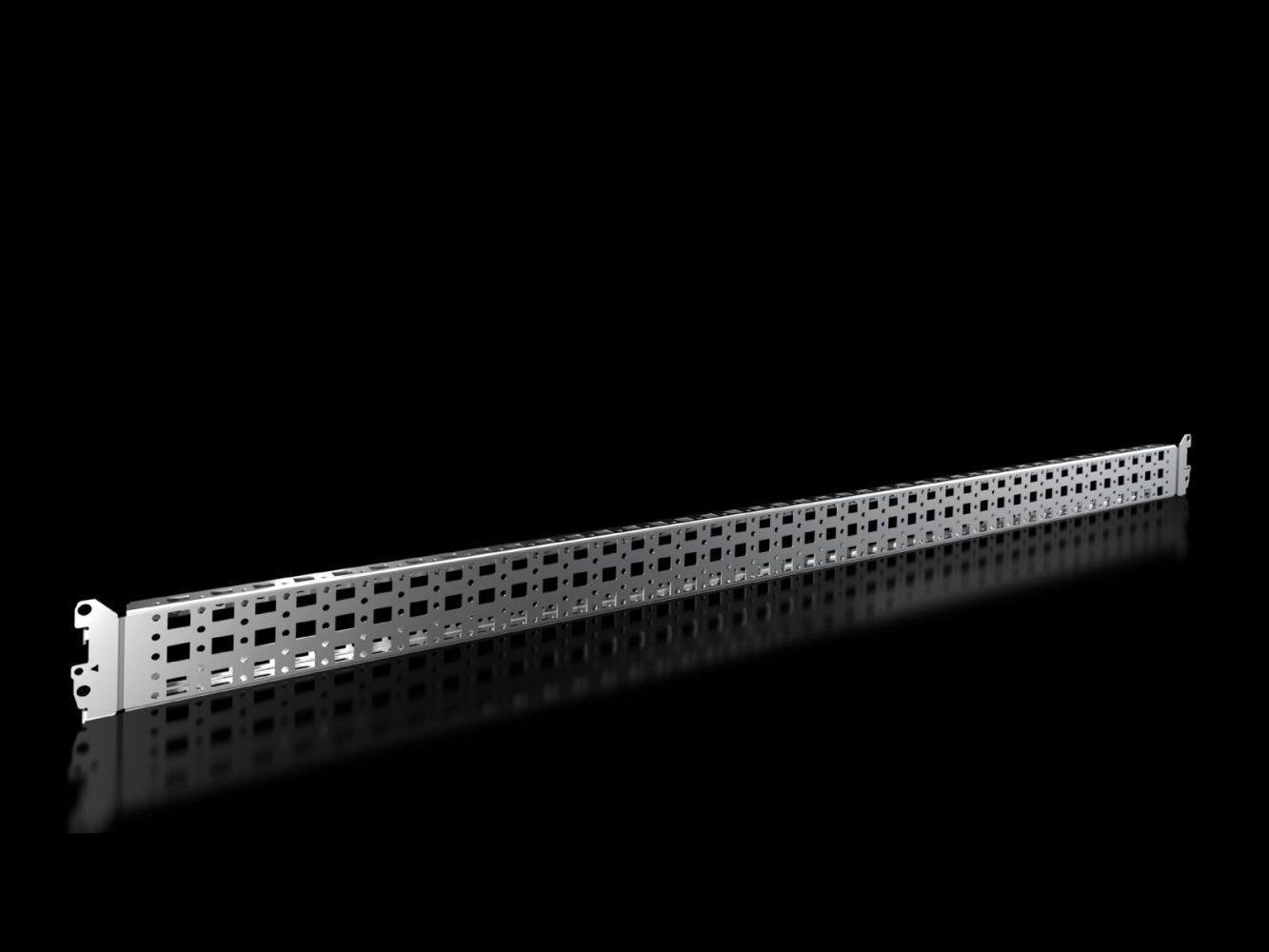

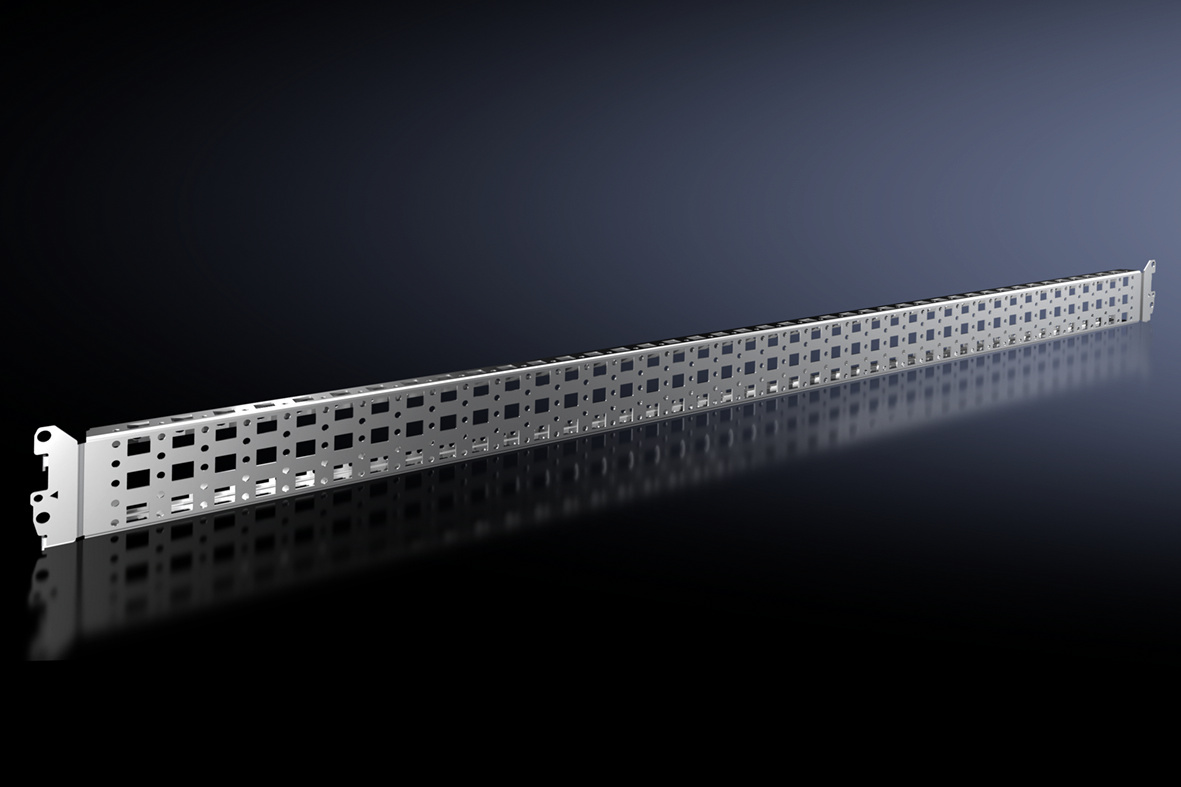

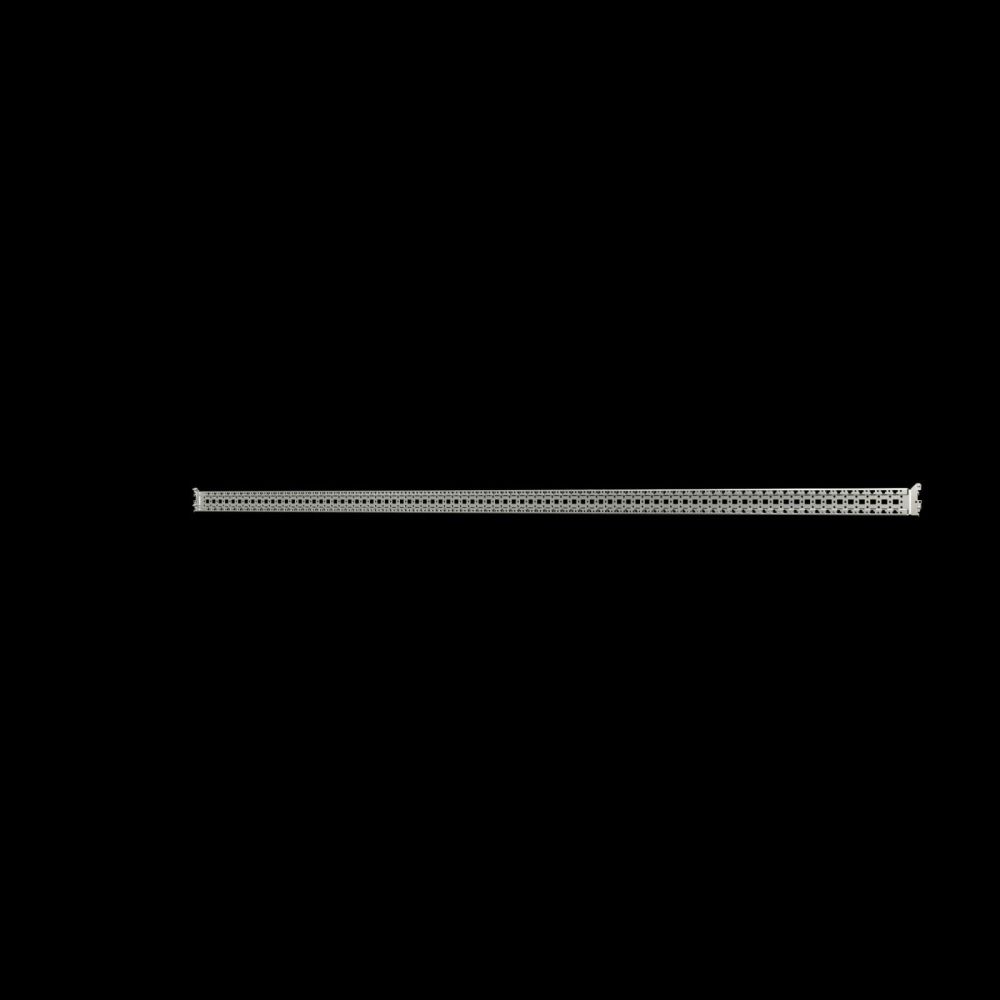

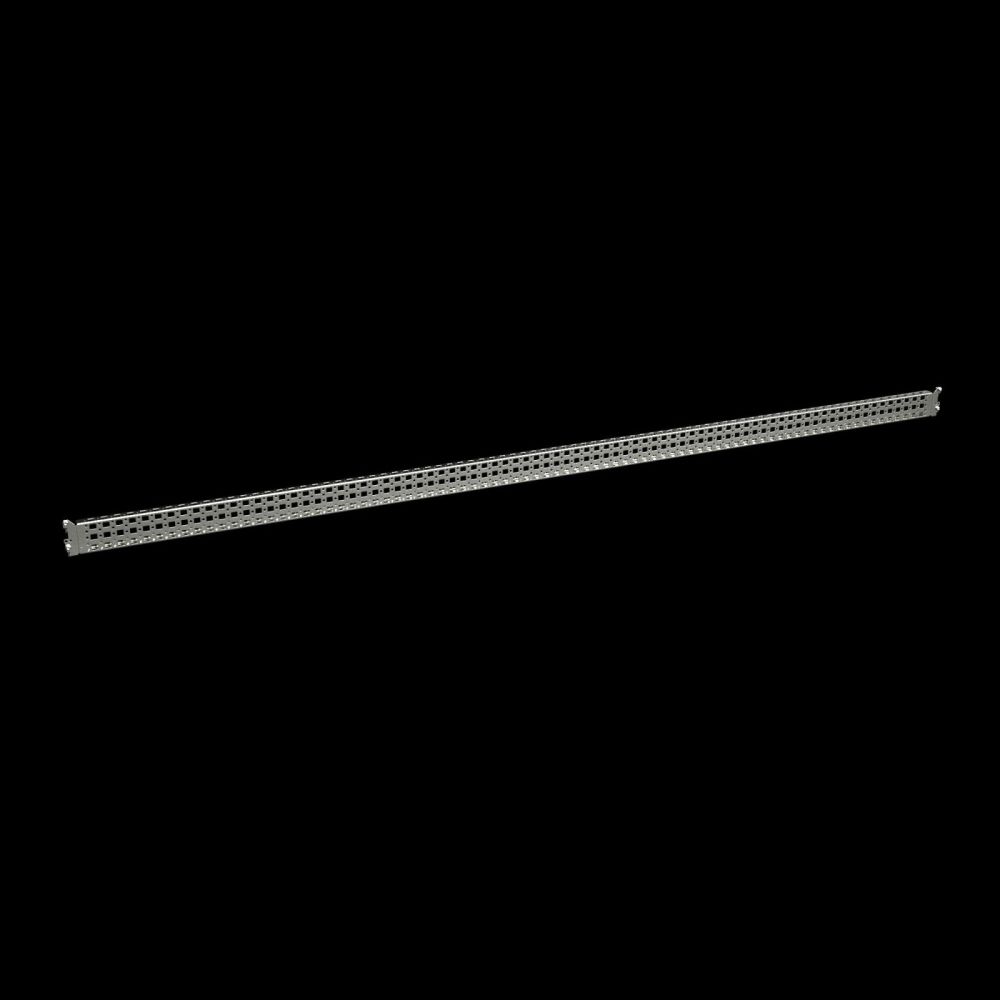

Rittal 8617160 VX system chassis 23 x 64 mm W x H x D: 1200 mm
|
100,26 EUR |
|
|
( 119,31 EUR incl. VAT ) ≈ £83.92 | ≈ $110.19 plus delivery charges: 100,00 € |
|
| Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1441091 |
| Mfg Part No: | 8617160 |
| UPC/EAN: | 4028177829169 |
| Weight: | 5.12 kg |
| Type: | VX 8617.160 |
Product information for Rittal 8617160:
Applications
The system chassis is used in industrial enclosures where flexible mounting of modules, controls, or other electrical units is required. It is particularly suitable for compact enclosures, where space must be used optimally. Installation options include enclosures with a width, height, or depth of 1,200 mm, with mounting on the inner mounting plane. In VX SE enclosures, it can additionally be mounted on the floor if a adapter rail for VX compatibility is used. For AX enclosures, mounting is possible in combination with an interior fitting rail and a floor fitting rail. For AX stainless steel enclosures, mounting is also performed in combination with the floor fitting rail. For VX plinth systems, the chassis can be mounted on plinth trim panels if plinth fitting angles are used.
Functions and Equipment in Detail
The chassis features system perforation on all four sides, enabling easy and quick mounting into the existing perforation of the enclosure frame. Mounting is done by inserting into the perforation and then screwing in place. At the top and bottom, special perforations for cage nuts are integrated, allowing users to mount their own components using metric screws. This construction provides a stable and secure mounting option for additional components. The material, sheet steel with a galvanized surface, ensures high mechanical stability and corrosion protection, which is important for industrial environments.
Technology Explained Simply
The designation System-Chassis 23 x 64 mm describes the dimensions of the mounting flanges, which fit into the system perforation of the enclosure frame. The perforation is standardized and allows universal mounting without additional modifications. The galvanized surface protects the sheet steel from corrosion, extending the service life of the chassis in damp or aggressive environments. The integrated cage nut perforations at the top and bottom edges offer flexible mounting options for various components, without requiring additional mounting elements.
Compatibility and Accessories
The chassis is compatible with enclosure types VX, VX IT, VX SE, and AX. It can be mounted in enclosures with a width, height, or depth of 1,200 mm. As accessories, cable ties with a length of 150 mm and universal angles for AX plastic enclosures are available, enabling additional mounting or fastening. These elements can be combined according to the user's requirements to make the mounting flexible and adaptable.
Mounting and Installation

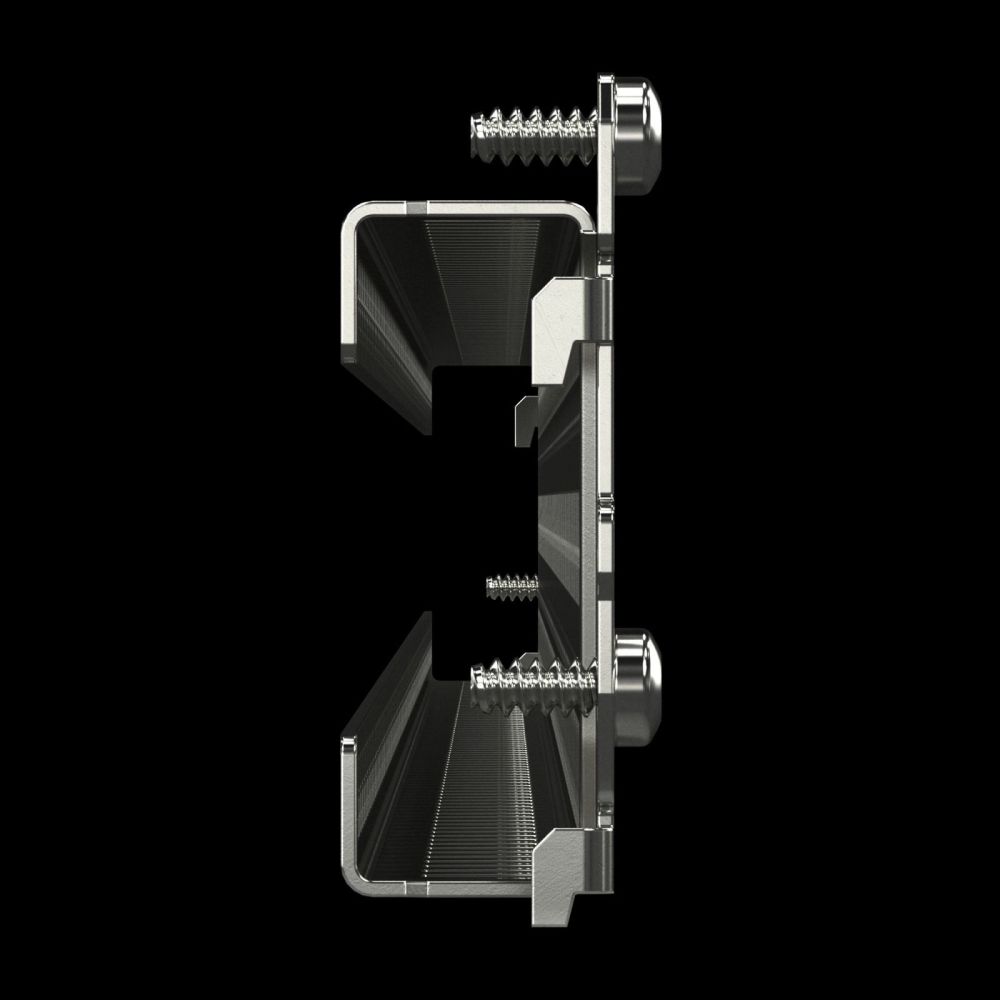

Installation is done by inserting the chassis into the system perforation of the enclosure frame and then screwing it in place. Positioning occurs on the inner mounting plane, with the exact mounting height varying depending on the enclosure type and requirements.
Advantages in Operation
The system chassis provides a flexible and stable mounting base for electrical components within enclosures. The integrated system perforation and cage nut perforations enable quick and secure fastening, reducing mounting time. The use of sheet steel with a galvanized surface ensures high mechanical strength and corrosion resistance, increasing reliability in industrial applications. Compatibility with various enclosure types and the ability to mount the chassis in different positions increases adaptability to individual requirements. The delivery in a pack of 4 pieces enables efficient fitting of larger enclosures.
| General | |
| Material | steel sheet |
| Surface protection | Zinc-plated |
| Scope of delivery | Including mounting hardware |
| Mounting options VX | in cabinet width/height/depth 1200 mm, on inner mounting plane |
| Mounting options VX SE | In cabinet width 1200 mm, on the inner mounting plane, in combination with adapter rail for VX compatibility and in floor |
| Mounting options AX | In cabinet width/height 1200 mm, in combination with the rail for indoor installation AX and floor installation rail for AX |
| Mounting options AX stainless steel | In cabinet height/width 1200 mm, in combination with floor mounting rail |
| Mounting options VX socket | In base width/depth 1200 mm on the base panels, in combination with base mounting angle |
| Suitable for | Cabinet type: VX, VX IT, VX SE, AX, Suitable for width or height or depth: 1,200 mm |
| PCF/VE (Cradle-to-Gate) | 26,59 |
Questions & answers
What is the delivery time of Rittal 8617160 VX system chassis 23 x 64 mm W x H x D: 1200 mm?
The article Rittal 8617160 VX system chassis 23 x 64 mm W x H x D: 1200 mm is currently in stock
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8617160 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 8617160 VX system chassis 23 x 64 mm W x H x D: 1200 mm always at the best possible price. We can give you a discount of 2% on Rittal 8617160 VX system chassis 23 x 64 mm W x H x D: 1200 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
