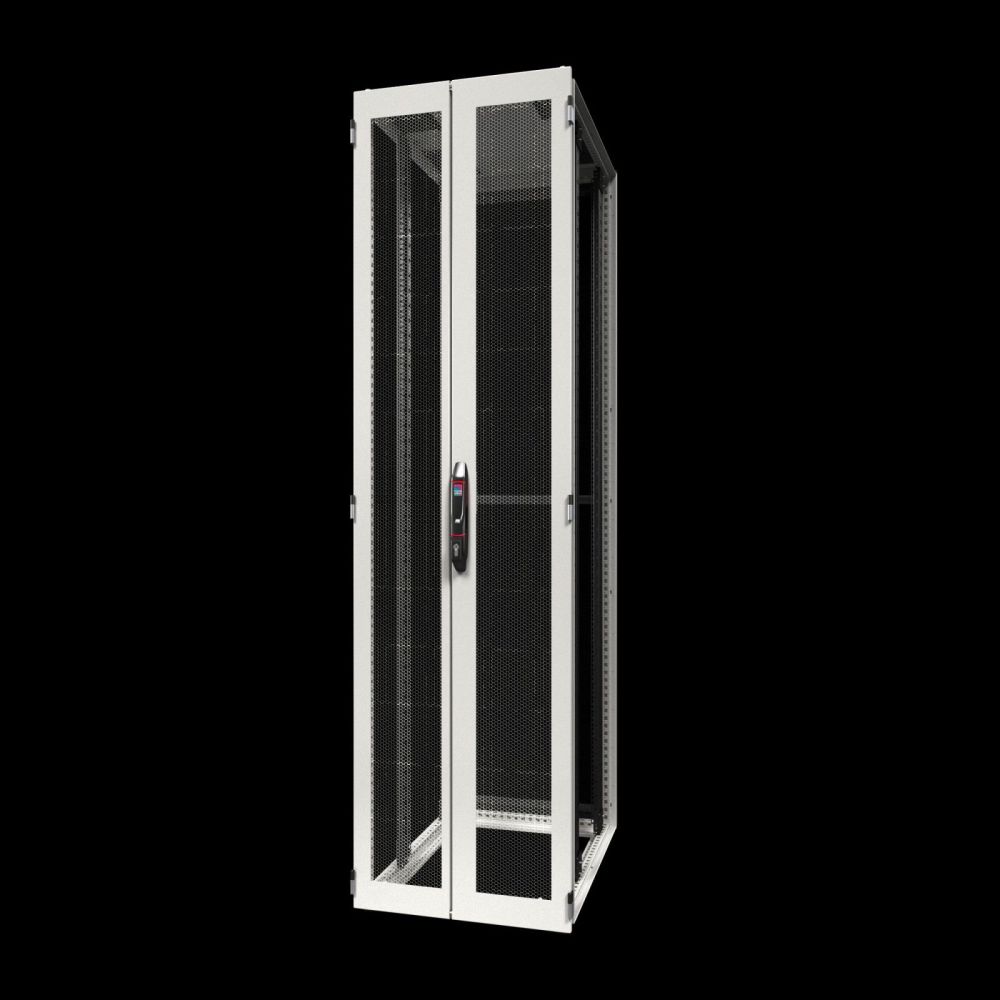

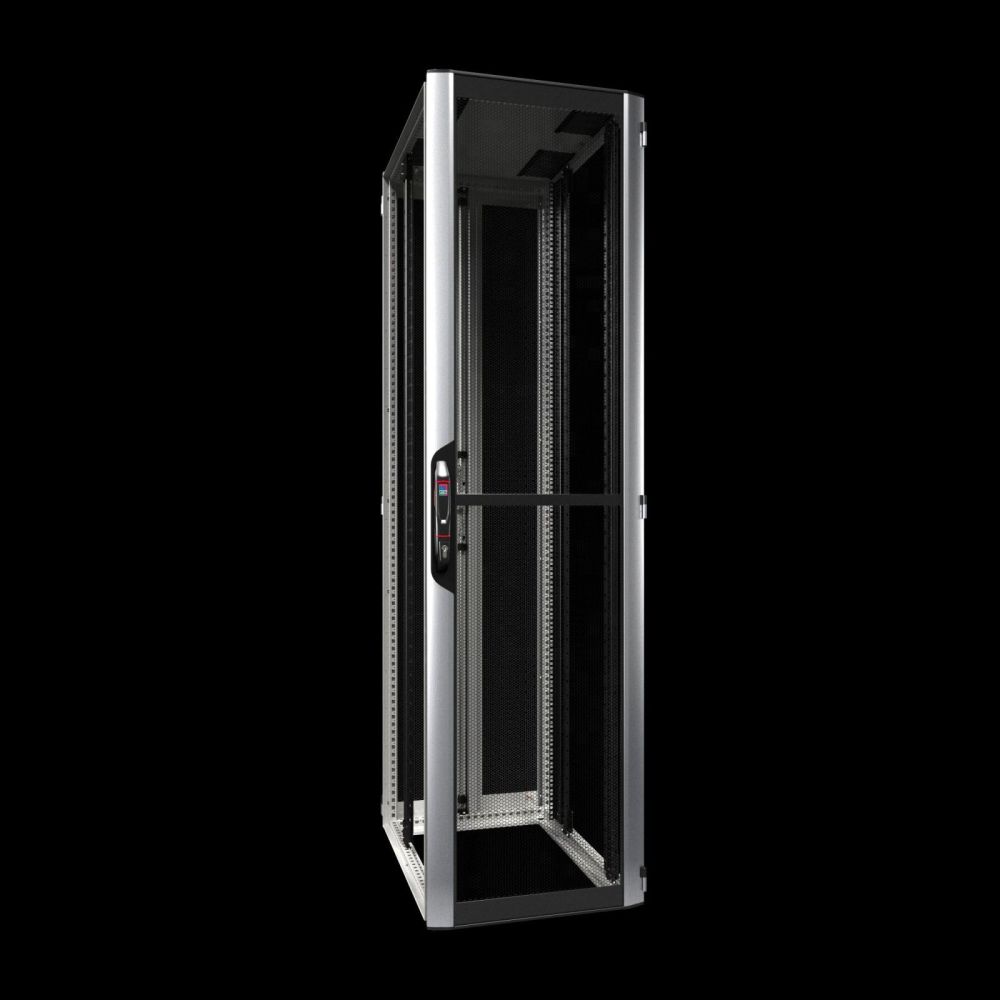

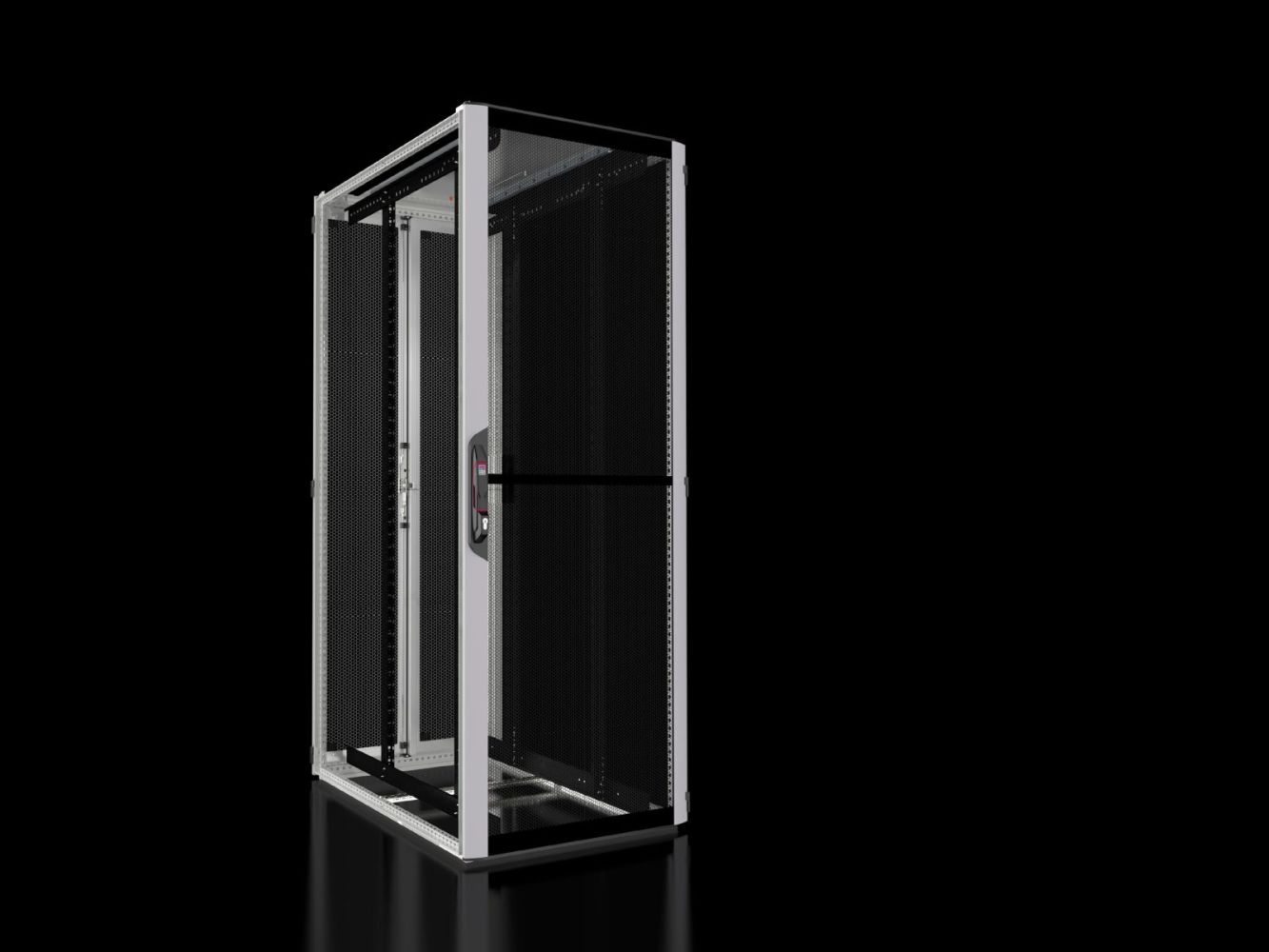

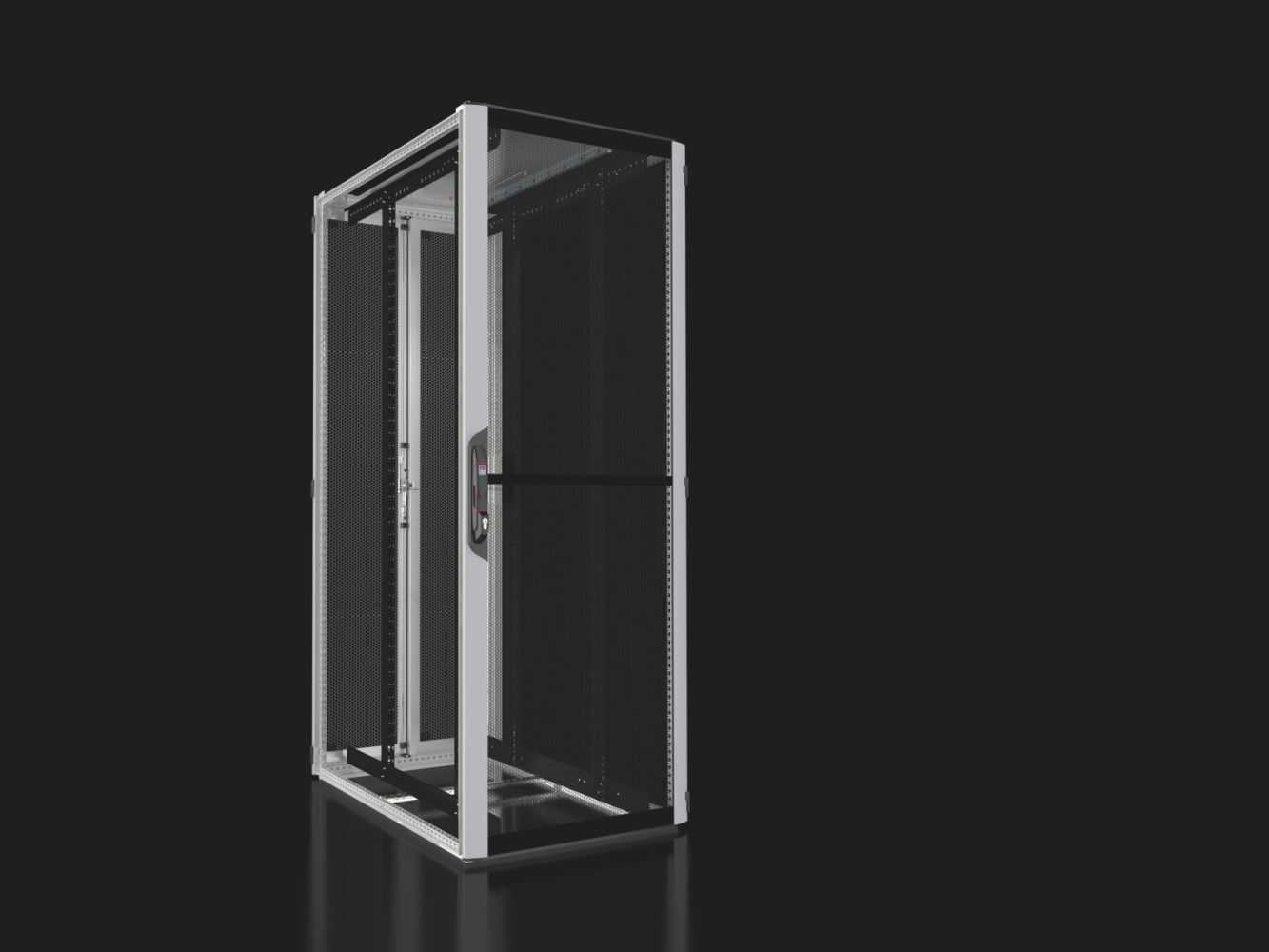

Rittal 5316116 Server rack VX IT ventilated 800x2200x1200 mm 47 U (freight shipping)
|
1.613,57 EUR |
|
|
( 1.920,15 EUR incl. VAT ) ≈ £1,350.56 | ≈ $1,773.31 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: 2 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1775807 |
| Mfg Part No: | 5316116 |
| UPC/EAN: | 4028177945388 |
| Weight: | 123 kg |
| Type: | VX 5316116 |
Product information for Rittal 5316116:
Applications
The rack is designed for use in server and network environments, particularly in rooms with climate control. The ventilated construction supports passive cooling of IT devices and ensures efficient air circulation. The configuration with 48,3 cm ( 19 inch ) profile rails enables mounting of standard IT and network devices. The open floor construction offers flexibility for installation and integration into existing floor structures.
Functions and Equipment in Detail
The rack features a frame structure made of sheet steel, dip-primed, ensuring high corrosion resistance. The interior construction is painted, while the rear door and roof are dip-primed and powder-coated. The front door is made of aluminium with a thickness of 1.25 mm and is anodized/painted, while the rear door is made of sheet steel with a thickness of 1.5 mm. The colour scheme is RAL 7035 for the enclosure frame, rear door, and roof, while the front door features vertical silver profiles and horizontal profiles in RAL 9005. The interior construction and ventilation grilles at the front, as well as the handle and hinges, are in RAL 9005. The mounting clearances are 150 mm at the front and 330 mm at the rear to the 48,3 cm ( 19 inch ) plane, providing sufficient space for cables and mounting accessories. The 48,3 cm ( 19 inch ) mounting is secured to depth braces at the top and bottom, as well as to the support rail on the frame structure.
Technology Explained Simply

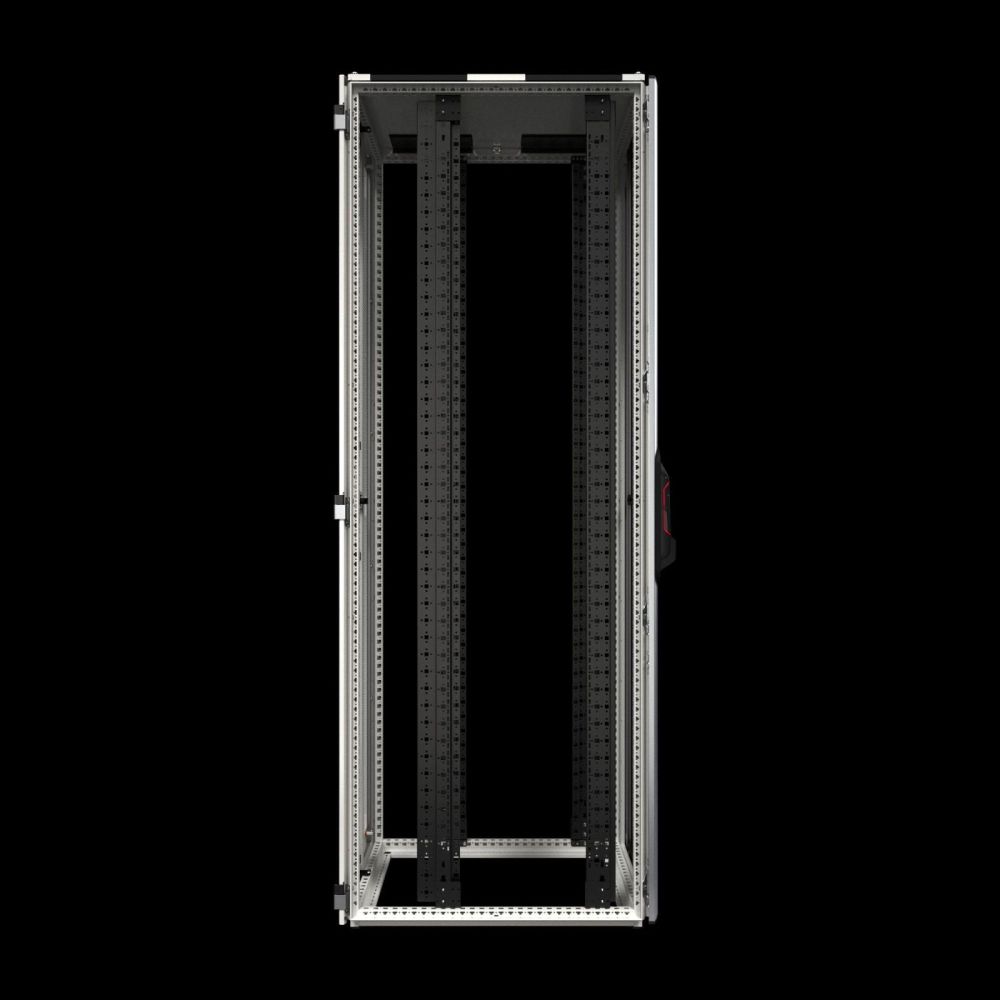

The 48,3 cm ( 19 inch ) profile rails are depth-variable, allowing flexible mounting of devices in various installation positions. The spacing between levels in the delivered state is 720 mm, enabling standardised mounting. The rack’s load capacity is 15,000 N, with the maximum static load capacity according to UL 2416 per rack being 12,000 N. The roof is multi-part and features side cable entries at the depth, on both sides, and is prepared for mounting a fan plate. The open floor construction allows flexible integration into existing floor structures.
Compatibility and Accessories
The rack is compatible with a wide range of accessories designed to extend and adapt to specific requirements. These include profile rails, drawers in various heights (2 HE, 3 HE), component shelves, blank panels, cable ducts, slide rails, cable routing brackets, and extended length provisions. The accessories are specifically designed for the VX IT series and enable modular expansion of the rack. Mounting is done using standardised fastening elements included in the delivery scope.
Mounting and Installation
Mounting is done via the provided 48,3 cm ( 19 inch ) profile rails, which are screwed to the depth braces and the support rail on the frame structure. The provided mounting clearances of 150 mm at the front and 330 mm at the rear allow for easy installation of devices and cables. The open floor construction allows flexible integration into existing floor structures. The doors are equipped with 180° hinges, enabling full opening. The front door is single-piece, while the rear door is vertically divided, allowing for better accessibility and maintenance.
Operational Advantages
The rack offers a high load capacity of 15,000 N and is designed for use in IT infrastructures. The ventilated construction supports passive cooling of IT devices and ensures efficient air circulation. The modular expansion capability via accessories enables flexible adaptation to specific requirements. The open floor construction offers flexibility for installation and integration into existing floor structures. The provided mounting clearances allow for easy installation of devices and cables. The doors are equipped with 180° hinges, enabling full opening. The front door is single-piece, while the rear door is vertically divided, allowing for better accessibility and maintenance.
| General | |
| Model | Ventilated, standard, with 19" profile rails |
| Material | Sheet steel, aluminium, front door: aluminium, 1.25 mm, rear door: sheet steel, 1.5 mm |
| Surface protection | Cabinet frame: dip-primed, interior: painted, rear door and roof: dip-primed, powder-coated, front door: aluminium, anodized/painted |
| Basic colour | RAL 7035 |
| Colour | Housing frame, rear door and roof: RAL 7035, front door: vertical profiles silver, horizontal profiles RAL 9005, interior fitting, front ventilation grille: RAL 9005, handle and hinges: RAL 9005 |
| Width | 800 mm |
| Height | 2.200 mm |
| Depth | 1.200 mm |
| Height units | 47 HE |
| Mounting clearance to 19" plane, front/back | 150 mm / 330 mm |
| Mounting position 19" rack | Front and rear |
| Layer spacing (as delivered) | 720 mm |
| 19" mounting | screwed to depth rails top and bottom, and to mounting rail on frame structure |
| Roof type | Multi-part, with lateral cable entry in depth, on both sides, prepared for fan panel |

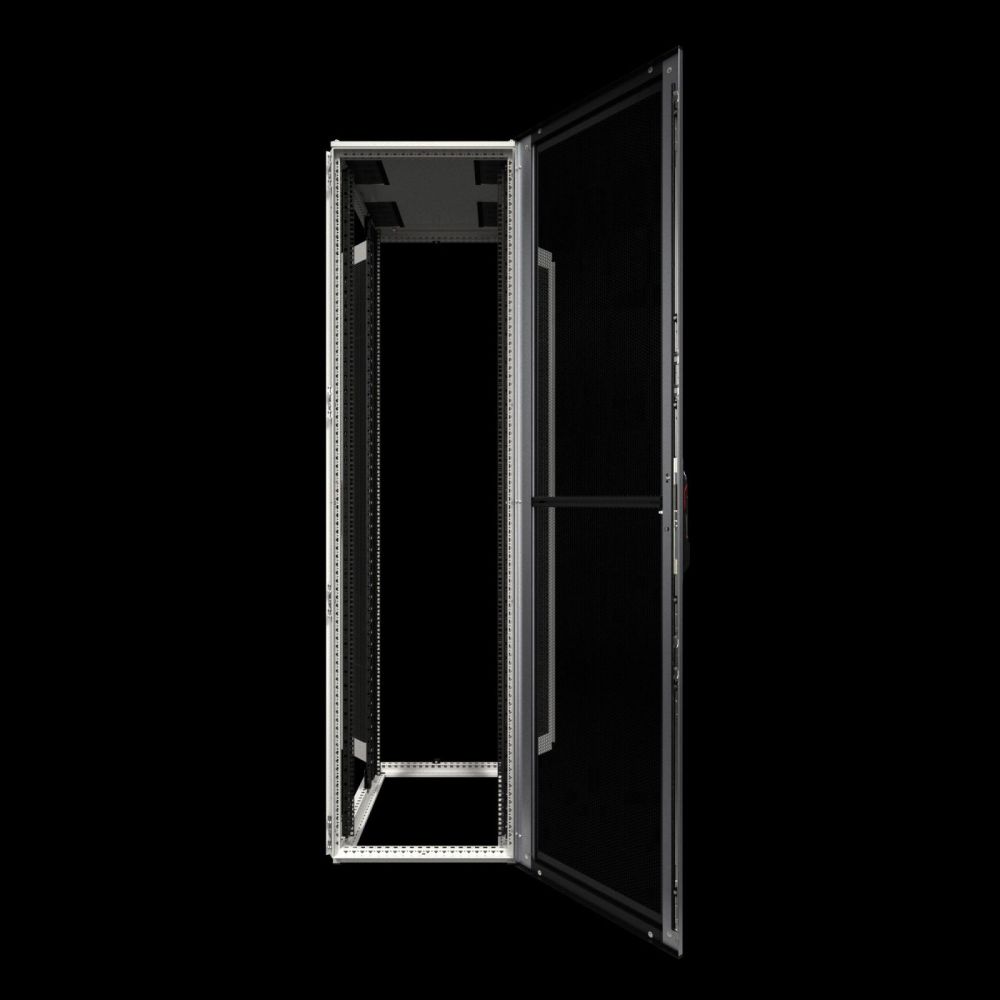

| Door configuration rear | Steel sheet door, ventilated, vertically divided, 180° hinges |
| Front door configuration | Aluminium-steel sheet door, ventilated, single-piece, 180° hinges |
| Profile rail version | 19" profile rails standard in VX IT |
| Floor version | Open |
| 19" rack configuration | Front and rear |
| Mounting type for profile rail | 19"-level front and rear |
| Load capacity | 15.000 N |
| Max. load capacity (static) according to UL 2416 per cabinet | 12.000 N |
| Note | Depending on type and location of installation, the door opening angle may vary in the specific application |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 303 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
