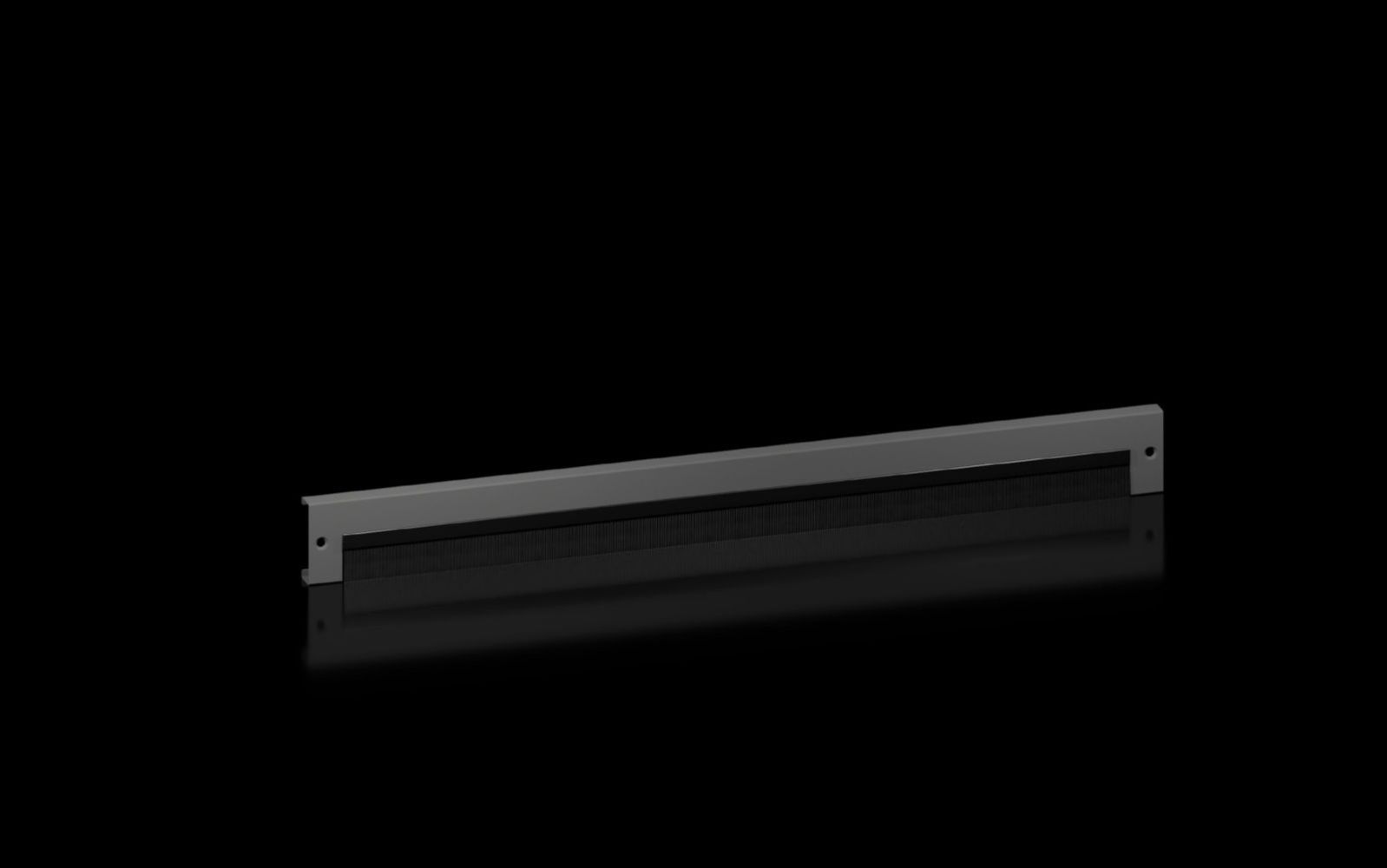

Rittal 8660095 plinth trim panel with brush strip for plinth system VX

Your rating:
Average rating
product review for Rittal 8660095 plinth trim panel with brush strip for plinth system VX
( 4.3 / 5 ) 3 ratings
Rittal 8660095
This image may differ from the desired article.
-21% 75,79 EUR 95,94 EUR
( 90,19 EUR incl. VAT )
≈ £63.44  |  ≈ $83.29
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 8660095 plinth trim panel with brush strip for plinth system VX
Datasheet:file_download Download
Lieske Part No.:1062792
Mfg Part No: 8660095
UPC/EAN: 4028177985469
Weight:2.554 kg
Type:VX 8660095

Product information for Rittal 8660095:

The Rittal VX 8660095 is a plinth trim panel with brush strip, specifically developed for use in the VX plinth system. It serves for cable entry into the plinth area of enclosures and provides a closed, clean cover for the lower front side of the housing. The panel is 100 mm in height and designed for enclosures with a width/depth of 1,200 mm. It is made of sheet steel, with the brush strip made of self-extinguishing plastic. The colour corresponds to RAL 9005, a dark grey that integrates well in industrial environments.

Applications
The plinth trim panel is used in industrial plants, electrical installations, and IT environments where proper and secure cable entry into the plinth area is required. It is compatible with various housing types, including VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, and CX. The panel is particularly used in systems with a plinth height of 200 mm, where one or two panels with brush strip can be used depending on requirements.

Functions and Equipment in Detail
The integrated brush strip enables flexible and dust-tight guidance of cables and lines into the plinth area. The brush strip is made of self-extinguishing plastic, which reduces fire load in case of fire. The panel itself is made of sheet steel, ensuring high mechanical stability and durability. The RAL 9005 colour ensures visual harmony with other components in the enclosure.

Technology Explained Simply
The plinth trim panel is designed to cover the lower area of the enclosure while enabling secure and orderly cable entry. The brush strip ensures that cables and lines do not protrude directly into the plinth area, but are guided through a flexible yet tight passage. This reduces the risk of dust and moisture intrusion. The use of self-extinguishing plastic for the brush strip increases safety in case of fire, as the material does not continue to burn when heated, but self-extinguishes.

Compatibility and Accessories
The panel is suitable for a wide range of enclosure housings, including the VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, and CX series, with a width/depth of 1,200 mm. For installation into the depth of the plinth, the optional panel mounting 8660092 is required. Additional compatible accessories such as VX plinth expansion angles, VX system chassis 23 x 64 mm W x H x D: 1,200 mm, and VX cable strain relief rail, angle profile, W: 1,200 mm, are available to optimise mounting and use.

Mounting and Installation
The plinth trim panel is mounted on the front side of the plinth. For installation into the depth of the plinth, the optional panel mounting 8660092 is necessary. The panel can also be mounted laterally on the plinth corner piece if the appropriate mounting is used. The packaging unit includes 2 pieces.

Operational Advantages
The plinth trim panel with brush strip provides a clean and professional cover for the plinth area, while simultaneously ensuring secure and orderly cable entry. The use of self-extinguishing plastic increases operational safety. Compatibility with various housing types and the ability to mount the panel in different positions increases installation flexibility. The robust sheet steel construction ensures long service life even under industrial conditions.

General
ModelWith brush bar
MaterialSocket faceplate: sheet steel, brush strip: plastic, self-extinguishing
ColourRAL 9005
Height100 mm
Suitable forCabinet type: VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, CX, width/depth: 1.200 mm
Mounting noteFor installation in depth, the optional panel mounting 8660092 is required.


Product data sheet
Datasheet for Rittal 8660095, EAN: 4028177985469

Questions & answers

What is the delivery time of Rittal 8660095 plinth trim panel with brush strip for plinth system VX ?

The article Rittal 8660095 plinth trim panel with brush strip for plinth system VX is currently in stock

According to our experience the article is ready for dispatch within 7 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8660095 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8660095 plinth trim panel with brush strip for plinth system VX always at the best possible price. We can give you a discount of 2% on Rittal 8660095 plinth trim panel with brush strip for plinth system VX if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
