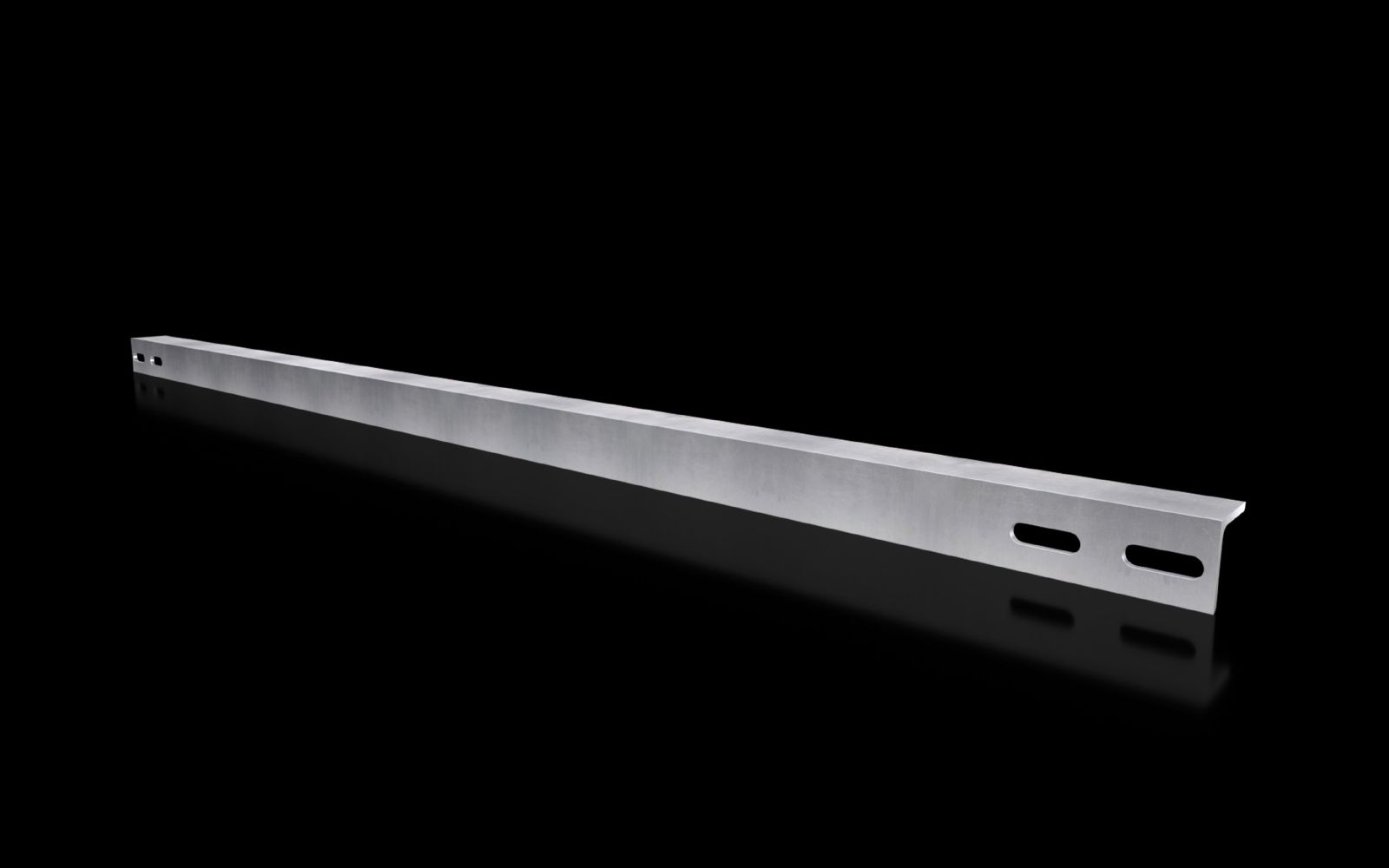

Rittal 8619440 VX cable strain relief rail angle profile, W: 1200 mm
|
51,69 EUR |
|
|
( 61,51 EUR incl. VAT ) ≈ £43.26 | ≈ $56.81 plus delivery charges: 100,00 € |
|
| Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1441177 |
| Mfg Part No: | 8619440 |
| UPC/EAN: | 4028177921962 |
| Weight: | 6 kg |
| Type: | VX 8619.440 |
Product information for Rittal 8619440:
Applications
The cable strain relief rail is used in various enclosure and plinth systems, including the plinth systems VX, VX SE, AX as well as AX plinths. It is compatible with enclosure types VX, VX SE, AX, console base CX, and floor console CX. Installation is carried out in enclosure widths of 1,200 mm, and the rail can also be installed in plinth widths of 1,200 mm, for example in combination with holding/distance pieces or M8 nut on stainless steel plinths. The depth-variable mounting in 25 mm increments offers flexibility in adapting to different cable routes and installation depths.
Functions and Features in Detail
The rail primarily serves strain relief for cables entering the enclosure or plinth. This prevents mechanical stress from being transferred to the cables or connection points, thereby increasing the lifespan of the installation. The length of the rail is 1,154 mm, providing sufficient coverage for most standard widths of 1,200 mm. The zinc-coated steel construction offers a robust and durable surface resistant to environmental influences in industrial applications.
Technology Explained Simply
The depth-variable mounting in 25 mm increments means the rail can be mounted at various positions along the horizontal enclosure profile or in the plinth, with positioning in 25 mm steps. This allows for precise adaptation to the specific installation. The use of fastening materials included in the delivery reduces installation effort and ensures secure fastening. The zinc-coated surface protects the steel material from corrosion, especially in damp or aggressive environments.
Compatibility and Accessories
The cable strain relief rail is intended for various systems, including VX, VX SE, AX, and AX plinths. It is specifically designed for enclosure and plinth widths of 1,200 mm. As suitable accessories, the VX plinth expansion angle plinth trim panels H: 100/200 mm are offered, which can be used in combination with the rail to improve the external appearance and protection of the plinth area.
Installation and Mounting
Installation is carried out on horizontal enclosure profiles or in the plinth area, with the rail positioned in 25 mm increments. Fastening is done using the materials included in the delivery. Installation in AX systems requires the use of the rail for internal expansion AX and the floor expansion rail for AX.
Operational Advantages
The cable strain relief rail ensures safe and orderly cable entry, reducing mechanical stress on the cables. The depth-variable mounting allows flexible adaptation to different installation scenarios. The zinc-coated steel construction ensures high mechanical strength and corrosion resistance, extending the service life of the rail in industrial environments. The fastening materials included in the delivery reduce installation effort and ensure quick and secure installation.
| General | |
| Material | Steel |
| Surface protection | Zinc-plated |
| Scope of delivery | Including mounting hardware |
| Mounting options VX | In cabinet width 1200 mm, in floor |
| Mounting options VX SE | In cabinet width 1200 mm, in floor |
| Mounting options AX | In housing width 1200 mm, in combination with the rail for indoor installation AX and floor installation rail for AX |
| Mounting options VX socket | In base width/depth 1200 mm, in combination with mounting/spacer piece |
| Mounting options VX socket, stainless steel | In socket width 1200 mm, in combination with a M8 nut |
| Installation options AX socket | In base width 1200 mm |
| Suitable for | Socket system AX, Socket system VX, Socket system VX, Stainless steel |
| Length | 1.154 mm |
| Suitable for width | = 1.200 mm |
Questions & answers
What is the delivery time of Rittal 8619440 VX cable strain relief rail angle profile, W: 1200 mm?
The article Rittal 8619440 VX cable strain relief rail angle profile, W: 1200 mm is currently in stock
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8619440 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 8619440 VX cable strain relief rail angle profile, W: 1200 mm always at the best possible price. We can give you a discount of 2% on Rittal 8619440 VX cable strain relief rail angle profile, W: 1200 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
