Rittal 8660053 VX VX plinth corner piece 1=2 with trim panel front/back H:100 mm for W:1200 mm

Your rating:
Average rating
product review for Rittal 8660053 VX VX plinth corner piece 1=2 with trim panel front/back H:100 mm for W:1200 mm
( 4.3 / 5 ) 3 ratings
Rittal 8660053
This image may differ from the desired article.
Rittal 8660053Rittal 8660053Rittal 8660053Rittal 8660053
-6% 204,36 EUR 218,48 EUR
( 243,19 EUR incl. VAT )
≈ £171.05  |  ≈ $224.59
plus delivery charges: 100,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 8660053 VX VX plinth corner piece 1=2 with trim panel front/back H:100 mm for W:1200 mm
Datasheet:file_download Download
Lieske Part No.:877410
Mfg Part No: 8660053
UPC/EAN: 4028177037892
Weight:6.5 kg
Type:VX 8660053

Product information for Rittal 8660053:

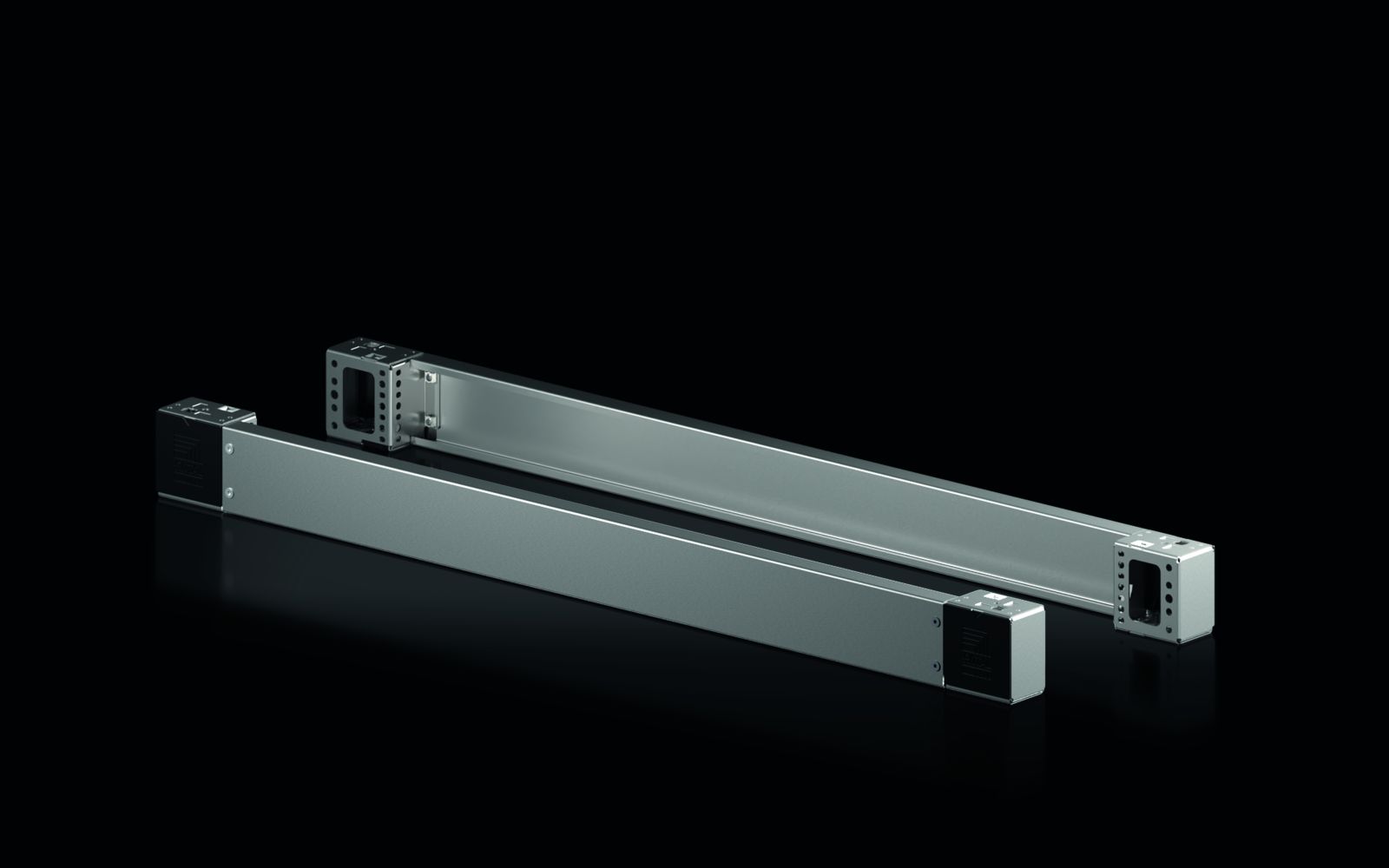

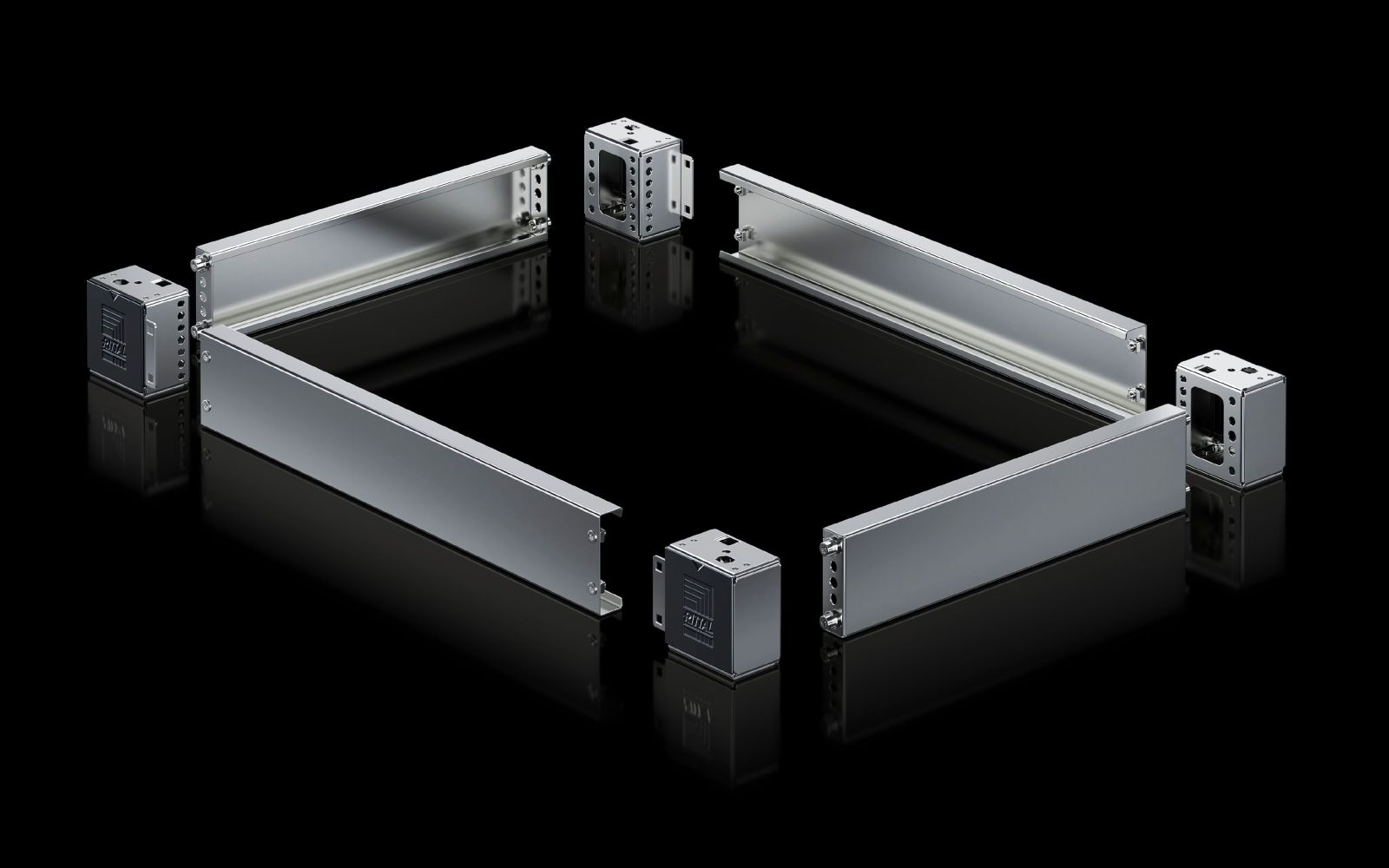

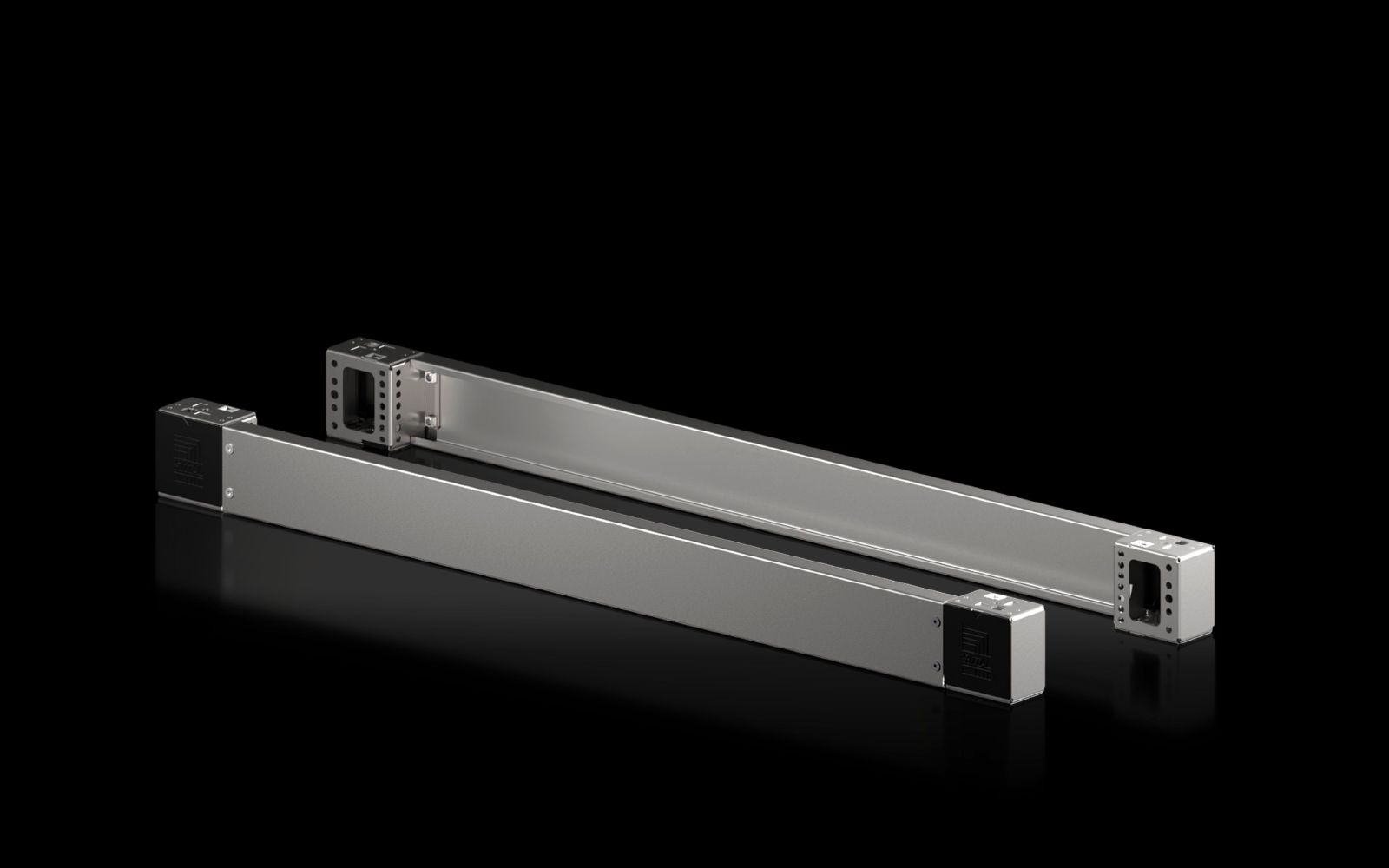

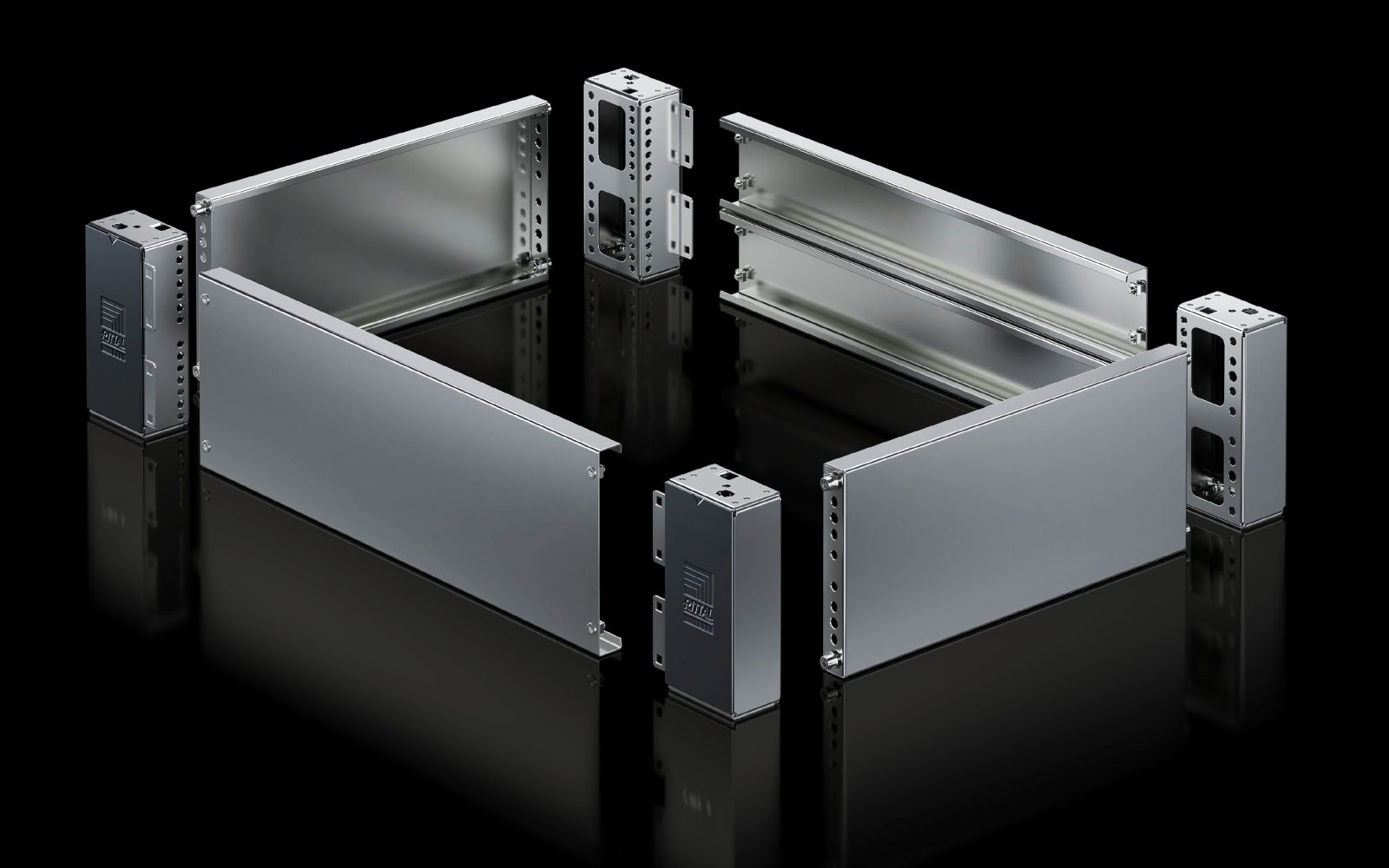

The Rittal VX 8660053 is a plinth corner piece with integrated plinth trim panels at the front and rear, specifically developed for the plinth system VX. It serves as a stable base for enclosures and housings of types VX, VX SE, TS and PC with a width of 1,200 mm. The component is made of stainless steel 1.4301 (AISI 304), ensuring high corrosion resistance and mechanical strength. The surface features a brushed finish with grit 400, which is both aesthetically pleasing and easy to clean. The height is 100 mm, providing the plinth unit with a defined and uniform floor support.

Applications
The plinth corner piece is used in industrial environments where a robust and durable mounting base for enclosures is required. It is particularly suitable for applications in production plants, automation technology and industrial control systems, where enclosures are placed directly on the floor and require stable fixation. Compatibility with various housing types such as VX, VX SE, TS and PC enables flexible use in different system configurations.

Functions and equipment in detail
The plinth corner pieces are equipped with large openings that allow optimal access to the screwing point. This significantly simplifies installation and maintenance. The integrated plinth trim panels at the front and rear ensure a clean visual appearance and prevent dust or foreign objects from entering. The panels also contribute to additional stabilization between plinths, which is especially important for longer enclosure rows. The included ABS caps can be replaced with stainless steel caps if required, to enhance material consistency.

Technology explained simply
The use of stainless steel 1.4301 (AISI 304) ensures high resistance to moisture, corrosion and mechanical stress. The brushed finish with grit 400 provides a uniform, easy-to-clean surface that also enhances visual quality. The plinth corner pieces are seamlessly baying-capable, enabling a continuous and stable base for multiple enclosures. The height of 100 mm ensures sufficient clearance from the floor to avoid moisture and contamination.

Compatibility and accessories
The plinth corner piece is designed for enclosures with a width of 1,200 mm and fits housing types VX, VX SE, TS and PC. It is part of the 1st generation plinth system and cannot be combined with components from the 2nd generation. Various accessories such as mounting plates, mounting brackets, cable strain relief rails and levelling elements are available to support installation and integration into existing systems. The caps can optionally be replaced with stainless steel caps to ensure material consistency.

Installation and mounting
Mounting is done using the included fastening material. The plinth corner pieces are attached to the corners of the enclosure plinth, with the integrated front and rear trim panels automatically positioned. The large openings facilitate screwing. The components are designed to be seamlessly arranged next to each other, enabling a continuous and stable base.

Operational advantages
The use of the Rittal VX 8660053 provides a stable and durable mounting base that extends the service life of enclosures. The stainless steel construction ensures high corrosion resistance, which is particularly beneficial in moist or aggressive environments. The integrated trim panels and seamless baying capability improve visual appearance and functionality. Easy installation and maintenance due to the large access openings reduce installation effort and maintenance time. Compatibility with various housing types increases flexibility in system planning.

Type rating according to UL 50E
The product meets the type ratings according to UL 50E: Type 1, Type 3R, Type 4, Type 4X and Type 12. These approvals guarantee that the plinth corner piece is suitable for use in indoor environments, with light outdoor exposure, in damp environments and in industrial applications. The Type 4X approval means it is also protected against splashing water and dust, making it suitable for outdoor use or in damp production environments.

General
MaterialSocket corner piece: stainless steel 1.4301 (AISI 304), socket faceplate front/back: stainless steel 1.4301 (AISI 304), cover caps: ABS
Surface protectionLinear grind, grit 400
Scope of deliveryIncluding mounting hardware, 4 socket corner pieces, 4 end caps, 2 socket front/rear covers, 100 mm
NoteSocket inserts, required on the sides to complete a socket unit and provide additional stabilization between sockets. The included cover caps can be replaced, if required, with stainless steel cover caps for VX socket system, stainless steel. Components of the 1st generation of the socket system cannot be combined with components of the 2nd generation of the socket system.
Height100 mm
Suitable forhousing type: VX, VX SE, TS, PC, width: = 1,200 mm
Type rating according to UL 50EType 1, Type 3R, Type 4, Type 4X, Type 12


Product data sheet
Datasheet for Rittal 8660053, EAN: 4028177037892

Questions & answers

What is the delivery time of Rittal 8660053 VX VX plinth corner piece 1=2 with trim panel front/back H:100 mm for W:1200 mm?

The article Rittal 8660053 VX VX plinth corner piece 1=2 with trim panel front/back H:100 mm for W:1200 mm is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8660053 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8660053 VX VX plinth corner piece 1=2 with trim panel front/back H:100 mm for W:1200 mm always at the best possible price. We can give you a discount of 2% on Rittal 8660053 VX VX plinth corner piece 1=2 with trim panel front/back H:100 mm for W:1200 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
