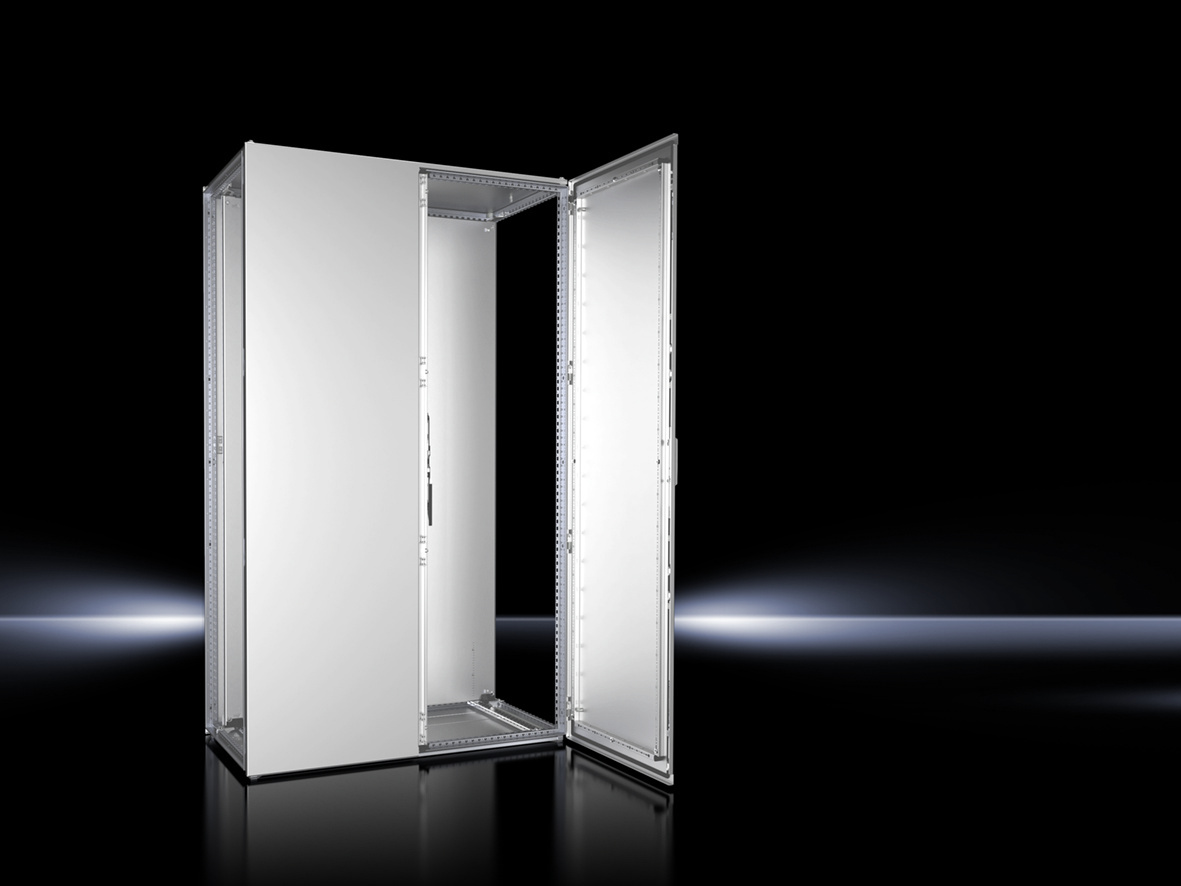

Rittal 8451000 VX bayed enclosure system, 2-door, 1200x2000x600 mm, stainless steel
|
3.677,70 EUR 3.730,09 EUR |
|
|
( 4.376,46 EUR incl. VAT ) ≈ £3,078.23 | ≈ $4,041.79 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1440675 |
| Mfg Part No: | 8451000 |
| UPC/EAN: | 4028177920200 |
| Weight: | 191 kg |
| Type: | VX 8451.000 |
Product information for Rittal 8451000:
Applications
This enclosure system is suitable for use in industrial plants, such as in manufacturing automation, power supply, or process control. The choice of stainless steel 1.4301 ensures high resistance to moisture, chemical influences, and mechanical stress. The protection rating IP 55 according to EN 60 529 protects against dust and splashing water, allowing the unit to be used outdoors or in damp indoor environments. Certifications according to NEMA 1 and NEMA 12, as well as Type 1 and Type 12 according to UL 50E, confirm suitability for dry and damp indoor areas and environments with light contamination. The IK code IK10 provides protection against mechanical impacts, such as shocks or vibrations, with a test energy of 10 Joules.
Functions and Equipment in Detail
The enclosure system includes an enclosure frame, two doors, a roof plate, divided base plates, a rear panel, and a mounting plate. The doors are fitted with foamed PU foam sealing and feature a removable square tube frame with a 25 mm pitch hole pattern. The lock door is mounted on the right and can be converted to the left. The locking mechanism uses a 3 mm double bar according to DIN 43668, with the secondary door additionally secured by a swing lever for double locking. The hinges are fitted with non-removable hinge pins, and the door opening angle is 130°, with a tool-free extension to 180° possible. The clearance from the floor is 17 mm.
Technology Explained Simply
The steel sheet mounting plate (3.0 mm) is C-bent on the sides and is depth-adjustable in 25 mm increments via integrated plastic glides and reusable mounting rails. This allows flexible adaptation to different mounting conditions. The rear panel and roof plate are also fitted with PU foam seals and can be removed, facilitating access to the interior. The rear panel features a positioning aid, and the roof is secured with M12 fastening screws. The base plates are three-piece, removable, and replaceable, enabling easy maintenance and cleaning.
Compatibility and Accessories
The enclosure system is bayable on all sides and can be expanded with various accessories. These include stainless steel 1.4301 transport eyes, C-profile rails 30/15 according to EN 60715, mounting plate spacers, mounting brackets, circuit diagram pockets, VX plinth corner pieces and trim panels, VX system chassis in various sizes, levelling feet, baying connectors, baying brackets, baying blocks, and comfort handles for lock inserts. These components allow individual adaptation to specific requirements in enclosure construction.
Mounting and Installation
Mounting is performed via the integrated mounting levels on the frame, accessible from both inside and outside. The square hole pattern all around allows the use of cage nuts and metric screws up to M8. The base reinforcement in the base frame allows fastening to the floor. The load capacity of the enclosure system is up to 15,000 N. Due to the material hardness, it is recommended to use the internal hexagon sheet metal screw 2486.400 for internal installation.
Advantages in Operation
The enclosure system offers high mechanical stability, long service life, and easy maintenance. The integrated mounting elements and the depth-adjustable mounting plate reduce installation time and increase flexibility during installation. The use of stainless steel 1.4301 ensures high corrosion resistance, enabling reliable operation even in demanding environments. The protection rating IP 55 and IK code IK10 provide reliable protection against external influences, increasing operational safety. The bayable construction enables efficient use of space in industrial plants.
| General | |
| Material | Cabinet frame: stainless steel 1.4301 (AISI 304), 1.5 mm, roof: stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed finish, door: stainless steel 1.4301 (AISI 304), 2.0 mm, exterior brushed finish, rear panel: stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed finish, floor plates: stainless steel 1.4301 (AISI 304), 1.5 mm, mounting plate: steel sheet, 3.0 mm |
| Surface protection | Cabinet frame and base plates: plain, door, roof and rear panel: exterior brushed finish, grit 400, mounting plate: galvanized |
| Scope of delivery | Cabinet frame, door(s), door hinge right, reversible to left, roof sheet, floor sheets, rear panel, mounting plate, lock: 3 mm double bar, 2 mounting rails 18 x 39 mm |
| Width | 1.200 mm |
| Height | 2.000 mm |
| Depth | 600 mm |
| Mounting plate dimensions (W x H) | 1.099 mm x 1.896 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK10 |
| Number of doors | 2 |
| Note | Due to the material hardness, we recommend using the internal hexagon sheet metal screw 2486.400 for internal installation |
| Base material | Stainless steel 1.4301 (AISI 304) |
| PCF/VE (Cradle-to-Gate) | 560,72 |
