Rittal 8660063 VX plinth corner piece with trim panel, H: 200 mm, W: 1200 mm

Your rating:
Average rating
product review for Rittal 8660063 VX plinth corner piece with trim panel, H: 200 mm, W: 1200 mm
( 4.6 / 5 ) 5 ratings
Rittal 8660063
This image may differ from the desired article.
Rittal 8660063Rittal 8660063Rittal 8660063
301,65 EUR
( 358,96 EUR incl. VAT )
≈ £252.48  |  ≈ $331.51
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 8660063 VX plinth corner piece with trim panel, H: 200 mm, W: 1200 mm
Datasheet:file_download Download
Lieske Part No.:877359
Mfg Part No: 8660063
UPC/EAN: 4028177038554
Weight:10.989 kg
Type:VX 8660063

Product information for Rittal 8660063:

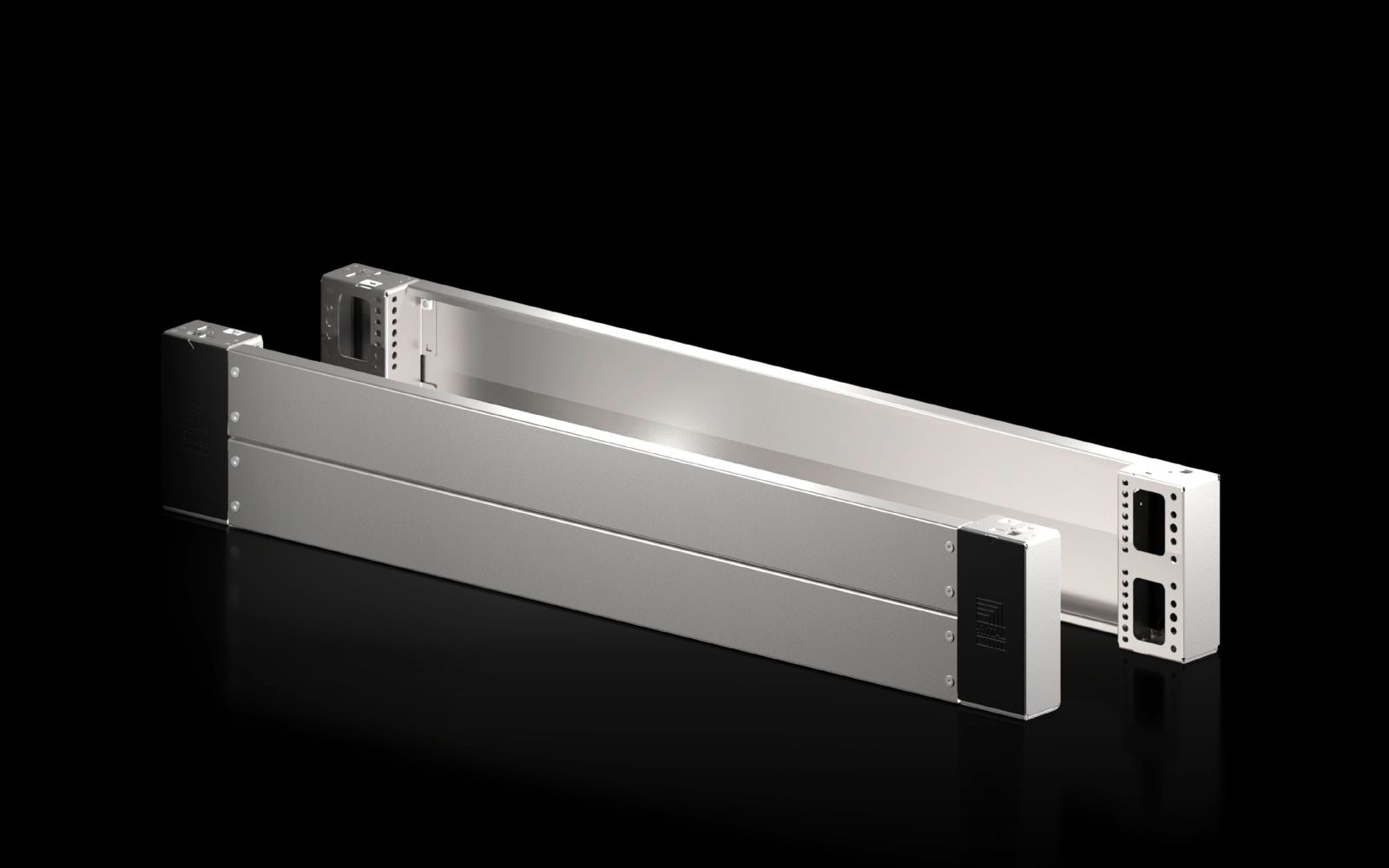

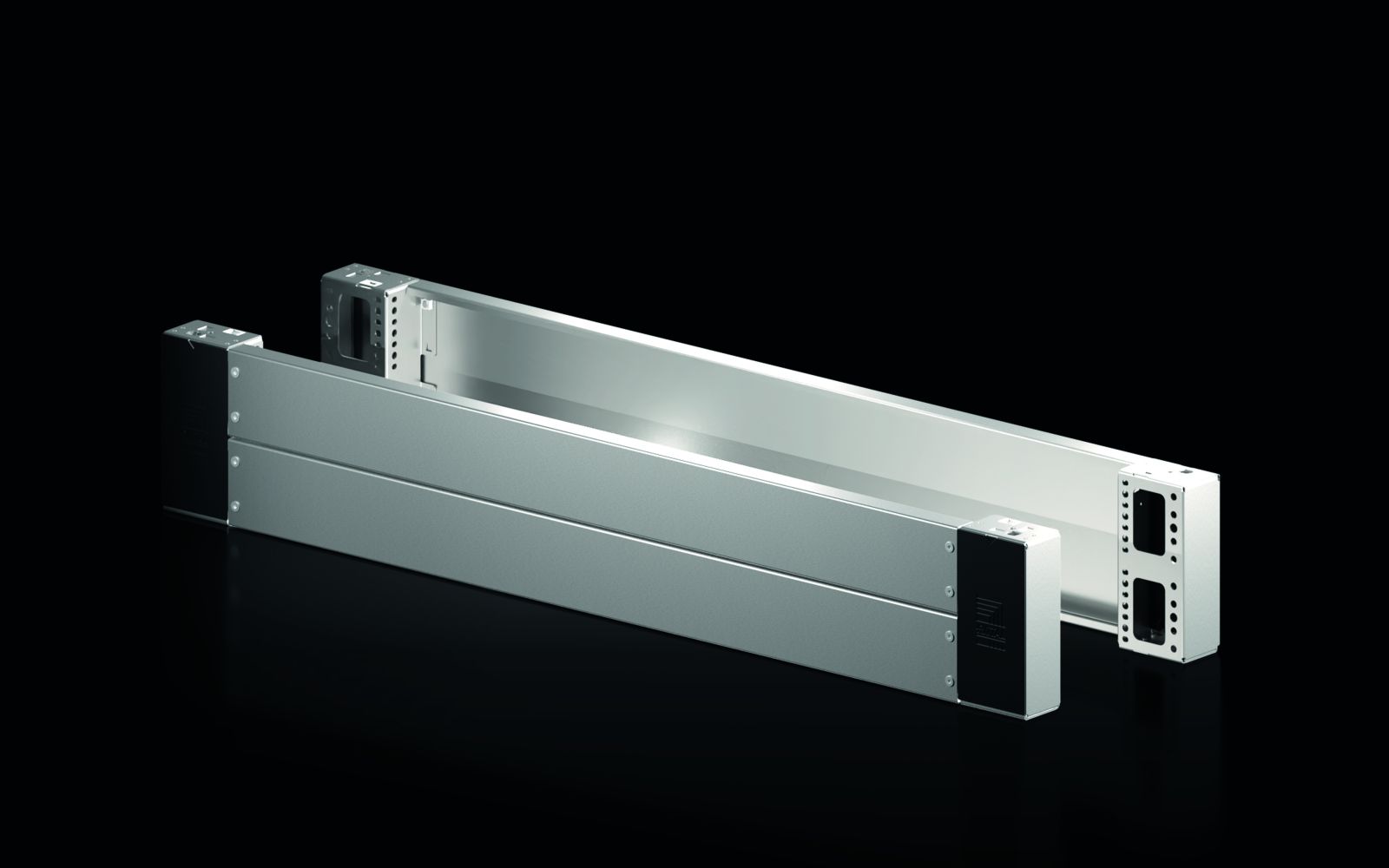

The Rittal VX 8660063 is a plinth corner piece with integrated plinth trim panels at the front and rear, specifically developed for the VX plinth system. It serves as a stable end and connection element for enclosures and housings in industrial applications. The product is made of stainless steel 1.4301 (AISI 304), ensuring high corrosion resistance and mechanical strength. The surface features a brushed finish with grit 400, providing a uniform, easy-to-clean, and aesthetically pleasing appearance. The height is 200 mm, and it is designed for enclosures with a width of 1,200 mm. The components are suitable for housing types VX, VX SE, TS, and PC.

Applications

The plinth corner piece is used in industrial environments where robust and durable fixation of enclosures is required. It is particularly suitable for installations operating in environments with increased mechanical stress, humidity, or aggressive chemicals. The use of stainless steel 1.4301 also makes it suitable for outdoor applications where corrosion protection is important. The components meet Type ratings according to UL 50E: Type 1, Type 3R, Type 4, Type 4X, and Type 12, ensuring a high degree of protection against dust, water, and mechanical influences.

Functions and Equipment in Detail

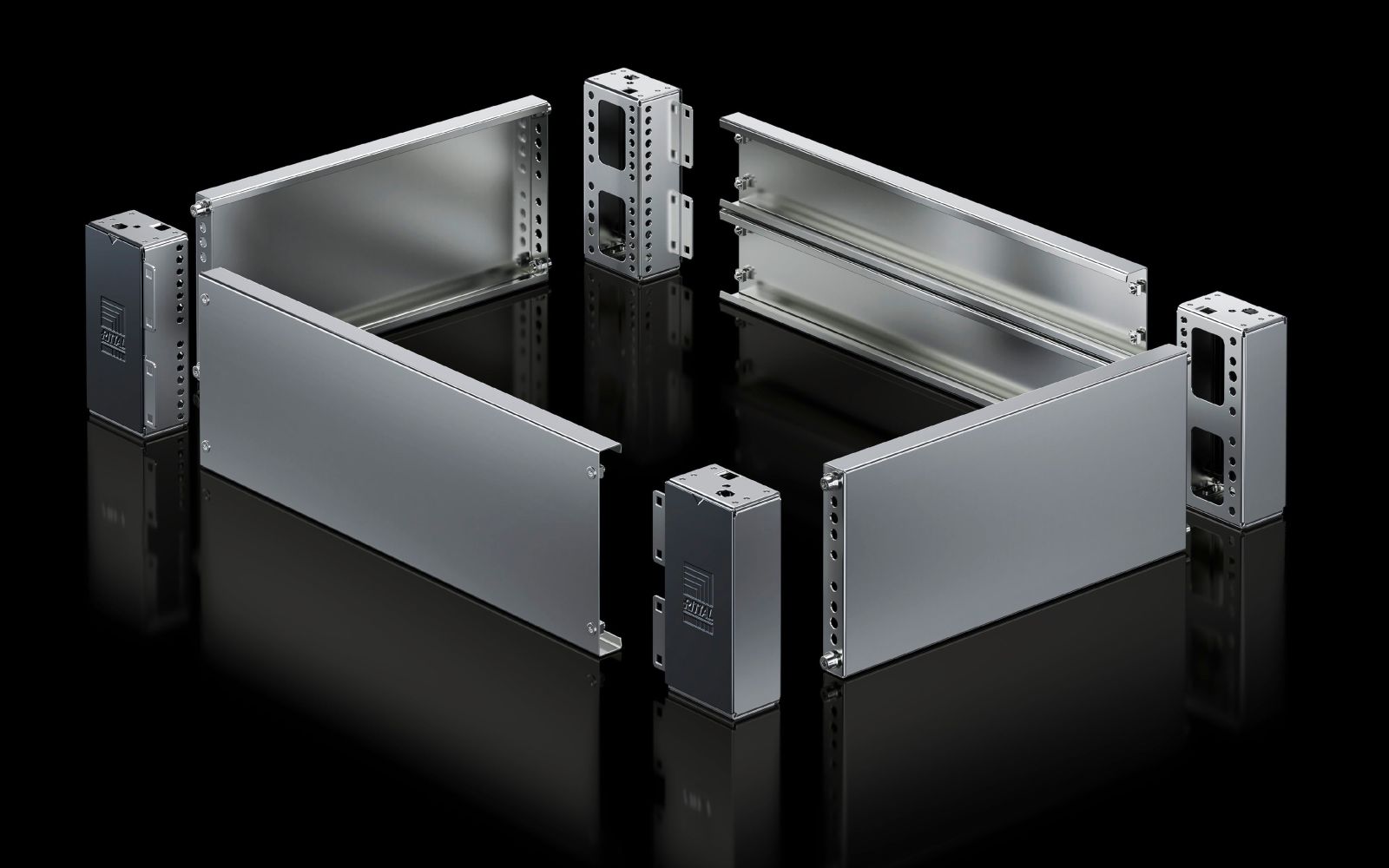

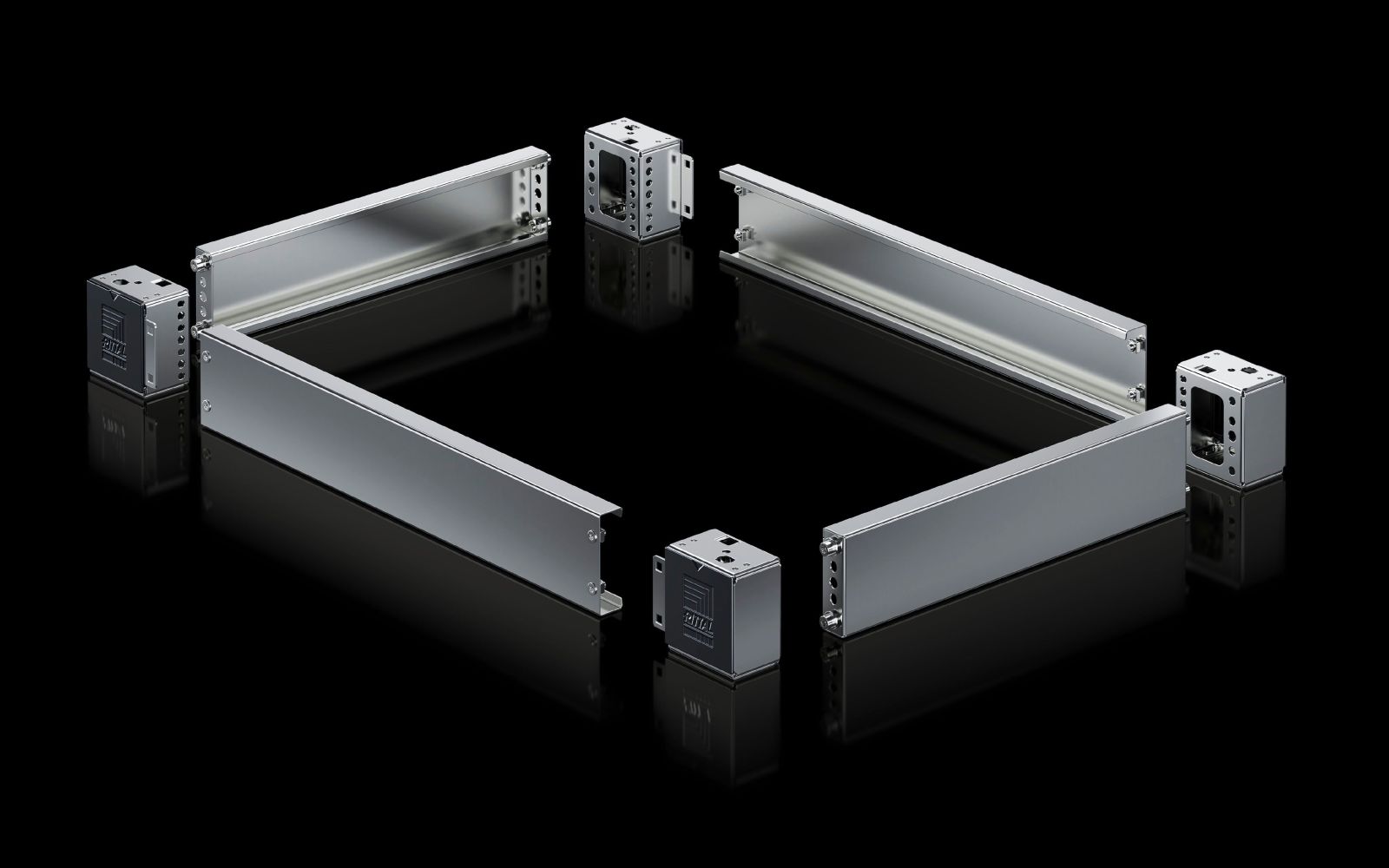

The product consists of four plinth corner pieces, each integrating a front and rear trim panel. These panels not only contribute to the visual finishing but also enhance the additional stabilization between plinths. The large openings in the corner piece allow optimal access to the screwing point, facilitating installation and maintenance. The plinth corner pieces are seamlessly baying-compatible, enabling a clean and continuous line along the base of the enclosure. The delivery also includes four ABS caps that cover the fastening points. These can be replaced with stainless steel caps if required.

Technology Explained Simply

The use of stainless steel 1.4301 (AISI 304) provides excellent resistance to rust and chemical influences, which is particularly beneficial in humid or industrial environments. The brushed finish with grit 400 ensures a uniform surface that is easy to clean and conveys a professional appearance. The height of 200 mm is designed for standard enclosures and ensures sufficient stability. The integrated front and rear panels prevent dust or foreign objects from entering the fastening elements, increasing longevity.

Compatibility and Accessories

The plinth corner piece is designed for enclosures of types VX, VX SE, TS, and PC with a width of 1,200 mm. It is not compatible with components of the 2nd generation of the plinth system, as it belongs to the 1st generation. Suitable accessories include, among others, cable strain relief rails, mounting brackets, mounting plates, levelling elements, double swivel castors, plinth adapters, and additional mounting rails. These components can be used additionally to optimize the installation and stability of the enclosure.

Installation and Mounting

Installation is carried out using the included fastening material. The plinth corner pieces are mounted at the corners of the enclosure, with the integrated front and rear panels forming the finish. The caps are inserted over the fastening points to ensure a clean appearance. The components are designed to be seamlessly arranged next to each other, enabling a continuous line along the base of the enclosure. The large openings in the corner piece facilitate access to the screwing, reducing installation time.

Operational Advantages

Using the Rittal VX 8660063 provides high mechanical stability and corrosion resistance. The integrated panels ensure a clean finish and protect the fastening elements from contamination. The seamless arrangement of the corner pieces gives the enclosure a professional appearance. Compatibility with various housing types and the possibility to expand accessories increase flexibility in planning and installation. Compliance with UL 50E Type ratings ensures a high protection standard required in many industrial applications.

General
MaterialSocket corner piece: stainless steel 1.4301 (AISI 304), socket faceplate front/back: stainless steel 1.4301 (AISI 304), cover caps: ABS
Surface protectionLinear grind, grit 400
Scope of deliveryincluding mounting material, 4 socket corner pieces, 4 end caps, 1 socket front/rear cover, 200 mm, 2 socket front/rear covers, 100 mm
NoteSocket inserts, required on the sides to complete a socket unit and provide additional stabilization between sockets. The included cover caps can be replaced, if required, with stainless steel cover caps for VX socket system, stainless steel. Components of the 1st generation of the socket system cannot be combined with components of the 2nd generation of the socket system.
Height200 mm
Suitable forhousing type: VX, VX SE, TS, PC, width: = 1,200 mm
Type rating according to UL 50EType 1, Type 3R, Type 4, Type 4X, Type 12


Product data sheet
Datasheet for Rittal 8660063, EAN: 4028177038554
