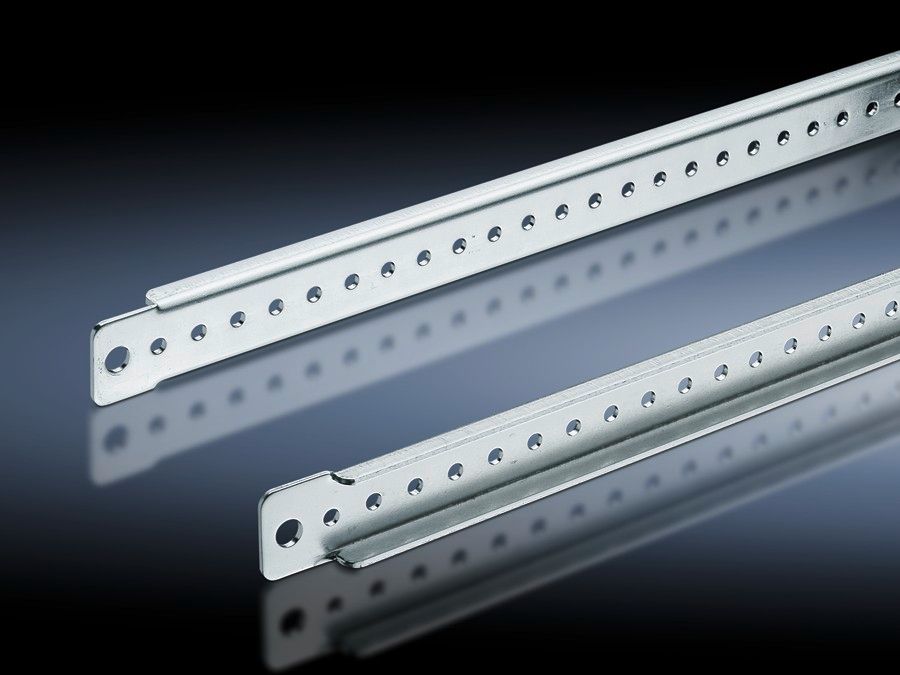

Rittal 4594000 TS mounting brackets for door width 400 mm
|
-10% 50,60 EUR 56,44 EUR |
|
|
( 60,21 EUR incl. VAT ) ≈ £42.35 | ≈ $55.61 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 770295 |
| Mfg Part No: | 4594000 |
| UPC/EAN: | 4028177103726 |
| Weight: | 3.02 kg |
| Type: | TS 4594000 |
Product information for Rittal 4594000:
Cable ducts
Cable conduit holder
Contact hazard protection covers

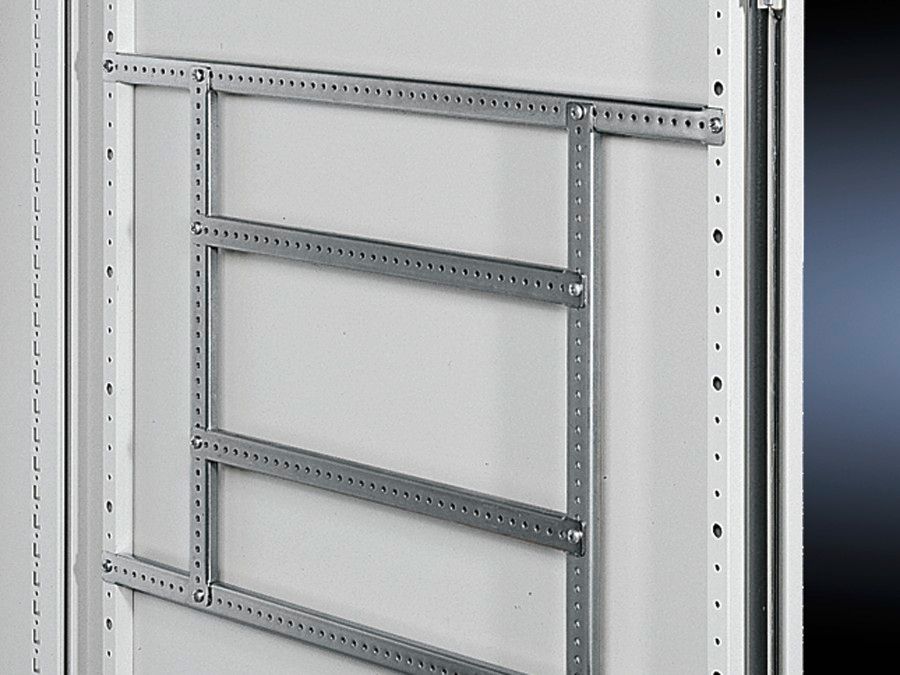

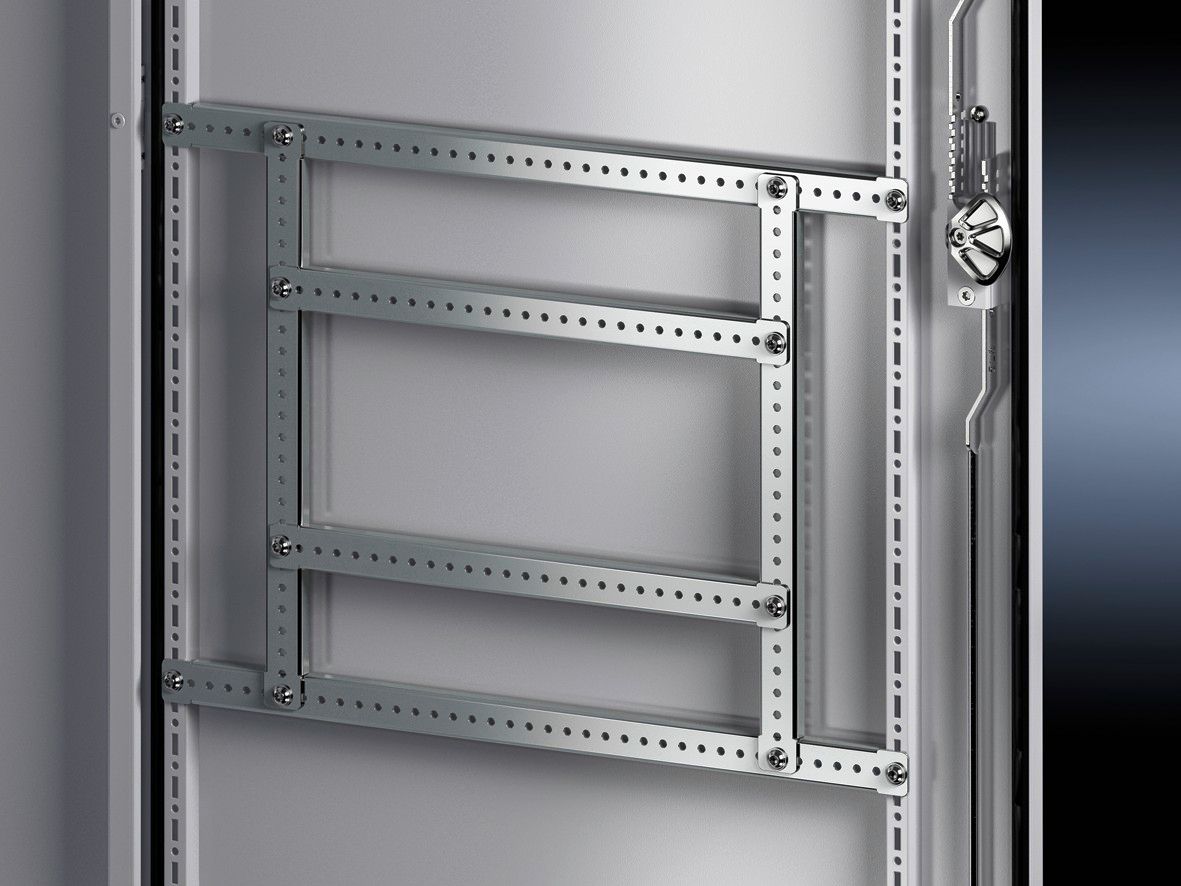

Equipment installed on the door
Cable clamping and attachment
Material: Sheet steel
Surface finish: Zinc-plated
Supply includes: Assembly parts
Packs of: 20 pc(s).
EAN: 4028177103726
Customs tariff number: 73269098
eCl@ss 5.1: 27189233
eCl@ss 7.0: 27189261
ETIM 6.0: EC002620
Design: For mounting on doors
Dimensions: Length: 290 mm

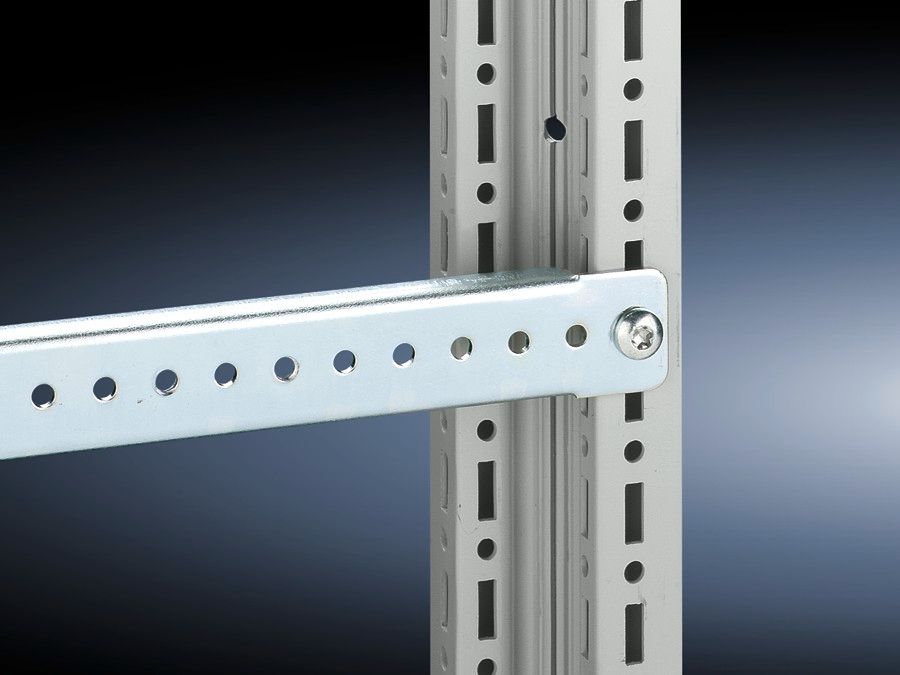

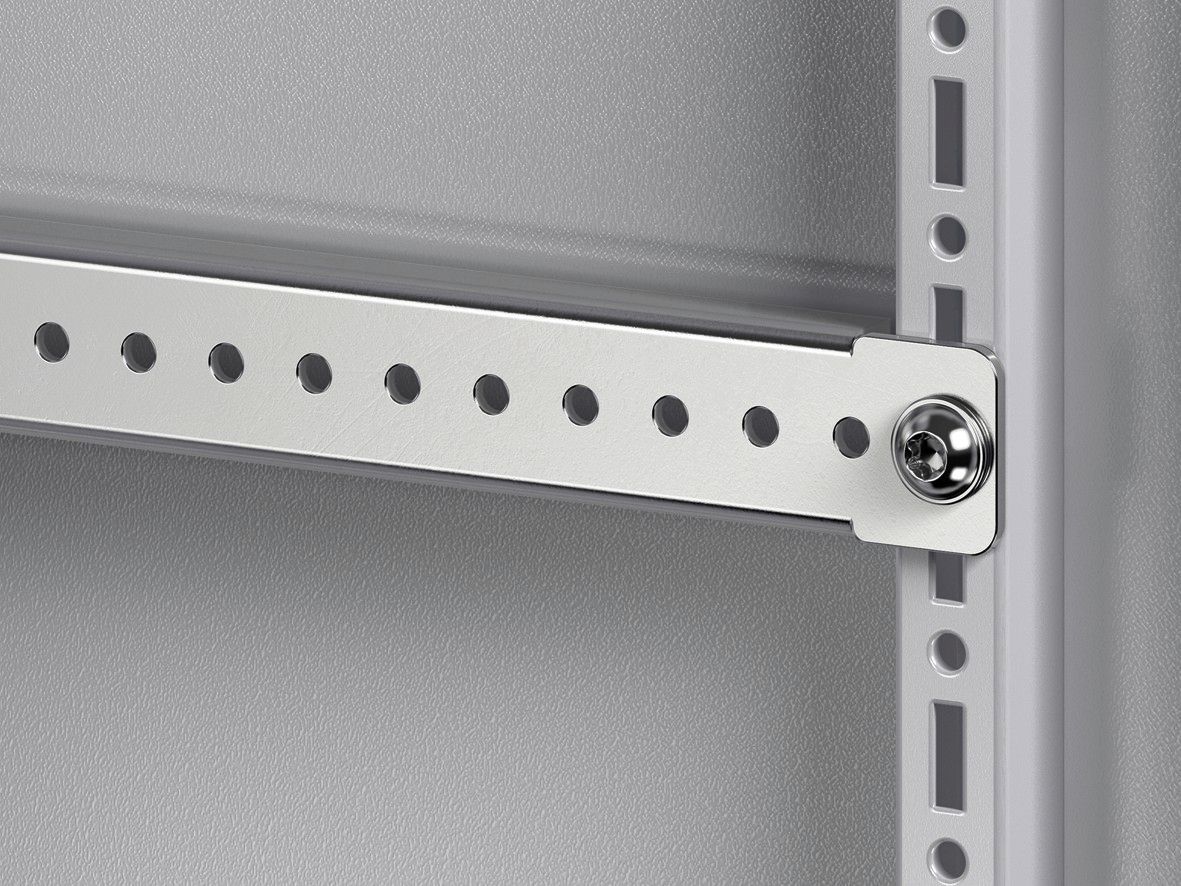

Installation options: On the tubular door frame TS, SE, depending on the door width
On the perforated door strip CM, TP, depending on the enclosure width
To fit door width: 400 mm
Weight/pack: 2.98 kg
| General | |
| Technical data | Drilling Ø 4.5 mm on 25 mm grid |
| Material | steel sheet |
| Surface protection | Zinc-plated |
| Scope of delivery | Including mounting hardware |
| Length | 290 mm |
| Suitable for door width | 400 mm |
| Mounting options VX SE | In door width 400 mm |
| Mounting options AX | In housing width 300 mm and housing height 400 mm, in combination with the rail for indoor installation AX |
| Mounting options AX stainless steel | In cabinet width 300 mm |
| Mounting options AX plastic | In door width 400 mm |
| Installation options AX 3-piece | In housing depth 473 mm |
| Mounting options TS | In door width 400 mm |
| Mounting options VX socket, stainless steel | In base depth 400 mm, in combination with hex socket screws M6 and nut M6 |
| Suitable for | Housing type: VX, TS, VX SE, AX, AX plastic, wall-mounted housing AX, 3-piece |
| PCF/VE (Cradle-to-Gate) | 14.05 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
