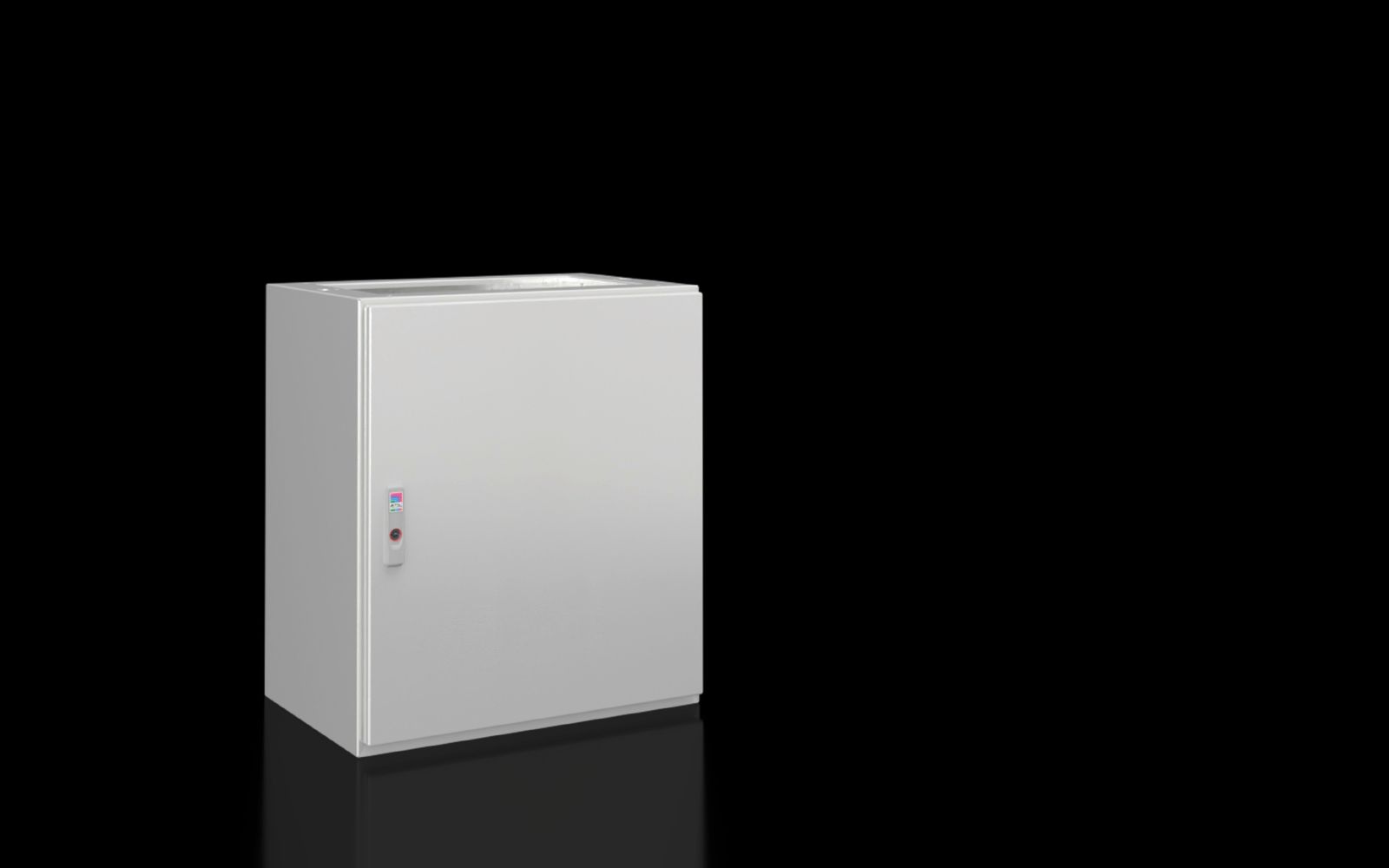

Rittal 6700000 CX console base unit W x H x D: 600x675x400 mm

Your rating:
Average rating
product review for Rittal 6700000 CX console base unit W x H x D: 600x675x400 mm
( 5 / 5 ) 1 ratings
Rittal 6700000
This image may differ from the desired article.
Rittal 6700000Rittal 6700000Rittal 6700000Rittal 6700000Rittal 6700000Rittal 6700000Rittal 6700000Rittal 6700000
353,05 EUR 367,17 EUR
( 420,13 EUR incl. VAT )
≈ £295.50  |  ≈ $388.00
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 6700000 CX console base unit W x H x D: 600x675x400 mm
Datasheet:file_download Download
Lieske Part No.:602813
Mfg Part No: 6700000
UPC/EAN: 4028177983595
Weight:33 kg
Type:CX 6700000

Product information for Rittal 6700000:

The Rittal CX 6700000 is a console base unit from the CX console system, designed as a basic element for modular workstation solutions in industrial and technical environments. The housing is made of sheet steel with a wall thickness of 1.5 mm, the door from 2.0 mm thick sheet steel, and features a continuously foamed PU seal ensuring a tight seal. The mounting plate is made of 2.5 mm thick sheet steel and zinc-coated, providing high mechanical stability and corrosion resistance. The surface of the housing and door is dip-primed and externally powder-coated with a textured finish in the colour RAL 7035, creating a robust and uniform visual appearance. Dimensions are 600 mm width, 675 mm height, and 400 mm depth, with the mounting plate measuring 520 mm × 625 mm.

Applications
This console base unit is suitable for use in industrial facilities, laboratories, control centres, and other environments where secure and structured installation of devices, enclosures, or control consoles is required. It serves as a base for single- to three-piece console systems, with additional modules such as console middle or top sections and end plates required for complete coverage. The protection rating IP 55 according to IEC 60 529 ensures protection against dust and splashing water, enabling use indoors under normal operating conditions. The NEMA classification includes NEMA 1 and NEMA 12, confirming suitability for dry indoor spaces and environments with slight contamination risk.

Functions and Equipment in Detail
The unit features a front door with a 3-point locking system ensuring secure and even latching. The lock insert is a 3 mm double bar, integrated into the locking system. The door opens to an angle of 130°, providing good access to the interior. The delivery includes the housing (open at the top), the front door, the mounting plate, and two-part base plates that support easy cable routing. The base plates are included in the delivery to simplify cable and conduit installation.

Technology Explained Simply
The construction from sheet steel with varying wall thicknesses ensures high mechanical strength. The PU seal on the door provides a tight seal, preventing dust and moisture ingress. The powder-coated surface in RAL 7035 offers high resistance to mechanical stress and environmental influences. The IK10 rating indicates that the housing is protected against mechanical impacts such as shocks or vibrations up to a certain level. The IP 55 protection rating means the device is protected against dust and splashing water, making it suitable for indoor use with normal contamination.

Compatibility and Accessories
The console base unit is part of the CX console system and can be combined with additional modules such as console middle and top sections to create multi-piece console solutions. Compatible accessories include lock inserts made of zinc die-cast, baying sets for AX, KX, AE, KL, earthing straps, mounting brackets, plinth trim panels, plinth corner pieces, support rails, cable entry plates, system chassis, and cable strain relief rails. These components allow for individual adaptation of the console solution to specific requirements.

Mounting and Installation
Mounting is performed via the integrated mounting plate, enabling secure fastening to the floor or wall. The two-part base plates facilitate cable routing and integration of conduits. The front door with the 3-point locking system can be easily opened and closed, with the 3 mm double bar insert ensuring security.

Advantages in Operation
The console base unit provides a robust and modular foundation for industrial workstations. The integrated base plates and secure locking solution simplify installation and daily operation. The IP 55 protection rating and IK10 rating ensure high reliability in demanding environments. Compatibility with additional CX modules enables flexible system expansion according to requirements.

General
ModelBase unit
MaterialHousing: steel sheet 1.5 mm, door: steel sheet, 2.0 mm, continuous foamed PU seal, mounting plate: steel sheet, 2.5 mm
Surface protectionCasing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized
ColourRAL 7035
Scope of deliveryHousing open at top, door or double door at front, with 3-point locking system, mounting plate, base plates, lock: 3 mm double bar
Width600 mm
Height675 mm
Depth400 mm
Mounting plate dimensions (W x H)520 mm x 625 mm
Number of doors1
Door opening angle130°
IK codeIK10
NoteTo close the console base, an end plate is required. For a 2-part console assembly, a console center section and an end plate for the console center section are required. For a 3-part console assembly, a console center section and a console top section are required.
Degree of protection IP according to IEC 60 529IP 55
NEMA degree of protectionNEMA 1, NEMA 12
Base materialsteel sheet
Number of locks1
Closure type3-point locking system
Closure insert3 mm double barb
LockClosure type: 3-point locking system, number of closures: 1, closure insert: 3 mm double barb


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 6700000, EAN: 4028177983595
