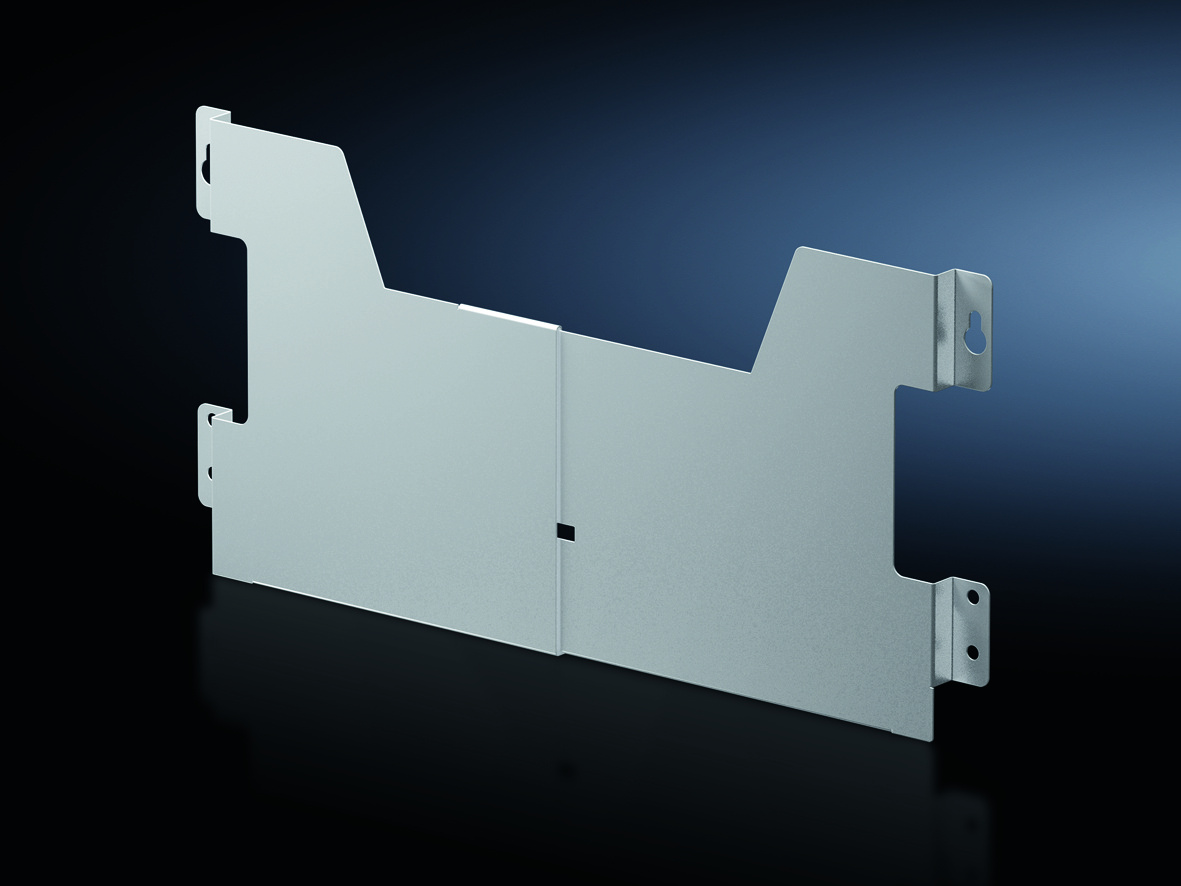

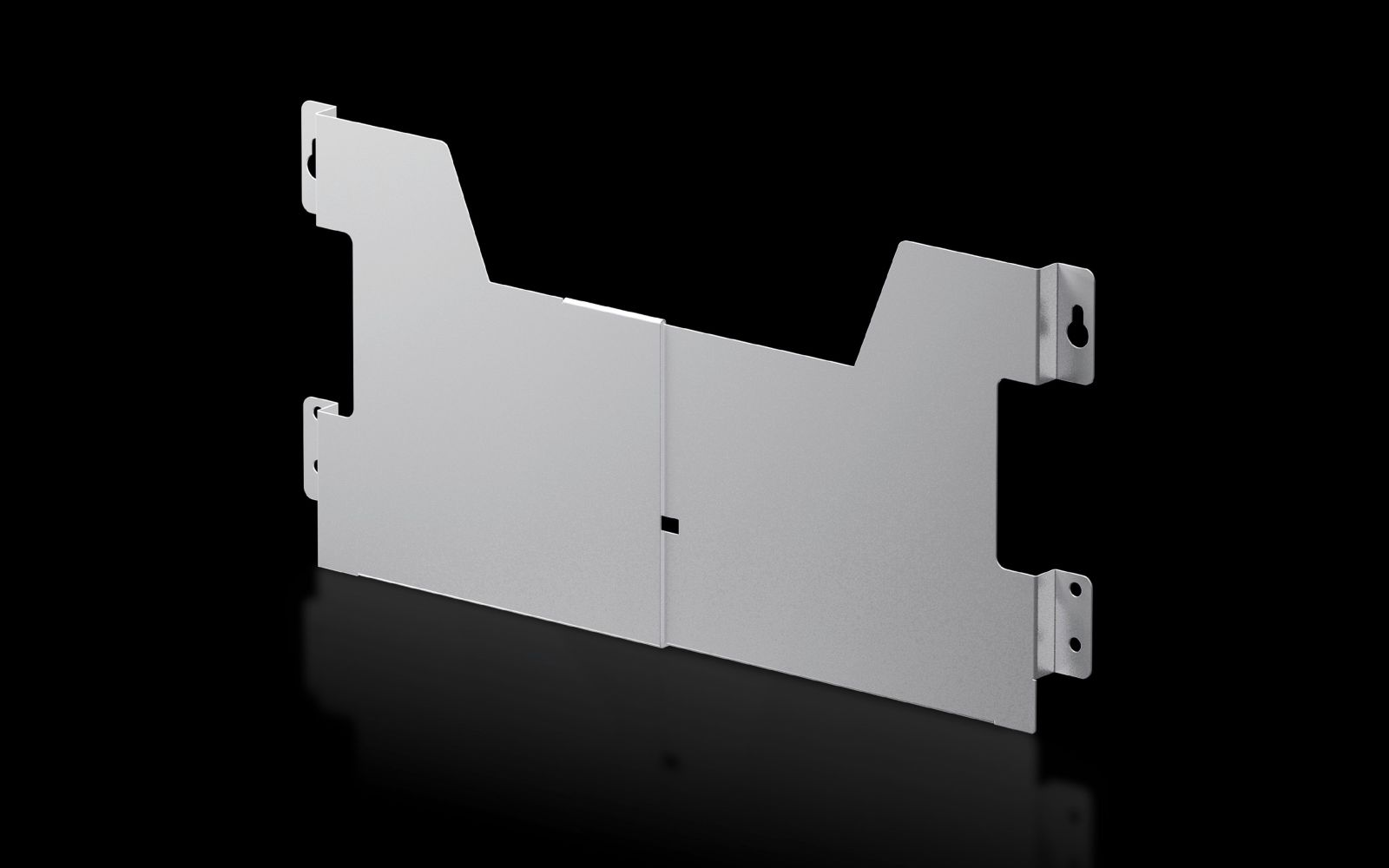

Rittal 2515300 AX circuit diagram pocket made of sheet metal, width: 475 - 575 mm,

Your rating:
Average rating
product review for Rittal 2515300 AX circuit diagram pocket made of sheet metal, width: 475 - 575 mm,
( 4.3 / 5 ) 4 ratings
Rittal 2515300
This image may differ from the desired article.
Rittal 2515300Rittal 2515300Rittal 2515300Rittal 2515300
26,55 EUR 26,56 EUR
( 31,59 EUR incl. VAT )
≈ £22.22  |  ≈ $29.18
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 2515300 AX circuit diagram pocket made of sheet metal, width: 475 - 575 mm,
Datasheet:file_download Download
Lieske Part No.:1598256
Mfg Part No: 2515300
UPC/EAN: 4028177938311
Weight:0.92 kg
Type:AX 2515300

Product information for Rittal 2515300:

The Rittal AX 2515300 is a circuit diagram pocket made of sheet metal, specifically designed for mounting on the door punch strip of enclosures. It is intended for the orderly storage and presentation of circuit diagrams, documentation, or other technical documents directly on the enclosure door. The product is width-adjustable and can be easily adapted to the respective door width. It is designed for enclosures with a door width of 600 mm and is compatible with enclosure types AX, AE sheet metal, stand console CX, and console base CX. The circuit diagram pocket is supplied in the colour RAL 7035 and is made of sheet metal, enabling robust and long-lasting use in industrial environments.

Applications
The circuit diagram pocket is intended for use in industrial electrical installations, control enclosures, and distribution enclosures, where quick and secure access to circuit diagrams and technical documents is required. It is particularly suitable for installations where documentation is to be mounted directly on the enclosure to avoid errors caused by incorrect or lost documents. Mounting is done on the door punch strip, allowing the pocket to be positioned at any desired height to meet the individual needs of the facility operator.

Functions and Equipment in Detail
The circuit diagram pocket is width-adjustable and can be set between 475 mm and 575 mm to adapt to different requirements. The clear height is 210 mm, providing sufficient space for standard circuit diagrams and documents. The depth of the pocket is 35 mm, allowing secure accommodation of paper documents without them falling out. Mounting is done using the included mounting screws, which are screwed directly into the door punch strip. The simple width adjustability allows flexible adaptation to different door sizes within the specified range.

Technology Explained Simply
The circuit diagram pocket is made of sheet metal, a material known for its strength and corrosion resistance in industrial applications. The colour RAL 7035 corresponds to a grey, neutral shade that integrates well into industrial environments. Mounting on the door punch strip is done via screw fastening, ensuring the pocket is securely and stably attached to the enclosure. Width adjustability is enabled by a corresponding construction, allowing the pocket to be adjusted within the range of 475 to 575 mm without requiring additional tools or mounting aids.

Compatibility and Accessories
The circuit diagram pocket is specifically developed for enclosures with a door width of 600 mm and is compatible with enclosure types AX, AE sheet metal, stand console CX, and console base CX. This compatibility ensures secure and neat mounting without additional modifications. The included mounting screws allow direct installation on the door punch strip.

Mounting and Installation

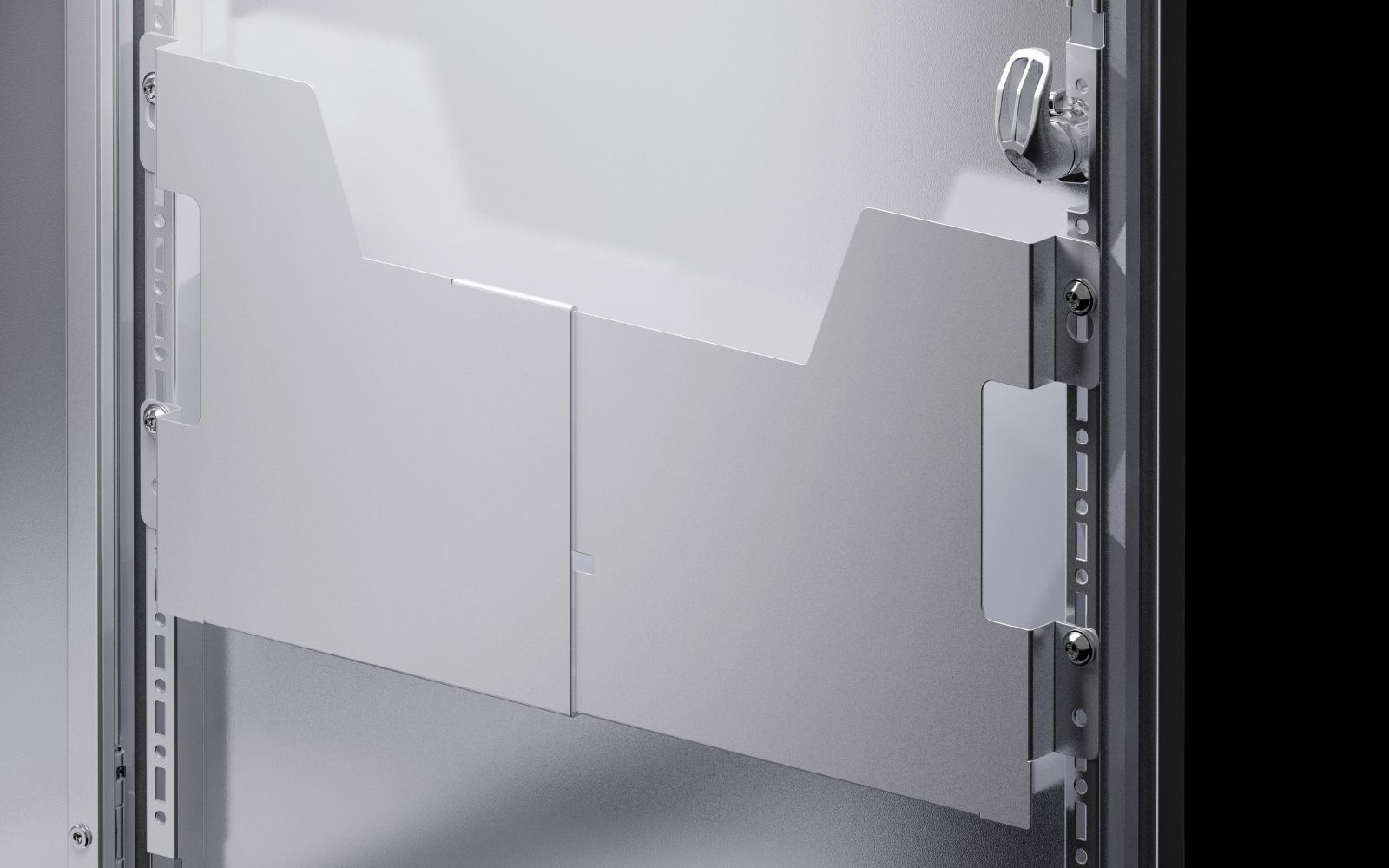

Installation is done by fastening to the door punch strip of the enclosure. The circuit diagram pocket is positioned at the desired height and secured with the included screws. The width can be adjusted within the range of 475 to 575 mm to ensure optimal fit. Mounting requires no special tools other than a screwdriver or appropriate wrench. The simple handling and clear construction facilitate installation even for technical personnel without specialized expertise.

Advantages in Operation
The circuit diagram pocket provides a reliable and durable solution for securing documentation on enclosures. Direct mounting on the door punch strip ensures stable holding, while width adjustability allows flexible adaptation to various enclosure models. The clear height of 210 mm and depth of 35 mm provide sufficient space for standard circuit diagrams and documents. The use of sheet metal ensures high mechanical strength and durability, even under industrial conditions. The colour RAL 7035 provides a discreet yet professional appearance that integrates well into technical environments.

General
Materialsteel sheet
ColourRAL 7035
Scope of deliveryIncluding mounting screws
Clear height210 mm
Clear width, range475 - 575
Suitable for door width600 mm
Suitable forHousing type: AX, AE sheet steel, console CX, console base CX
Depth35 mm


Product data sheet
Datasheet for Rittal 2515300, EAN: 4028177938311
