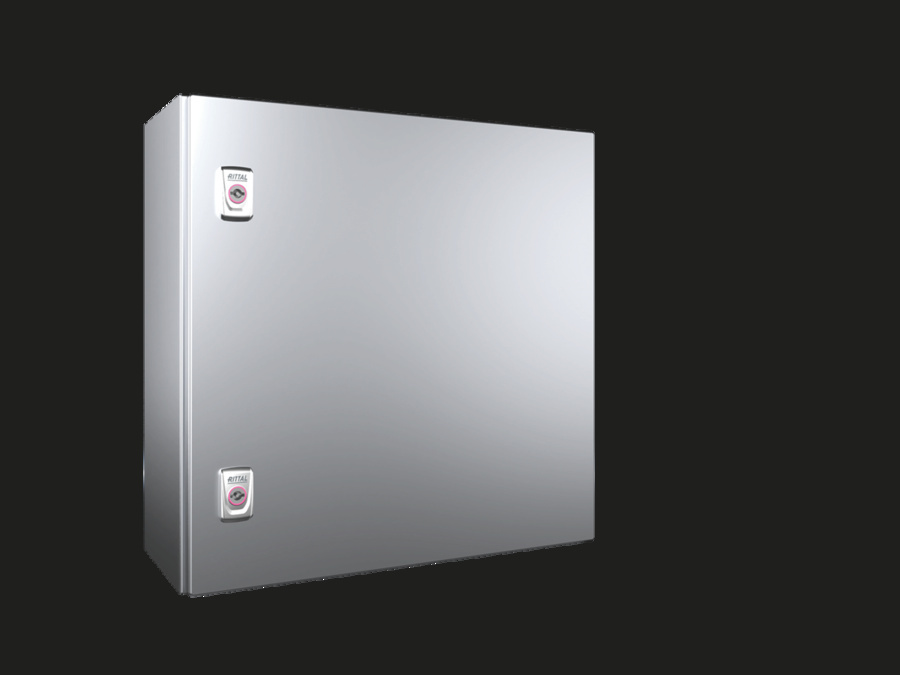

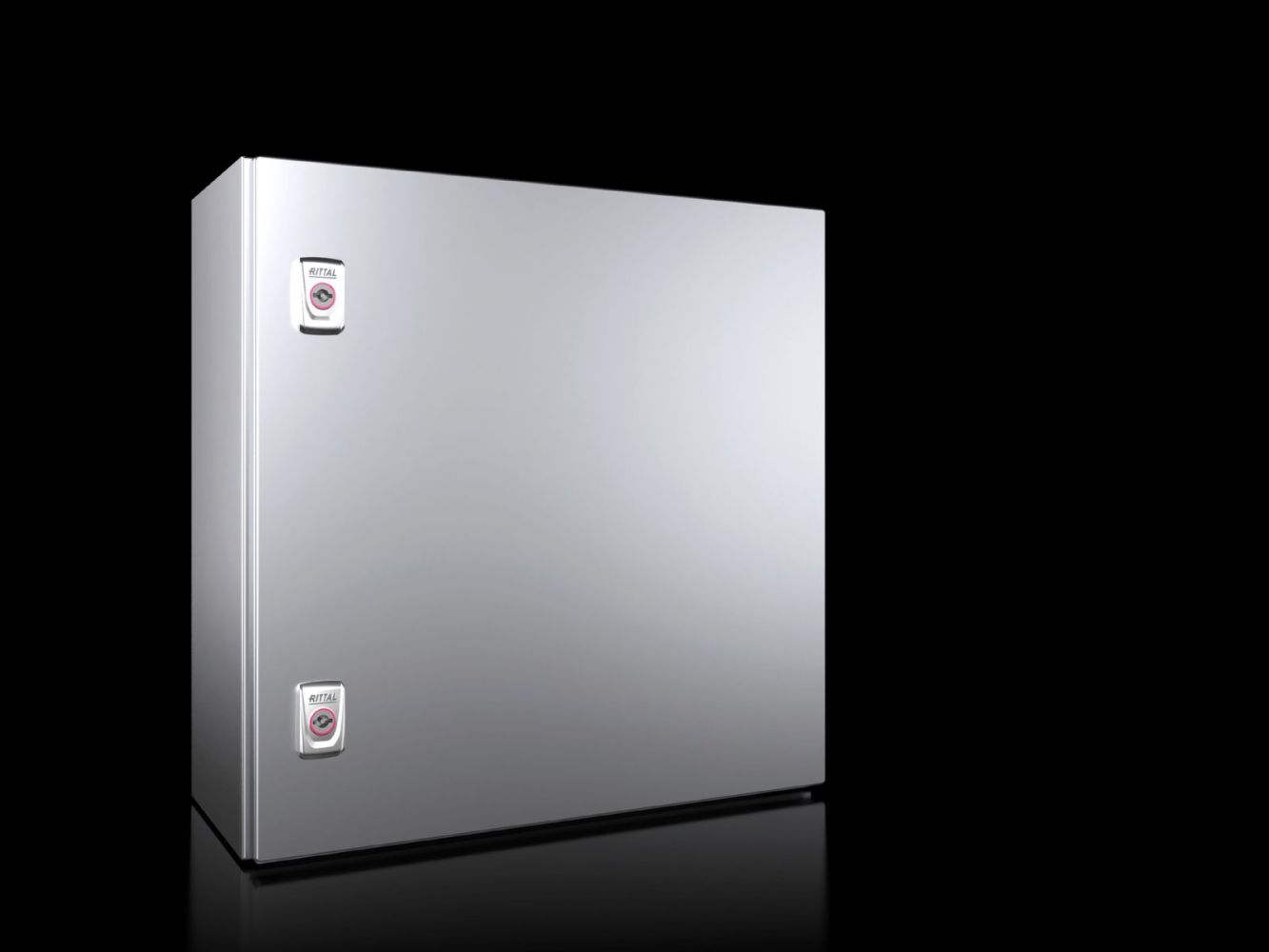

Rittal 1007000 Compact enclosure AX, 1-door, 500x500x210 mm
|
325,70 EUR |
|
|
( 387,58 EUR incl. VAT ) ≈ £272.61 | ≈ $357.94 plus delivery charges: 148,00 € |
|
| Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1980347 |
| Mfg Part No: | 1007000 |
| UPC/EAN: | 4028177814967 |
| Weight: | 14.85 kg |
| Type: | AX 1007000 |
Product information for Rittal 1007000:
Applications
This enclosure is suitable for industrial applications, particularly in environments with increased mechanical stress, such as production halls, machine building, or manufacturing technology. The protection rating IP 66 according to EN 60 529 ensures high protection against dust and water, including splashing water from all directions, making it suitable for outdoor use as well. Certification to NEMA 4X and UL 50E Type 4X ensures suitability for use in damp, dusty, or even slightly corrosive environments. The IK10 rating indicates that the enclosure is protected against mechanical impacts such as shocks or vibrations up to a certain energy level.
Functions and Equipment in Detail

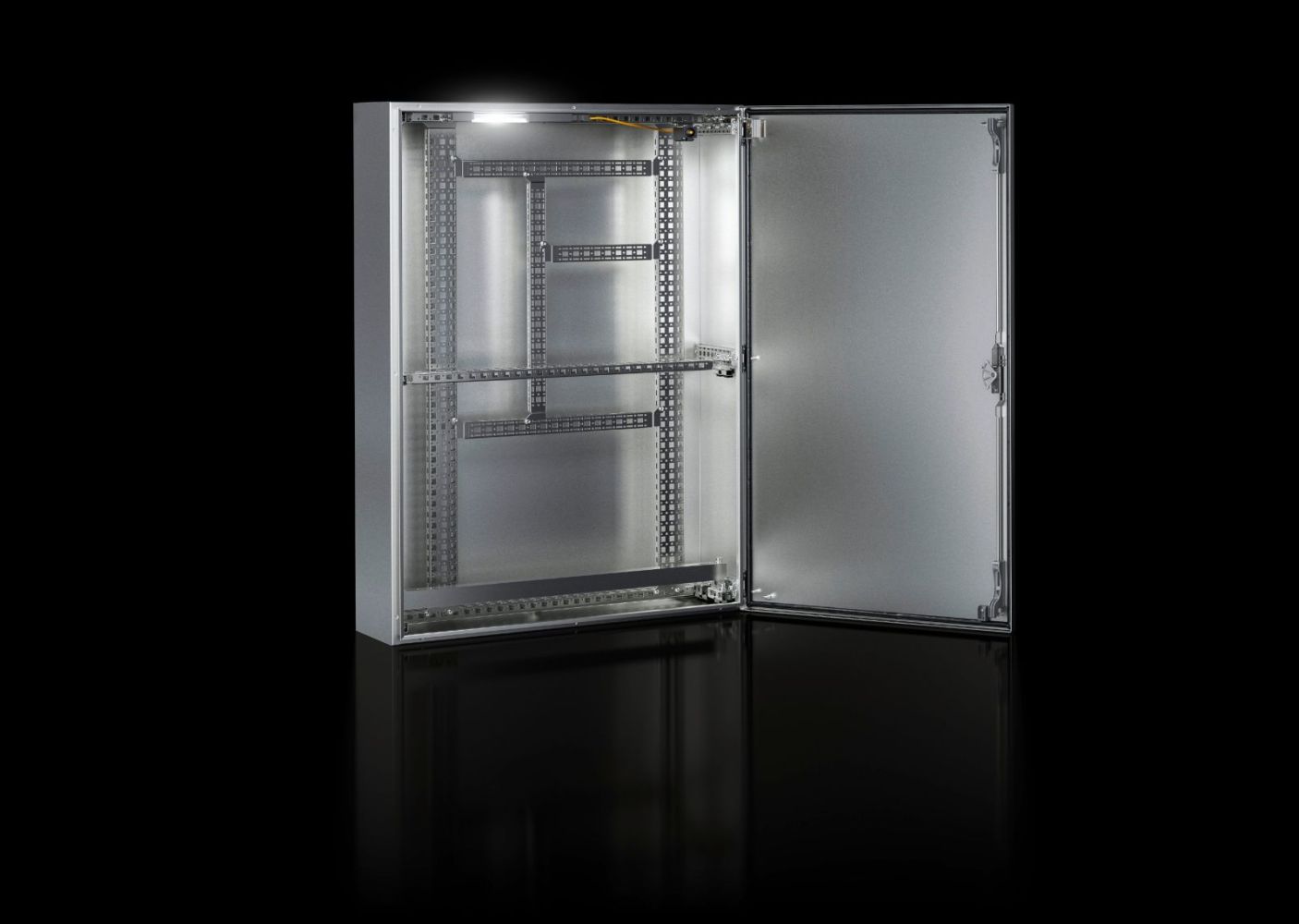

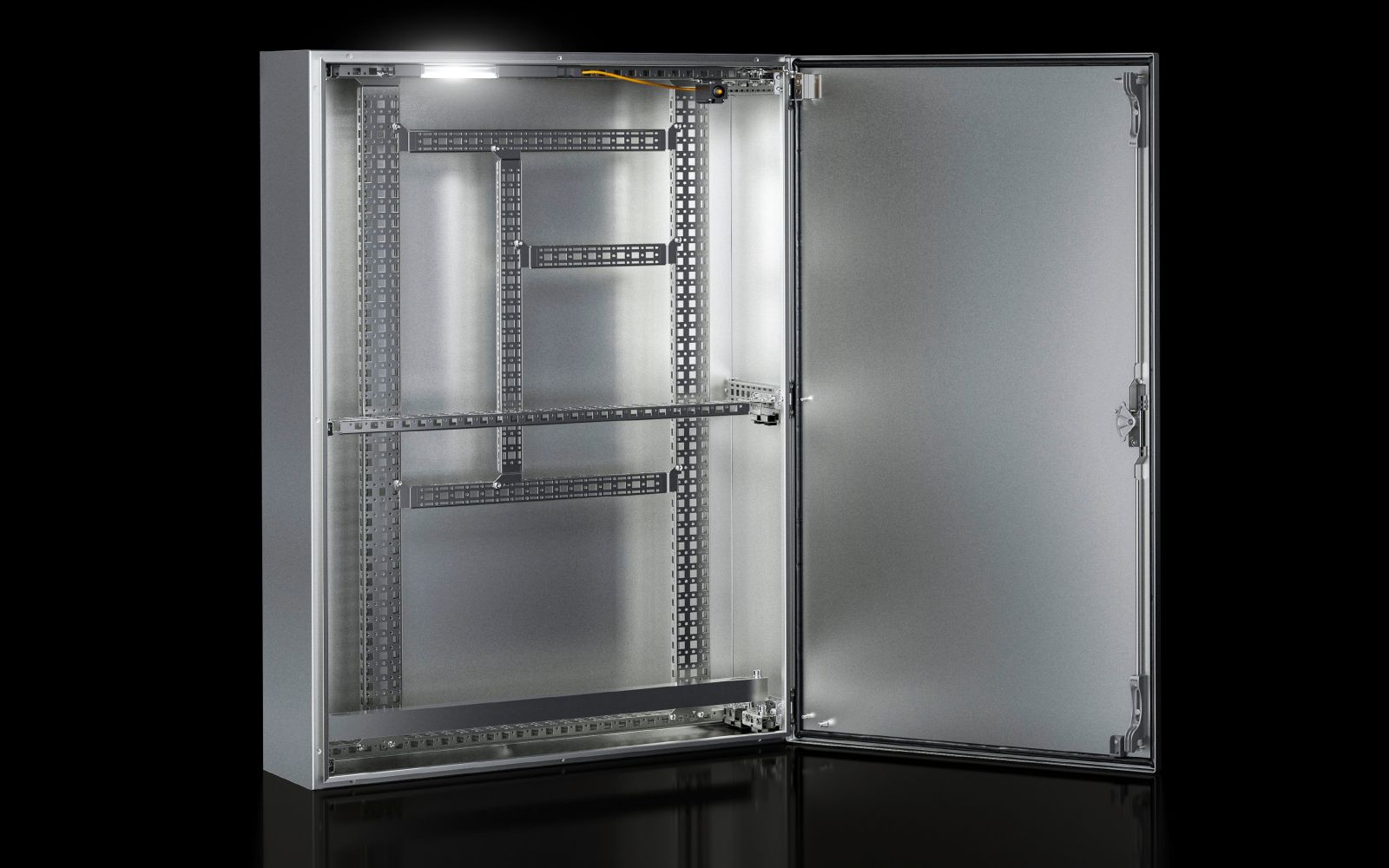

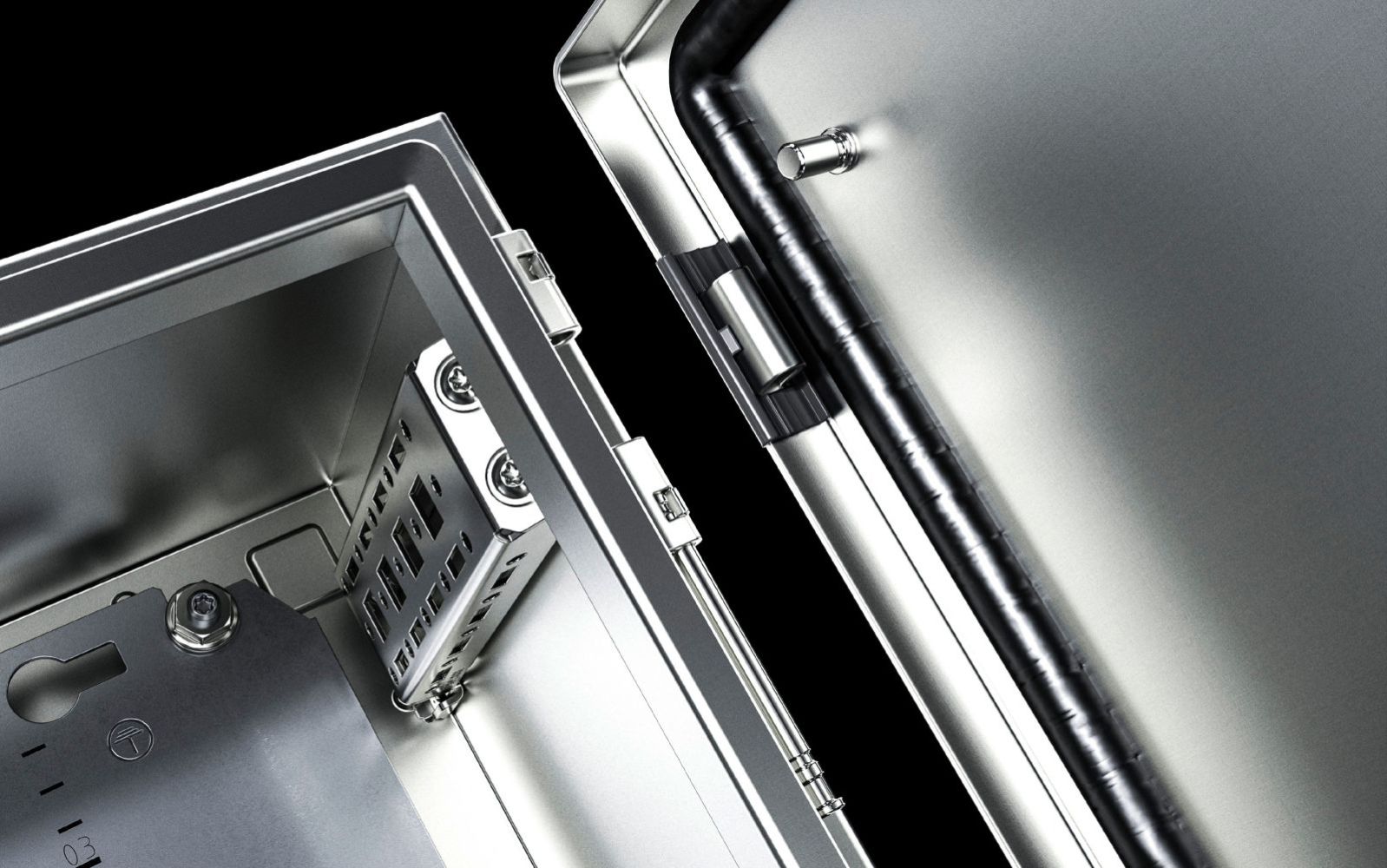

The enclosure features a single-sided door with an opening angle of 130°, facilitating access to internal components. The door is fitted with a continuous foamed PU seal, ensuring a tight closure and supporting the protective function against dust and moisture. The door is secured using two deadbolt locks equipped with a 3 mm double-barrel lock insert made of zinc die-cast. These locks provide a secure and reliable locking mechanism that remains stable even with frequent operation. The mounting plate is fitted with keyhole slots for earthing and is fastened to the enclosure using Limbach nuts.
Technology Explained Simply

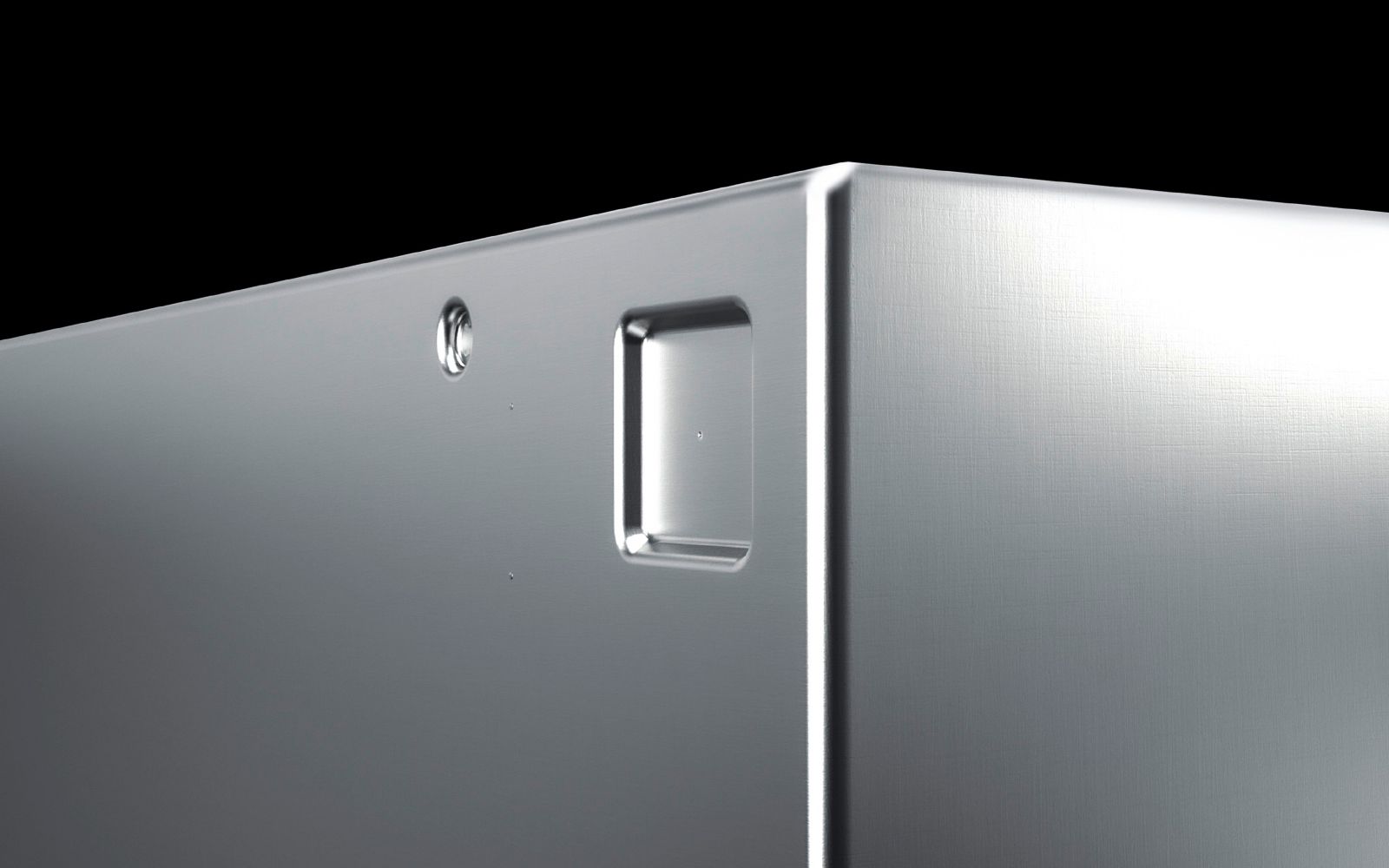

The construction of the enclosure is based on a single-piece, folded and welded body, providing high structural stability. The material thickness of the enclosure is 1.25 mm, and that of the door is 1.5 mm, ensuring sufficient strength for industrial use. The integrated cam system technology enables simple and hole-free internal installation, allowing quick and secure mounting of components and circuit boards. The rear wall is solid, and the door features welded hinges, providing high mechanical strength. A QR code is printed on the body, door, and nameplate to enable unique identification and traceability of individual parts.

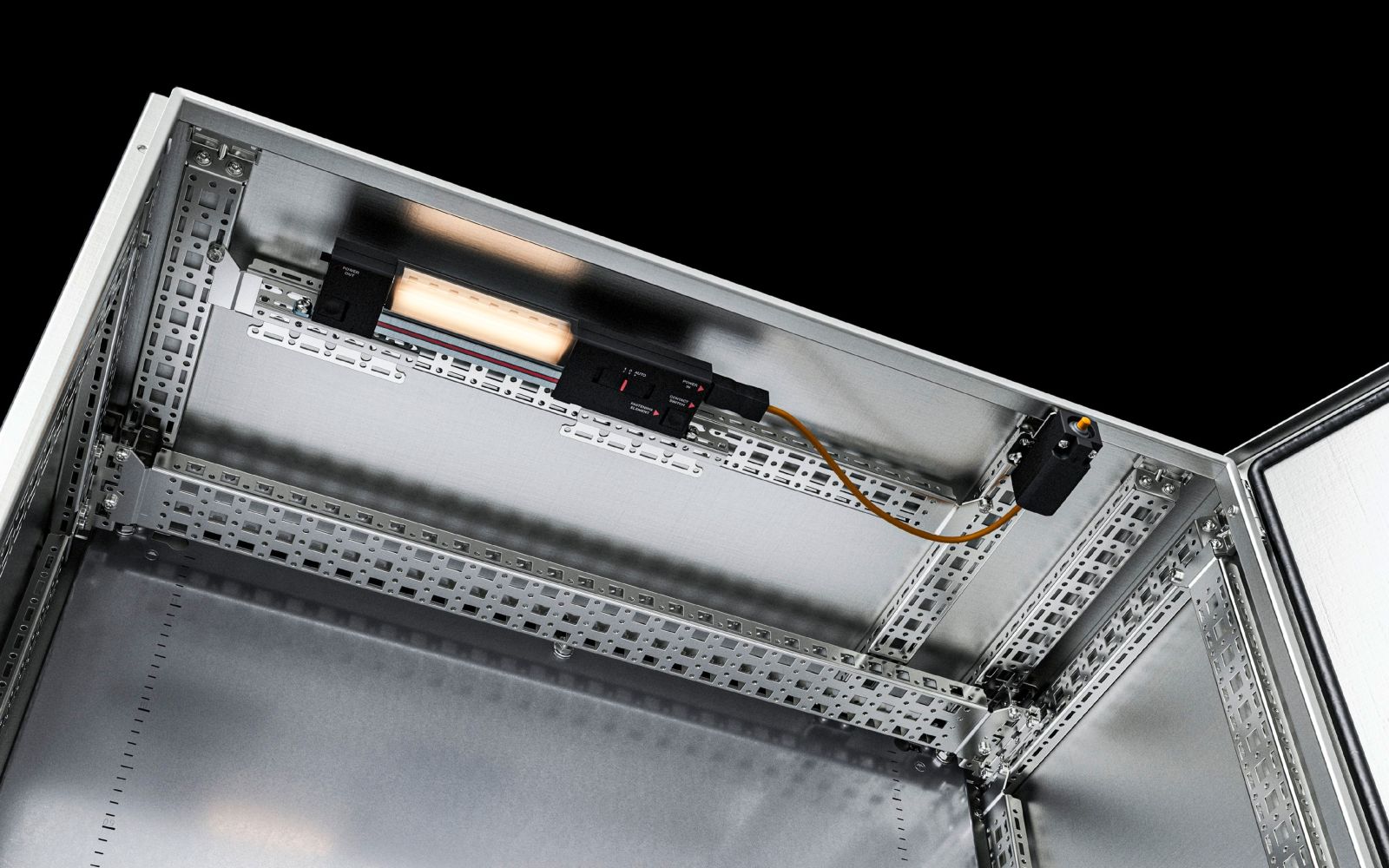

Compatibility and Accessories
The enclosure is compatible with a wide range of accessories, allowing individual adaptation to specific requirements. Compatible accessories include cable glands made of brass and polyamide in various diameters (e.g. M12x1.5, M25x1.5, M40x1.5), wall mounting brackets made of stainless steel 1.4301, AX circuit diagram pockets made of steel sheet, and lock inserts made of zinc die-cast. These components support secure and flexible cable installation, wall mounting, and integration of circuit boards.
Mounting and Installation

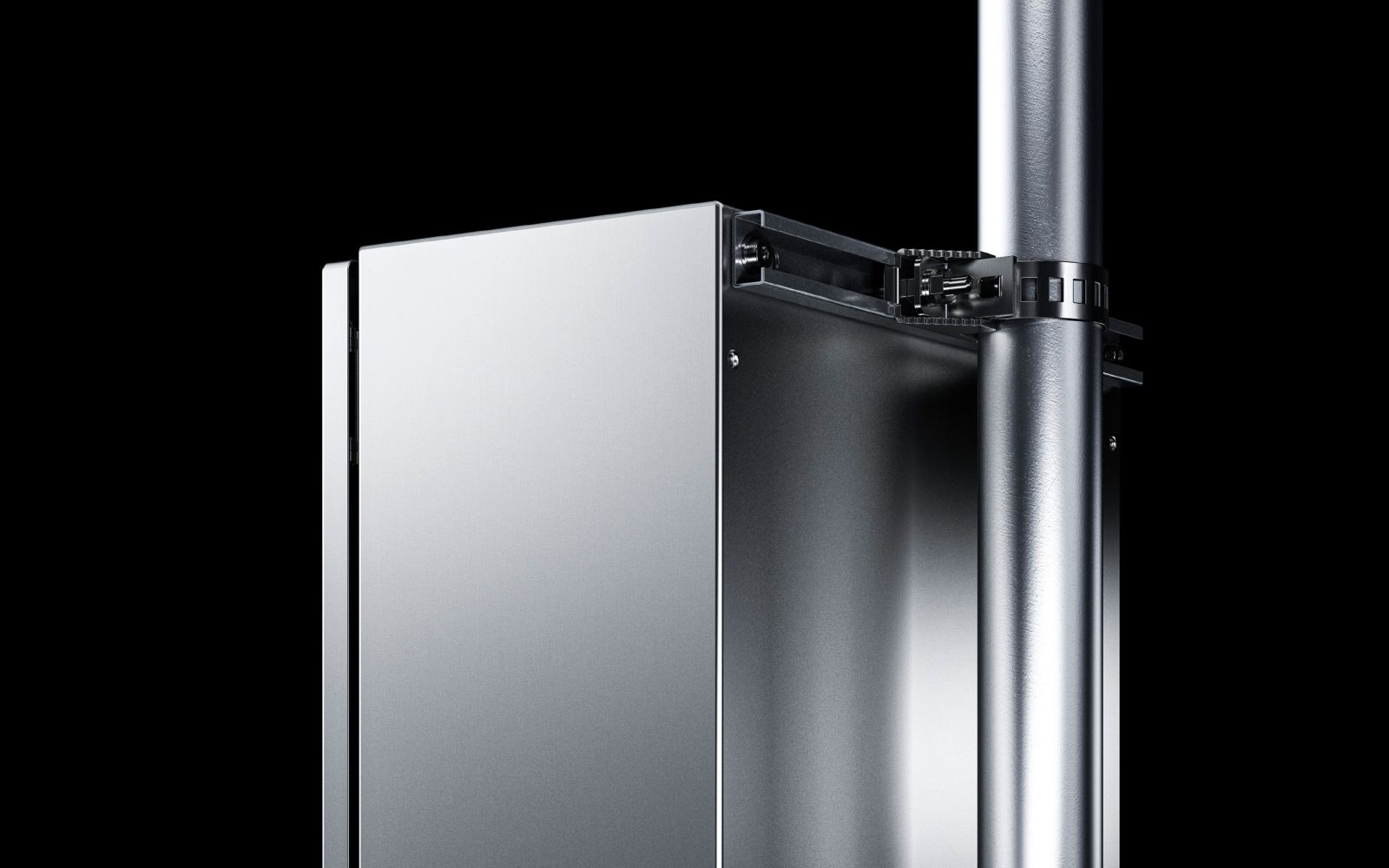

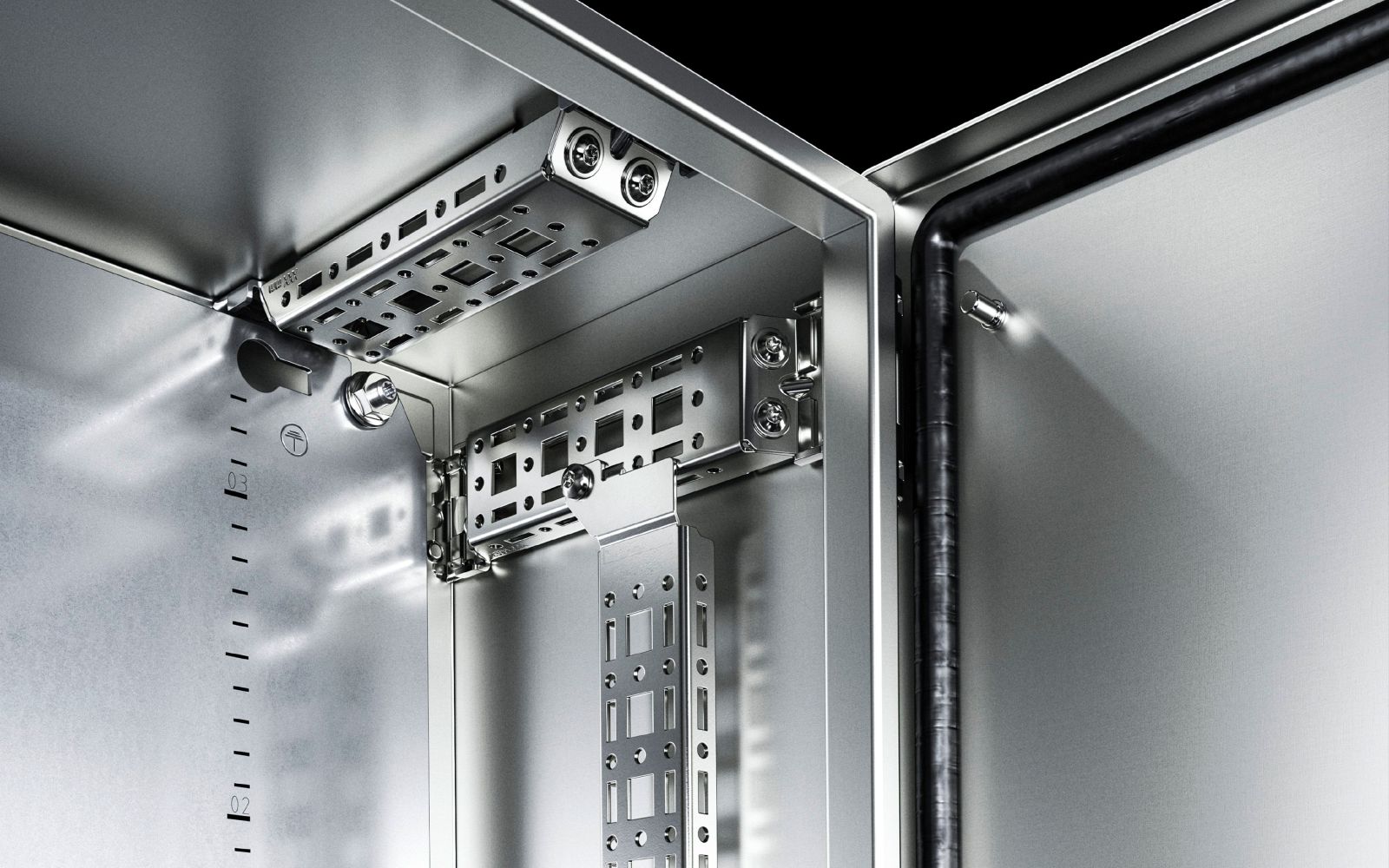

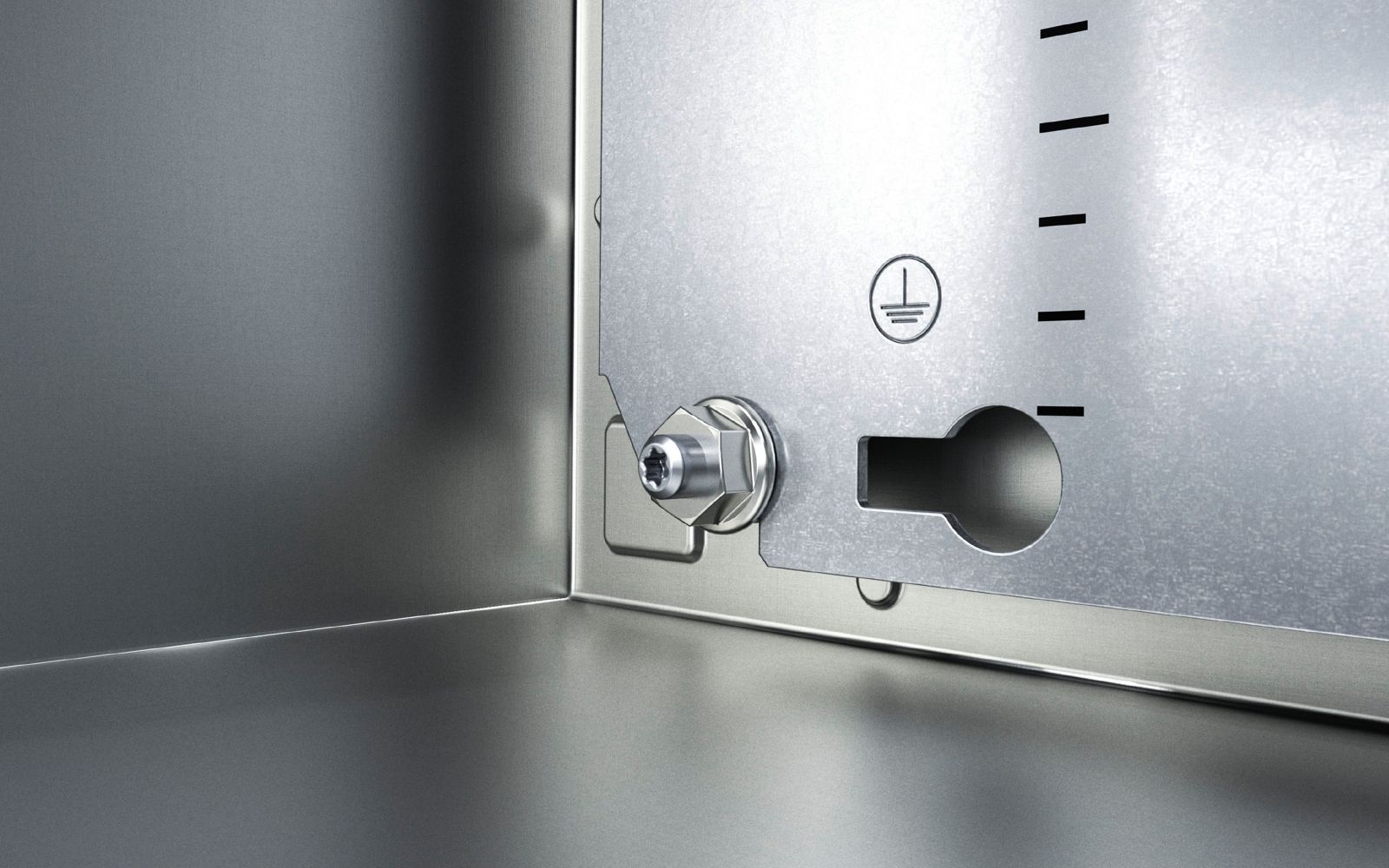

Mounting is done via the designated mounting points on the rear wall of the enclosure. The mounting plate is included in the delivery and is fastened using Limbach nuts. The integrated cams allow hole-free mounting of internal units. The door can be mounted on the left or right side as required, with the standard configuration being on the right side. Earthing is achieved via the designated keyhole slots on the mounting plate.
Advantages in Operation
The enclosure offers high reliability due to its robust stainless steel construction and integrated protection against dust, water, and mechanical impacts. The simple mounting and hole-free internal installation reduce installation time. The uniform surface finish and tight sealing ensure long service life and low maintenance. The certifications to IP 66, NEMA 4X, and UL 50E Type 4X allow use in demanding environments without requiring additional protective measures. The integrated identification via QR code simplifies documentation and maintenance of the device throughout its entire lifecycle.
| General | |

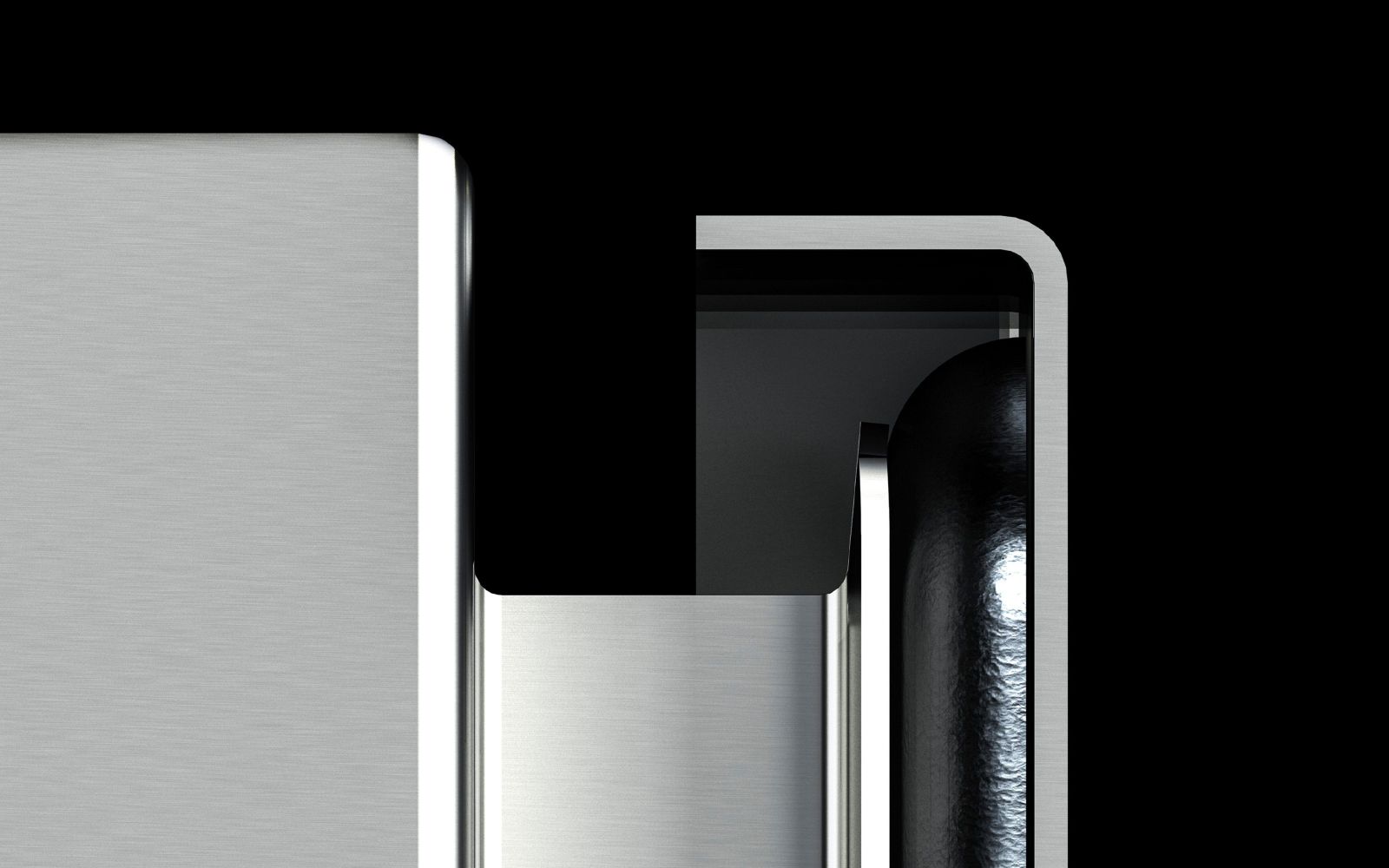

| Material | Housing: stainless steel, door: stainless steel, continuous foamed PU seal, mounting plate: sheet steel, stainless steel 1.4301 (AISI 304) |
| Surface protection | Casing and door: brushed finish, grit 400, mounting plate: galvanized |
| Scope of delivery | Cabinet with door(s), opening angle 130°, mounting plate, locking: 3 mm double bar |
| NEMA degree of protection | NEMA 1, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12 |
| Degree of protection IP according to EN 60 529 | IP 66 |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 4X, Type 12 |
| IK code | IK10 |
| Width | 500 mm |
| Height | 500 mm |
| Depth | 210 mm |
| Door material thickness | 1,5 mm |
| Plate thickness cabinet | 1,25 mm |
| Mounting plate material thickness | 2,5 mm |
| Mounting plate dimensions (W x H) | 450 mm x 475 mm |
| Number of doors | 1 |
| Lock | Locking mechanism type: push-button, number of locks: 2, lock insert: 3 mm double barb, lock material: zinc die-cast |
| Base material | Stainless steel 1.4301 (AISI 304) |
| PCF/VE (Cradle-to-Gate) | 51,56 |
