Rittal 2411611 Cable gland 50 pcs. Polyamide

Your rating:
Average rating
product review for Rittal 2411611 Cable gland 50 pcs. Polyamide
( 4.5 / 5 ) 38 ratings
Rittal 2411611
This image may differ from the desired article.
Rittal 2411611Rittal 2411611Rittal 2411611
21,39 EUR
( 25,45 EUR incl. VAT )
≈ £17.90  |  ≈ $23.51
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 2411611 Cable gland 50 pcs. Polyamide
Datasheet:file_download Download
Lieske Part No.:1087155
Mfg Part No: 2411611
UPC/EAN: 4028177810006
Weight:0.546 kg
Type:SZ 2411611

Product information for Rittal 2411611:

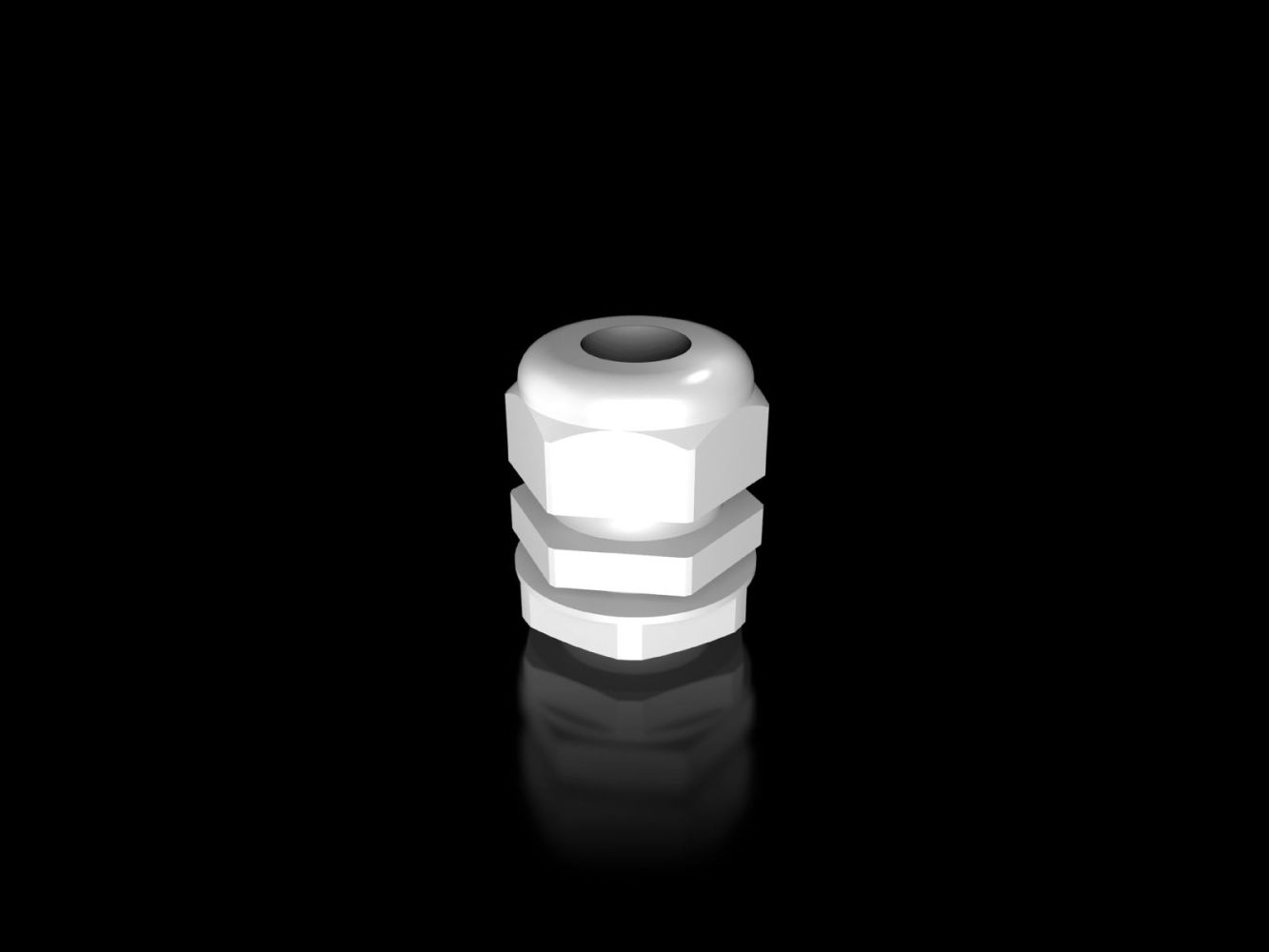

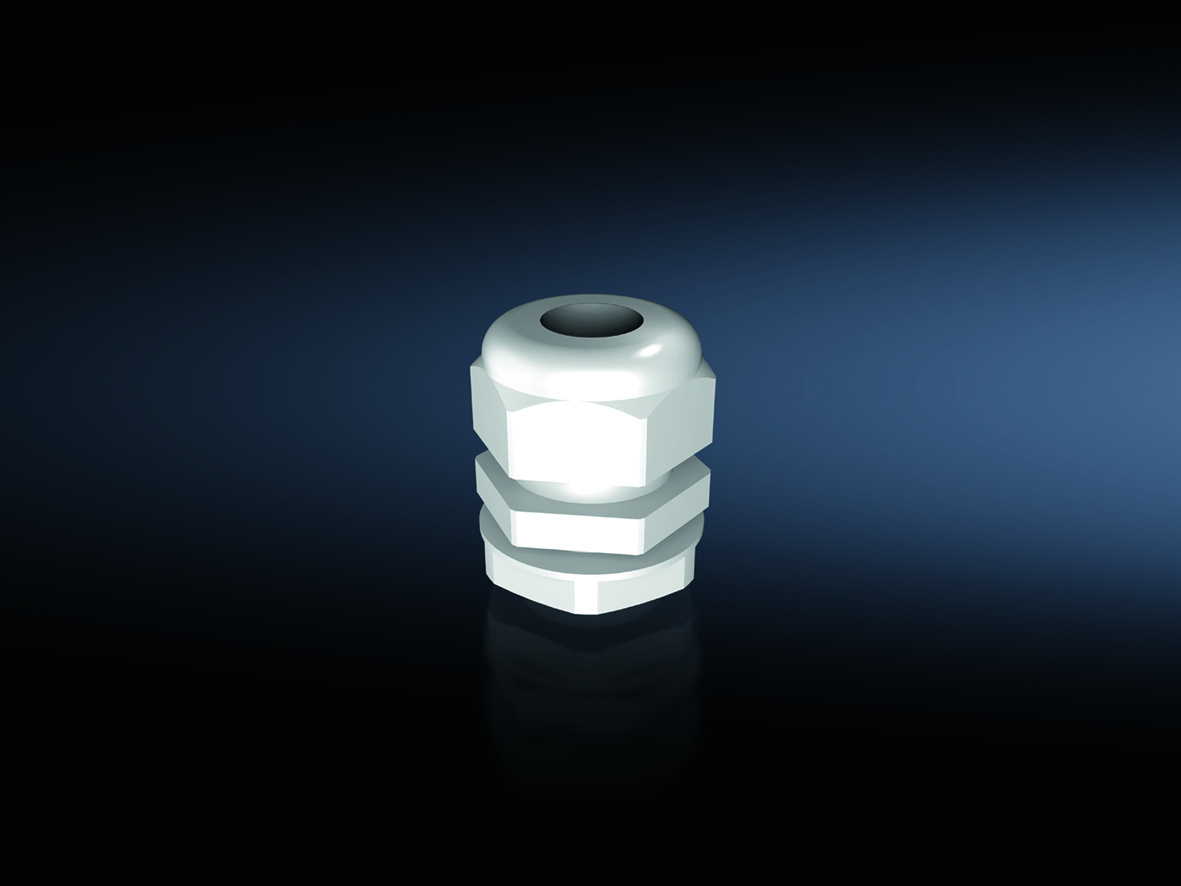

The Rittal SZ 2411611 is a cable gland made of polyamide 6, specifically designed for use in industrial enclosures and housings. It is used for secure and tight fixation of cables with a diameter between 5 mm and 10 mm in switchgear, control systems, or other electrical installations. The gland features an integrated sealing gasket made of CR/NBR, ensuring high sealing performance, and is finished in RAL 7035, enabling visual harmonization with other components in the enclosure.

Applications
This cable gland is suitable for use in environments with high requirements for protection rating. It is used in industrial plants, machine building, automation technology, or in the energy supply sector, where reliable cable routing and mechanical strain relief are required. The protection rating IP 68 (5 bar, 30 min) makes it suitable for use in damp or wet environments as well as outdoors, as it is dust- and waterproof and can withstand short-term immersion under pressure.

Functions and Equipment in Detail
The gland features integrated clamping lamellae that ensure even cable clamping and provide cable-friendly strain relief. This prevents mechanical stress from being directly transferred to the cable, thereby extending the service life of the cables. The lock nut is included together with the gland in a single packaging unit (VE), reducing ordering and storage effort. The gland is designed for cable diameters from 5 mm to 10 mm, with maximum tensile strength ensured by the specified torque of 2.5 Nm.

Technology Explained Simply
The cable gland consists of a polyamide body with a thread M16 x 1.5 and a thread length of 10 mm. The height is 30 mm, and the wrench size is 22 mm, enabling installation with a suitable wrench. The operating temperature range extends from -30 °C to 100 °C, allowing use in environments with varying climatic conditions. The CR/NBR sealing gasket ensures tight sealing against dust and water, even under pressure. The protection rating IP 68 corresponds to standard IEC 60 529 and means the device is protected against dust and continuous water ingress, including short-term immersion under 5 bar pressure for 30 minutes.

Compatibility and Accessories
The gland is designed for cables with a diameter of 5 mm to 10 mm and can be mounted in enclosures and housings with corresponding drill holes. The packaging unit contains 50 pieces, suitable for larger installations or series mounting. The combination of gland and lock nut in one VE simplifies ordering and storage. The gland is certified with type rating UL 50E, Type 4X, confirming suitability for use in damp and dusty environments.

Installation and Mounting
Mounting is done by inserting the gland into the designated hole in the enclosure or housing. The cable is passed through the gland, with the integrated clamping lamellae securing the cable connection. The lock nut is then tightened with a wrench (wrench size 22 mm), ensuring the specified torque of 2.5 Nm is not exceeded to avoid damaging the gland or cable. Installation is simple and requires no additional tools or components.

Advantages in Operation
The cable gland provides reliable and tight cable routing that remains stable even under mechanical stress. The integrated clamping lamellae ensure even distribution of tensile forces and protect the cable from mechanical damage. The high protection rating IP 68 enables use in demanding environments, including wet or dusty areas. The packaging unit with 50 pieces reduces ordering and storage effort, making maintenance and installation more efficient. Certification according to UL 50E Type 4X confirms suitability for industrial applications with high requirements for environmental resistance.

General
MaterialPolyamide 6, seal: CR/NBR
ColourRAL 7035
Degree of protection IP according to IEC 60 529IP 68 (5 bar, 30 min)
Height30 mm
ThreadM16 x 1.5
Thread length10 mm
Minimum cable diameter5 mm
Max. cable diameter10 mm
Operating temperature range-30 °C...100 °C
Torque2,5 Nm
Wrench width22 mm
Type rating according to UL 50EType 4X


Product data sheet
Datasheet for Rittal 2411611, EAN: 4028177810006

Questions & answers

What is the delivery time of Rittal 2411611 Cable gland 50 pcs. Polyamide?

The article Rittal 2411611 Cable gland 50 pcs. Polyamide is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 2411611 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 2411611 Cable gland 50 pcs. Polyamide always at the best possible price. We can give you a discount of 2% on Rittal 2411611 Cable gland 50 pcs. Polyamide if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
