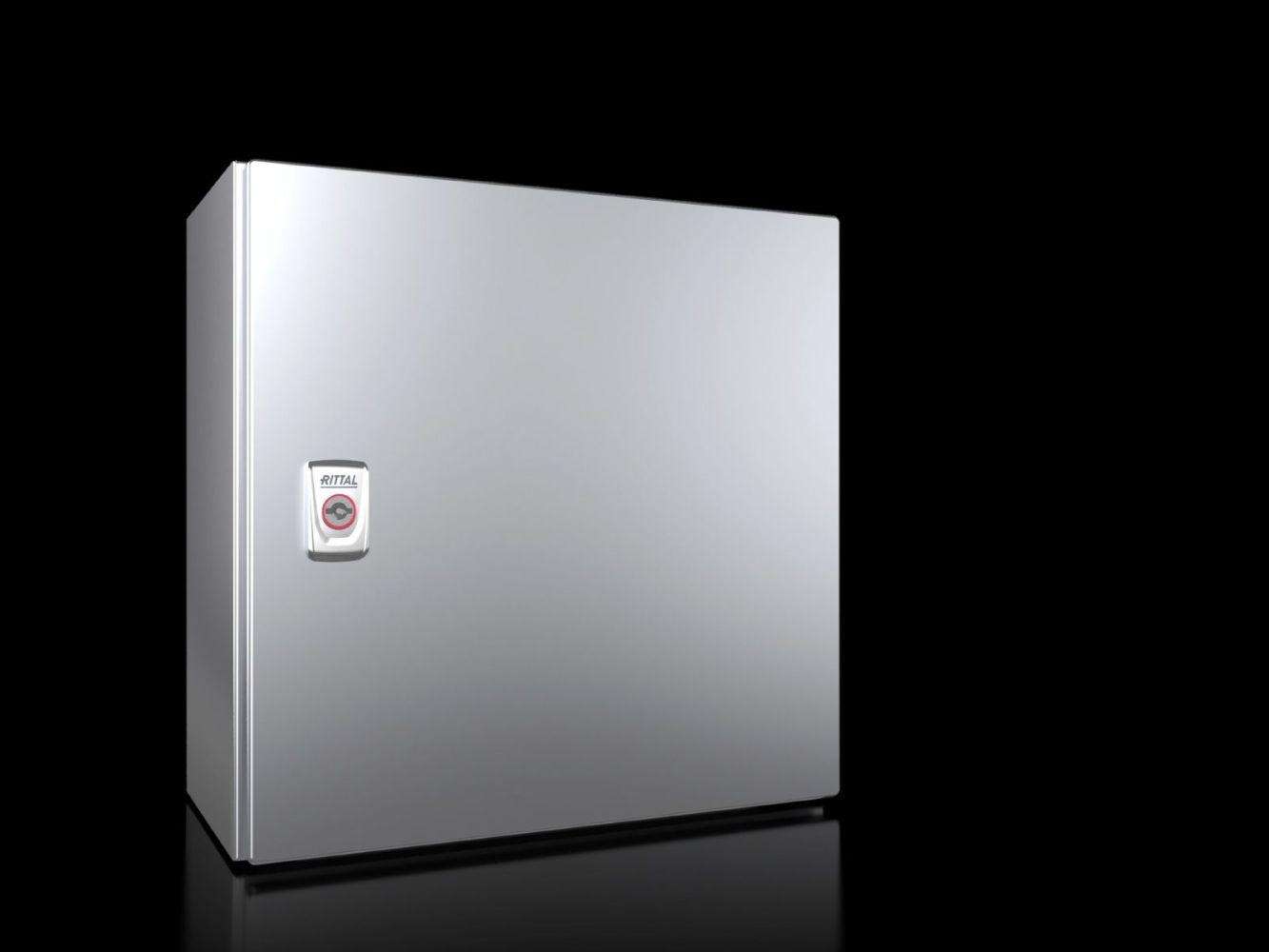

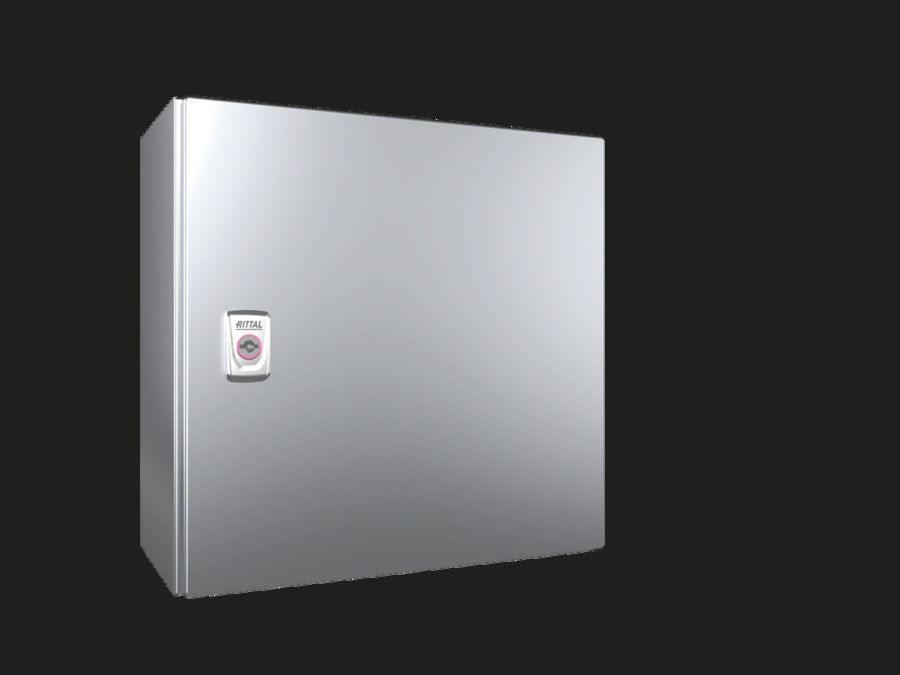

Rittal 1006000 Compact enclosure AE W x H x D 380x380x210 mm IP66
|
-6% 245,87 EUR 260,62 EUR |
|
|
( 292,59 EUR incl. VAT ) ≈ £205.79 | ≈ $270.21 plus delivery charges: 100,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1980346 |
| Mfg Part No: | 1006000 |
| UPC/EAN: | 4028177814950 |
| Weight: | 9.115 kg |
| Type: | AX 1006000 |
Product information for Rittal 1006000:
Applications
This enclosure is intended for use in industrial and automation environments, particularly where high mechanical strength and resistance to environmental influences are required. The IP 66 protection rating means the enclosure is dust-tight and protected against heavy splashing water, making it suitable for outdoor use as well. Certifications according to NEMA 1, 3R, 4, 4X, and 12, as well as type rating according to UL 50E (Type 1, 3R, 4, 4X, 12), extend the application range to applications in manufacturing, power supply, and machine building. The IK code IK10 guarantees high protection against mechanical impacts, such as blows or shocks.

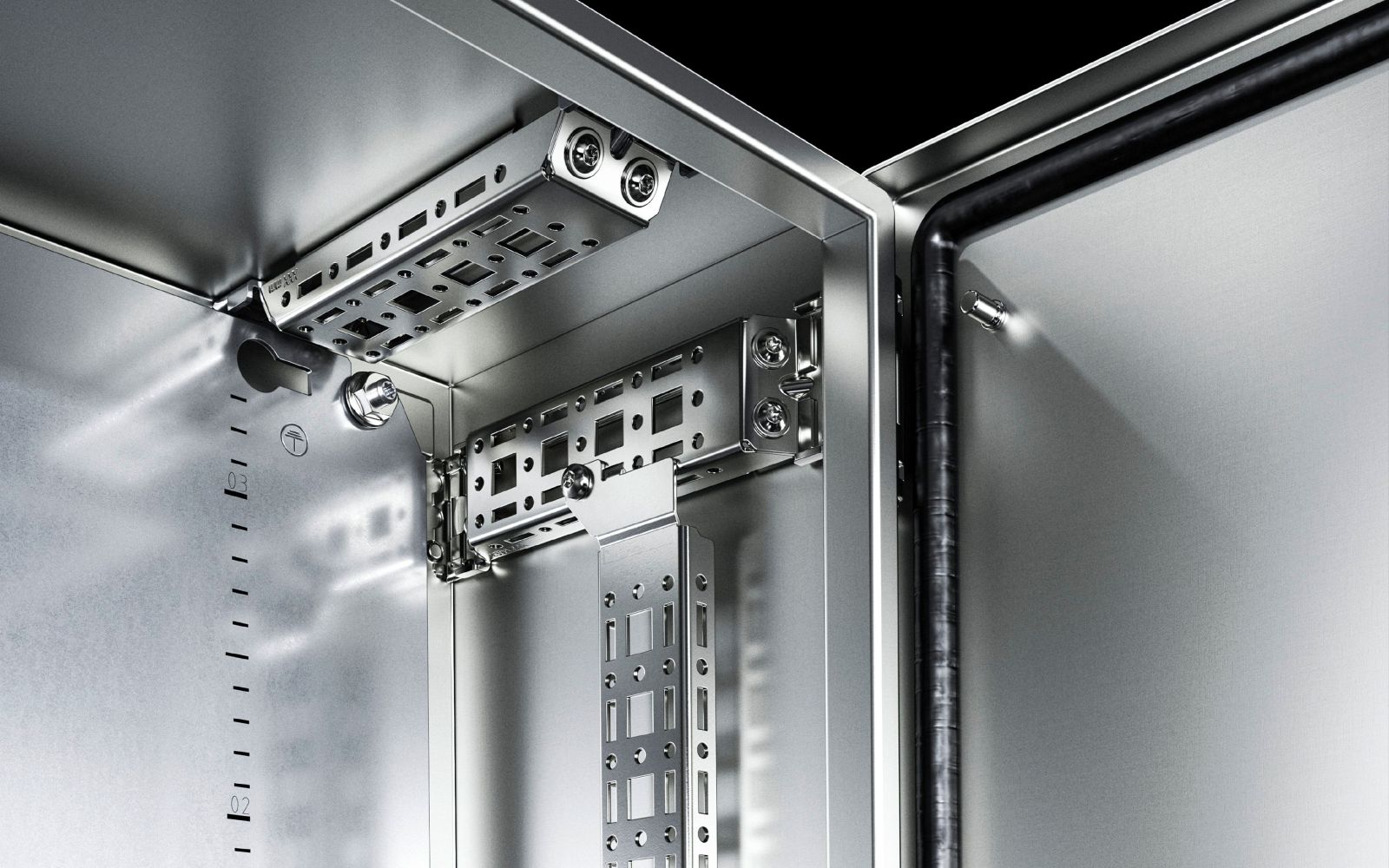

Functions and Equipment in Detail

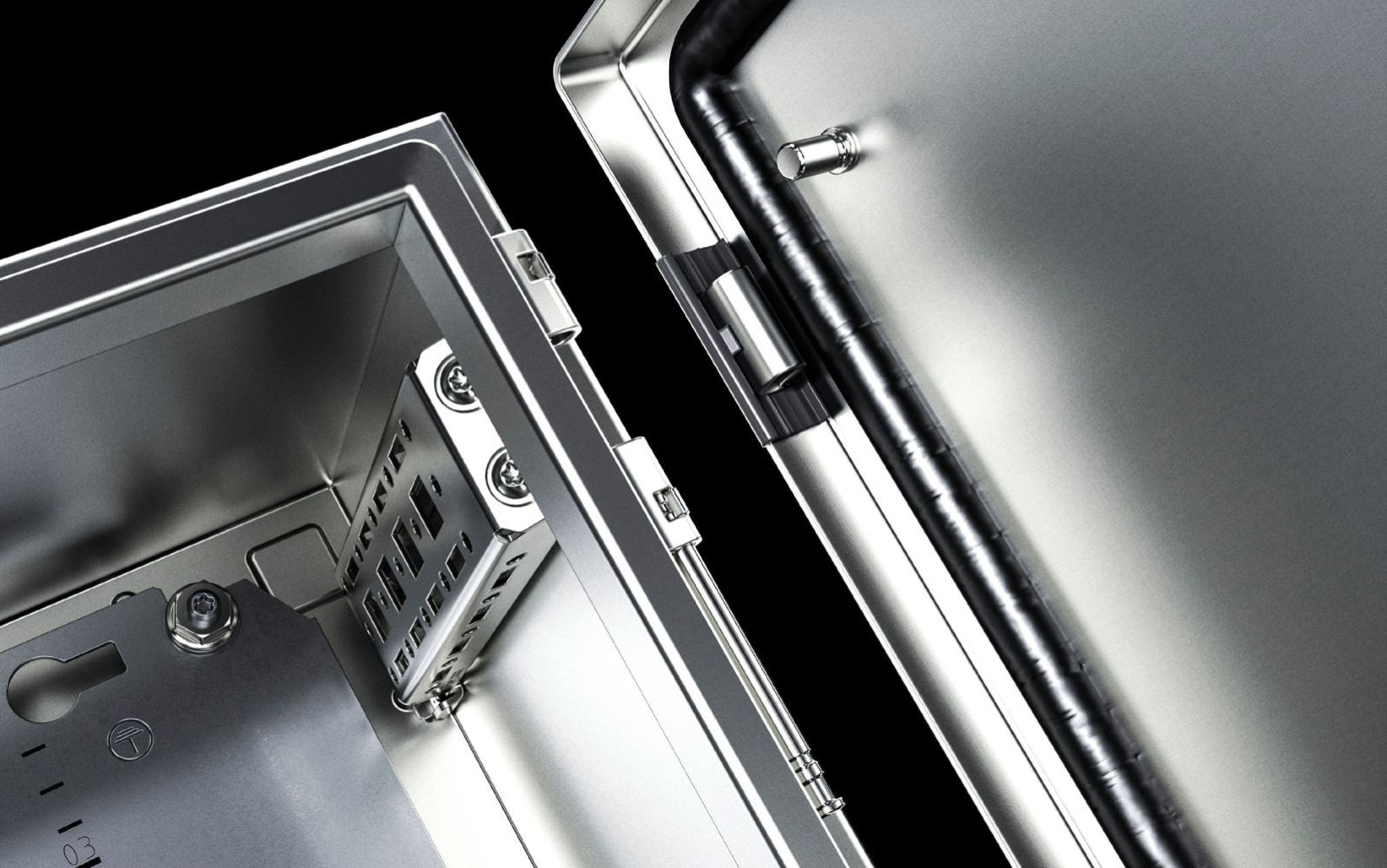

The enclosure features an integrated cam system that enables simple and quick internal installation without drilling. The door is fitted with welded hinges, ensuring robust mounting. A deadbolt lock with a 3 mm double-barrel lock insert according to DIN 43668 provides secure locking. The mounting plate made of galvanized steel sheet (2 mm thickness) is equipped with grounding keyhole slots and dimension markings, and is fastened with Limbach nuts. The surface of the enclosure and door is brush-finished (grit 400), providing a uniform and easy-to-maintain surface.
Technology Explained Simply
The IP 66 protection rating according to EN 60 529 means the enclosure is completely dust-tight and protected against heavy splashing water, making it suitable for outdoor use. The NEMA 4X and Type 4X protection according to UL 50E protects against splashing water, dust, and chemical sprays, making it suitable for use in damp or aggressive environments. The IK code IK10 guarantees high mechanical protection, preventing impacts and shocks up to a certain energy level. The door thickness is 1.5 mm, and the enclosure thickness is 1.25 mm, providing sufficient strength for industrial use.
Compatibility and Accessories
Various accessories are available for this enclosure, extending its functionality. These include cable glands made of brass and polyamide in various sizes (e.g. M12x1.5, M20x1.5, M25x1.5, M32x1.5, M40x1.5, M50x1.5, M63x1.5), wall mounting brackets and holders made of stainless steel 1.4301 or 1.4404, and a baying set for AX, KX, AE, KL. These components allow flexible mounting and adaptation to specific requirements.

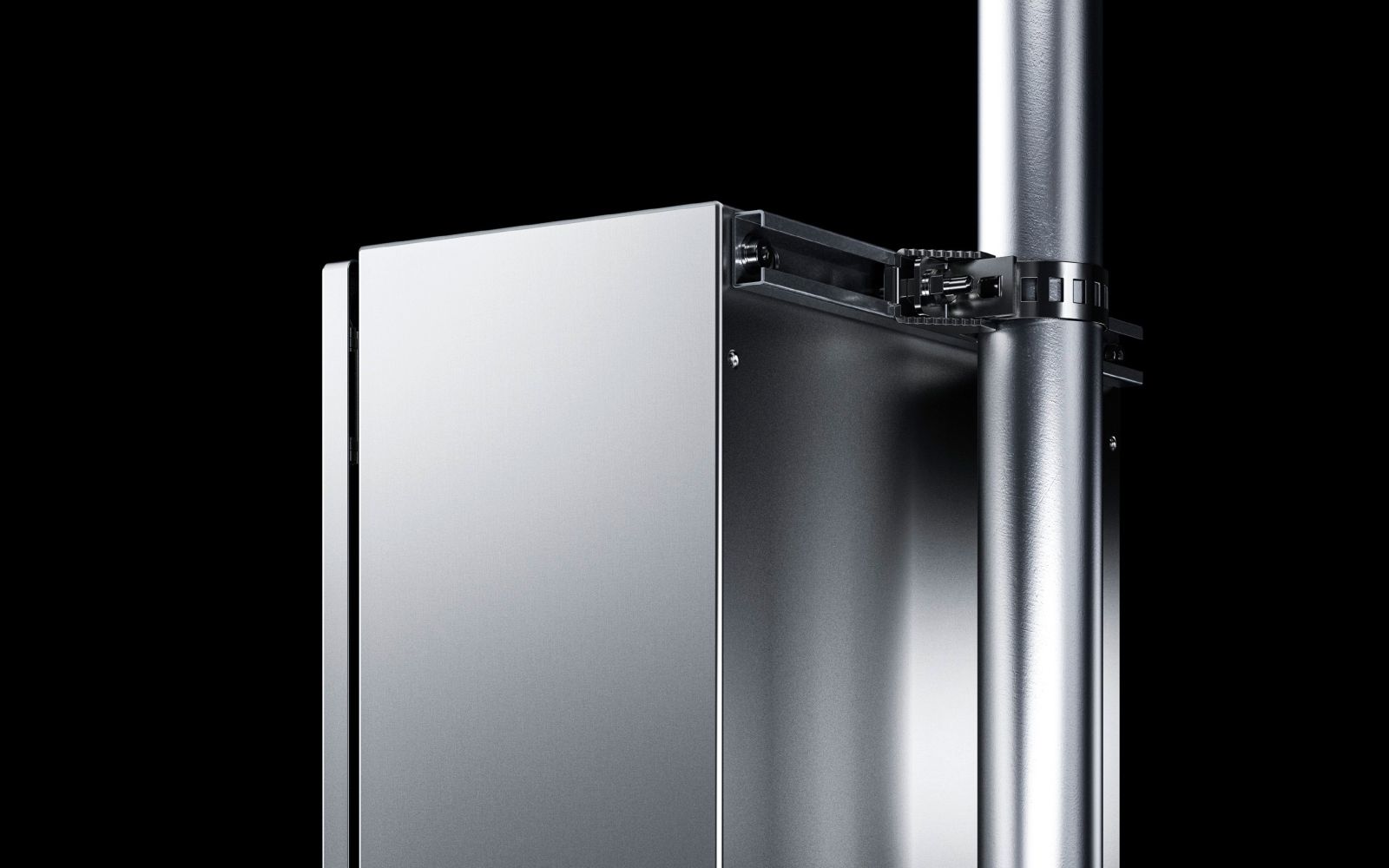

Mounting and Installation

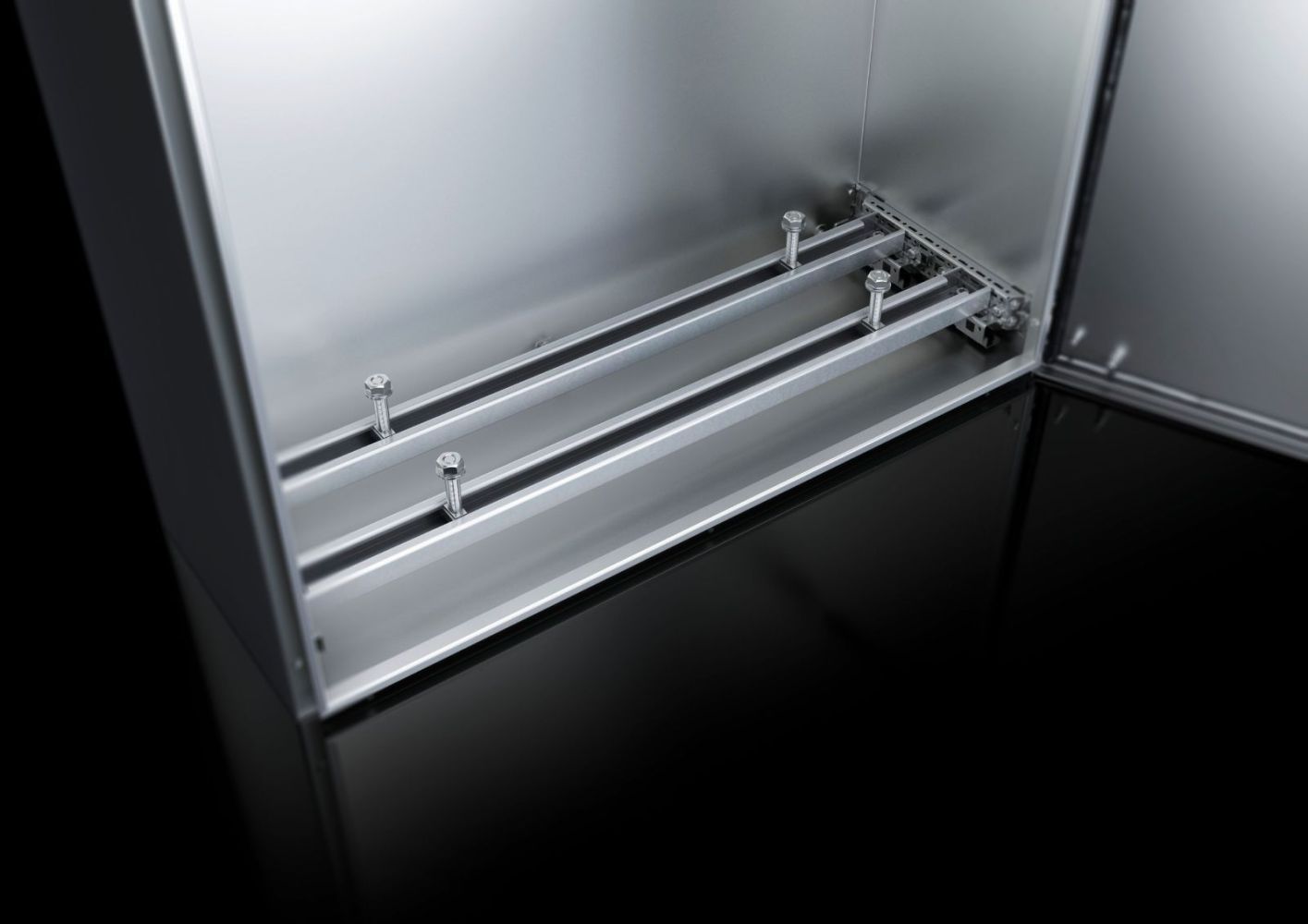

The enclosure can be mounted on a wall or a base. The mounting plate is equipped with mounting holes for secure fastening. The integrated cams in the enclosure allow for easy and quick installation of internal components without drilling. The door can be mounted on the left or right side as required, enabling flexible installation. Grounding is achieved via a bolt on the mounting plate.
Operational Advantages
The enclosure offers high mechanical stability and high protection against environmental influences, increasing operational safety. The integrated cams enable quick and easy internal fitting. The brush-finished surface is easy to maintain and resistant to contamination. The continuous PU seal ensures tight sealing, supporting the IP 66 protection rating. The use of stainless steel 1.4301 ensures high corrosion resistance, extending the enclosure's service life. A QR code on the body, door, and nameplate enables unique identification and easy access to product information and documentation.
| General | |
| Material | Housing: stainless steel, door: stainless steel, continuous foamed PU seal, mounting plate: sheet steel, stainless steel 1.4301 (AISI 304) |
| Surface protection | Casing and door: brushed finish, grit 400, mounting plate: galvanized |
| Scope of delivery | Cabinet with door(s), opening angle 130°, mounting plate, locking: 3 mm double bar |
| NEMA degree of protection | NEMA 1, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12 |
| Degree of protection IP according to EN 60 529 | IP 66 |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 4X, Type 12 |
| IK code | IK10 |
| Width | 380 mm |
| Height | 380 mm |
| Depth | 210 mm |
| Door material thickness | 1,5 mm |
| Plate thickness cabinet | 1,25 mm |
| Mounting plate material thickness | 2 mm |
| Mounting plate dimensions (W x H) | 330 mm x 355 mm |
| Number of doors | 1 |
| Lock | Closure type: latch, number of closures: 1, closure insert: 3 mm double barb, closure material: zinc die-cast |
| Base material | Stainless steel 1.4301 (AISI 304) |
| PCF/VE (Cradle-to-Gate) | 33,83 |
