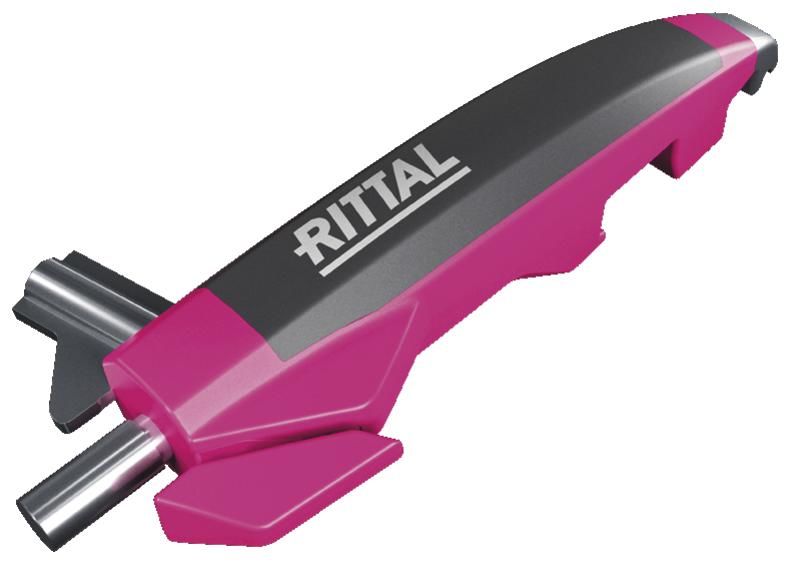

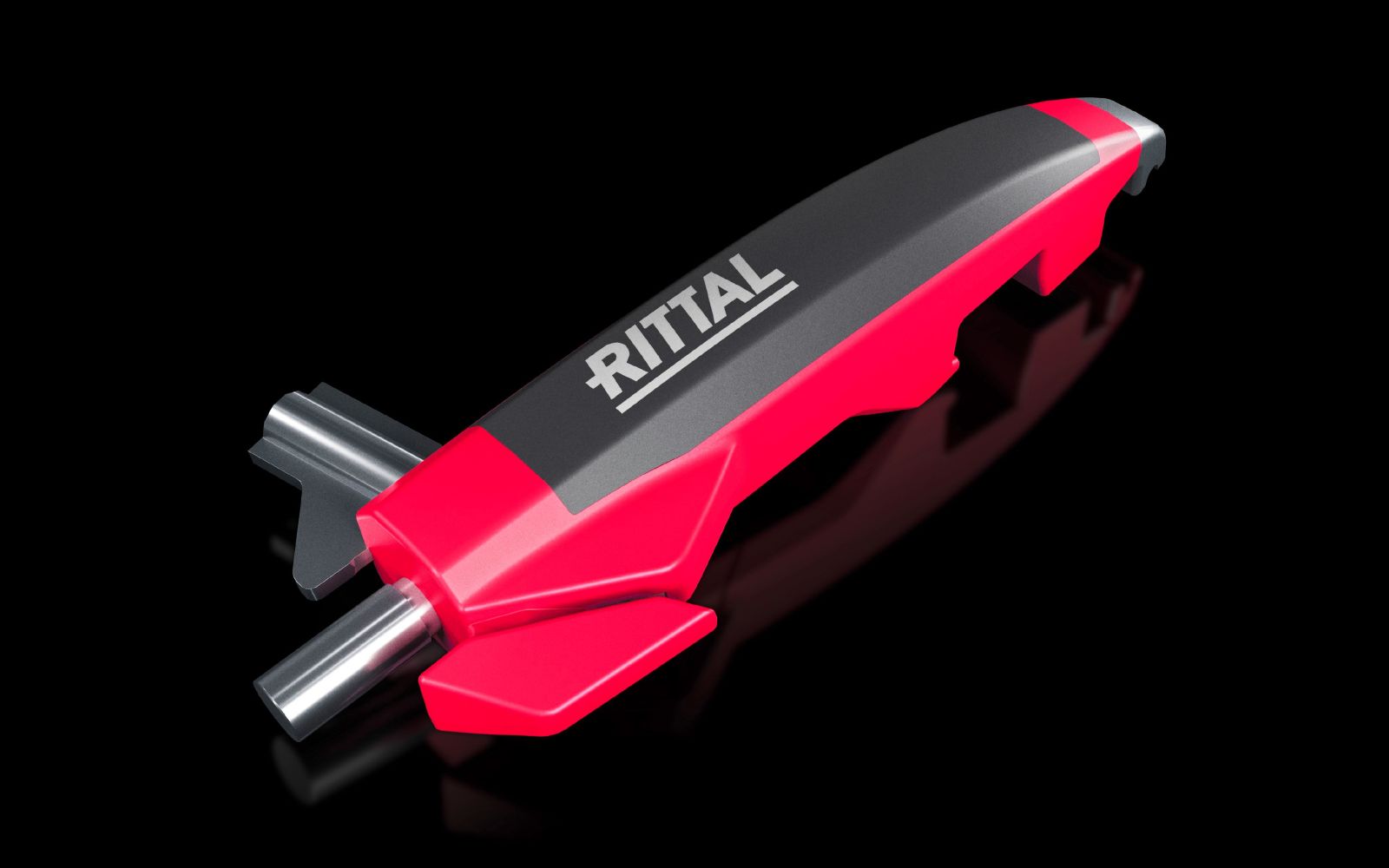

Rittal 4052000 AS Multitool AX/VX content_copy

The Rittal AS 4052000 is a multifunctional tool, specifically developed for handling and mounting AX enclosures as well as VX doors in the field of enclosure technology. It combines several useful functions in a compact device designed for daily use in electrical and IT trades. The tool combination enables efficient work during installation, maintenance, and disassembly of enclosure components, with individual functions directly tailored to the specific requirements of the AX and VX product families.

Multifunctional tool
The AS 4052000 offers a variety of functions integrated into a single tool. This includes the ability to cut packaging materials such as tapes and films, which is helpful when unpacking new enclosure components. An integrated enclosure key with double bar allows opening and closing of enclosure locks compatible with this key type. The tool functions are designed to support workflow in enclosure construction without requiring additional tools.

Functions and equipment in detail
A central feature of the tool is the door lifting function, which allows a maximum load capacity of 40 kg. This function is used to safely lift enclosure doors, particularly during mounting or disassembly of VX doors. The door lifting function is made of stainless steel, ensuring high strength and corrosion resistance. Additionally, the tool is used for mounting and disassembling hinge pins on AX enclosures, for which a special mounting aid made of zinc die-cast is provided. This enables precise and secure insertion and removal of hinge pins.

Technology explained clearly
The tool components are made from materials suitable for industrial use. The handle is made of plastic in anthracite and Rittal Power Pink colors, ensuring good ergonomics and visibility. The knife blade is made of stainless steel to ensure long service life and sharp cutting performance. The function for temporary door locking on AX steel sheet enclosures is implemented via a zinc die-cast component that fixes the door in the open position. An integrated magnet is used to attach drawings or documents to metallic enclosure surfaces, which is helpful during mounting or maintenance. An additional bottle opener function complements the tool, although this function is not primarily intended for technical use but serves as a practical addition.

Compatibility and accessories
The tool is specifically developed for Rittal’s AX and VX product families. It is therefore compatible with the corresponding enclosure housings and doors of these series. Functions such as door lifting, hinge pin mounting, and temporary door locking are directly adapted to the construction of these enclosures.

Mounting and installation
The tool units are ready to use without additional mounting or installation. Functions such as door lifting, hinge pin mounting, or opening packaging require no additional tools. The tool functions are designed to be directly applied to the respective components without requiring additional adapters or tools.

Advantages in operation
The AS 4052000 reduces the number of tools required for mounting and maintaining enclosure components. The combination of door lifting function, enclosure key, hinge pin mounting aid, and other functions in one device increases efficiency and reduces the risk of tool loss. Materials such as stainless steel and zinc die-cast ensure high load capacity and durability. The integrated magnet function allows quick and secure attachment of documents to metallic surfaces, supporting workflow in enclosure construction.

Batteries are not included in the delivery scope.

General
Technical data	Load capacity max. 40 kg (lifting door)
Function principle	Cutting open packaging (bands and film), cabinet key (double-barrel), mounting and dismounting of hinge pins on AX enclosures, temporary door locking on AX sheet metal enclosures, secure hanging and removal of VX doors, magnet for securing drawings to cabinet surfaces, bottle opener function
Material	Door lifting function: stainless steel, double bar: zinc die-cast, mounting aid for hinge bolts: zinc die-cast, door fixation: zinc die-cast, blade: stainless steel blade, handle: plastic
Colour	Handle: Anthracite and Rittal Power Pink

---
