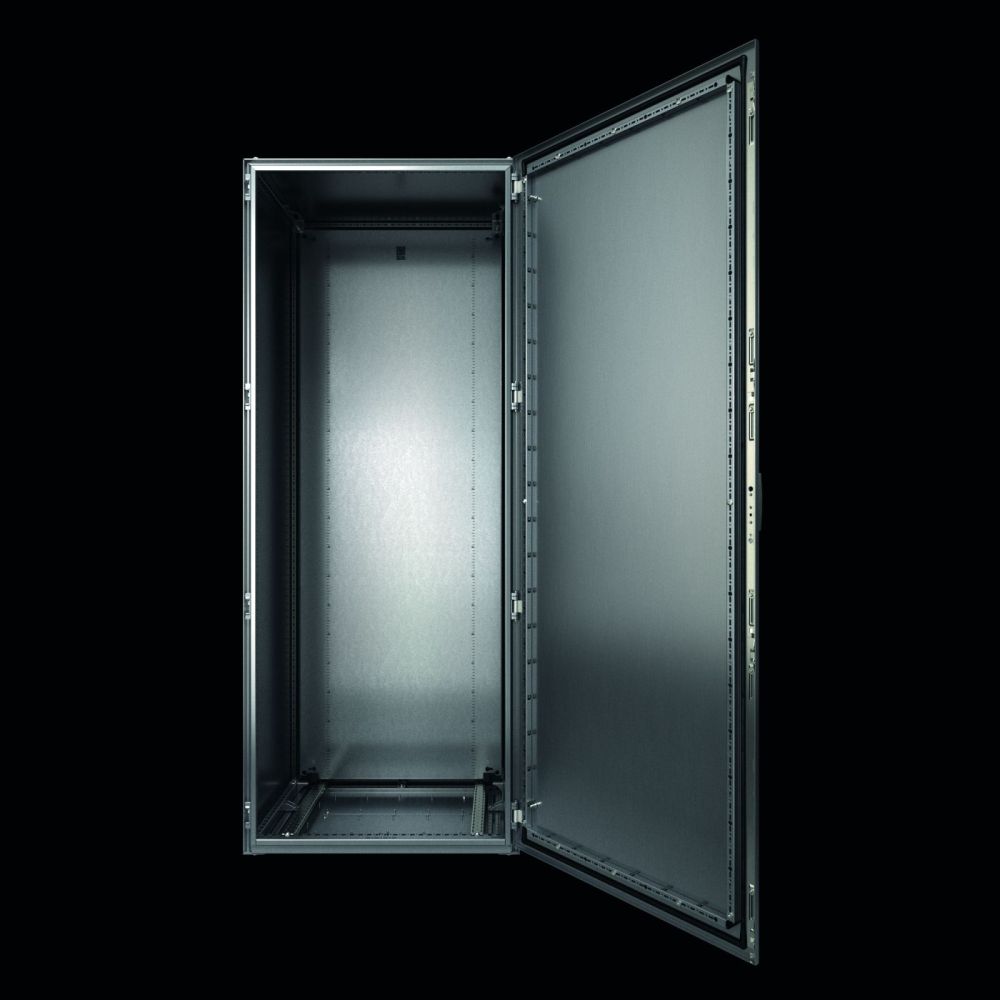

Rittal 5852680 SE system single enclosure 800x1800x500 mm stainless steel
|
3.317,64 EUR |
|
|
( 3.947,99 EUR incl. VAT ) ≈ £2,776.86 | ≈ $3,646.09 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1055489 |
| Mfg Part No: | 5852680 |
| UPC/EAN: | 4028177959408 |
| Weight: | 134 kg |
| Type: | SE 5852680 |
Product information for Rittal 5852680:
Applications
The enclosure is suitable for use in environments with high requirements for protection against dust, water, and mechanical impacts. The protection rating IP 66 according to EN 60 529 ensures complete protection against dust and heavy splashing water from any direction, qualifying it for outdoor use or in damp production environments. The NEMA 4X rating confirms suitability for damp, corrosive, or industrial environments. The type rating according to UL 50E includes categories Type 1 to Type 12, enabling use in various industrial and commercial applications. The IK code IK10 guarantees high protection against mechanical impacts, such as shocks or vibrations.
Functions and Equipment in Detail
The enclosure is made of stainless steel 1.4301 with a wall thickness of 1.5 mm for the enclosure, rear panel, and base, while the door has a thickness of 2.0 mm. The mounting plate is made of steel sheet with a thickness of 3.0 mm and a galvanized surface. The base plate is also made of stainless steel 1.4301 (1.5 mm) and is plain, without additional coating. The delivery includes the closed enclosure, a door, a removable rear panel, a mounting plate, a base, gland plates, a 3 mm double-barrel lock, and two mounting rails (18 x 39 mm). The mounting plate features a C-shaped edge and can be mounted in 25 mm increments for depth adjustment, allowing flexible adaptation to different installation situations.
Technology Explained Simply
The use of stainless steel 1.4301 (AISI 304) ensures high corrosion resistance and durability, especially in damp or aggressive environments. The linear grind surface (grit 400) provides a uniform, clean appearance and is easy to clean, which is important in hygienic requirements. The IP 66 protection rating means the enclosure is completely dust-tight and protected against heavy splashing water from any direction. The NEMA 4X rating is an international standard confirming protection against water, dust, and corrosion. The IK10 code guarantees that the enclosure is resistant to mechanical impacts such as shocks or vibrations up to a certain energy level.
Compatibility and Accessories
The enclosure is fully compatible with the baying system VX25, enabling flexible expansion with additional enclosures. Suitable accessories include stainless steel 1.4301 transport eyes, circuit diagram pockets, system chassis, comfort handles, lock inserts made of zinc die-cast, door latches, as well as VX plinth corner pieces and trim panels. These components can be used to customize the enclosure to specific requirements.
Installation and Mounting
Mounting is performed via the integrated mounting plate, which features a C-shaped edge and integrated plastic gliders. The mounting rails (18 x 39 mm) allow for easy and secure fastening of components. The door is hinged on the right but can be changed to left-hand. The rear panel is removable, facilitating access to the interior. The base plate is fixed, with gland plates provided for cabling. Due to the material hardness, it is recommended to use internal hexagon sheet metal screws 2486.400 for internal installation to avoid damage.
Operational Advantages
The enclosure offers high mechanical and chemical resistance due to the use of stainless steel 1.4301. The IP 66 and NEMA 4X ratings enable use in harsh environments, while the IK10 rating provides additional protection against mechanical stress. The integrated mounting plate and pre-mounted rails reduce installation time. Compatibility with the VX25 system allows flexible expansion of the installation. The removable rear panel and easily accessible door facilitate maintenance and component replacement. The linear grind surface finish ensures a clean and low-maintenance appearance.
| General | |
| Material | Housing: stainless steel 1.4301 (AISI 304), 1.5 mm, outside brushed finish, door: stainless steel 1.4301 (AISI 304), 2.0 mm, outside brushed finish, rear wall: stainless steel 1.4301 (AISI 304), 1.5 mm, outside brushed finish, mounting plate: sheet steel, 3.0 mm, base: stainless steel 1.4301 (AISI 304), 1.5 mm |
| Surface protection | Housing, rear panel and door: satin finish, grit 400, mounting plate: zinc-plated, base: bare |
| Scope of delivery | Enclosure top and side closed, door(s), door hinge right, reversible to left, rear panel, removable, mounting plate, base, flange plate(s), closure: 3 mm double bar, 2 mounting rails 18 x 39 mm |
| Width | 800 mm |
| Height | 1.800 mm |
| Depth | 500 mm |
| Mounting plate dimensions (W x H) | 699 mm x 1.696 mm |
| Degree of protection IP according to EN 60 529 | IP 66 |
| NEMA degree of protection | NEMA 4X |
| Type rating according to UL 50E | Type 1, Type 2, Type 3, Type 3X, Type 3R, Type 3RX, Type 4, Type 4X, Type 12 |
| IK code | IK10 |
| Number of doors | 1 |
| Note | Due to the material hardness, we recommend using the internal hexagon sheet metal screw 2486.400 for internal installation |
| Base material | Stainless steel 1.4301 (AISI 304) |
| PCF/VE (Cradle-to-Gate) | 401,68 |
