Rittal 8660061 VX plinth corner piece with trim panel, H: 200 mm, W: 800 mm
|
252,51 EUR |
|
|
( 300,49 EUR incl. VAT ) ≈ £211.35 | ≈ $277.51 plus delivery charges: 100,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 877356 |
| Mfg Part No: | 8660061 |
| UPC/EAN: | 4028177037939 |
| Weight: | 8.074 kg |
| Type: | VX 8660061 |
Product information for Rittal 8660061:
Applications
The plinth corner piece is used in industrial environments where enclosures must be mounted on a stable foundation. It is particularly suitable for installations in production environments where high mechanical loads, moisture or aggressive environmental conditions occur. Use in combination with other plinth components enables modular and flexible mounting of enclosures of various sizes and configurations. Compatibility with housing types such as VX, VX SE, TS and PC makes it a universally applicable component.
Functions and Equipment in Detail

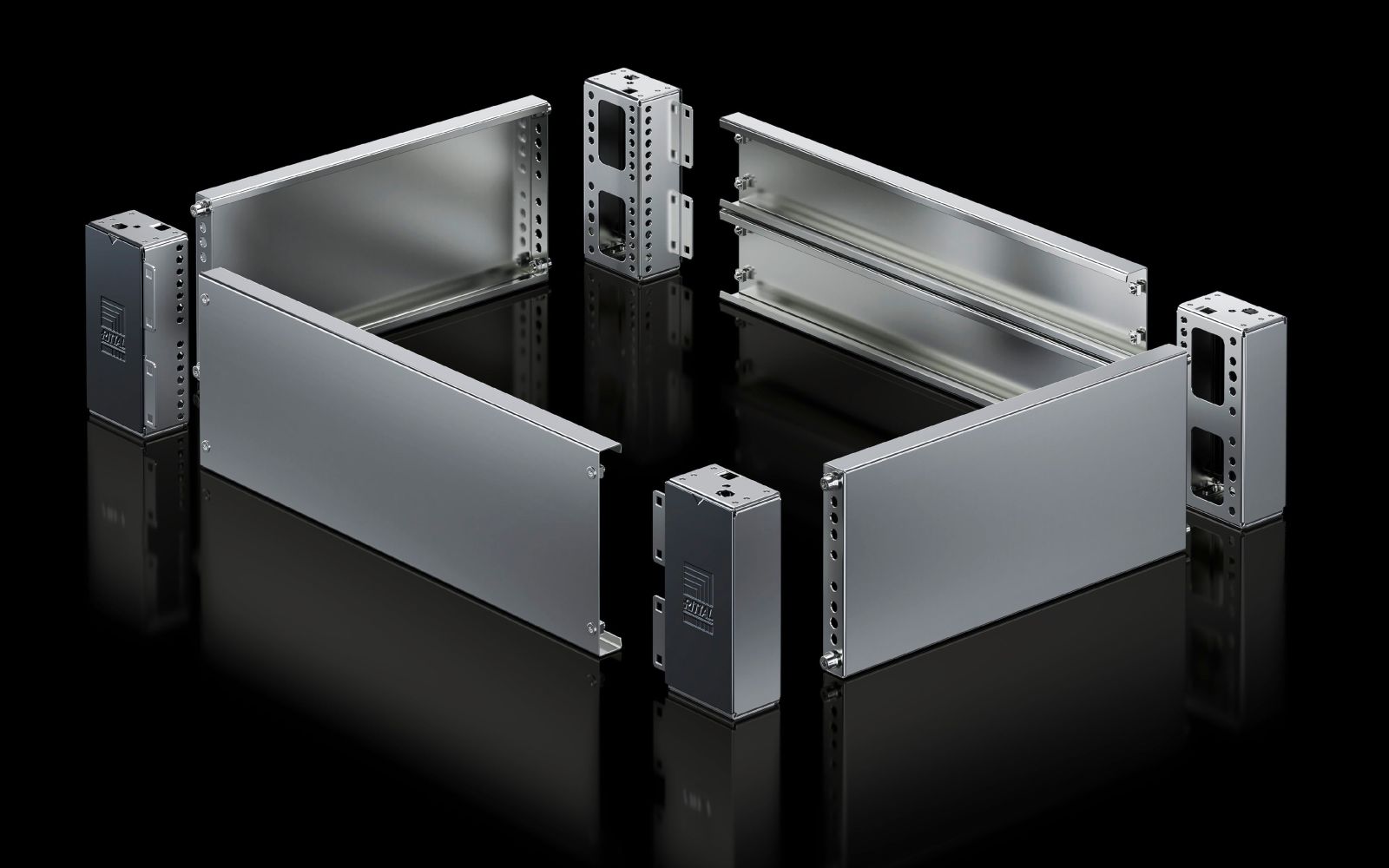

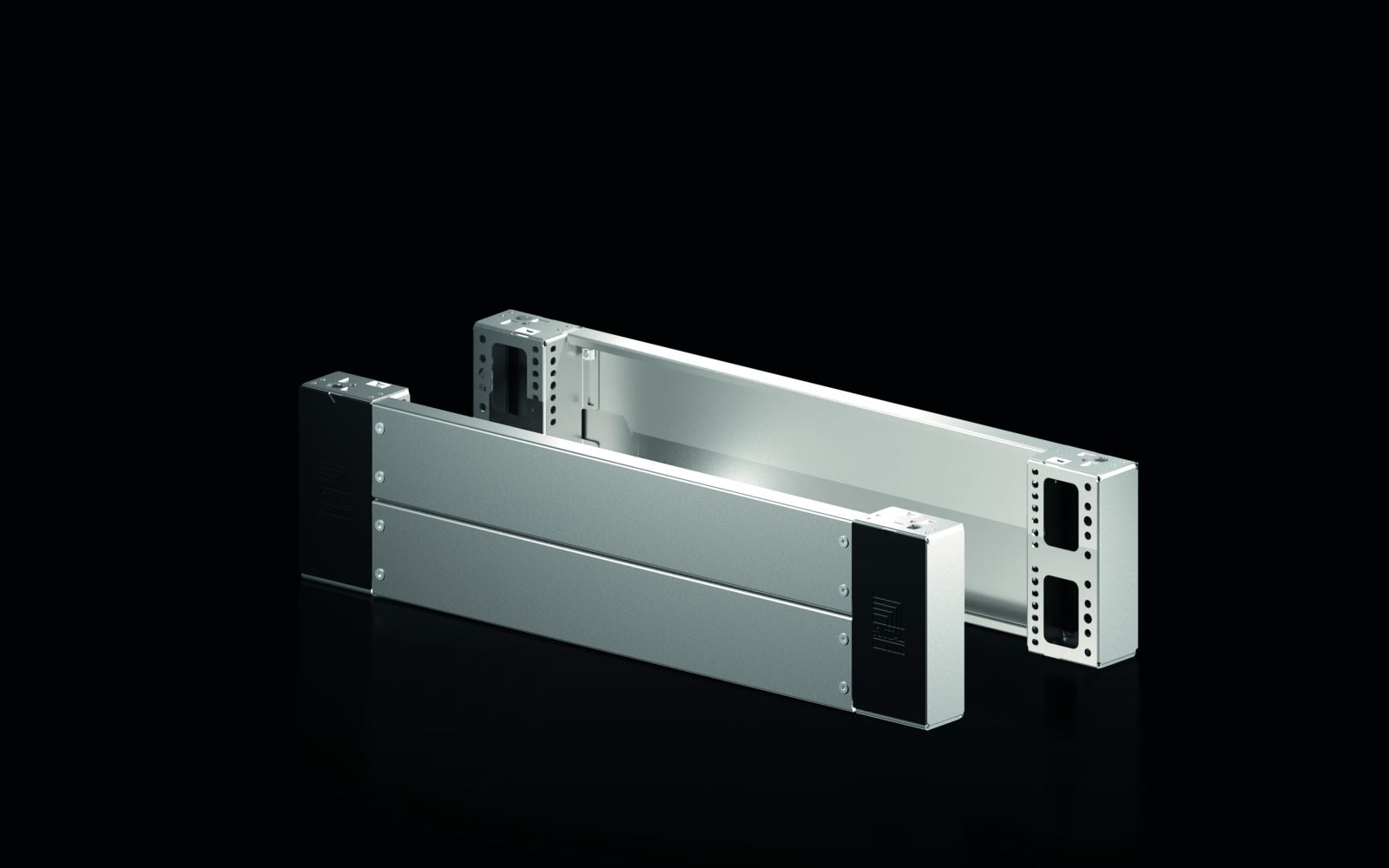

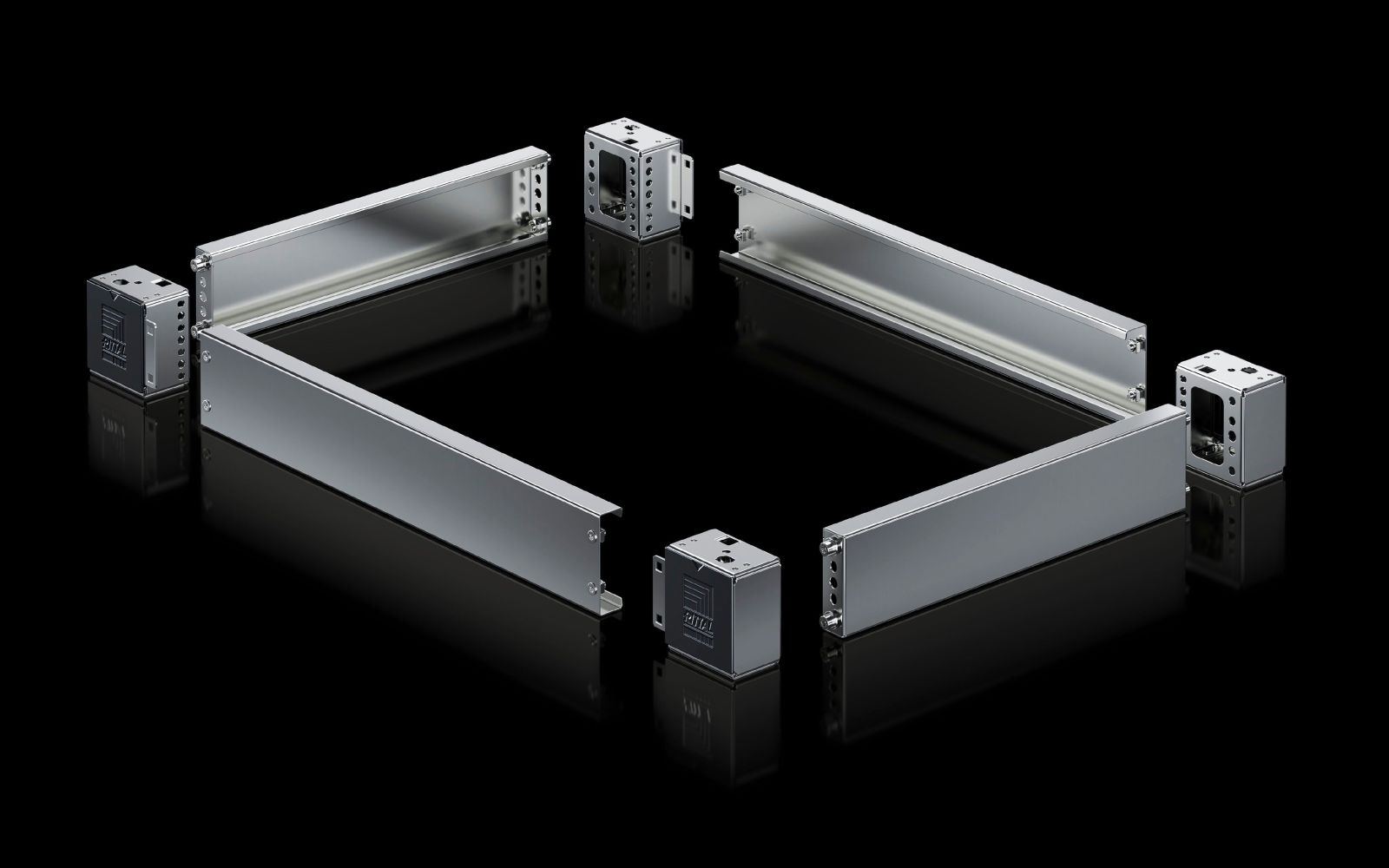

The product includes four plinth corner pieces, four ABS caps, one plinth trim panel front/rear with a height of 200 mm, and two plinth trim panels front/rear with a height of 100 mm. The plinth trim panels serve not only for aesthetic finishing but also contribute to additional stabilization between the plinths. The ABS caps are easy to install and protect the fastening elements from contamination. The included caps can be replaced with stainless steel caps if required, to enhance the external appearance and corrosion resistance.
Technology Explained Simply
The plinth corner pieces are equipped with large openings that allow direct access to the fastening points. This significantly simplifies mounting and maintenance, as no additional tools or removal of components are required. The seamless baying capability of the plinth corner pieces enables a continuous and aesthetically pleasing connection of multiple enclosures. The material choice of stainless steel 1.4301 ensures long service life even under demanding conditions. The surface treatment with brushed finish grit 400 provides an even, easy-to-clean surface.
Compatibility and Accessories
The plinth corner piece is designed for enclosures with a width of 800 mm and fits housing types VX, VX SE, TS and PC. It is part of the first-generation VX plinth system and cannot be combined with components of the second generation. Available accessories include mounting brackets, mounting plates, cable strain relief rails and levelling elements. These components support secure and flexible mounting of the enclosure and enable optimal integration into existing installations. Combination with VX plinth adapters or double swivel castors expands application possibilities, especially for mobile or height-adjustable enclosures.
Mounting and Installation
Mounting is done using the included fastening materials. The plinth corner pieces are attached to the corners of the enclosure, with the integrated front and rear trim panels improving the external appearance and providing additional stability. The caps are inserted over the fastening elements to achieve a clean and closed surface. Installation is simple and requires no special tools. The seamless baying capability enables a continuous connection of multiple enclosures, creating a uniform and stable base.
Operational Advantages
The plinth corner piece provides high mechanical stability and prevents shifting or tipping of the enclosure. The use of stainless steel 1.4301 ensures long service life even in moist or corrosive environments. The integrated trim panels enhance the aesthetic appearance and protect the fastening elements. The large accessibility of the fastening points simplifies mounting and maintenance. Compatibility with various housing types and accessory components increases flexibility and adaptability to different requirements. Compliance with UL 50E Type Ratings (Type 1, Type 3R, Type 4, Type 4X, Type 12) ensures suitability for various environments, including outdoor areas and damp rooms.
| General | |
| Material | Socket corner piece: stainless steel 1.4301 (AISI 304), socket faceplate front/back: stainless steel 1.4301 (AISI 304), cover caps: ABS |
| Surface protection | Linear grind, grit 400 |
| Scope of delivery | including mounting material, 4 socket corner pieces, 4 end caps, 1 socket front/rear cover, 200 mm, 2 socket front/rear covers, 100 mm |
| Note | Socket inserts, required on the sides to complete a socket unit and provide additional stabilization between sockets. The included cover caps can be replaced, if required, with stainless steel cover caps for VX socket system, stainless steel. Components of the 1st generation of the socket system cannot be combined with components of the 2nd generation of the socket system. |
| Height | 200 mm |
| Suitable for | Cabinet type: VX, VX SE, TS, PC, width: = 800 mm |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 4X, Type 12 |
Questions & answers
What is the delivery time of Rittal 8660061 VX plinth corner piece with trim panel, H: 200 mm, W: 800 mm?
The article Rittal 8660061 VX plinth corner piece with trim panel, H: 200 mm, W: 800 mm is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8660061 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 8660061 VX plinth corner piece with trim panel, H: 200 mm, W: 800 mm always at the best possible price. We can give you a discount of 2% on Rittal 8660061 VX plinth corner piece with trim panel, H: 200 mm, W: 800 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
