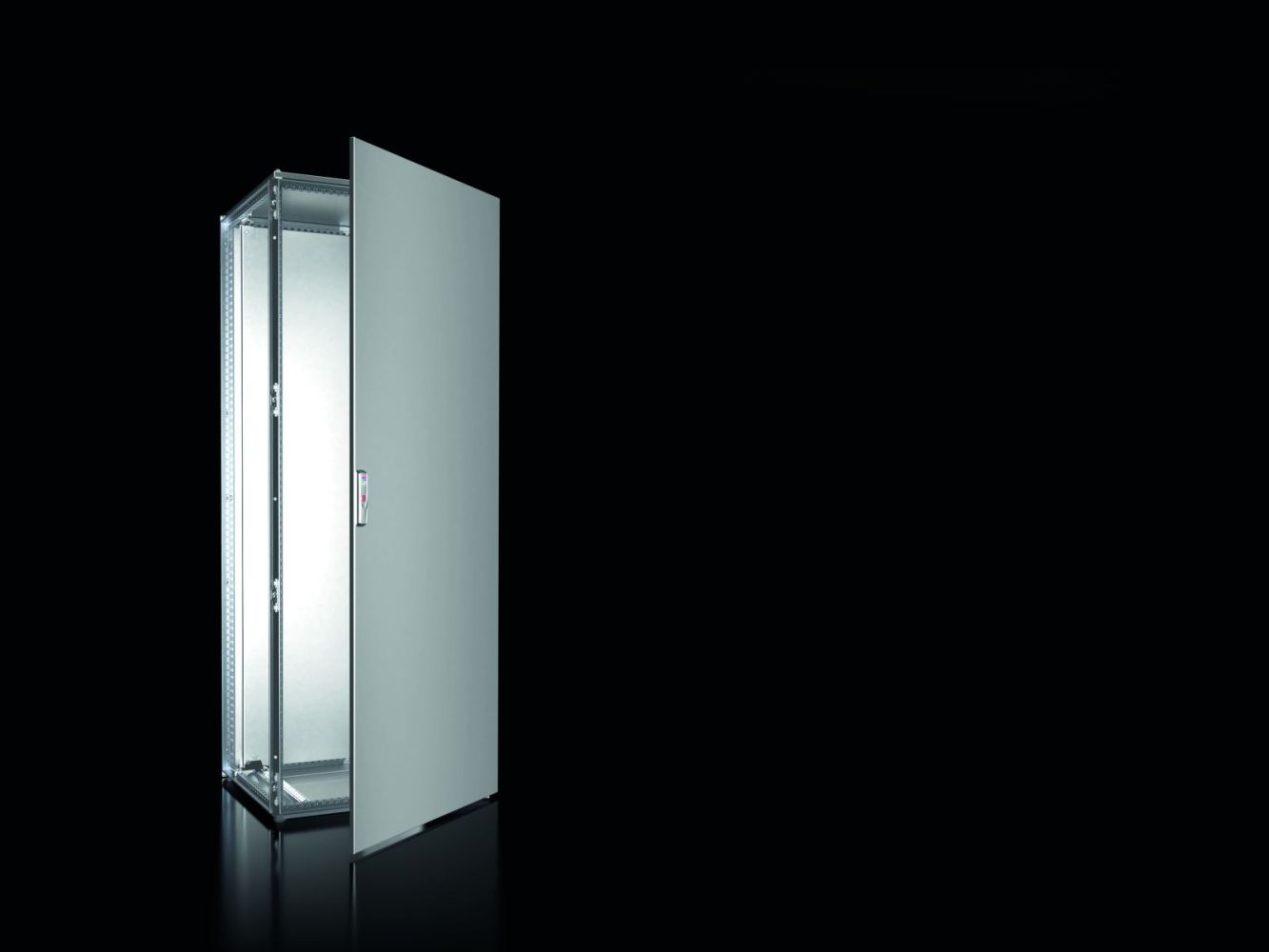

Rittal 8450000 VX bayed enclosure system, 1-door, 800x2000x600 mm, Ede
|
2.818,65 EUR |
|
|
( 3.354,19 EUR incl. VAT ) ≈ £2,359.21 | ≈ $3,097.70 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1440676 |
| Mfg Part No: | 8450000 |
| UPC/EAN: | 4028177920194 |
| Weight: | 126.4 kg |
| Type: | VX 8450.000 |
Product information for Rittal 8450000:
Applications
The enclosure system is suitable for use in indoor and outdoor environments where high mechanical load capacity and protection against dust and splashing water are required. The protection rating IP 55 according to EN 60 529 ensures protection against dust and splashing water from all directions, making it suitable for industrial plants, manufacturing environments, and outdoor installations. The NEMA classification includes NEMA 1 and NEMA 12, confirming its use in dry indoor spaces as well as in environments with light dirt and splashing water. The IK code IK10 indicates high mechanical strength against impact loads, making the enclosure system suitable for areas with increased mechanical stress.
Functions and Equipment in Detail
The enclosure system features a single-door front side with a door made of stainless steel 1.4301 (AISI 304) with a wall thickness of 2.0 mm. The door is fitted with a PU foam seal and features a bar lock with quadruple locking and a double-bar lock insert according to DIN 43668. The door hinges are standard on the right side but can be tool-free repositioned to the left side. The door opening angle is 130° and can be tool-free extended to 180°. The clearance height is 17 mm, enabling easy installation and maintenance. The rear panel and roof plate are also made of stainless steel 1.4301 (AISI 304) with a wall thickness of 1.5 mm and are fitted with PU foam seals. Both are removable and secured with screws.
Technology Explained Simply
The enclosure system consists of a profile frame made of stainless steel 1.4301 (AISI 304) with a wall thickness of 1.5 mm. The surface of the enclosure frame and base plates is plain, while the door, roof, and rear panel feature an externally brushed surface with grit 400. The mounting plate made of steel sheet with a wall thickness of 3.0 mm is C-bent on the sides and is depth-adjustable in 25 mm increments using integrated plastic glides and reusable mounting rails. The mounting plate features a mounting grid to simplify component positioning. The flat parts (roof, door, rear panel, base plates) are included in the delivery scope and are electrically connected to the frame, enabling automatic equipotential bonding according to DIN 62 208.
Compatibility and Accessories
The enclosure system is compatible with various accessories that meet individual requirements for internal installation. These include transport eyes made of stainless steel 1.4301/AISI 304, circuit diagram pockets for various enclosure types, C-profile rails, mounting plate spacers, mounting brackets, VX plinth corner pieces with trim panels, VX plinth trim panels, AS Multitool, VX system chassis in various dimensions, VX levelling feet, VX baying connectors, and baying brackets. These components enable flexible and adaptable installation and integration into existing systems.
Installation and Mounting
Installation is carried out using the integrated mounting grid and reusable mounting rails. The mounting plate is depth-adjustable in 25 mm increments, allowing flexible adaptation to different components. The base plates are three-piece, removable, and replaceable, ensuring easy maintenance and cleaning. The enclosure construction is bayable on all sides, enabling modular expansion. The load capacity of the enclosure is up to 15,000 N. Due to the material hardness, it is recommended to use the internal hexagon sheet metal screw 2486.400 for internal installation.
Operational Advantages
The enclosure system offers high mechanical strength, corrosion resistance, and long service life. The integrated mounting plate and depth-adjustable mounting rails enable flexible and efficient installation of components. The removable flat parts facilitate maintenance and cleaning. The protection rating IP 55 and IK classification IK10 ensure reliable operation in demanding environments. The modular construction allows easy expansion and adaptation to future requirements.
| General | |
| Material | Cabinet frame: stainless steel 1.4301 (AISI 304), 1.5 mm, roof: stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed finish, door: stainless steel 1.4301 (AISI 304), 2.0 mm, exterior brushed finish, rear panel: stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed finish, floor plates: stainless steel 1.4301 (AISI 304), 1.5 mm, mounting plate: steel sheet, 3.0 mm |
| Surface protection | Cabinet frame and base plates: plain, door, roof and rear panel: exterior brushed finish, grit 400, mounting plate: galvanized |
| Scope of delivery | Cabinet frame, door(s), door hinge right, reversible to left, roof sheet, floor sheets, rear panel, mounting plate, lock: 3 mm double bar, 2 mounting rails 18 x 39 mm |
| Width | 800 mm |
| Height | 2.000 mm |
| Depth | 600 mm |
| Mounting plate dimensions (W x H) | 699 mm x 1.896 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK10 |
| Number of doors | 1 |
| Note | Due to the material hardness, we recommend using the internal hexagon sheet metal screw 2486.400 for internal installation |
| Base material | Stainless steel 1.4301 (AISI 304) |
| PCF/VE (Cradle-to-Gate) | 386,7 |
Questions & answers
What is the delivery time of Rittal 8450000 VX bayed enclosure system, 1-door, 800x2000x600 mm, Ede?
The article Rittal 8450000 VX bayed enclosure system, 1-door, 800x2000x600 mm, Ede is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8450000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 8450000 VX bayed enclosure system, 1-door, 800x2000x600 mm, Ede always at the best possible price. We can give you a discount of 2% on Rittal 8450000 VX bayed enclosure system, 1-door, 800x2000x600 mm, Ede if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
