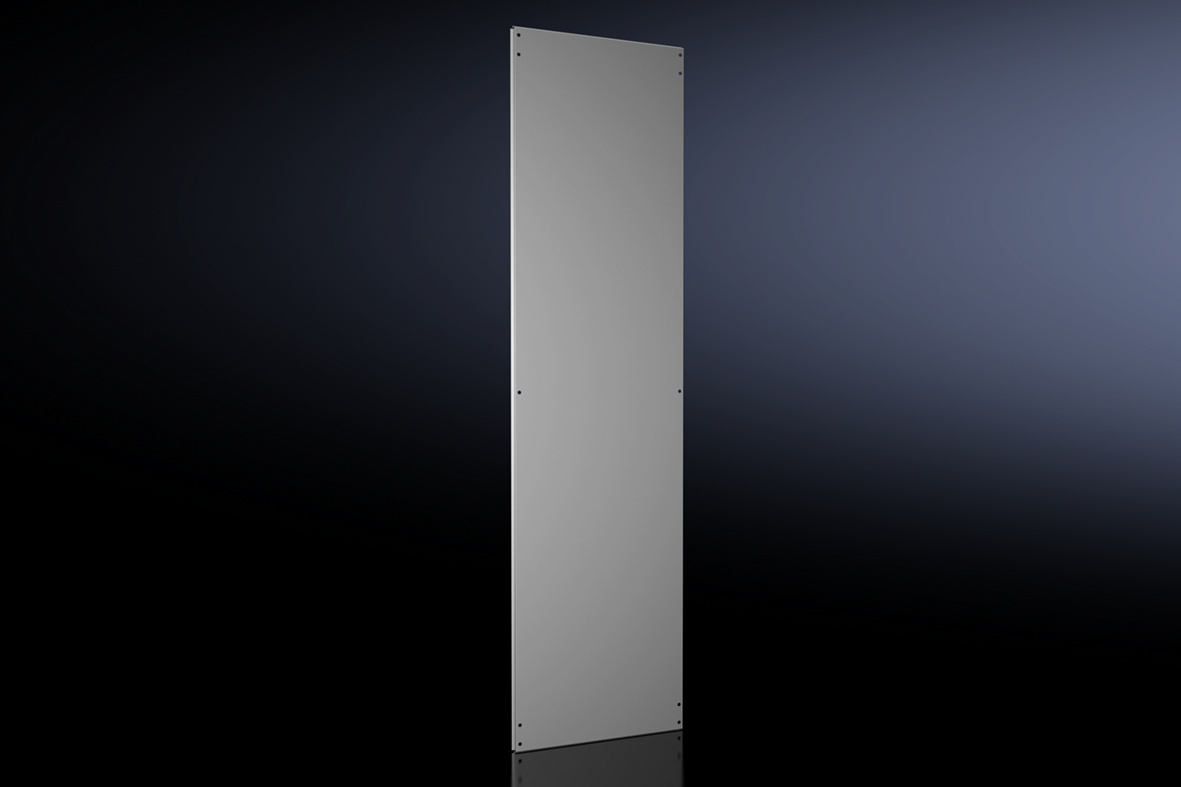

Rittal 8609205 VX partition panel, H x D: 2000x600 mm,

Your rating:
Average rating
product review for Rittal 8609205 VX partition panel, H x D: 2000x600 mm,
( 4.6 / 5 ) 37 ratings
Rittal 8609205
This image may differ from the desired article.
Rittal 8609205Rittal 8609205Rittal 8609205
96,00 EUR
( 114,24 EUR incl. VAT )
≈ £80.35  |  ≈ $105.50
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 8609205 VX partition panel, H x D: 2000x600 mm,
Datasheet:file_download Download
Lieske Part No.:1440940
Mfg Part No: 8609205
UPC/EAN: 4028177817791
Weight:13.5 kg
Type:VX 8609.205

Product information for Rittal 8609205:

The Rittal VX 8609.205 partition panel is a system accessory for enclosures of type VX, specifically designed for enclosures with a height of 2,000 mm and a depth of 600 mm. It serves to compartmentalize individual enclosure cells, enabling an organized and functional division of the interior space. The partition panel is mounted on the outer mounting plane, leaving the inner plane free for additional installation components. Due to the symmetrical design of the frame system, the partition panel can also be installed on the rear side of the enclosure, which is particularly advantageous when installing devices such as frequency converters, whose cooling fins can be oriented outward. A continuous, double hemming ensures stability and allows for the installation of a sealing gasket to guarantee effective compartmentalization.

Applications

The partition panel is suitable for use in industrial enclosures where a clear spatial separation of electrical or electronic components is required. It is frequently used to isolate different functional units such as control systems, power sections, or power supply modules. The ability to mount the partition panel at the rear extends its range of applications, for example, when integrating heat dissipation components that can be protected and visually concealed using a cover hood.

Functions and Equipment in Detail

The partition panel is made of steel sheet with a thickness of 1.5 mm and is galvanized, ensuring high corrosion resistance and long service life. The surface is designed to meet the requirements of industrial environments. The protection rating IP 54 according to IEC 60 529 protects against dust and splashing water, making the partition panel suitable for use in indoor environments as well as in slightly damp or dusty conditions.

Technology Explained Simply

The double hemming along the edges of the partition panel increases mechanical stability and ensures that the panel does not deform under load from installed devices or vibrations. The sealing gasket, inserted into the hemming, enhances compartmentalization properties and prevents dust or moisture from entering between the enclosure cells. Mounting on the outer mounting plane allows for easy installation while leaving the inner plane free for placing cable harnesses or additional mounting elements.

Compatibility and Accessories

The partition panel is specifically designed for enclosures of type VX with dimensions height 2,000 mm and depth 600 mm. For baying multiple enclosures in combination with a partition panel, additional elements are required: either the baying bracket inside (part number 8617500) or the baying connector outside (part number 8617502). Compatible accessories include, for example, the VX cover hood with door in size 2000x600 mm, which can be used for visual concealment and protection of installed components.

Mounting and Installation

Installation is carried out on the outer mounting plane of the enclosure using the supplied mounting hardware. The partition panel can be installed on both the front and rear sides of the enclosure, enabling flexible use. When baying multiple enclosures, the use of the specified baying brackets or connectors is necessary to ensure a stable connection.

Operational Advantages

The partition panel provides a clear spatial separation within the enclosure, simplifying maintenance and servicing. The use of sealing gaskets and the IP 54 protection rating ensure effective protection against dust and splashing water. The ability to mount the partition panel at the rear expands its application possibilities, especially when integrating devices with external cooling. The galvanization of the steel sheet ensures high corrosion resistance, extending the product’s service life.

General
MaterialSheet steel, 1.5 mm
Surface protectionZinc-plated
Scope of deliveryIncluding mounting hardware
Suitable forEnclosure type: VX, height: = 2.000 mm, depth: = 600 mm
Mounting optionsInstallation is on the outer mounting plane; the inner plane remains free for further expansion
Mounting noteFor mounting in combination with a partition, the mounting bracket inside 8617500 or the mounting connector outside 8617502 is required
Degree of protection IP according to IEC 60 529IP 54


Product data sheet
Datasheet for Rittal 8609205, EAN: 4028177817791

Questions & answers

What is the delivery time of Rittal 8609205 VX partition panel, H x D: 2000x600 mm, ?

The article Rittal 8609205 VX partition panel, H x D: 2000x600 mm, is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8609205 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8609205 VX partition panel, H x D: 2000x600 mm, always at the best possible price. We can give you a discount of 2% on Rittal 8609205 VX partition panel, H x D: 2000x600 mm, if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
