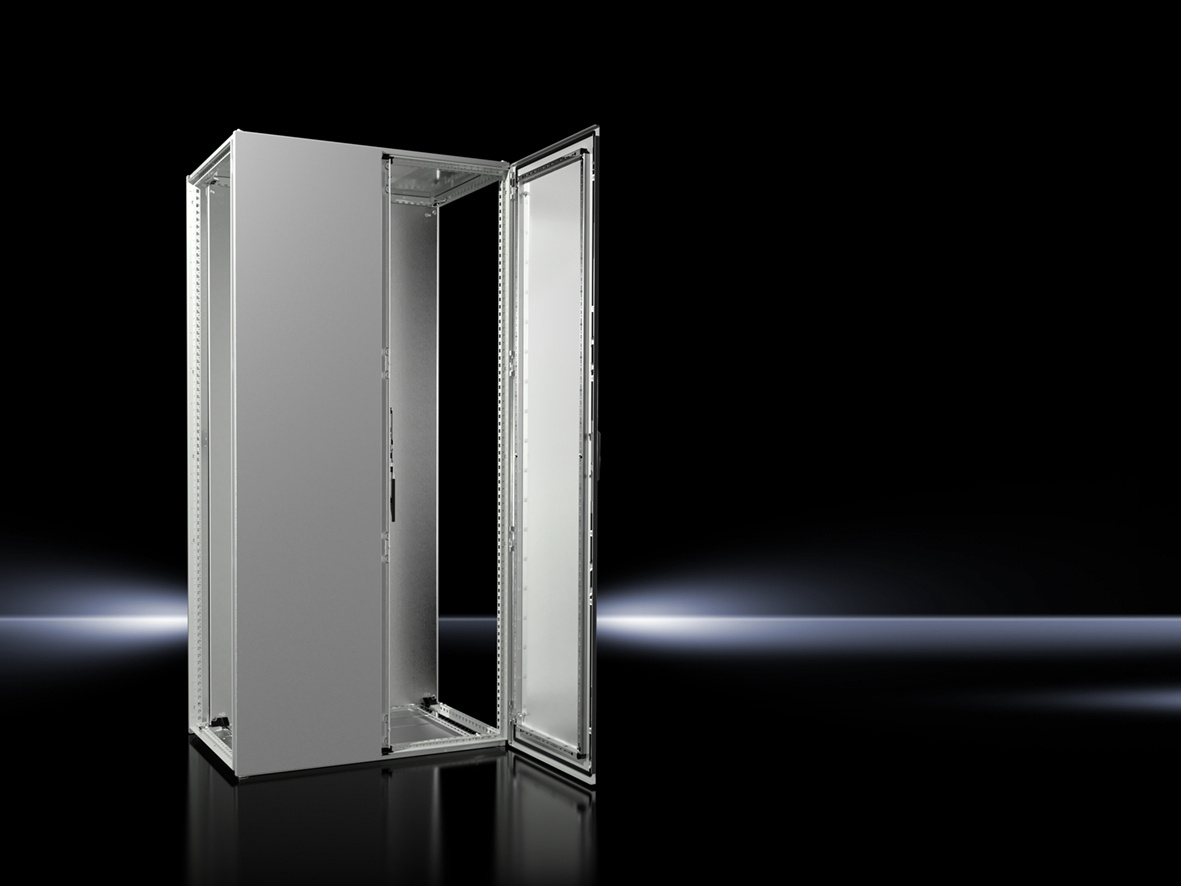

Rittal 8006000 VX bayed enclosure system, 2-door, W x H x D: 1000x2000x600 mm,
|
851,06 EUR |
|
|
( 1.012,76 EUR incl. VAT ) ≈ £712.34 | ≈ $935.31 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1440734 |
| Mfg Part No: | 8006000 |
| UPC/EAN: | 4028177813557 |
| Weight: | 157.6 kg |
| Type: | VX 8006.000 |
Product information for Rittal 8006000:
Applications
This enclosure system is designed for use in industrial environments, particularly in areas such as manufacturing plants, automation technology, power supply, and machine building. The protection rating IP 55 according to EN 60 529 ensures protection against dust and splashing water, making it suitable for indoor use as well as in slightly damp or dusty environments. The NEMA classification includes NEMA 1 and NEMA 12, confirming suitability for dry indoor spaces and environments with light dirt and splashing water. The type rating according to UL 50E includes Type 1 and Type 12, underscoring compliance with North American safety standards. The IK code IK10 indicates high mechanical strength against mechanical impacts such as shocks and vibrations.
Functions and Equipment in Detail
The enclosure system consists of a frame made of sheet steel with a wall thickness of 1.5 mm, dip-primed. The doors are made of 2.0 mm thick sheet steel and are externally powder-coated with textured paint in RAL 7035. The door hinge is standard on the right, but can be toollessly changed to the left. The doors are equipped with a 3 mm double-bar lock, enabling four-point locking. The secondary door is additionally secured with a swing lever for double locking. The door opening angle is 130° and can be toollessly extended to 180°. The clearance from the floor is 17 mm. The rear panel and roof plate are also made of 1.5 mm sheet steel and dip-primed, externally powder-coated. Both are removable and fitted with PU foam sealing to ensure a watertight and dust-tight seal. The base plates are triple-divided, removable, and replaceable.
Technology Explained Simply
The mounting plate made of 3.0 mm sheet steel is C-bent on the sides and depth-adjustable in 25 mm increments via integrated plastic glides and reusable mounting rails. The mounting plate features a mounting grid to simplify component positioning. The entire construction offers a hole grid of 25 mm, enabling mounting of components with cage nuts and metric screws up to M8. The rear panel, roof plate, and base plates are electrically connected to the frame, ensuring automatic equipotential bonding according to DIN 62 208 and enabling preparation for additional earthing straps. The enclosure’s load capacity is up to 15,000 N.
Compatibility and Accessories
The enclosure system is compatible with various accessories that meet individual requirements for enclosure setup. These include levelling feet M12 with an adjustment height of 18–43 mm, C-profile rails, dust protection strips, transport eyes, circuit diagram pockets, mounting brackets, base plates in various depths, mounting plate spacers, comfort handles, cable entry ferrules in various diameters, multi-locking mechanisms, plug-through ferrules, a multitool, and a system chassis. These components enable flexible and application-specific equipment of the enclosure.
Mounting and Installation
Mounting is done via the integrated hole grid in 25 mm increments, enabling fastening of components with cage nuts and screws up to M8. The mounting plate is depth-adjustable and provides a stable base for device installation. The enclosure construction is designed for bayed mounting, allowing multiple enclosures to be connected in a row. The base plates are removable, facilitating mounting and maintenance. The doors are toollessly reconfigurable, providing flexible installation.
Operational Advantages
The enclosure system offers high mechanical stability and reliable protection rating, suitable for demanding industrial environments. The integrated mounting plate and hole grid simplify installation and maintenance. The removable doors, rear panel, and roof plate allow easy access to internal components. The conductive connection of flat parts to the frame ensures safe equipotential bonding. The bayed mounting capability and modular accessory options make the system flexible and scalable for various applications.
Scope of Delivery
The enclosure system is delivered with enclosure frame, two doors, right-hand door hinge (changeable to left), roof plate, rear panel, base plates, mounting plate, two mounting rails 18 x 39 mm, and a 3 mm double-bar lock.
| General | |
| Material | Cabinet frame: steel sheet, 1.5 mm, roof: steel sheet, 1.5 mm, door: steel sheet, 2.0 mm, rear panel: steel sheet, 1.5 mm, base plates: steel sheet, 1.5 mm, mounting plate: steel sheet, 3.0 mm |
| Surface protection | Cabinet frame: dip-primed, door, roof and rear panel: dip-primed, externally powder-coated, textured lacquer, mounting plate and base sheets: galvanised |
| Colour | RAL 7035 |
| Scope of delivery | cabinet frame, door(s), door hinge right, reversible to left, roof sheet, rear panel, floor sheets, mounting plate, 2 mounting rails 18 x 39 mm, lock: 3 mm double bar |
| Width | 1.000 mm |
| Height | 2.000 mm |
| Depth | 600 mm |
| Mounting plate dimensions (W x H) | 899 mm x 1.896 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK10 |
| Number of doors | 2 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 429.22 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
