Rittal 8617030 VX system chassis 18 x 64 mm W x D: 600 mm
|
48,96 EUR 49,10 EUR |
|
|
( 58,26 EUR incl. VAT ) ≈ £40.98 | ≈ $53.81 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1349737 |
| Mfg Part No: | 8617030 |
| UPC/EAN: | 4028177829060 |
| Weight: | 2.52 kg |
| Type: | VX 8617.030 |
Product information for Rittal 8617030:

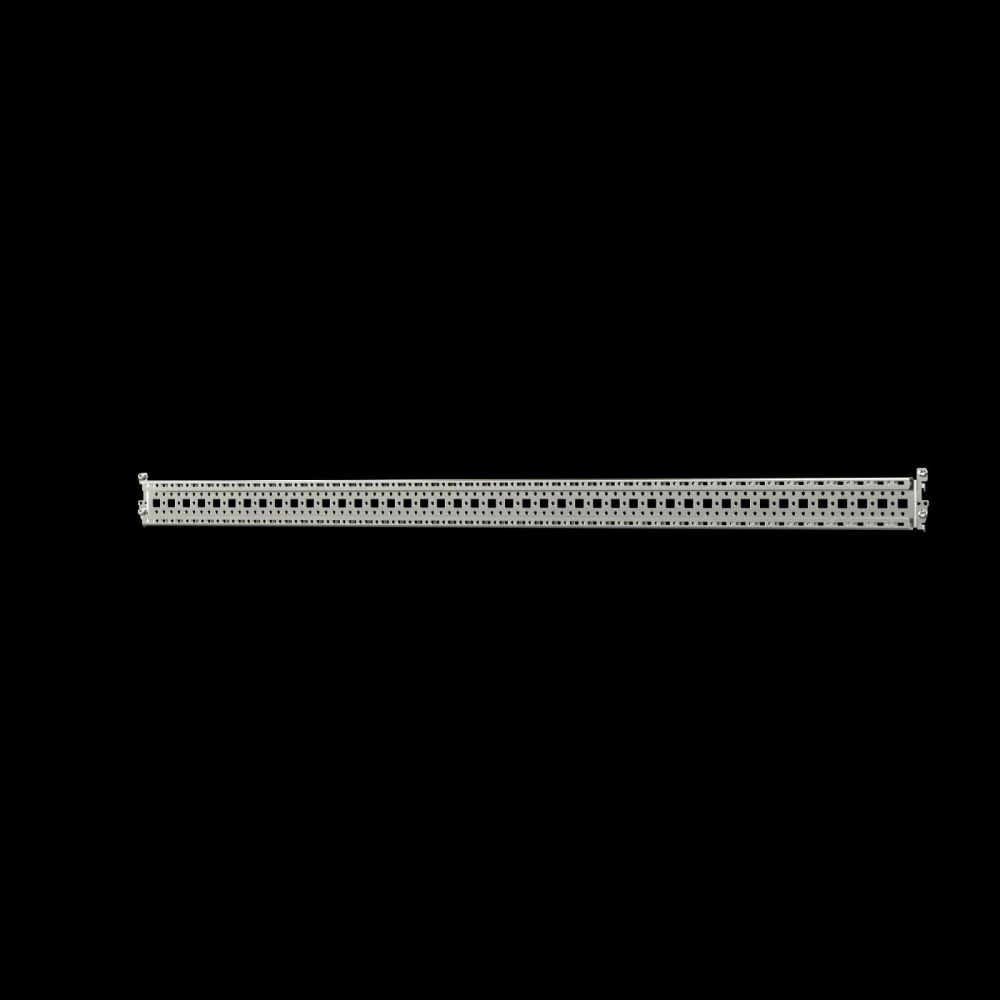

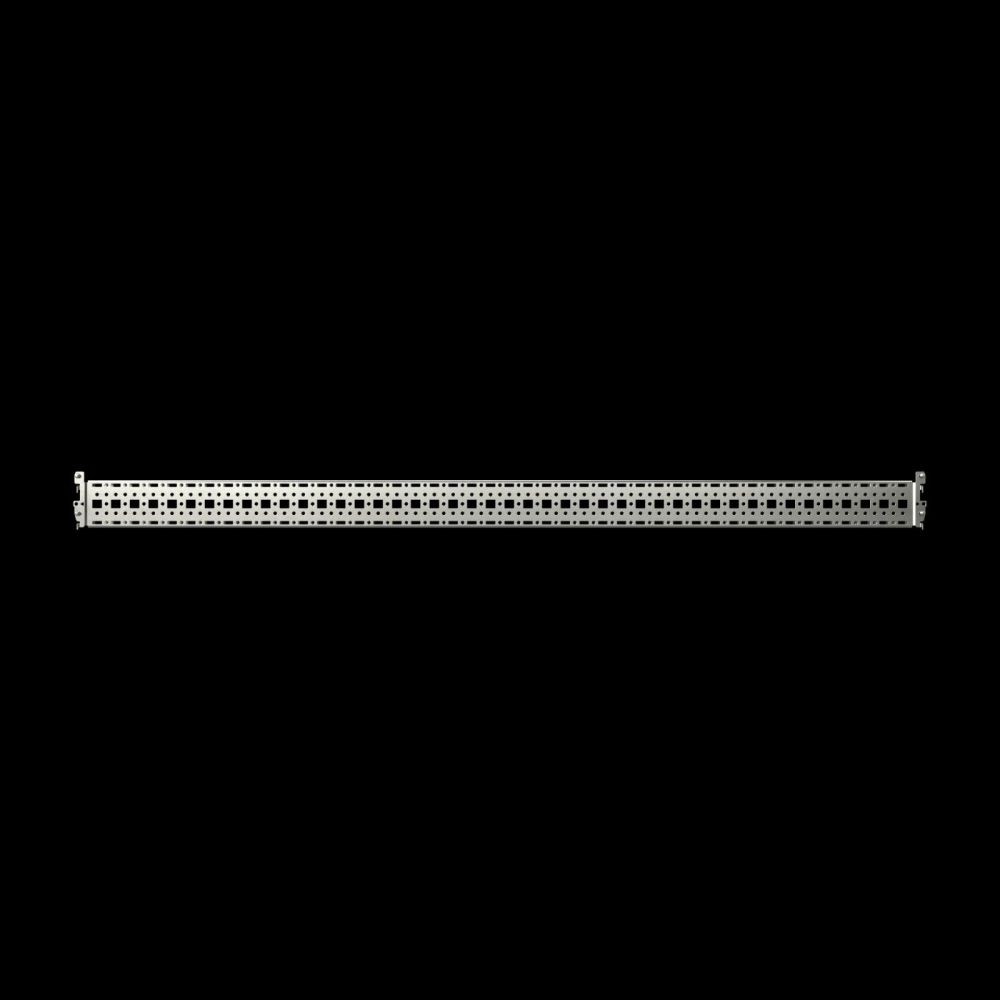

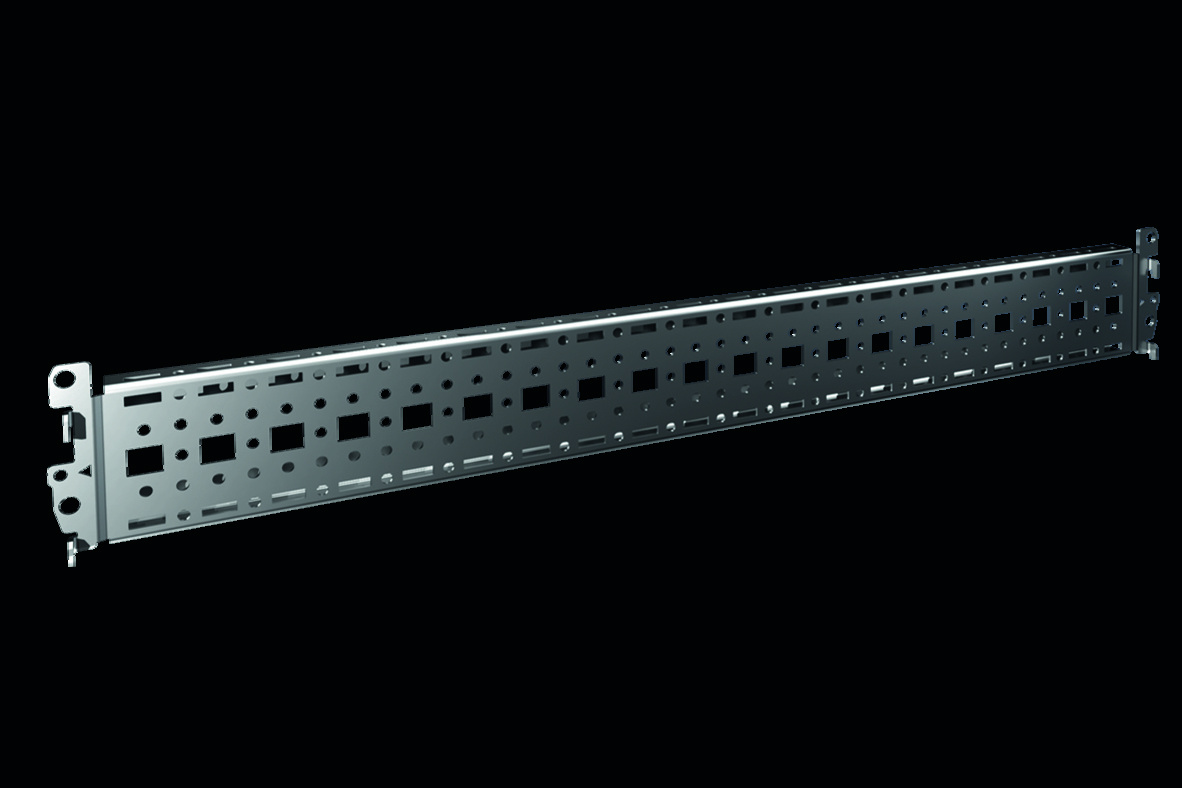

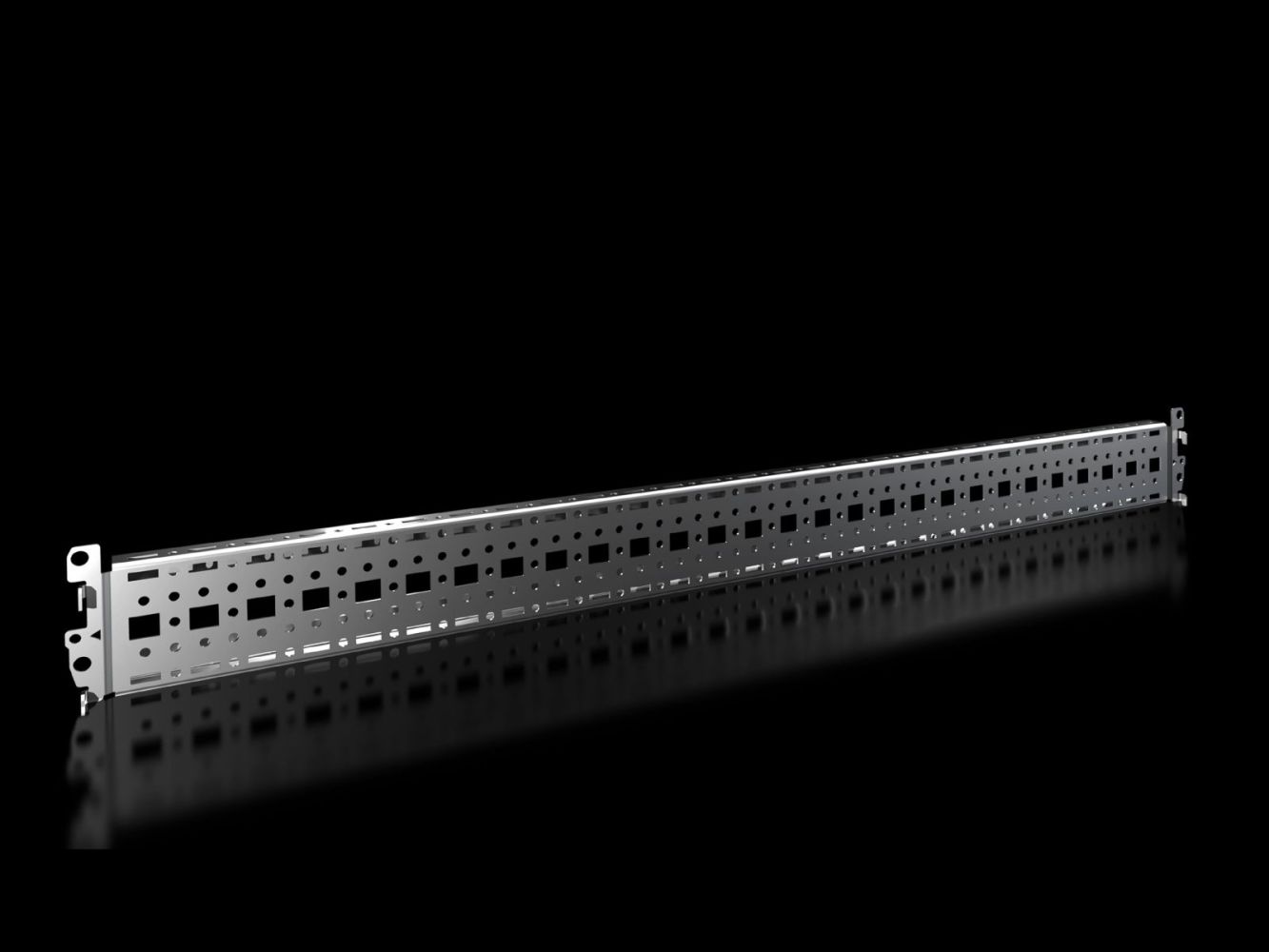

System chassis
The system chassis has dimensions of 18 x 64 mm and is intended for mounting on the outer mounting plane of the enclosure profile. It can also be placed between two existing system chassis with dimensions of 23 x 64 mm to ensure a continuous mounting surface. The system perforation is present on all four sides of the chassis, enabling flexible and versatile mounting options.
Applications
The chassis is intended for use in enclosures of the VX system, particularly in installations with a width and depth of 600 mm. It is suitable for interior fitting in industrial environments where a modular and adaptable mounting structure is required. Mounting can be carried out from the outside into the system perforation or from the inside of the enclosure if already bayed enclosures are present.
Functions and equipment in detail
The chassis is made of sheet steel and is galvanised to prevent corrosion and ensure a longer service life. The galvanised surface provides good protection against environmental influences, especially in industrial applications. Mounting is carried out by simple insertion into the system perforation and subsequent screwing, with the required fastening material included in the delivery scope. The system perforation on all four sides enables flexible mounting of modules and devices.
Technology explained simply
The system chassis is a modular component that is inserted into the perforation grid of the VX enclosure frame. The dimensions of 18 x 64 mm correspond to the standard for the outer mounting plane in the VX system. The galvanised sheet steel surface provides mechanical stability and corrosion protection. Mounting is carried out by screwing, with the fastening materials included in the delivery scope. The system perforation on all four sides enables versatile mounting options.
Compatibility and accessories
The chassis is specifically designed for enclosures of the VX system with a width and depth of 600 mm. It can be mounted on the outer mounting plane of the enclosure profile or between two existing system chassis with dimensions of 23 x 64 mm. As accessories, various screws and fastening elements are available, including thread-forming hexagon screws M5x10, internal hexagon screws M8x12 mm, self-tapping screws type ST 4,8 L9,5 mm, SZ internal hexagon screws for thread M6, internal hexagon sheet metal screws type 5,5 L13 mm, and VX internal hexagon sheet metal screws for stainless steel. These elements can be used for secure fixation of devices and modules.
Mounting and installation

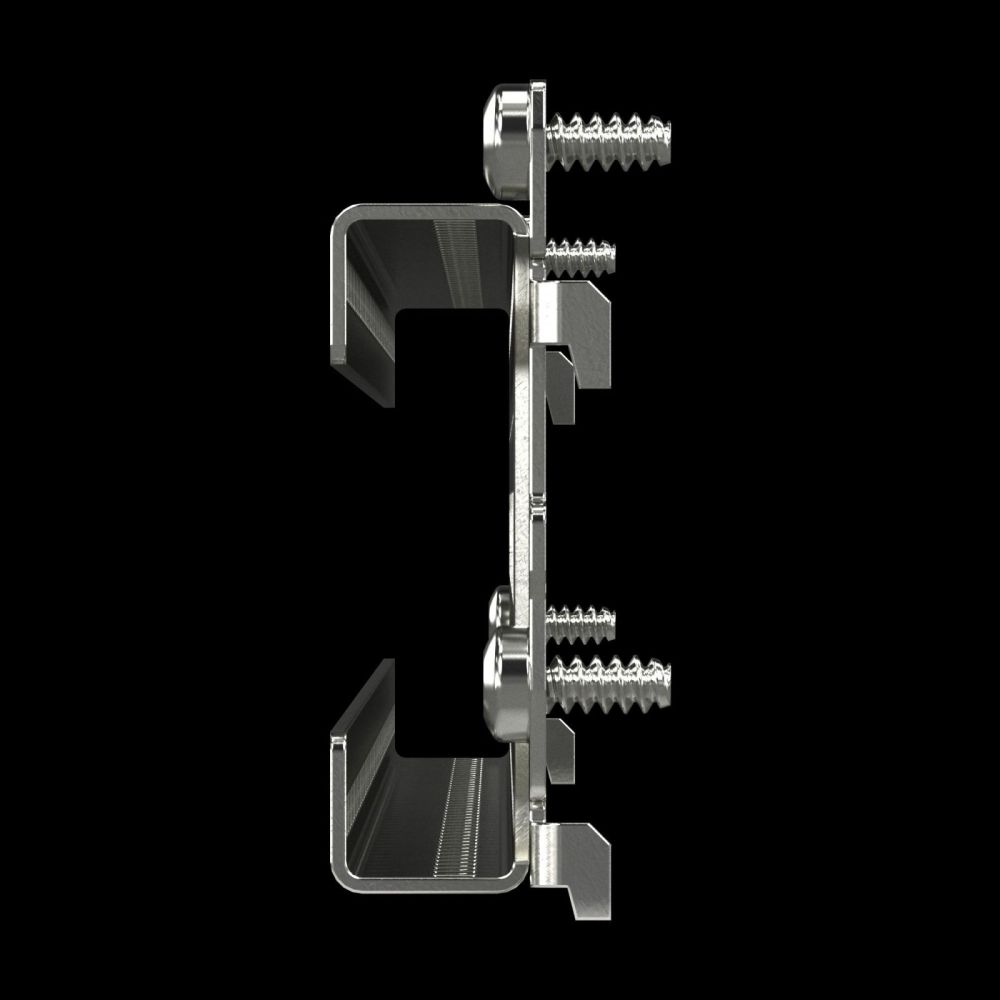

Mounting of the system chassis is carried out by inserting into the system perforation of the enclosure frame. Fastening is done by screwing, with the required fastening material included in the delivery scope. Mounting can be carried out from the outside or from the inside of the enclosure if already bayed enclosures are present. The system perforation on all four sides enables flexible and versatile mounting.
Advantages in operation
The system chassis offers a flexible and modular mounting option within VX enclosure frames. The galvanised sheet steel surface ensures high mechanical stability and corrosion protection. Mounting is simple and quick to carry out, as the fastening material is included in the delivery scope. The system perforation on all four sides enables versatile mounting of modules and devices, facilitating adaptation to different requirements. Use in enclosures with a width and depth of 600 mm ensures optimal fit and stability.
| General | |
| Material | steel sheet |
| Surface protection | Zinc-plated |
| Scope of delivery | Including mounting hardware |
| Mounting options | On outer mounting plane on cabinet profile, on outer mounting plane between two system chassis 23 x 64 mm |
| Suitable for | Housing type: VX, width/depth: 600 mm |
| PCF/VE (Cradle-to-Gate) | 12,21 |
Questions & answers
What is the delivery time of Rittal 8617030 VX system chassis 18 x 64 mm W x D: 600 mm?
The article Rittal 8617030 VX system chassis 18 x 64 mm W x D: 600 mm is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8617030 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 8617030 VX system chassis 18 x 64 mm W x D: 600 mm always at the best possible price. We can give you a discount of 2% on Rittal 8617030 VX system chassis 18 x 64 mm W x D: 600 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
