Rittal 5302124 VX IT profile rail additional mounting for 48,3 cm ( 19 inch ) standard

Your rating:
Average rating
product review for Rittal 5302124 VX IT profile rail additional mounting for 48,3 cm ( 19 inch ) standard
( 5 / 5 ) 1 ratings
Rittal 5302124
This image may differ from the desired article.
Rittal 5302124Rittal 5302124Rittal 5302124
31,28 EUR
( 37,22 EUR incl. VAT )
≈ £26.18  |  ≈ $34.38
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 5302124 VX IT profile rail additional mounting for 48,3 cm ( 19 inch ) standard
Datasheet:file_download Download
Lieske Part No.:1910618
Mfg Part No: 5302124
UPC/EAN: 4028177955523
Weight:0.533 kg
Type:IT 5302124

Product information for Rittal 5302124:

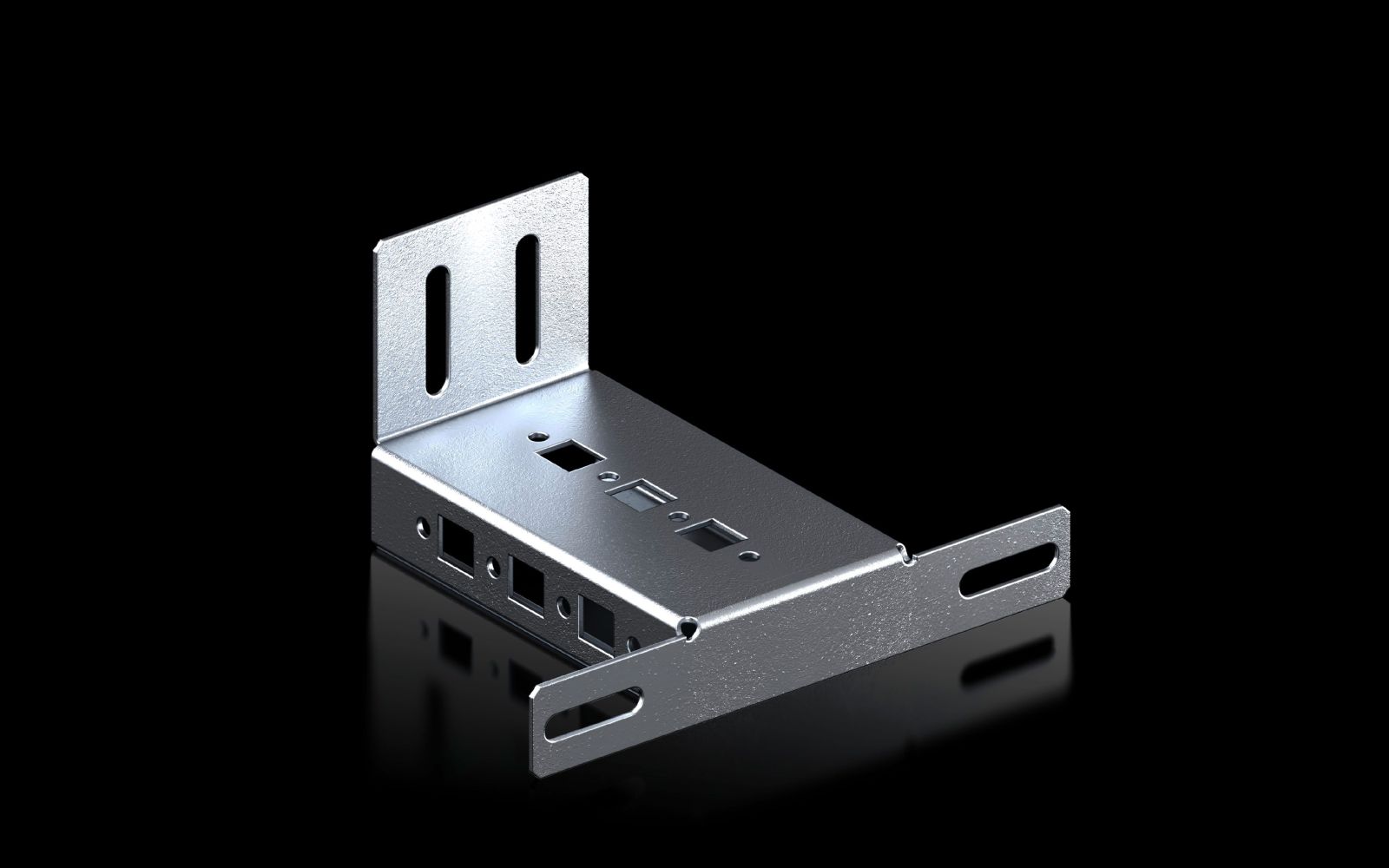

The Rittal profile rail additional mounting IT 5302124 is a specific accessory for the VX IT 48,3 cm ( 19 inch ) profile rail standard. It serves to additionally secure the 482.6 mm (48,3 cm ( 19 inch )) profile rail on the outer mounting plane of VX frame structures, particularly for cabinet widths of 800 mm. The product is made of sheet steel and features a lacquered surface in the colour RAL 9005. The additional mounting counteracts twisting of the profile rails that can occur due to unevenly distributed loads. It is mounted directly between the profile rail and a mounting profile on the outer mounting plane. In 48,3 cm ( 19 inch ) partial installations, it can also be used as a single mounting.

Applications

The additional mounting is specifically designed for use in VX IT systems, where stable and secure mounting of profile rails is required. It is used to increase the mechanical stability of the rails, particularly in applications with high loads or uneven load distribution. The mounting is designed for cabinets with a width of 800 mm and thus fits into standard configurations of the VX system.

Functions and Equipment in Detail

The additional mounting consists of a robust sheet steel profile designed for mechanical stress. The lacquered surface in RAL 9005 ensures corrosion resistance and a uniform visual appearance. The product is supplied in a packaging unit of 2 pieces and includes the necessary mounting material required for installation. The mounting is attached directly between the profile rail and the mounting profile, creating additional support for the rail.

Technology Explained Simply

The additional mounting provides mechanical stabilisation. Unevenly distributed loads can cause twisting of the profile rails, which may affect device mounting. The additional mounting prevents this twisting by additionally securing the rail to the outer mounting plane. This is particularly important for heavy or unevenly loaded installations. The mounting is easy to install and requires no additional tools or components.

Compatibility and Accessories

The additional mounting is specifically designed for the VX IT 48,3 cm ( 19 inch ) profile rail standard and integrates into the VX system. It is compatible with VX system chassis in various lengths, including 600 mm, 800 mm, 1000 mm, and 1200 mm. These chassis are also available in our range and can be combined with the additional mounting to create a stable mounting environment. The mounting is designed for cabinet widths of 800 mm and thus fits into standard configurations of the VX system.

Mounting and Installation

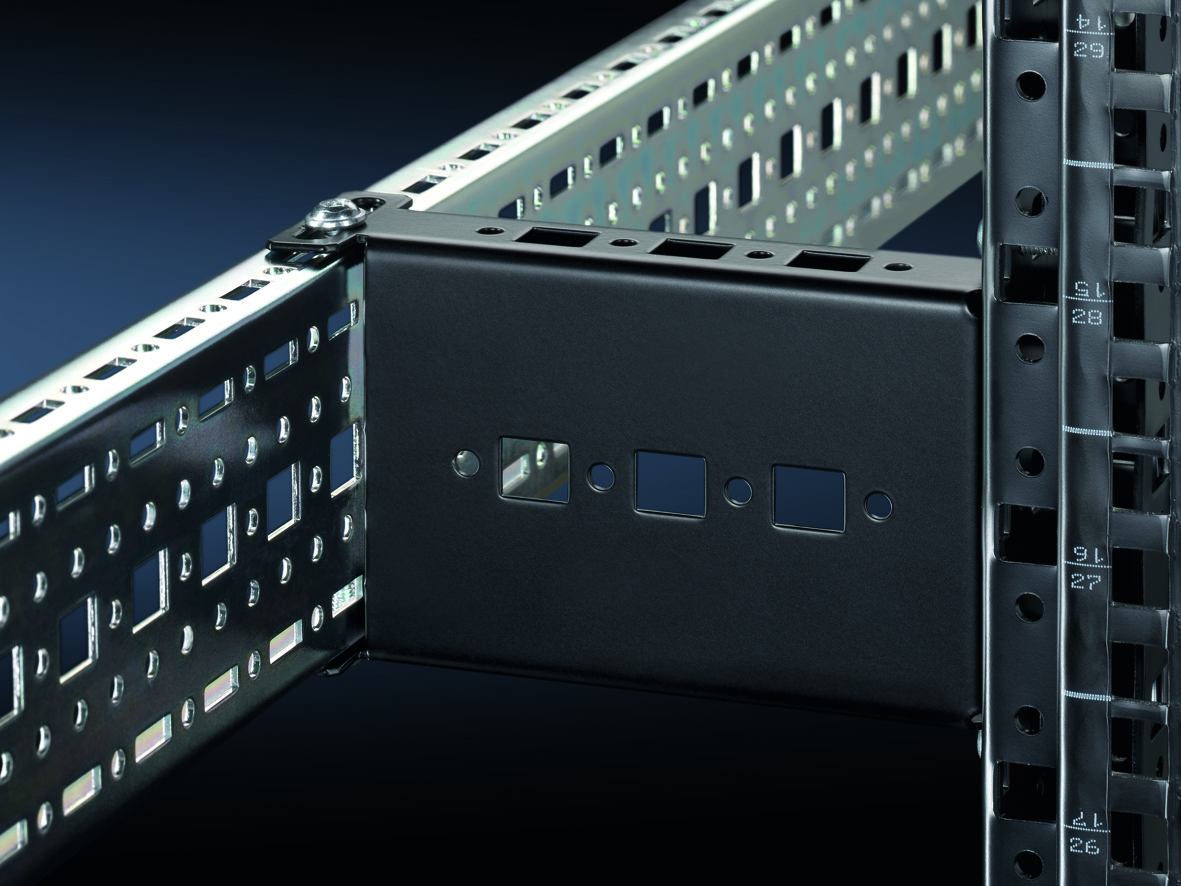

Installation is carried out by mounting the additional mounting directly between the 48,3 cm ( 19 inch ) profile rail and the mounting profile on the outer mounting plane of the VX frame structure. The included mounting material enables simple and secure installation. The mounting can also be used as a single mounting in 48,3 cm ( 19 inch ) partial installations, offering flexibility during installation. No additional tools or components are required.

Advantages in Operation

The additional mounting increases the mechanical stability of the profile rails, improving the reliability of the mounting. It prevents twisting caused by unevenly distributed loads, ensuring a secure and stable installation. Using the additional mounting is particularly advantageous in applications with high loads or when mounting heavy devices. The simple installation and compatibility with the VX system facilitate integration into existing installations.

General
ApplicationsFor fixing the 482.6 mm (19")-profile rail standard on the outer mounting plane
Materialsteel sheet
Surface protectionPainted
ColourRAL 9005
Scope of deliveryIncluding mounting hardware
Suitable forWidth: = 800 mm
PCF/VE (Cradle-to-Gate)2.1 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 5302124, EAN: 4028177955523
