Rittal 8617050 VX system chassis 18 x 64 mm W x D: 1000 mm

Your rating:
Average rating
product review for Rittal 8617050 VX system chassis 18 x 64 mm W x D: 1000 mm
( 4.5 / 5 ) 16 ratings
Rittal 8617050
This image may differ from the desired article.
Rittal 8617050Rittal 8617050Rittal 8617050Rittal 8617050Rittal 8617050Rittal 8617050Rittal 8617050
82,57 EUR
( 98,26 EUR incl. VAT )
≈ £69.11  |  ≈ $90.74
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 8617050 VX system chassis 18 x 64 mm W x D: 1000 mm
Datasheet:file_download Download
Lieske Part No.:1441096
Mfg Part No: 8617050
UPC/EAN: 4028177829084
Weight:4.28 kg
Type:VX 8617.050

Product information for Rittal 8617050:

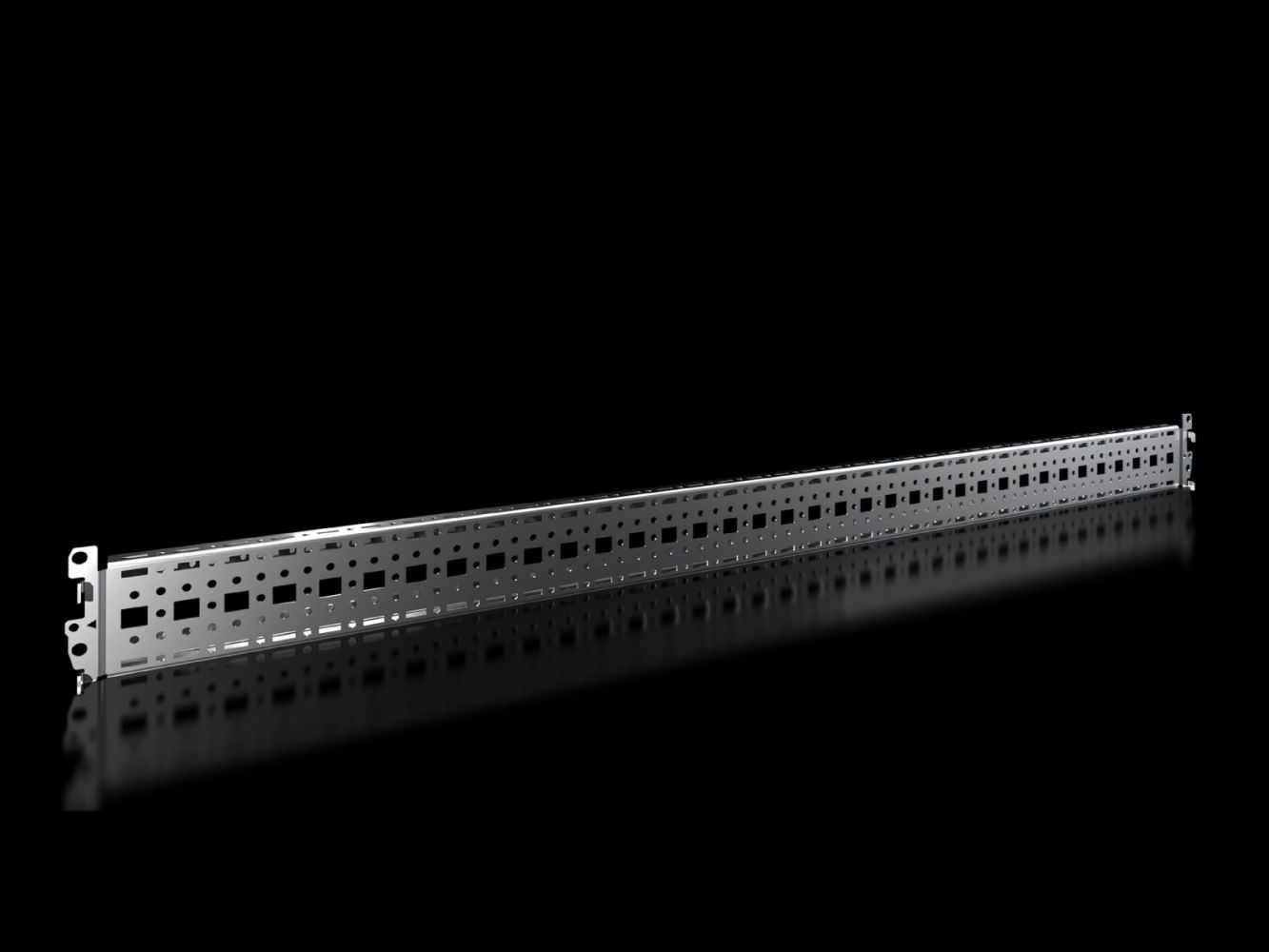

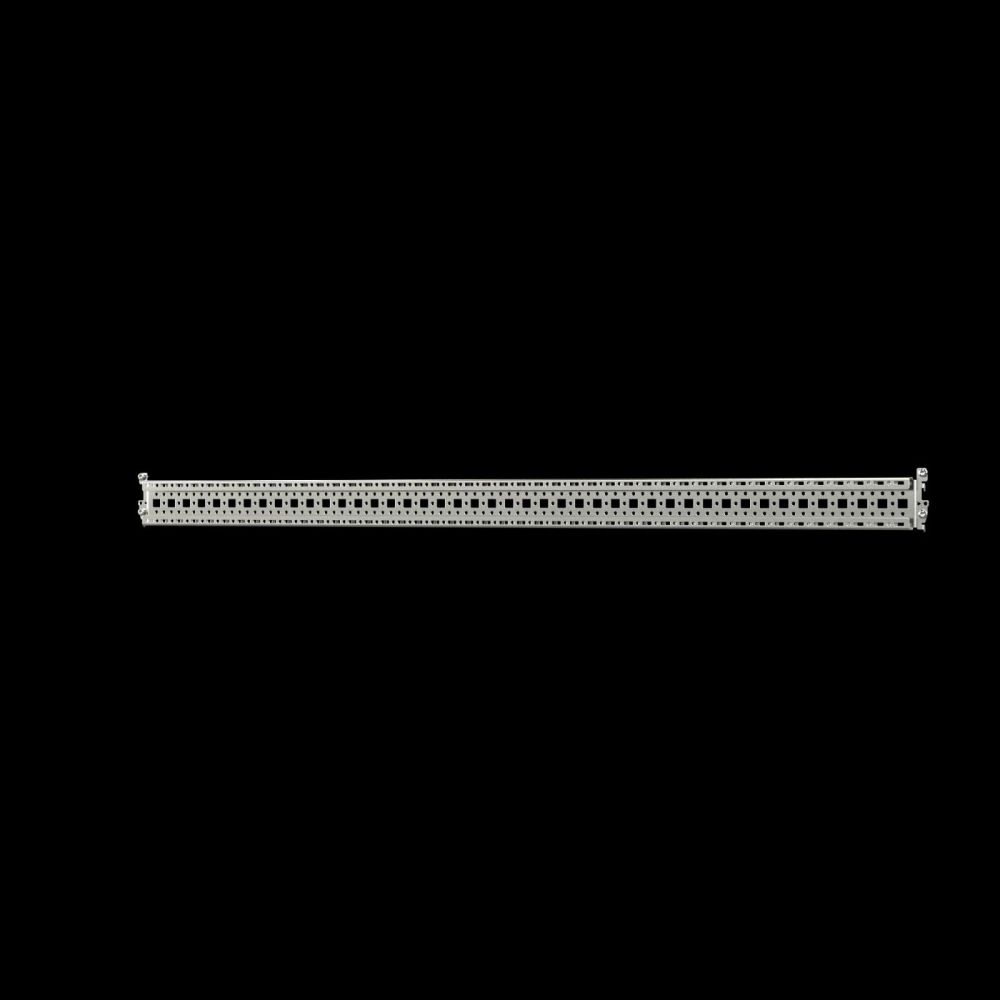

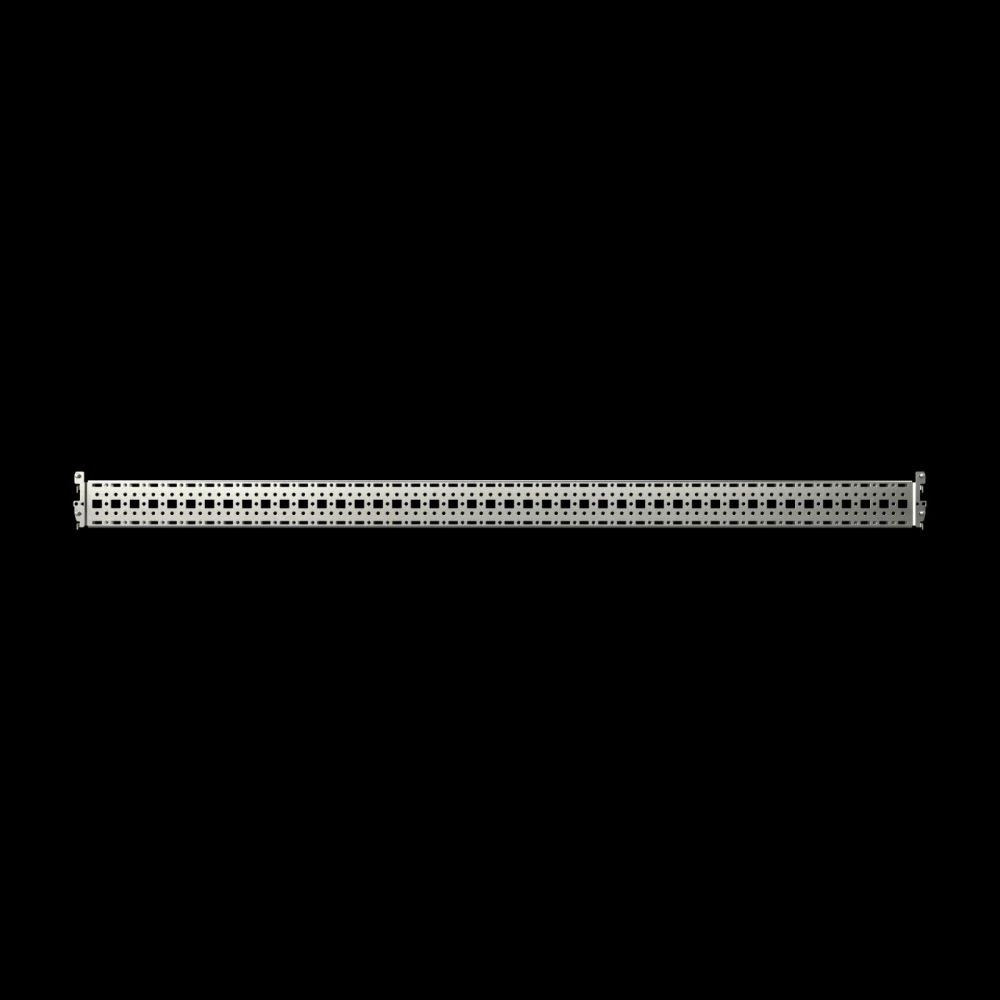

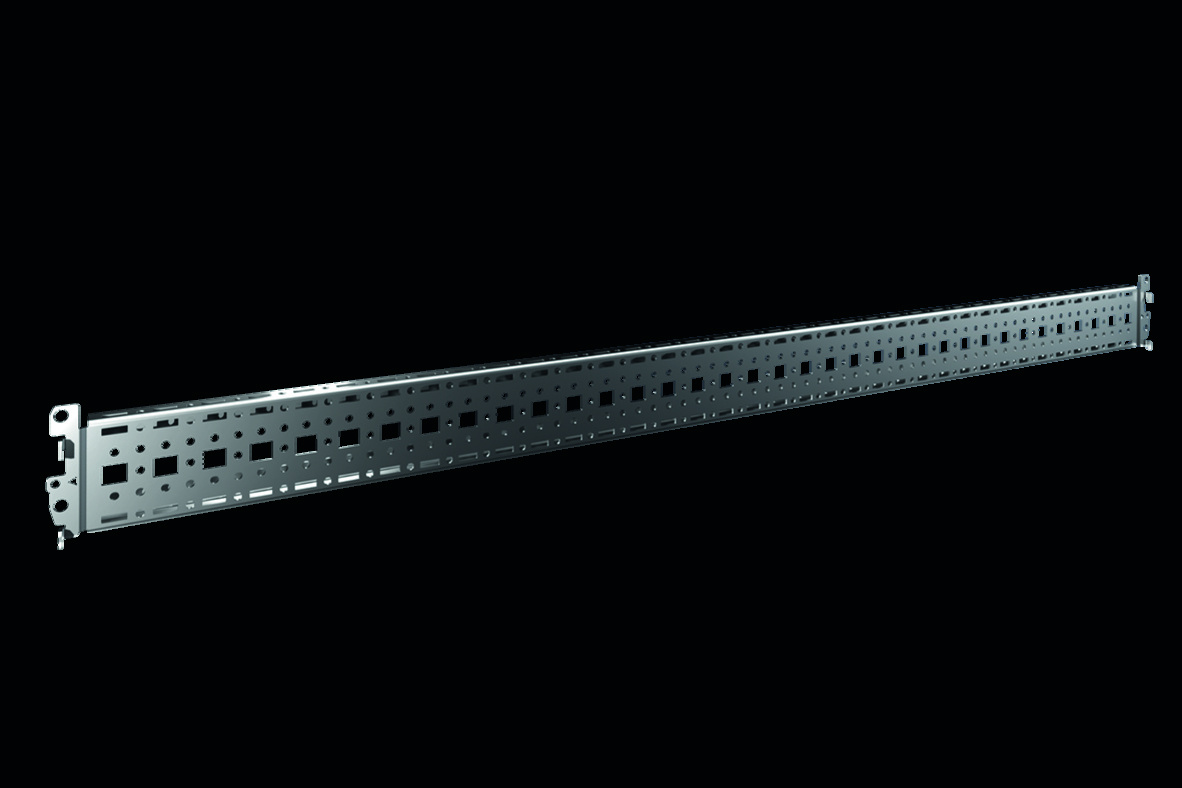

The Rittal VX 8617.050 is a system chassis made of sheet steel with a galvanized surface, specifically designed for variable and individual interior fitting of enclosure frames in the VX system. It serves as a mounting element on the outer mounting plane and enables flexible fixation of modules, devices, or cabling components within enclosures. The chassis has dimensions of 18 x 64 mm and is designed for enclosures with a width/depth of 1,000 mm. The packaging unit contains 4 pieces, with a net weight of 4.28 kg.

System chassis for the outer mounting plane
The VX 8617.050 is directly inserted into the system perforation of the enclosure frame, with mounting performed from the outside. The system perforation is present on all four sides of the chassis, enabling flexible and versatile mounting options. In already bayed enclosures, mounting can also be performed from the inside of the enclosure, ensuring easy integration in existing installations.

Installation options and mounting

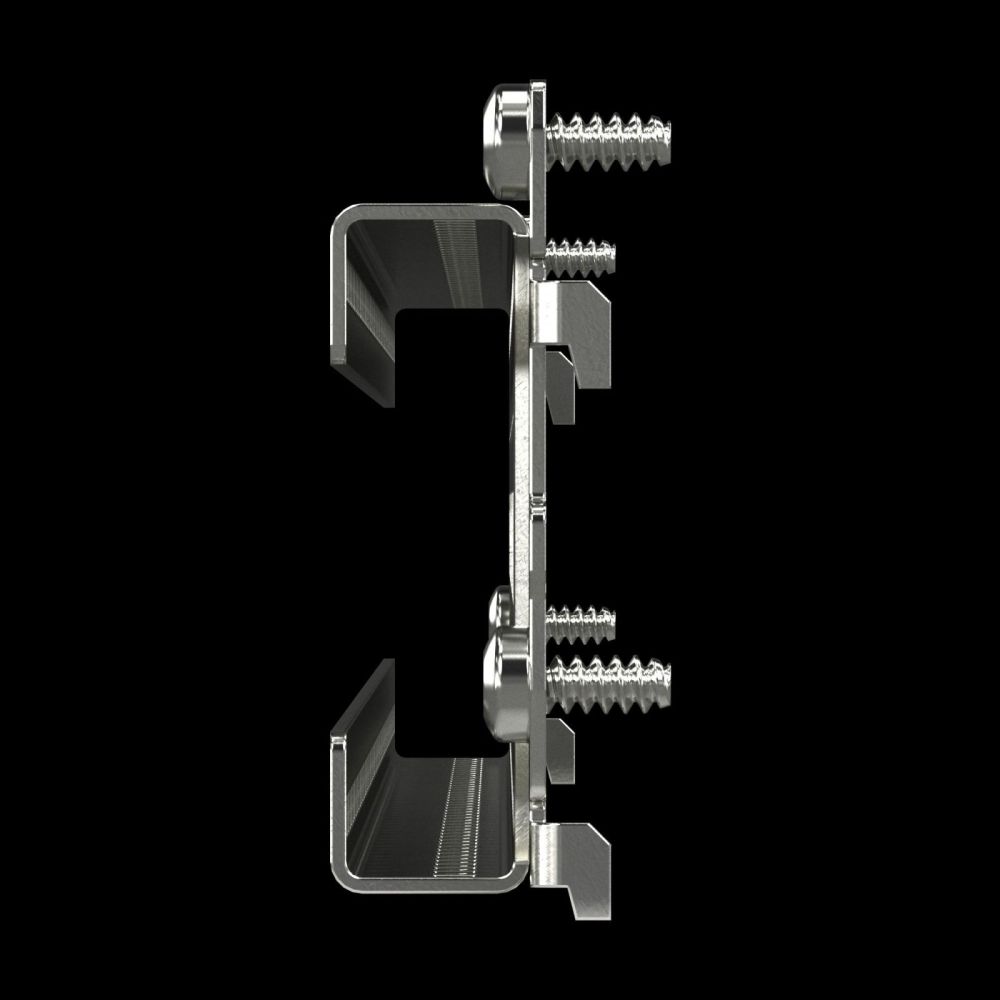

The chassis can be mounted on the outer mounting plane of the enclosure profile or placed between two existing system chassis with dimensions of 23 x 64 mm. Mounting is done by screwing, and the delivery includes the necessary mounting materials. The use of screws and other mounting aids follows the manufacturer’s specifications to ensure secure and durable installation.

Material and surface
The chassis is made of sheet steel with a galvanized finish. The galvanization provides protection against corrosion and ensures a longer service life of the component, especially in environments with increased humidity or low aggressiveness. The surface is suitable for industrial environments and meets the requirements for robust mounting elements.

Compatibility and accessories
The VX 8617.050 is specifically designed for enclosures of type VX with a width/depth of 1,000 mm. It is part of the modular VX system and can be combined with additional components such as cable ties, thread-forming hex screws M5x10, internal hex screws M8x12 mm, drilling screws type ST 4.8 L9.5 mm, SZ internal hex screws for thread M6, internal hex sheet metal screws type 5.5 L13 mm, and VX internal hex sheet metal screws for stainless steel. These accessories support mounting and fixation within the enclosure.

Operational advantages
The use of the VX 8617.050 enables flexible and adaptable interior design of enclosures. The simple mounting from outside or inside, universal mounting options on all four sides, and compatibility with the VX system ensure efficient and secure installation. The chassis is designed for use in industrial plants where stable and reliable mounting of modules is required. The use of galvanized sheet steel ensures high mechanical strength and corrosion resistance.

Technical specifications in operation
The dimensions of 18 x 64 mm allow precise placement within the system perforation. The depth of 1,000 mm corresponds to standard dimensions for VX enclosure frames and ensures optimal fit. The packaging unit of 4 pieces enables economical procurement for larger mounting projects. The PCF/VE (Cradle-to-Gate) is 20.22, reflecting the environmental impact of the product during the production process.

General
Materialsteel sheet
Surface protectionZinc-plated
Scope of deliveryIncluding mounting hardware
Mounting optionsOn outer mounting plane on cabinet profile, on outer mounting plane between two system chassis 23 x 64 mm
Suitable forEnclosure type: VX, Width/Depth: 1.000 mm
PCF/VE (Cradle-to-Gate)20,22


Product data sheet
Datasheet for Rittal 8617050, EAN: 4028177829084
