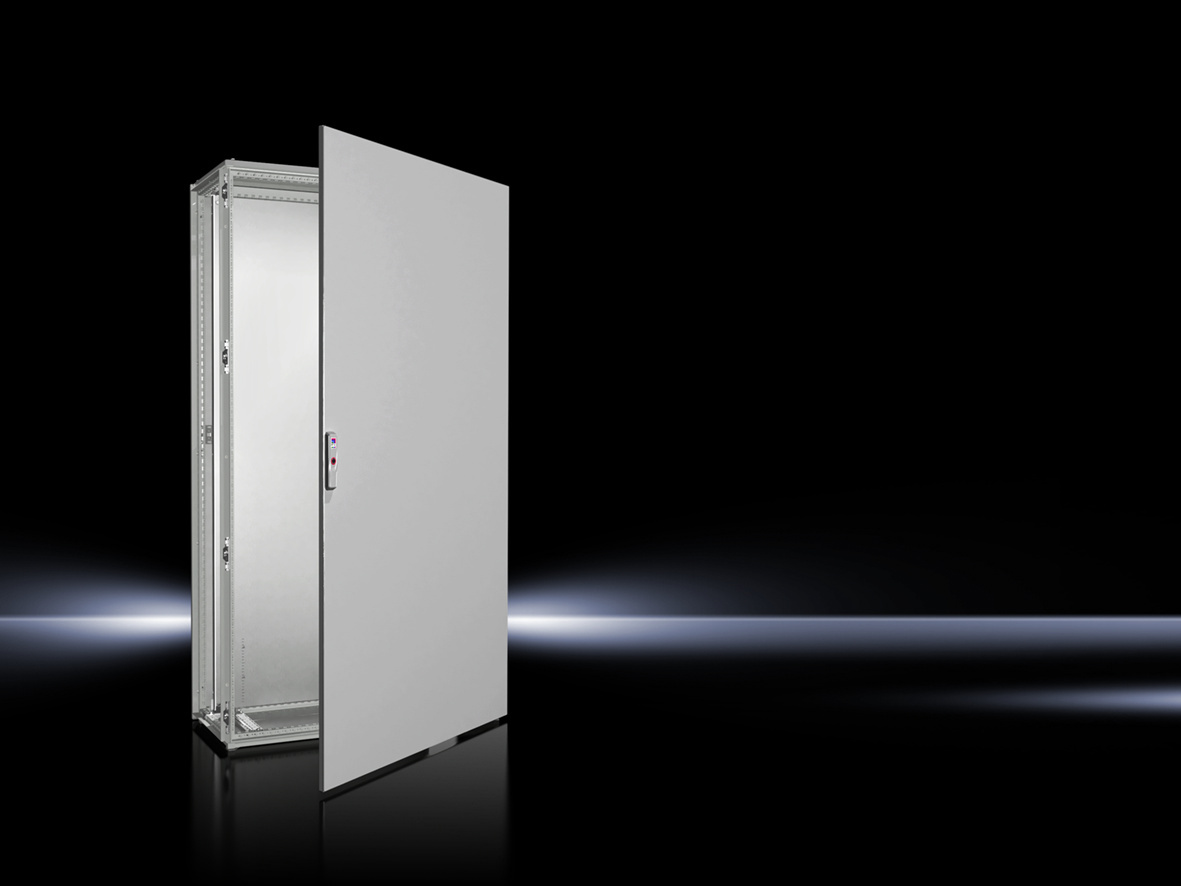

Rittal 8084000 bayed systems VX25 W x H x D 1000x1800x400 mm RAL 7035 (freight shipping)
|
707,19 EUR |
|
|
( 841,56 EUR incl. VAT ) ≈ £591.92 | ≈ $777.20 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1440732 |
| Mfg Part No: | 8084000 |
| UPC/EAN: | 4028177813656 |
| Weight: | 132.8 kg |
| Type: | VX 8084.000 |
Product information for Rittal 8084000:
Applications
This enclosure system is designed for use in indoor environments as well as in areas with increased contamination risk. The protection rating IP 55 according to EN 60 529 ensures protection against dust and splashing water, making it suitable for industrial applications. The protection ratings NEMA 1 and NEMA 12, as well as the type rating according to UL 50E (Type 1, Type 12), confirm suitability for indoor use and environments with light contamination. The IK code IK10 indicates high mechanical resistance against mechanical impacts, such as shocks or vibrations.
Functions and Equipment in Detail
The enclosure system includes an enclosure frame, a front door, a roof plate, a rear panel, base plates, a mounting plate, and two mounting rails 18 x 39 mm. The door is fitted with a PU foam seal and features a removable square tube frame with perforation in a 25 mm grid. The door is secured with a four-point rod lock, which includes a double-bar lock insert according to DIN 43668. The hinges are fitted with screwed-on stops, and the door hinge can be toollessly changed from right to left. The door opening angle is 130° and can be toollessly extended to 180°. The clearance height is 17 mm.
Technology Explained Simply
The mounting plate is C-flanged on the sides and is depth-adjustable in 25 mm increments via integrated plastic glides and reusable mounting rails. It features a mounting grid for simplified positioning of components. The rear panel, roof plate, and base plates are electrically connected to the frame, enabling automatic equipotential bonding according to DIN 62 208. The base plates are divided into three sections, removable, and replaceable. The surface of the enclosure frame is dip-primed, while the door, roof, and rear panel are dip-primed and externally powder-coated with a textured finish. The mounting plate and base plates are galvanized. The color of the enclosure system is RAL 7035.
Compatibility and Accessories
The enclosure system is compatible with various accessories that meet individual requirements for enclosure expansion. These include levelling feet M12, C-profile rails, circuit diagram pockets, mounting plate spacers, dust protection strips, mounting brackets, transport eyes, base plates in various depths, comfort handles, cable entry ferrules, multi-locking mechanisms, plug-through ferrules, multitools, side panels, and baying connectors. The side panels are screw-mounted and available in size H x D 1800 x 400 mm. Baying connectors are available in length 1200 mm.
Mounting and Installation
Mounting is performed via the integrated base frame with base reinforcement, enabling fastening to the floor. The mounting plate is depth-adjustable, allowing flexible positioning of components. The rear panel, roof plate, and base plates are removable and can be replaced if necessary. The PU foam seals ensure a tight seal and prevent ingress of dust and moisture.
Advantages in Operation
The enclosure system offers high mechanical stability and is designed for use in demanding industrial environments. The modular construction enables space-saving and quick internal installation. The integrated mounting plate and depth-adjustable mounting rails simplify component installation. The conductive connection of flat parts to the frame ensures safe equipotential bonding. The tool-free door hinge reversal and door opening angle extension reduce installation effort. The protection rating IP 55 and mechanical resistance IK10 ensure reliable operation even under difficult conditions.
| General | |
| Material | Cabinet frame: steel sheet, 1.5 mm, roof: steel sheet, 1.5 mm, door: steel sheet, 2.0 mm, rear panel: steel sheet, 1.5 mm, base plates: steel sheet, 1.5 mm, mounting plate: steel sheet, 3.0 mm |
| Surface protection | Cabinet frame: dip-primed, door, roof and rear panel: dip-primed, externally powder-coated, textured lacquer, mounting plate and base sheets: galvanised |
| Colour | RAL 7035 |
| Scope of delivery | cabinet frame, door(s), door hinge right, reversible to left, roof sheet, rear panel, floor sheets, mounting plate, 2 mounting rails 18 x 39 mm, lock: 3 mm double bar |
| Width | 1.000 mm |
| Height | 1.800 mm |
| Depth | 400 mm |
| Mounting plate dimensions (W x H) | 899 mm x 1.696 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK10 |
| Number of doors | 1 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 370.06 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
