Rittal 8617010 VX system chassis 18 x 64 mm W x D: 400 mm

Your rating:
Average rating
product review for Rittal 8617010 VX system chassis 18 x 64 mm W x D: 400 mm
( 4.5 / 5 ) 27 ratings
Rittal 8617010
This image may differ from the desired article.
Rittal 8617010Rittal 8617010Rittal 8617010Rittal 8617010Rittal 8617010Rittal 8617010
34,96 EUR
( 41,60 EUR incl. VAT )
≈ £29.26  |  ≈ $38.42
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 8617010 VX system chassis 18 x 64 mm W x D: 400 mm
Datasheet:file_download Download
Lieske Part No.:1440944
Mfg Part No: 8617010
UPC/EAN: 4028177829046
Weight:1.631 kg
Type:VX 8617.010

Product information for Rittal 8617010:

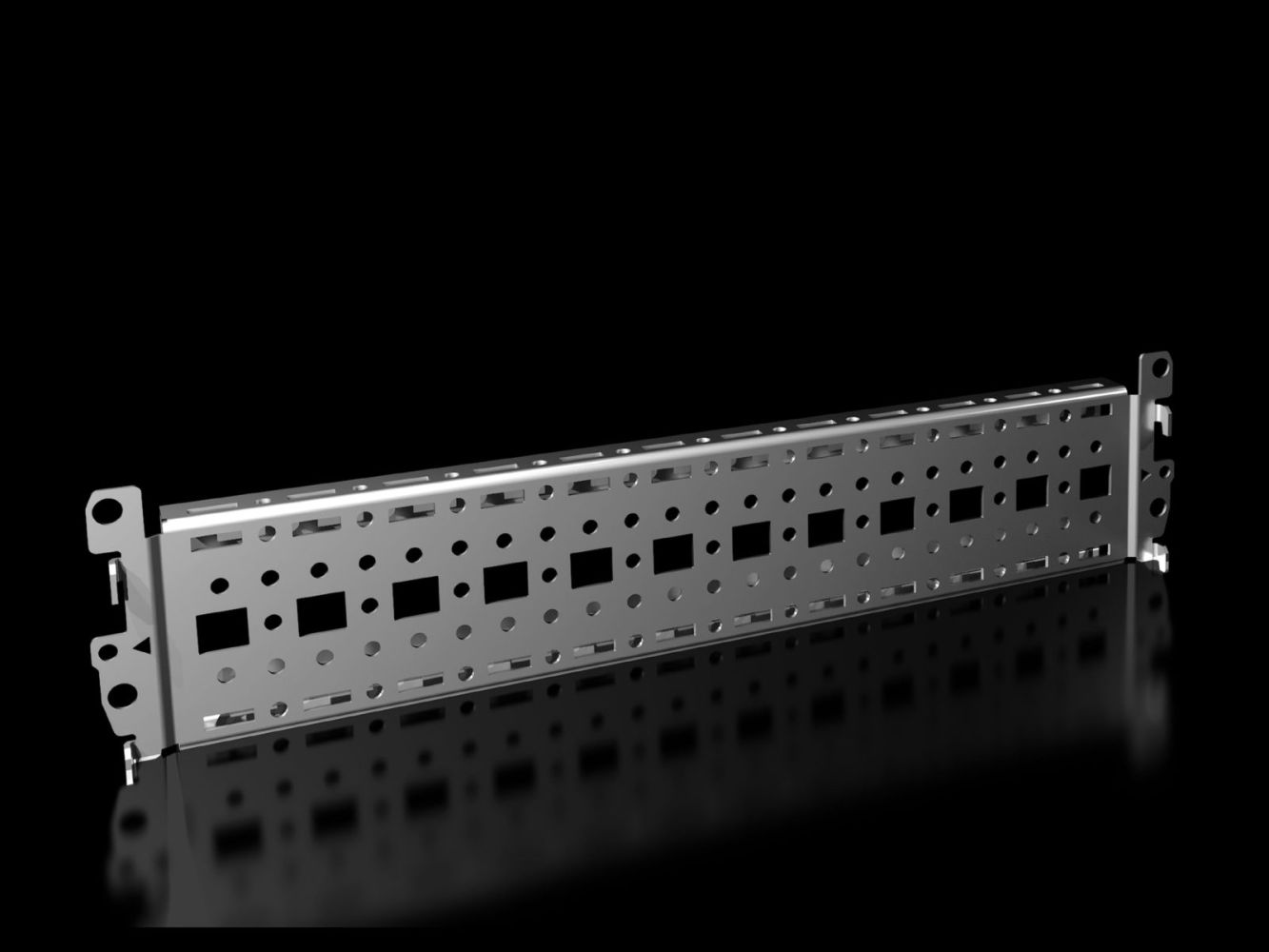

The Rittal VX 8617.010 is a system chassis made of sheet steel with a galvanized surface, specifically designed for variable and individual interior fitting of enclosure frames in the VX system. It serves as a mounting element on the outer mounting plane and enables flexible attachment of components, devices, or cabling elements within enclosures. The chassis has dimensions of 18 x 64 mm and is designed for enclosures with a width/depth of 400 mm. The packaging unit includes 4 pieces, with the mounting hardware already included in the delivery scope.

Applications
The system chassis is primarily used in industrial enclosure construction where a modular and adaptable mounting structure is required. It is particularly suitable for applications where components such as switches, relays, controls, or cable ties are to be mounted on the outer mounting plane. The chassis is used in VX system enclosures that feature a system perforation to enable mounting. The installation solution is flexible, as it can be hung from the outside into the system perforation or mounted from the inside in already bayed enclosures.

Functions and Equipment in Detail

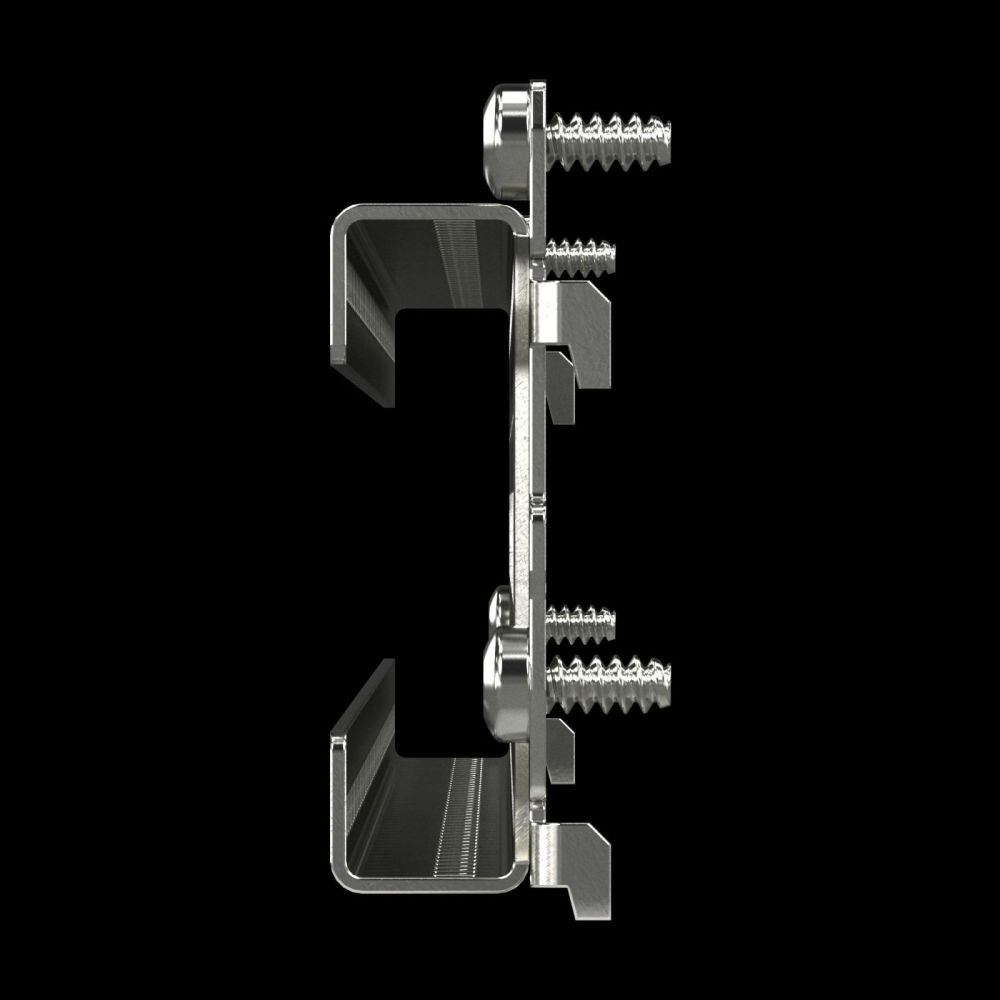

The chassis features a system perforation on all four sides, enabling versatile mounting options. Mounting is done by simply hanging it into the existing perforations and then securing it with screws. The galvanized surface provides good corrosion protection, increasing its suitability for industrial environments. The use of sheet steel ensures sufficient mechanical stability and load-bearing capacity for typical mounting loads.

Technology Explained Simply

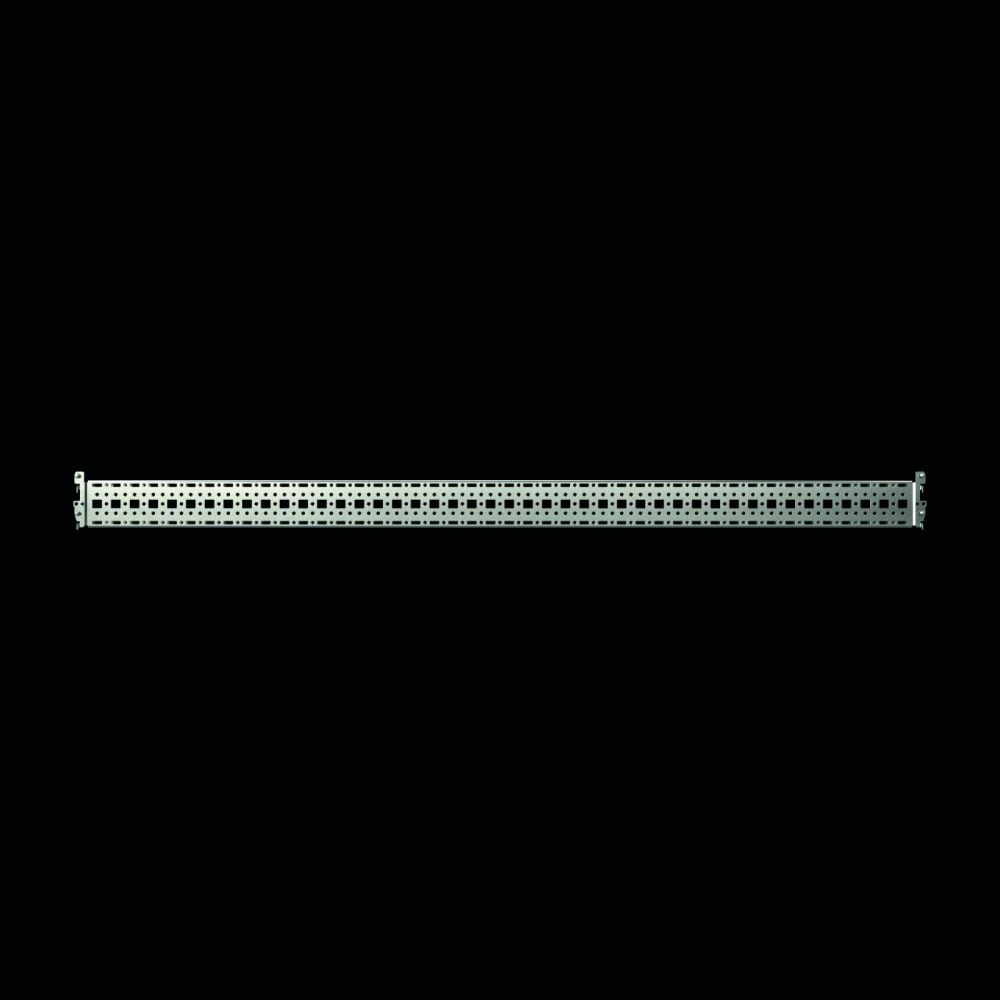

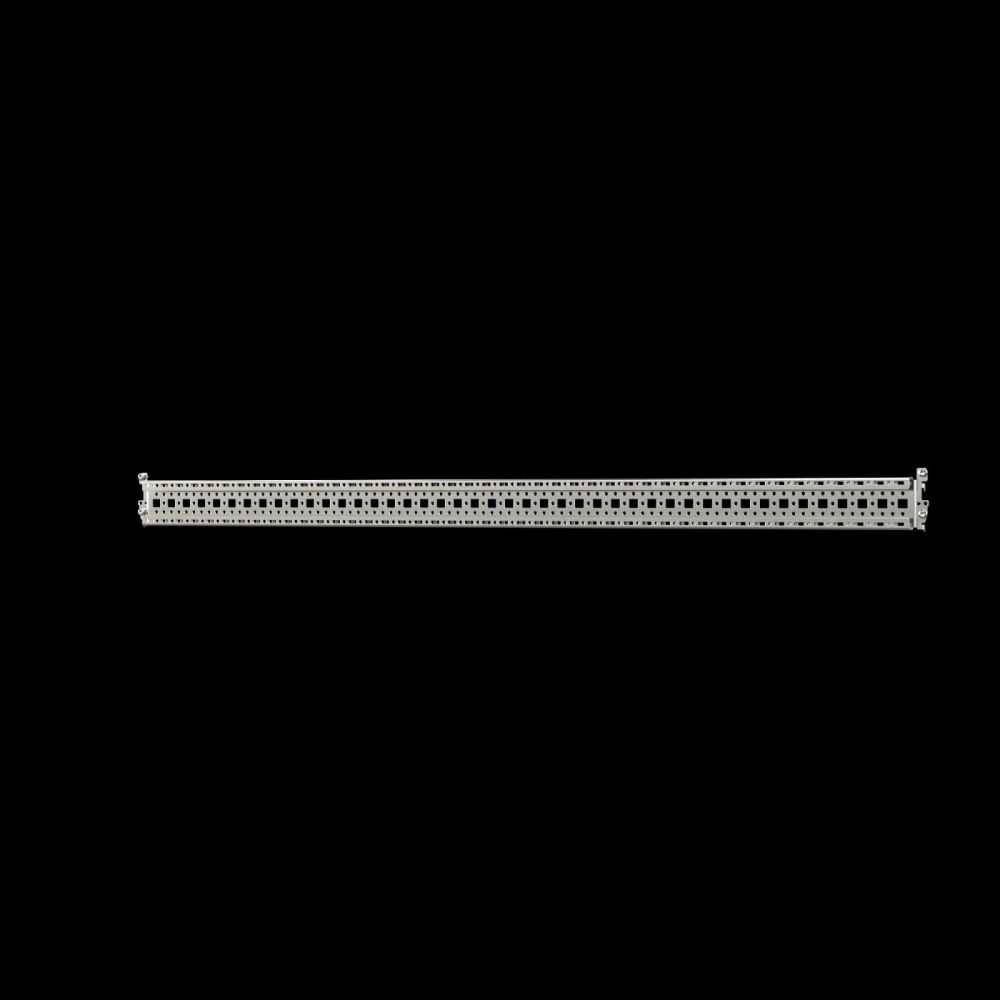

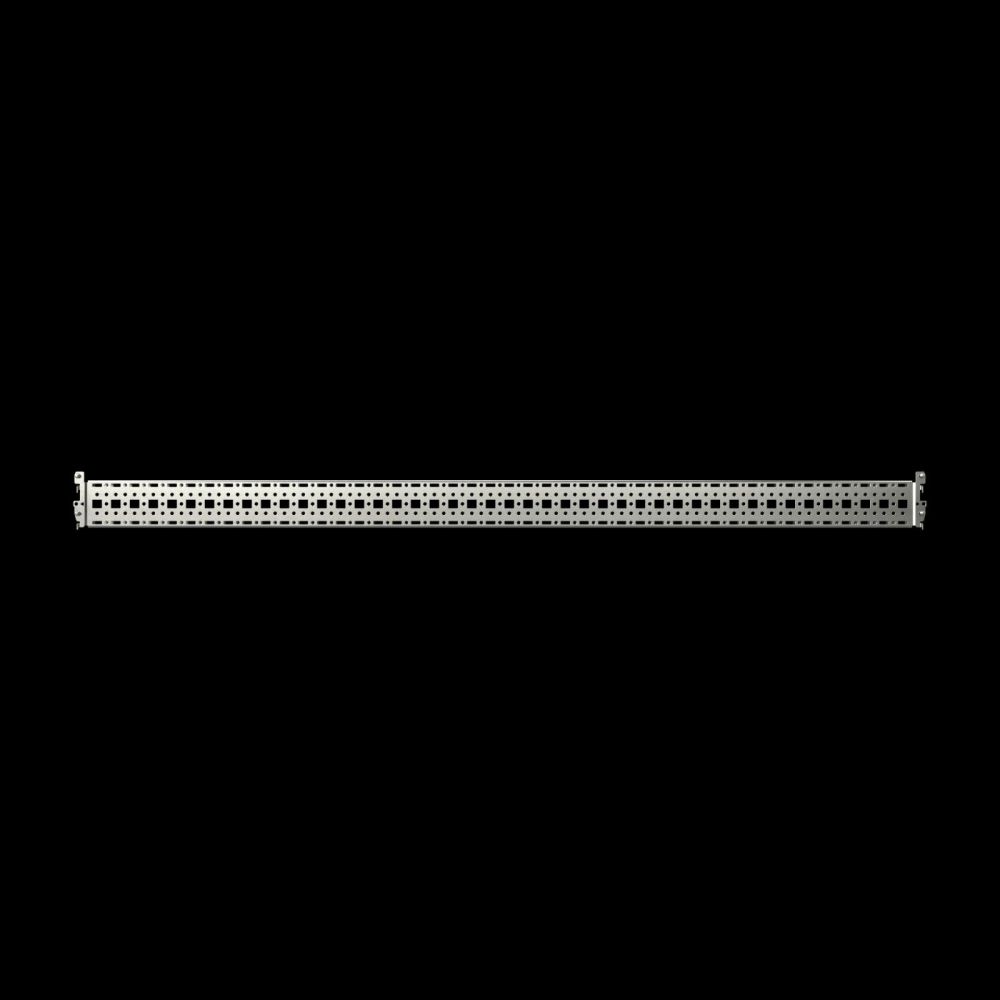

The system chassis is a flat, perforated metal profile that is hung into the pre-drilled holes of enclosure frames. The perforation is standardized and corresponds to the VX system, ensuring compatible mounting with other system components. Mounting is done using the screws included in the delivery scope, which are inserted into the perforations. Mounting from the outside is particularly advantageous, as it can be done without opening the enclosure, reducing mounting time and preserving the integrity of the enclosure cover.

Compatibility and Accessories
The chassis is specifically designed for VX system enclosures with a width/depth of 400 mm. It can be mounted on the outer mounting plane of the enclosure profile or between two existing system chassis with dimensions of 23 x 64 mm. As accessories, various screws and fastening elements are available, including thread-forming hex screws M5x10, internal hex screws M8x12 mm, self-tapping screws type ST 4,8 L9,5 mm, SZ internal hex screws for M6 thread, internal hex sheet metal screws type 5,5 L13 mm, and VX internal hex sheet metal screws for stainless steel. These elements can be selected according to requirements and the material of the components to be mounted.

Mounting and Installation
Mounting is done by hanging the chassis into the system perforation of the enclosure wall and then securing it with screws. The mounting screws are included in the delivery scope. In already installed enclosures, installation can also be done from the inside, which is helpful when external access is limited. The system perforation on all four sides allows for flexible positioning and mounting of components in various directions.

Advantages in Operation
The system chassis offers quick and easy mounting without additional tools or drilling. The use of standardized perforations ensures high compatibility with other VX system components. The galvanized surface increases service life and resistance to environmental influences. The modular structure allows flexible adaptation to changing requirements in enclosure construction without having to rebuild the entire frame.

General
Materialsteel sheet
Surface protectionZinc-plated
Scope of deliveryIncluding mounting hardware
Mounting optionsOn outer mounting plane on cabinet profile, on outer mounting plane between two system chassis 23 x 64 mm
Suitable forEnclosure type: VX, Width/Depth: 400 mm
PCF/VE (Cradle-to-Gate)7,76


Product data sheet
Datasheet for Rittal 8617010, EAN: 4028177829046

Questions & answers

What is the delivery time of Rittal 8617010 VX system chassis 18 x 64 mm W x D: 400 mm?

The article Rittal 8617010 VX system chassis 18 x 64 mm W x D: 400 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8617010 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8617010 VX system chassis 18 x 64 mm W x D: 400 mm always at the best possible price. We can give you a discount of 2% on Rittal 8617010 VX system chassis 18 x 64 mm W x D: 400 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
