Rittal 2504000 Thread-forming hex screws M5x10

Your rating:
Average rating
product review for Rittal 2504000 Thread-forming hex screws M5x10
( 4.5 / 5 ) 28 ratings

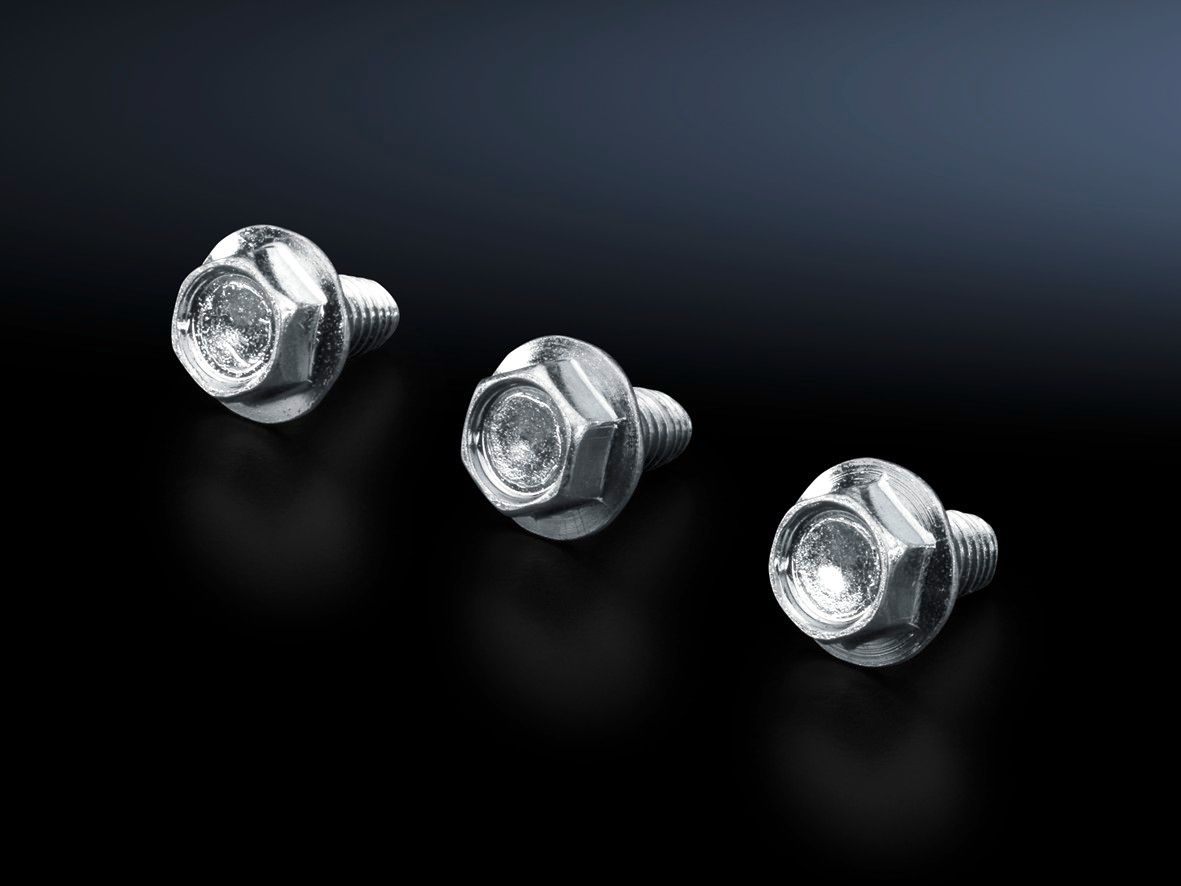

Rittal 2504000
This image may differ from the desired article.
Rittal 2504000Rittal 2504000
64,40 EUR 66,98 EUR
( 76,64 EUR incl. VAT )
≈ £53.90  |  ≈ $70.78
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 2504000 Thread-forming hex screws M5x10
Datasheet:file_download Download
Lieske Part No.:317027
Mfg Part No: 2504000
UPC/EAN: 4028177025684
Weight:1.372 kg
Type:SZ 2504000

Product information for Rittal 2504000:

The Rittal SZ 2504000 are thread-forming hex cap screws with an M5 thread and a thread length of 10 mm. They are specifically designed for use in enclosures and systems from the Rittal portfolio, particularly for securing to enclosure profiles, mounting rails, and chassis. These screws enable a secure and durable connection without the need to pre-cut a thread or prepare a hole beforehand. The screws form the thread themselves when screwed into the pre-drilled round holes with a diameter of 4.5 mm or 4.7 mm, which accelerates the mounting process and eliminates the need for additional tools such as taps or thread inserts.

Applications
The screws are intended for use in industrial enclosures and systems where quick and reliable mounting of components, rails, or chassis is required. They fit into the standardized round holes found in Rittal enclosure profiles, mounting rails, and chassis without mounting flanges. This makes them particularly suitable for securing components in electrical and automation technology, where high mounting efficiency and mechanical stability are required.

Functions and Equipment in Detail
The thread-forming technology ensures that the screws can be directly screwed into the pre-drilled holes without requiring a pre-cut thread. The screws feature a hex head, which can be operated with a matching hex key or a screwdriver with a hex bit. The thread length of 10 mm provides sufficient anchoring in the typical material thicknesses of enclosure profiles and mounting elements. The screws are designed for mechanical loads typical for use in enclosures and offer a secure fastening without wear or loosening under normal operating conditions.

Technology Explained Simply
The term thread-forming means that the screw creates the thread in the material itself when being screwed in. This is particularly useful in metal profiles that are already equipped with round holes but do not have a pre-formed thread. The screws are designed to shape the material as they turn and create a matching thread, resulting in a firm connection. The thread length of 10 mm is sufficient to engage with the typical material thicknesses of enclosure profiles and mounting rails, without being too short or too long. The hexagonal shape ensures secure and precise mounting, as it can transmit high torque without the screw head slipping.

Compatibility and Accessories
The screws are specifically designed for round holes with a diameter of 4.5 mm or 4.7 mm in Rittal enclosure profiles, mounting rails, and chassis without mounting flanges. They are therefore compatible with the entire Rittal system, which is based on standardized hole patterns. Use in other systems is possible, provided the hole size and material meet the requirements. There are no specific accessories included with these screws; they are supplied as individual components for mounting purposes.

Mounting and Installation
Mounting is done by simply screwing the screw into the pre-drilled round holes using a hex key or a screwdriver with a hex bit. No prior thread cutting is required. The screws should be tightened to the bottom or to the desired tightness to ensure a secure connection. The use of torque tools is recommended to achieve uniform and secure fastening, especially in critical applications.

Advantages in Operation
The thread-forming function reduces mounting time, as no additional tools for thread cutting are needed. The screws provide a reliable fastening that does not loosen under normal operating conditions. The use of hex cap screws enables precise and secure mounting, which improves the quality of the installation. The screws are available in a pack of 500 pieces, making them particularly cost-effective for series mounting and large projects. Standardization on M5 thread and compatibility with Rittal systems ensure high compatibility and interchangeability.

The screws are available in a pack of 500 pieces, making them suitable for industrial applications and series mounting. The weight specifications (net weight 1 kg, gross weight 1.372 kg) refer to the packaging unit and are intended for logistics and storage purposes.

General
ModelHexagon screws
ApplicationsFor round holes Ø 4.5 or 4.7 mm in cabinet profiles, mounting rails and chassis
ThreadM5
Thread length10 mm


Product data sheet
Datasheet for Rittal 2504000, EAN: 4028177025684
