Rittal 8617000 VX system chassis 18 x 64 mm W x D: 300 mm

Your rating:
Average rating
product review for Rittal 8617000 VX system chassis 18 x 64 mm W x D: 300 mm
( 4.3 / 5 ) 17 ratings
Rittal 8617000
This image may differ from the desired article.
Rittal 8617000Rittal 8617000Rittal 8617000Rittal 8617000Rittal 8617000Rittal 8617000Rittal 8617000Rittal 8617000
28,18 EUR
( 33,53 EUR incl. VAT )
≈ £23.59  |  ≈ $30.97
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: 4 pieces
1x Rittal 8617000 VX system chassis 18 x 64 mm W x D: 300 mm
Datasheet:file_download Download
Lieske Part No.:1440870
Mfg Part No: 8617000
UPC/EAN: 4028177829039
Weight:1.152 kg
Type:VX 8617.000

Product information for Rittal 8617000:

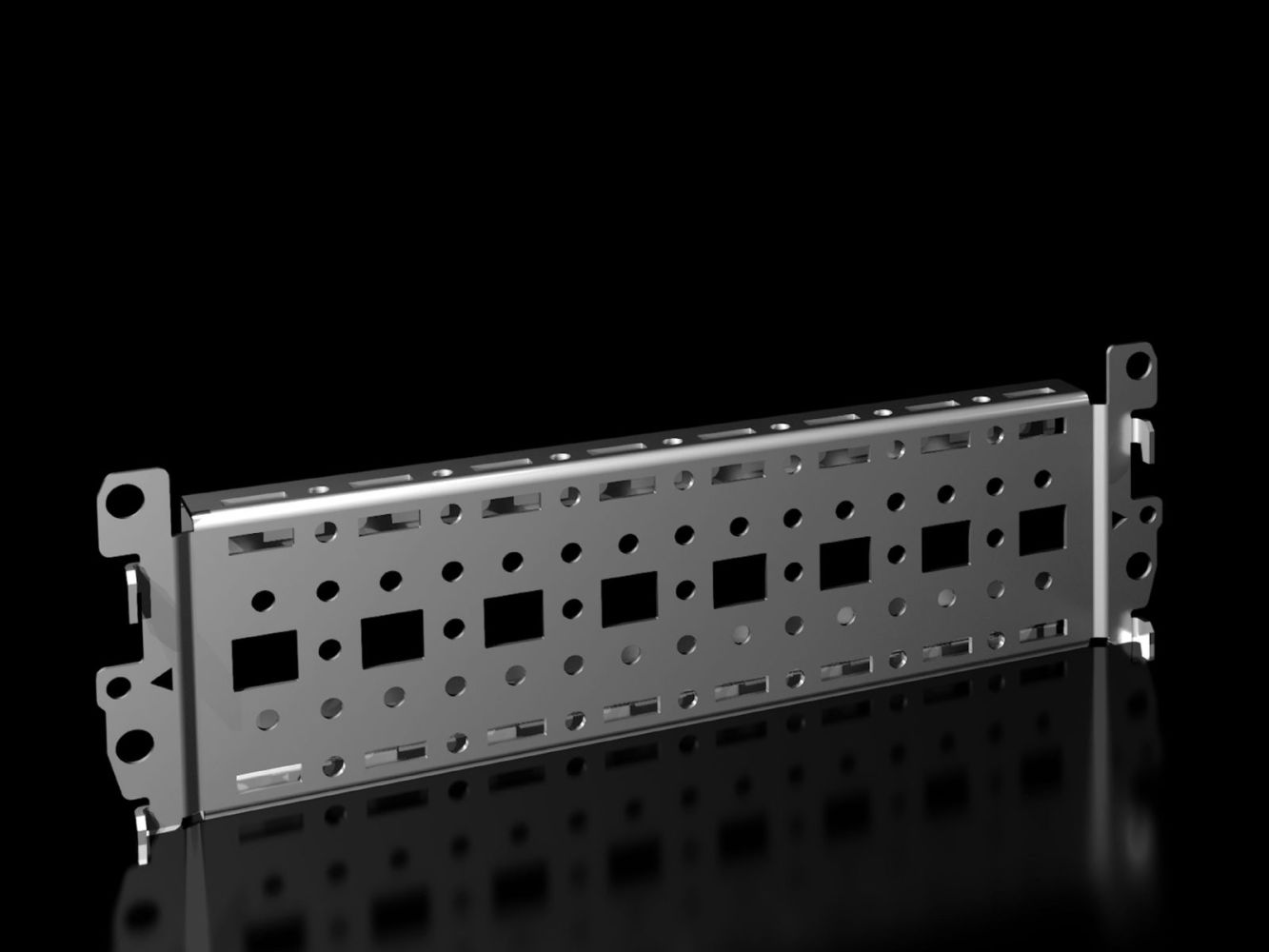

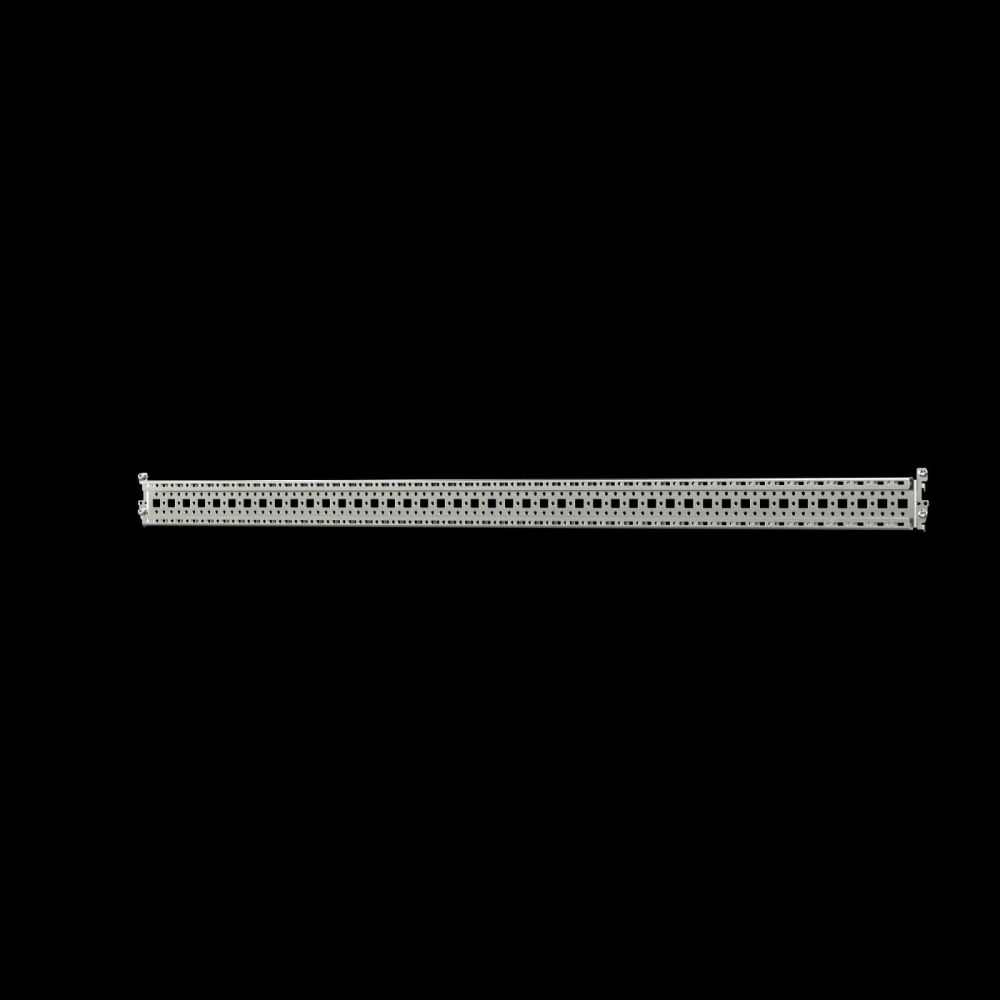

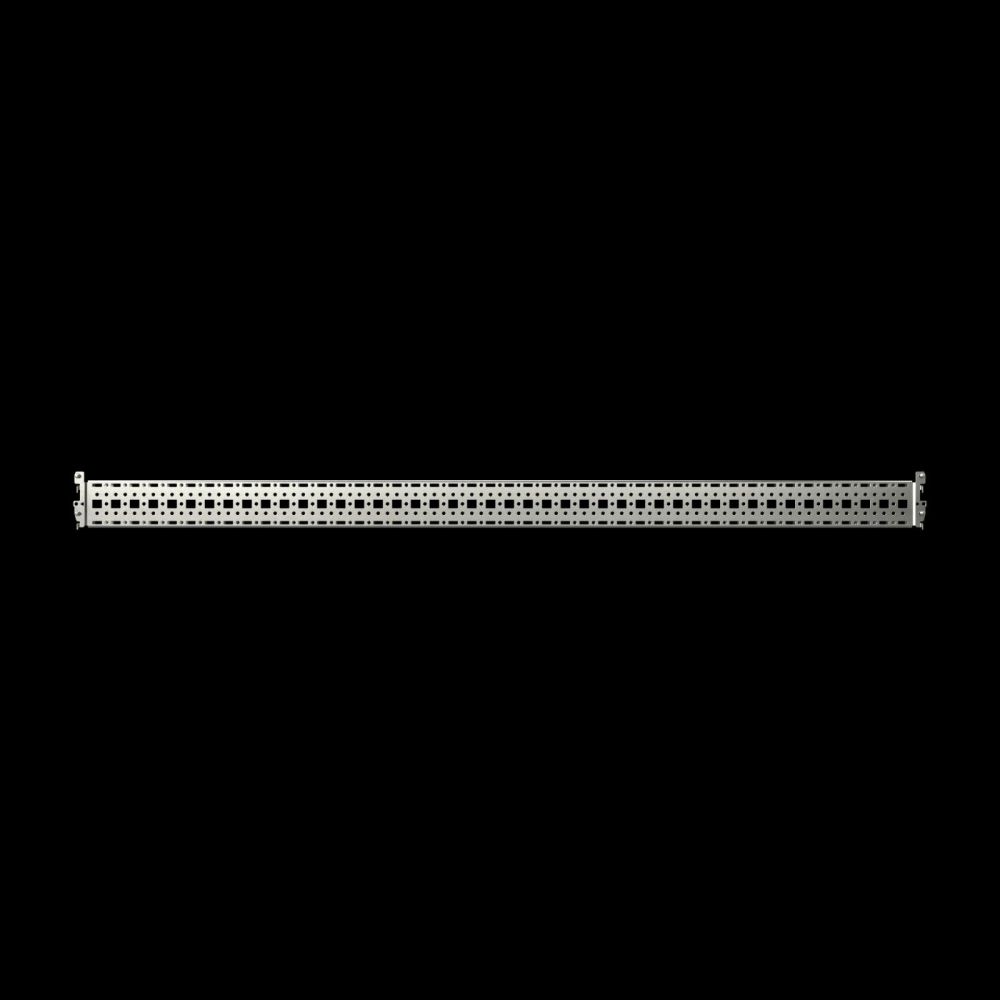

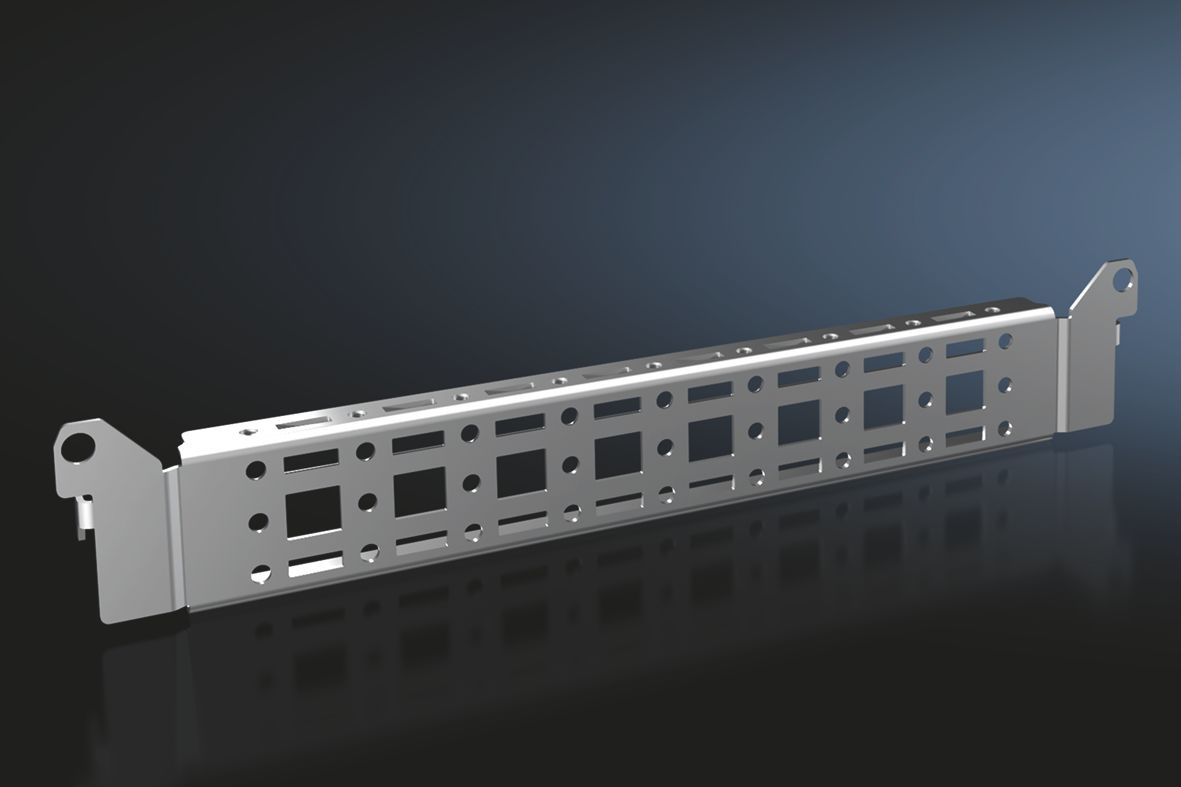

The Rittal VX 8617.000 is a system chassis made of sheet steel with a galvanised surface, specifically designed for variable and individual interior fitting of enclosure frames in the VX system. It serves as a mounting element on the outer mounting plane and enables flexible fixation of assemblies, devices or modules within enclosures. The chassis has dimensions of 18 x 64 mm and is designed for enclosures with a width/depth of 300 mm. The packaging unit includes 4 pieces, with the mounting material already included in the delivery scope.

Applications

The system chassis is primarily used in the field of industrial electrical engineering and automation technology, where modular and adaptable mounting of components within enclosures is required. It is particularly suitable for plants where the interior configuration must be flexible, for example in manufacturing automation, process control or power supply technology. Mounting is carried out on the outer mounting plane on the enclosure profile or between two existing system chassis with dimensions 23 x 64 mm.

Functions and Equipment in Detail

The chassis features system perforation on all four sides, enabling versatile mounting options. Mounting is performed by simply hanging it into the system perforation from the outside and then screwing it in place. In already bayed enclosures, mounting can also be carried out from the inside of the enclosure, which facilitates installation in existing plants. The galvanised surface provides good corrosion protection and is suitable for use in industrial environments.

Technology Explained Simply

The system chassis is made of sheet steel, protected against oxidation by galvanisation. The dimensions of 18 x 64 mm correspond to the standard for VX systems and allow mounting in the designated perforation grids of enclosure frames. The system perforation on all four sides offers various mounting options, enabling flexible use in different configurations. Mounting is carried out using the included mounting material, which ensures secure anchoring in the enclosure profile.

Compatibility and Accessories

The chassis is specifically designed for enclosures of the VX housing type with a width/depth of 300 mm. It is compatible with existing VX systems and can be mounted either on the enclosure profile or between two system chassis with dimensions 23 x 64 mm. As accessories, various screws and mounting elements are available, including thread-forming hex screws M5x10, internal hex screws M8x12 mm, drilling screws type ST 4,8 L9,5 mm, SZ internal hex screws for thread M6, internal hex sheet metal screws type 5,5 L13 mm, and VX internal hex sheet metal screws for stainless steel. These elements support mounting and fixation in various application scenarios.

Mounting and Installation

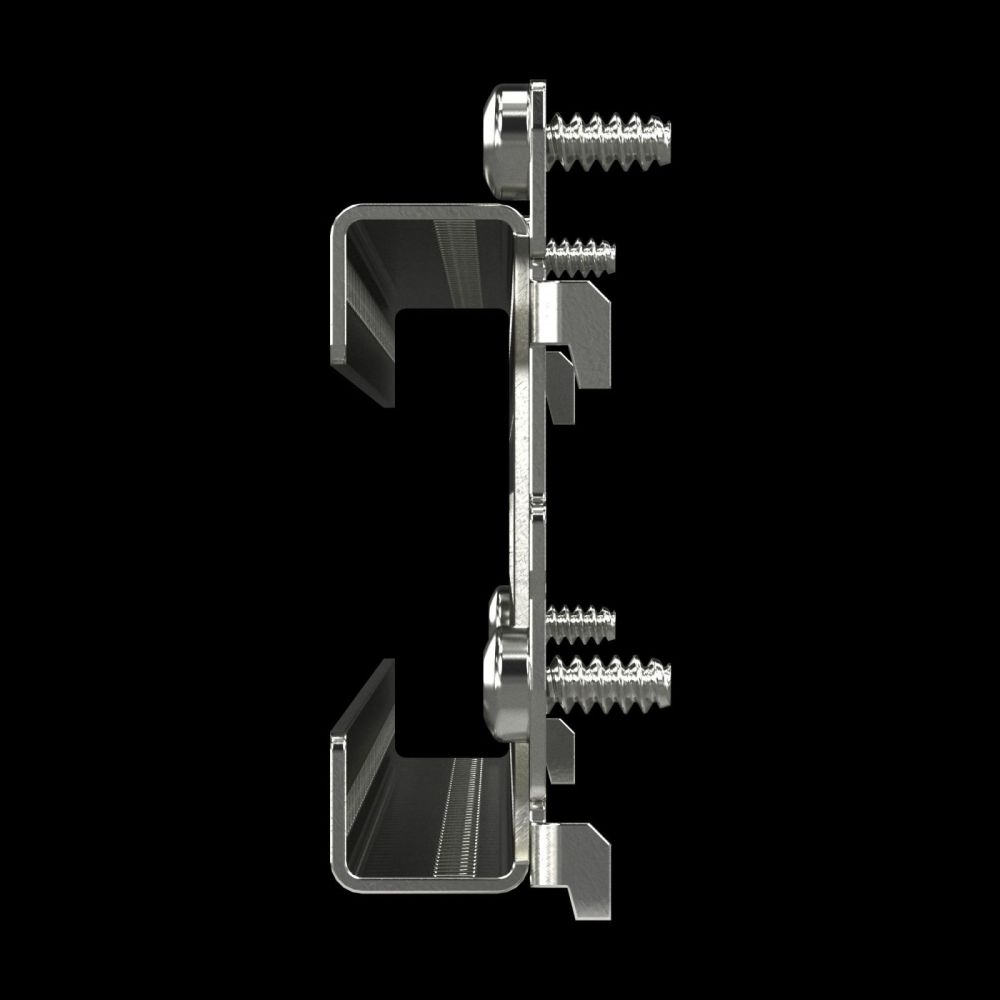

Installation is carried out by hanging the chassis into the system perforation of the outer mounting plane and then screwing it in place with the included mounting material. Mounting can be performed from the outside or from the inside, depending on whether the enclosure is already in operation or still under construction. The system perforation on all four sides enables flexible positioning and mounting of assemblies.

Advantages in Operation

The system chassis offers a flexible and modular mounting option that supports adaptation to changing requirements in operation. The simple mounting and use of standard mounting elements reduce installation time and facilitate maintenance work. The galvanised surface ensures high resistance to corrosion, extending the service life of the chassis in industrial environments. Compatibility with existing VX systems ensures seamless integration into existing enclosure configurations.

General
Materialsteel sheet
Surface protectionZinc-plated
Scope of deliveryIncluding mounting hardware
Mounting optionsOn outer mounting plane on cabinet profile, on outer mounting plane between two system chassis 23 x 64 mm
Suitable forEnclosure type: VX, width/depth: 300 mm
PCF/VE (Cradle-to-Gate)5,29


Product data sheet
Datasheet for Rittal 8617000, EAN: 4028177829039

Questions & answers

What is the delivery time of Rittal 8617000 VX system chassis 18 x 64 mm W x D: 300 mm?

The article Rittal 8617000 VX system chassis 18 x 64 mm W x D: 300 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8617000 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8617000 VX system chassis 18 x 64 mm W x D: 300 mm always at the best possible price. We can give you a discount of 2% on Rittal 8617000 VX system chassis 18 x 64 mm W x D: 300 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
