Rittal 8617040 VX system chassis 18 x 64 mm W x D: 800 mm
|
60,38 EUR 61,23 EUR |
|
|
( 71,85 EUR incl. VAT ) ≈ £50.54 | ≈ $66.36 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline | |
| In Stock: >500 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1440535 |
| Mfg Part No: | 8617040 |
| UPC/EAN: | 4028177829077 |
| Weight: | 3.56 kg |
| Type: | VX 8617.040 |
Product information for Rittal 8617040:
System chassis

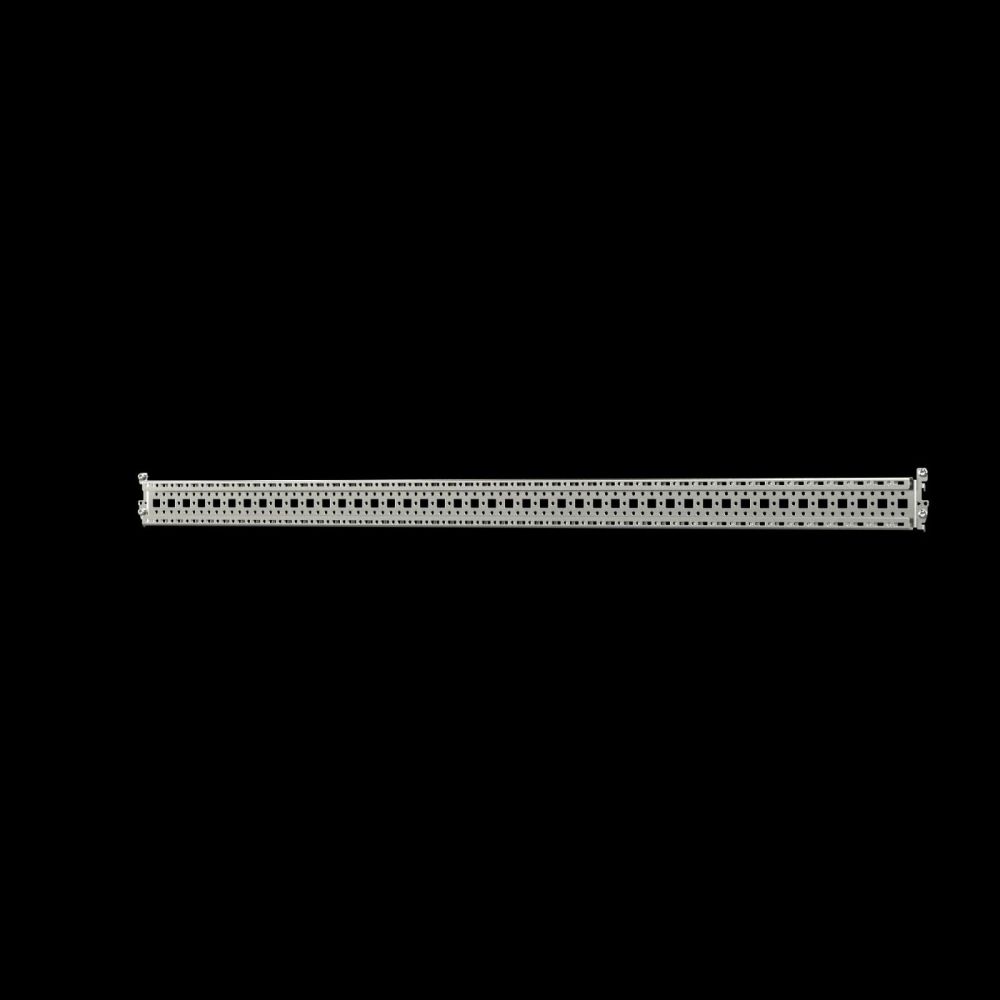

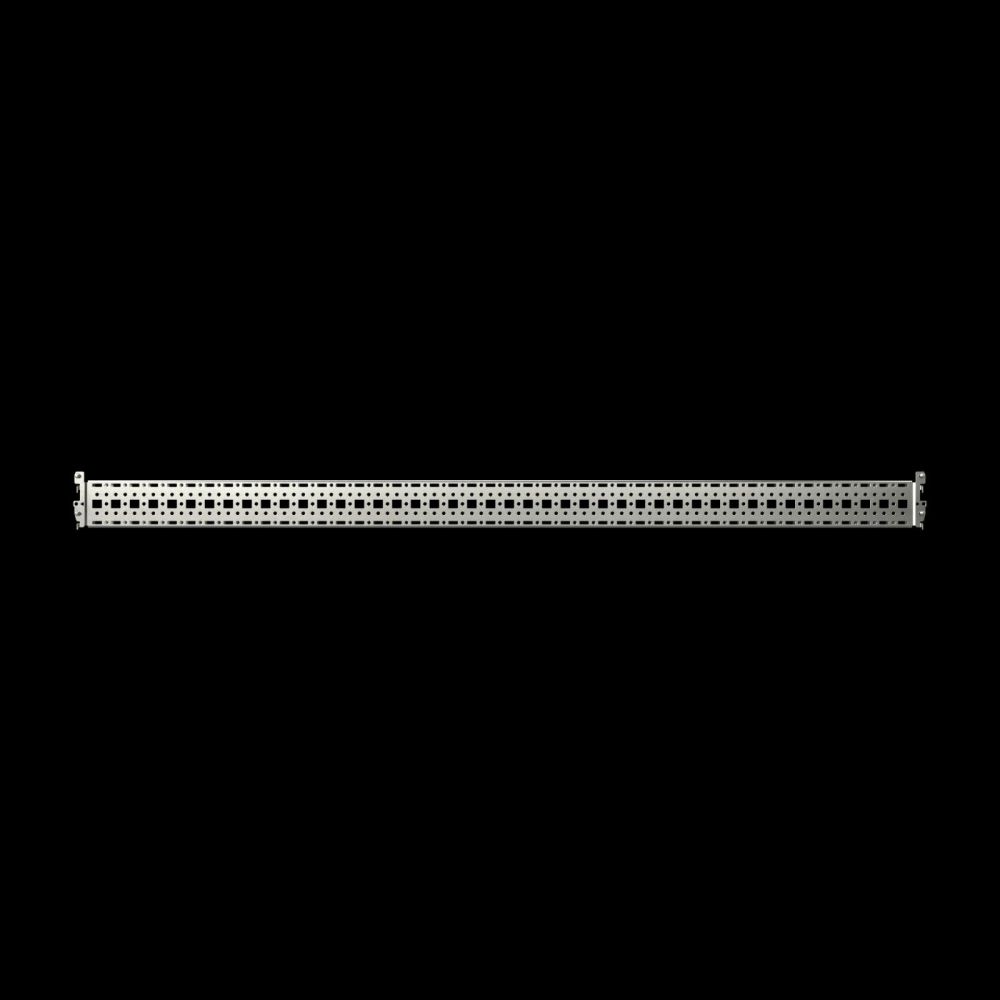

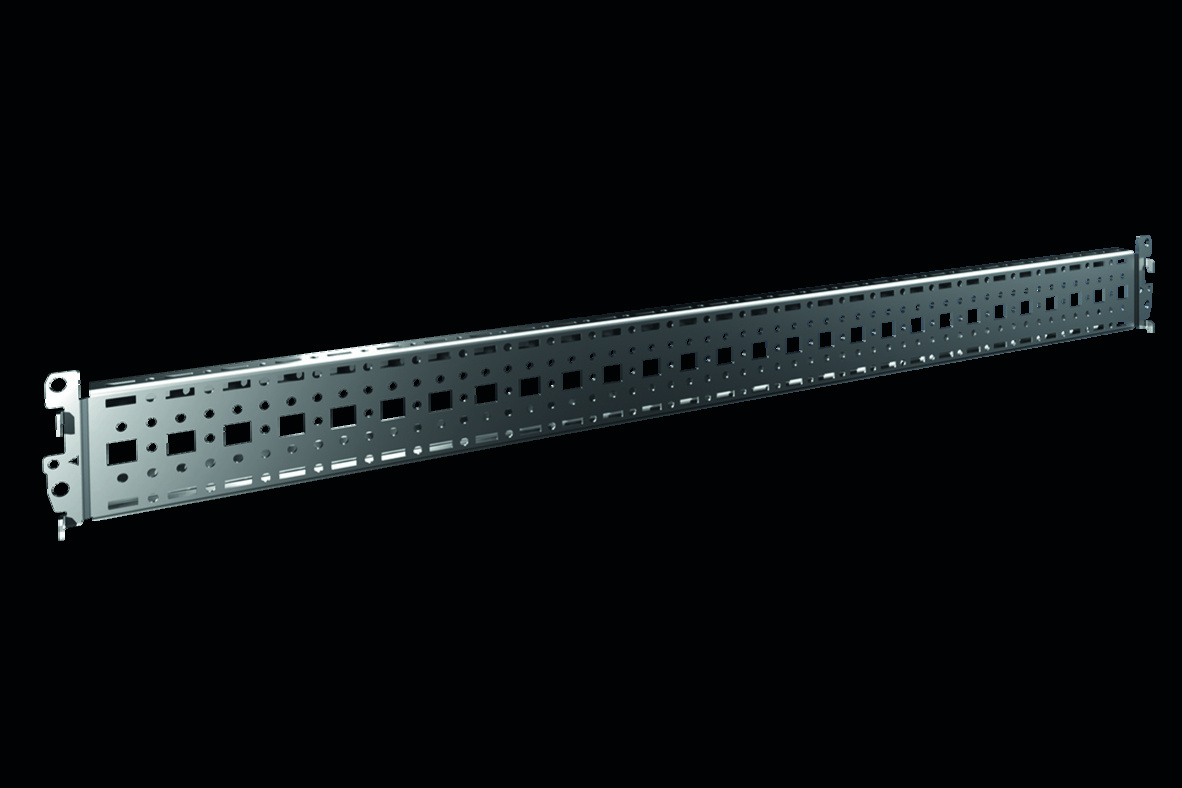

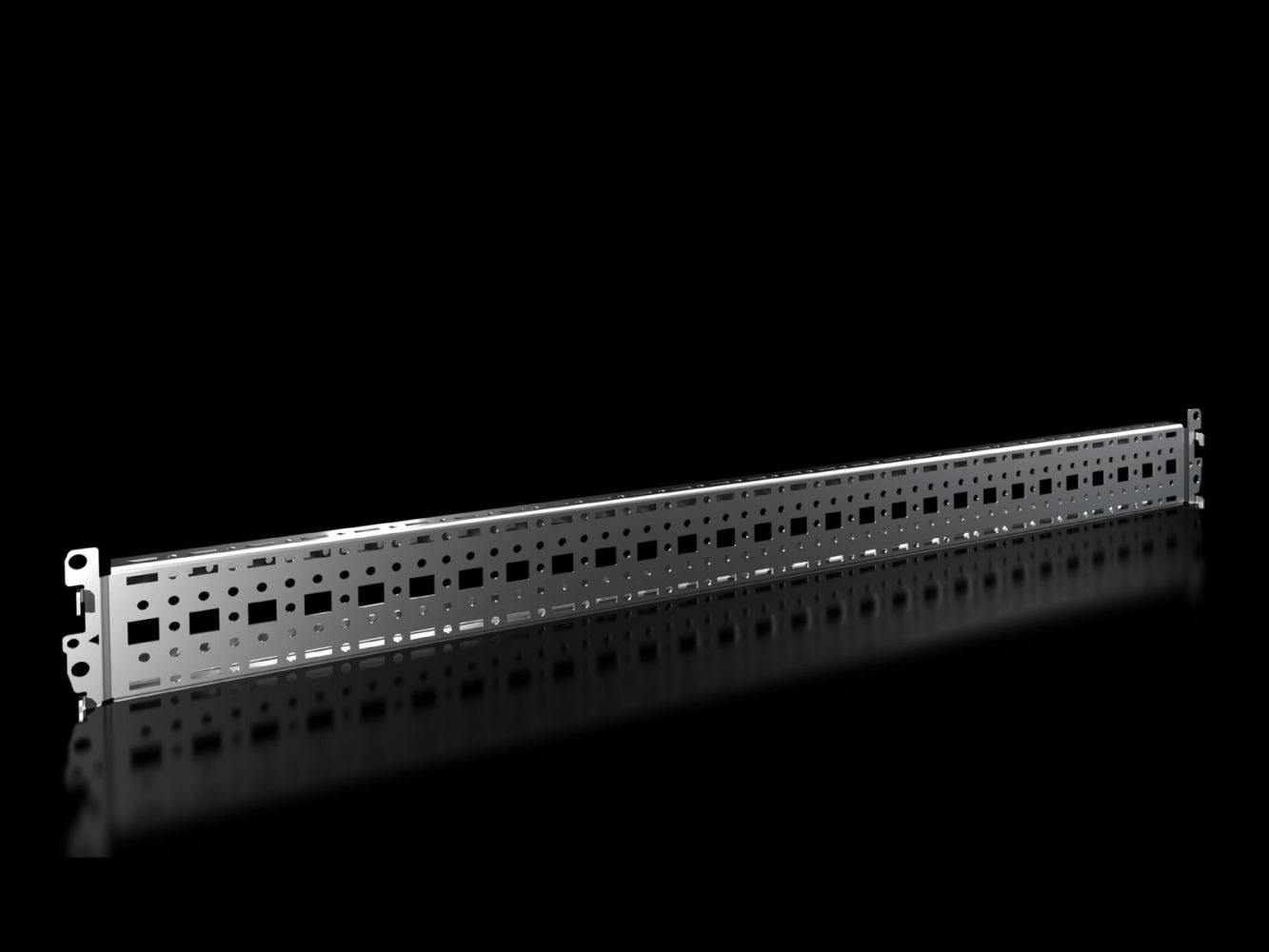

The system chassis VX 8617.040 has dimensions of 18 x 64 mm and is intended for the outer mounting plane. It features a system perforation on all four sides, enabling flexible and versatile mounting options. The construction from sheet steel with a galvanized surface provides high mechanical stability and corrosion protection, making it suitable for use in industrial environments. The galvanization protects the material from moisture and oxidation, thereby extending the service life of the chassis.
Applications
The chassis is specifically designed for use in VX enclosures, which are widely used in industrial electrical engineering and automation technology. It is frequently used in the mounting of controls, power electronics, sensors, or other assemblies that are to be fixed to the outer mounting plane. Its use in cabinets with a width/depth of 800 mm makes it particularly suitable for medium to large enclosures requiring modular expansion.
Functions and equipment in detail
The chassis is supplied with fastening materials, enabling mounting without additional tools or components. Fastening is achieved by screwing into the system perforation, with the screws included in the delivery scope. Mounting is possible both externally on the cabinet profile and between two existing system chassis 23 x 64 mm. This allows for flexible arrangement and expansion of the interior fitting without additional drilling or modifications to the cabinet.
Technology explained simply
The system perforation on all four sides of the chassis enables versatile mounting options. The perforation is standardized and fits into the VX system, which is based on a modular mounting concept. The dimensions of 18 x 64 mm correspond to a common format for mounting elements in enclosures. The galvanized surface provides passive corrosion protection, which is advantageous in industrial environments with high humidity or aggressive atmospheres. Mounting is performed by simple insertion and screwing, allowing installation quickly and without special tools.
Compatibility and accessories
The chassis is specifically designed for use in VX enclosures with a width/depth of 800 mm. It is compatible with other VX system components, particularly with system chassis 23 x 64 mm, between which it can be mounted. As accessories, various screws and fastening elements are available, including threaded hexagon screws M5x10, internal hexagon screws M8x12 mm, self-tapping screws type ST 4,8 L9,5 mm, SZ internal hexagon screws for thread M6, internal hexagon sheet metal screws type 5,5 L13 mm, and VX internal hexagon sheet metal screws for stainless steel. These components can be used additionally depending on requirements and mounting situation.
Mounting and installation
Mounting is performed by inserting the chassis into the system perforation of the cabinet frame from the outside. It is then screwed in place using the fastening materials included in the delivery scope. For already installed cabinets, installation can also be carried out from the inside, enabling expansion of existing installations without disassembly. Tool-free mounting is possible, as the fastening screws are included in the delivery scope. The system perforation on all four sides allows flexible positioning and mounting at various points on the cabinet frame.
Advantages in operation
The system chassis offers a modular and flexible solution for the interior fitting of enclosures. Simple mounting and the use of standardized fastening elements reduce installation time and labor effort. The galvanized surface ensures high corrosion resistance, extending the service life of the chassis in industrial environments. Compatibility with the VX system and the ability to mount the chassis between existing elements increase flexibility in planning and expanding enclosure installations. Delivery in a pack of four pieces enables efficient fitting of larger cabinets or multiple cabinets in a single work session.
| General | |
| Material | steel sheet |
| Surface protection | Zinc-plated |
| Scope of delivery | Including mounting hardware |
| Mounting options | On outer mounting plane on cabinet profile, on outer mounting plane between two system chassis 23 x 64 mm |
| Suitable for | Cabinet type: VX, width/depth: 800 mm |
| PCF/VE (Cradle-to-Gate) | 16,66 |
Questions & answers
What is the delivery time of Rittal 8617040 VX system chassis 18 x 64 mm W x D: 800 mm?
The article Rittal 8617040 VX system chassis 18 x 64 mm W x D: 800 mm is currently in stock
According to our experience the article is ready for dispatch within 7 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8617040 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 8617040 VX system chassis 18 x 64 mm W x D: 800 mm always at the best possible price. We can give you a discount of 2% on Rittal 8617040 VX system chassis 18 x 64 mm W x D: 800 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
