Rittal 8619320 VX adapter profile 48,3 cm ( 19 inch ), for min. enclosure height: 2000 mm

Your rating:
Average rating
product review for Rittal 8619320 VX adapter profile 48,3 cm ( 19 inch ), for min. enclosure height: 2000 mm
( 4.7 / 5 ) 31 ratings

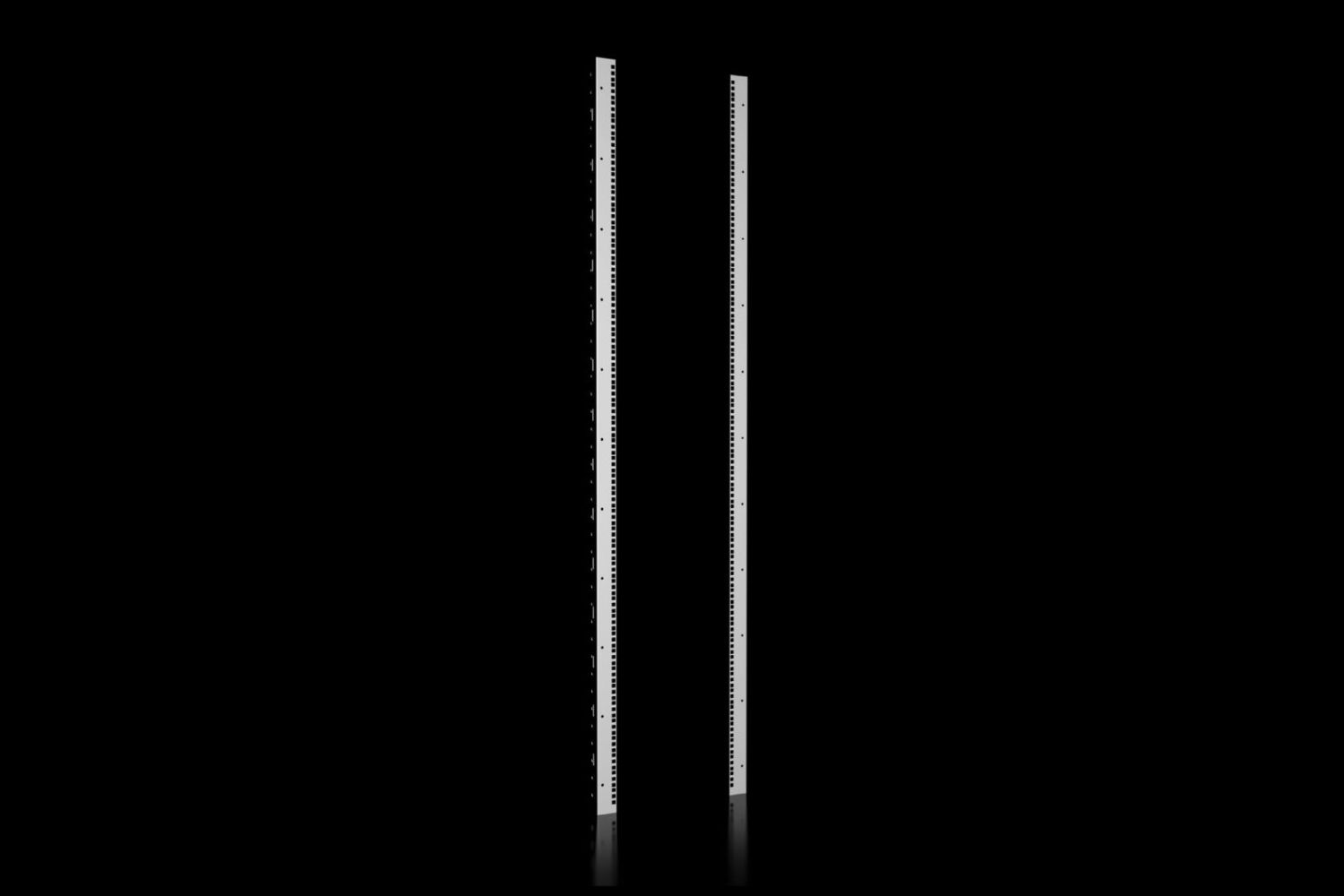

Rittal 8619320
This image may differ from the desired article.
Rittal 8619320Rittal 8619320
-6% 90,05 EUR 96,27 EUR
( 107,16 EUR incl. VAT )
≈ £75.37  |  ≈ $98.96
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 8619320 VX adapter profile 48,3 cm ( 19 inch ), for min. enclosure height: 2000 mm
Datasheet:file_download Download
Lieske Part No.:1441169
Mfg Part No: 8619320
UPC/EAN: 4028177927049
Weight:5 kg
Type:VX 8619.320

Product information for Rittal 8619320:

The Rittal VX 8619.320 is an adapter profile 48,3 cm ( 19 inch ) for mounting electronic components, module carriers, and other 48,3 cm ( 19 inch ) installations in industrial environments. It is specifically designed for use in VX electronic enclosure systems and enables the mounting of standard 48,3 cm ( 19 inch ) devices on the rear of the enclosure. The profile is designed for enclosures with a minimum height of 2000 mm and includes 42 height units (HE), providing high capacity for device installation. The installation width is 48,3 cm ( 19 inch ) (482.6 mm), which is achieved during mounting on frames of 600 mm wide enclosures.

Applications

The adapter profile is used in industrial enclosures, particularly in VX systems, where flexible and standardized mounting of electronic components is required. It is suitable for applications in automation technology, process control, and industrial IT infrastructure. Mounting takes place on the rear of the electronic enclosure, leaving the front side available for other installations. For enclosures with a width of 600 mm, a depth-offset installation using system chassis with dimensions 18 x 64 mm is possible, enabling optimal space utilization.

Functions and Equipment in Detail

The profile is made of steel sheet with a thickness of 2 mm, ensuring high mechanical stability and durability. It is designed for mounting 48,3 cm ( 19 inch ) installations, with mounting achieved via designated mounting points and included fastening materials. For partial installations, the profile can be easily cut to length, allowing flexible adaptation to different installation heights.

Technology Explained Simply

The 48,3 cm ( 19 inch ) format is an international standard for mounting network and server components. The adapter profile enables the use of this standard within VX enclosure systems, which are otherwise not directly designed for 48,3 cm ( 19 inch ) installations. Mounting takes place on the rear of the enclosure, leaving the front side available for other modules. The installation width of 482.6 mm (48,3 cm ( 19 inch )) is achieved in enclosures with a width of 600 mm, where the profile is mounted to the frame. The 42 HE correspond to a total height of approximately 1920 mm, which is sufficient for most industrial applications.

Compatibility and Accessories

The adapter profile is specifically designed for VX electronic enclosure rear panels and fits enclosures with a width of 600 mm and a minimum height of 2000 mm. It is compatible with the VX system chassis 18 x 64 mm, available in widths of 600 mm and 800 mm. These chassis enable depth-offset installation, optimizing device mounting in deeper enclosures. The combination with these chassis expands the application possibilities of the adapter profile and allows flexible arrangement of installed components.

Mounting and Installation

Mounting takes place on the rear of the VX electronic enclosure. The profile is attached to the frame using designated mounting points and included fastening materials. For enclosures with a width of 600 mm, a depth-offset installation using the system chassis 18 x 64 mm is possible. Installation is tool-free, as the fastening materials are included in the delivery. For partial installations, the profile can be easily cut to achieve the desired installation height.

Advantages in Operation

The adapter profile provides reliable and standardized mounting of 48,3 cm ( 19 inch ) installations in VX enclosure systems. The use of steel sheet with 2 mm thickness ensures high mechanical strength and durability. The ability to cut the profile allows flexible adaptation to different installation heights. Mounting on the rear of the enclosure optimizes space utilization and enables clear structuring of modules. Compatibility with the system chassis 18 x 64 mm expands application possibilities and supports modular system design.

General
MaterialSheet steel, 2 mm
Scope of deliveryIncluding mounting hardware
Height units42 HE
Installation dimensionsInstallation width for components: 19"
NoteThe 482.6 mm (19") dimension applies when mounted on the frame of 600 mm wide cabinets; offset installation in 600 mm wide cabinets possible via system chassis 18 x 64 mm; when installed in electronic cabinet: installation on rear side
Suitable forfor VX electronics cabinet rear panel


Product data sheet
Datasheet for Rittal 8619320, EAN: 4028177927049
