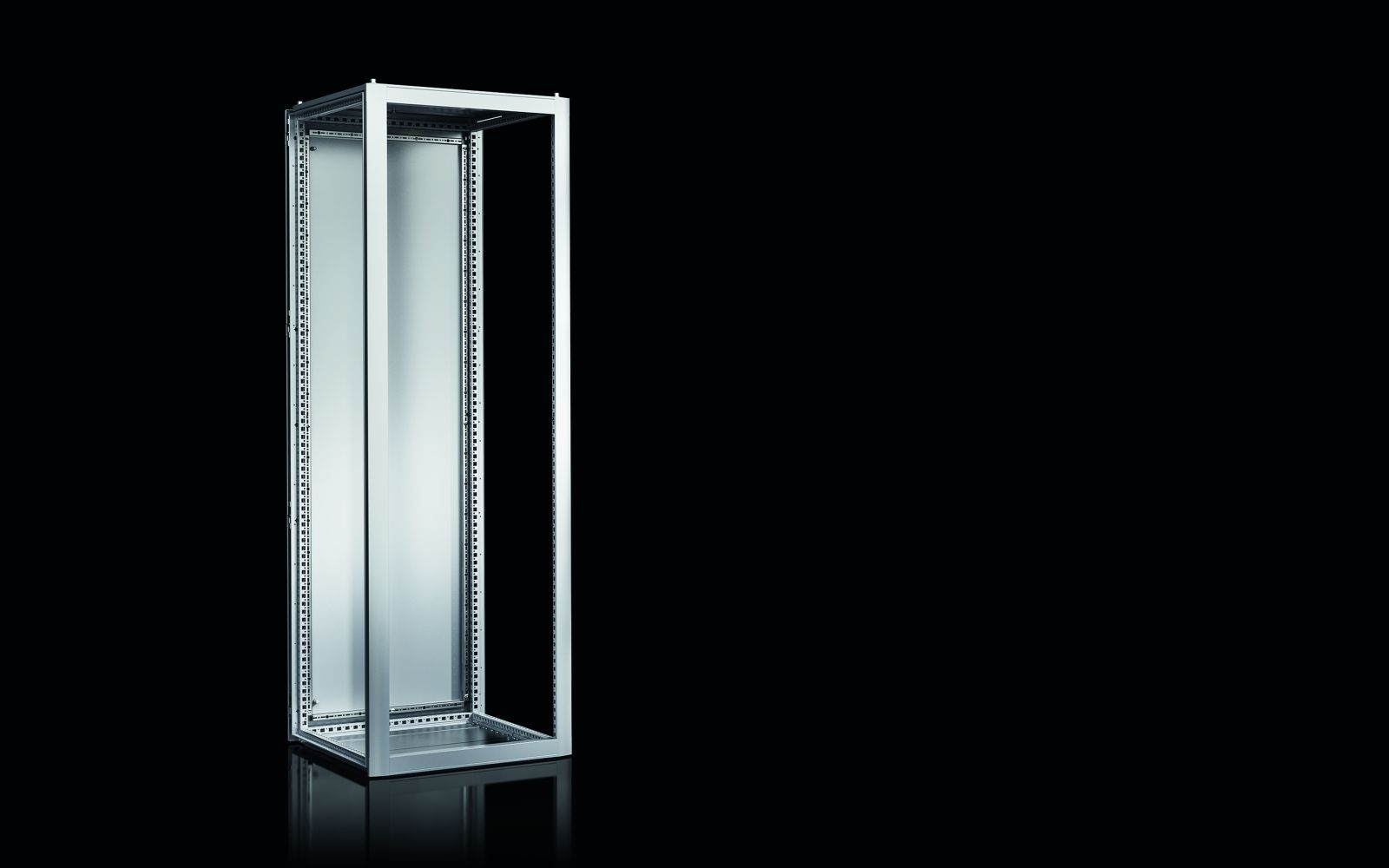

Rittal 8430000 VX electronics enclosure, W x H x D: 600x2000x600 mm
|
666,66 EUR |
|
|
( 793,33 EUR incl. VAT ) ≈ £557.99 | ≈ $732.66 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1440678 |
| Mfg Part No: | 8430000 |
| UPC/EAN: | 4028177920255 |
| Weight: | 67.8 kg |
| Type: | VX 8430.000 |
Product information for Rittal 8430000:
Applications
This enclosure is designed for industrial environments, particularly for housing electronics and control technology. It is suitable for installations requiring high mechanical load capacity and secure mounting of 48,3 cm ( 19 inch ) components. The symmetrical profile frame construction with 25 mm pitch hole pattern enables flexible and space-saving mounting. Lateral baying capability and the option to change the door hinge side increase flexibility when integrating into existing enclosure systems.
Functions and Equipment in Detail
The enclosure features a hinged front frame, hinged on the right side and held on the left side by magnetic latches. The rear door is also hinged, with a right-side hinge that can be tool-free repositioned to the left side. The door is secured with a four-point rod lock and includes a double-bar lock insert according to DIN 43668. The door opening angle is 130° and can be tool-free extended to 180°. The PU foam seal provides effective protection against dust and moisture. The roof plate is removable and equipped with M12 roof mounting screws. The base plates are three-piece, removable, and replaceable, enabling easy maintenance and cleaning.
Technology Explained Simply
The enclosure construction is based on a closed, profiled hollow section with a 25 mm pitch hole pattern. Integrated blind rivet nuts M6 allow secure mounting of fittings in accordance with the protection rating. The horizontal profiles feature an additional groove above the seal to improve sealing performance. The square hole pattern around the frame allows the use of cage nuts and metric screws up to M8. The base reinforcement in the base frame ensures secure fastening to the floor. Electrical conductivity between the roof and base plates and the frame ensures automatic equipotential bonding in accordance with DIN 62 208. A QR code on the roof, rear door, and nameplate enables unique identification and easy access to product information.
Compatibility and Accessories
The enclosure is equipped with 48,3 cm ( 19 inch ) adapter profiles, enabling installation of standard 48,3 cm ( 19 inch ) components. Compatible accessories include levelling feet M12, 48,3 cm ( 19 inch ) fasteners, transport eyes, monitor brackets, comfort handles, system chassis, baying connectors, baying brackets, baying blocks, cable strain relief rails, cable entry profiles, and partial mounting plates. These elements support installation, operation, and maintenance of the enclosure.
Installation and Mounting
Mounting is performed using integrated blind rivet nuts M6 and the square hole pattern. The base plates are removable, enabling easy installation on the floor. The baying capability on all sides allows flexible arrangement in enclosure rows. The maximum load capacity is 15,000 N, ensuring high mechanical stability. The base clearance is 17 mm, sufficient for routing cables and connections beneath the enclosure.
Operational Advantages
The enclosure offers high mechanical stability, flexible mounting, and secure door locking. The powder-coated surface in RAL 7035 provides an attractive appearance and corrosion protection. Removable roof and base plates facilitate maintenance. The integrated equipotential bonding function and QR codes on components support safety and traceability in operation. The 42 U installation height allows use of a wide range of 48,3 cm ( 19 inch ) components.
The delivery includes the enclosure frame, front frame (hinged on the right, held on the left by magnetic latches), rear door (hinge on the right, repositionable to the left), roof plate, base plates, and front 48,3 cm ( 19 inch ) adapter profiles.
| General | |
| Material | Cabinet frame: steel sheet, 1.5 mm, roof: steel sheet, 1.5 mm, front frame: aluminium extruded profiles with zinc die-cast corner pieces, rear door: steel sheet, 2.0 mm, base plates: steel sheet, 1.5 mm, 19" adapter profiles: steel sheet, 2 mm |
| Surface protection | Cabinet frame: dip-primed, roof and rear door: dip-primed, externally powder-coated, textured lacquer, front frame: powder-coated, base plates: galvanized |
| Colour | RAL 7035 |
| Scope of delivery | Cabinet frame, front frame (hinged on right, held on left with magnetic latches), rear door (hinged on right, reversible to left), roof sheet, base sheets, 19" adapter profiles, front |
| Width | 600 mm |
| Height | 2.000 mm |
| Depth | 600 mm |
| Component mounting height | 42 HE |
| PCF/VE (Cradle-to-Gate) | 167 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 8430000 VX electronics enclosure, W x H x D: 600x2000x600 mm?
The article Rittal 8430000 VX electronics enclosure, W x H x D: 600x2000x600 mm is currently in stock
According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8430000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 8430000 VX electronics enclosure, W x H x D: 600x2000x600 mm always at the best possible price. We can give you a discount of 2% on Rittal 8430000 VX electronics enclosure, W x H x D: 600x2000x600 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
