Rittal 8617508 VX baying angle

Your rating:
Average rating
product review for Rittal 8617508 VX baying angle
( 4 / 5 ) 3 ratings

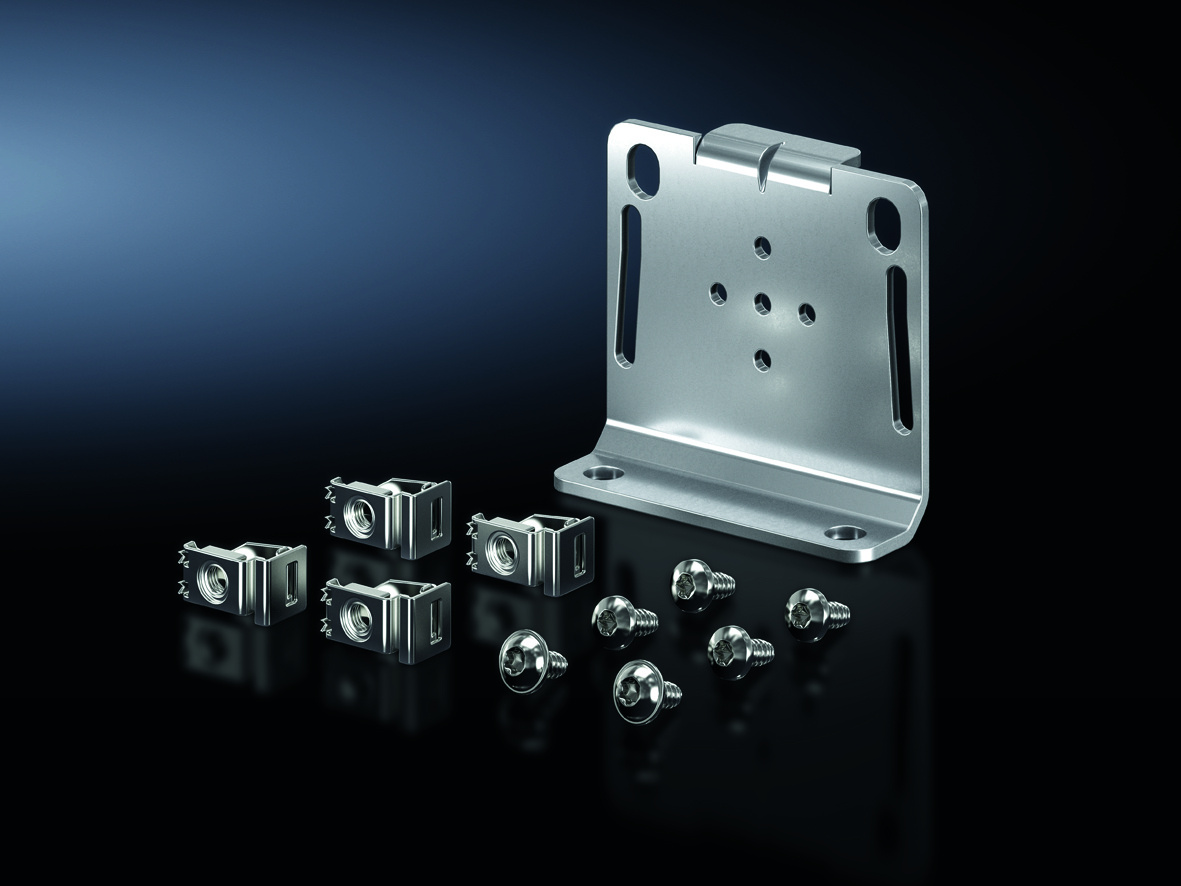

Rittal 8617508
This image may differ from the desired article.
Rittal 8617508Rittal 8617508Rittal 8617508
21,61 EUR
( 25,72 EUR incl. VAT )
≈ £18.09  |  ≈ $23.75
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 8617508 VX baying angle
Datasheet:file_download Download
Lieske Part No.:1775584
Mfg Part No: 8617508
UPC/EAN: 4028177957633
Weight:1.052 kg
Type:VX 8617508

Product information for Rittal 8617508:

The Rittal VX 8617508 is a baying angle, specifically developed for stable connection in the corners of bayed enclosures. It serves as a mechanical connecting element to securely and precisely align multiple enclosures in a row. The product is made of sheet steel and features a galvanized surface, ensuring high corrosion resistance. The galvanization protects the material from moisture and oxidation, which is particularly advantageous in industrial environments. The baying angle is delivered in a packaging unit of 4 pieces and includes the required mounting materials, enabling installation without additional components.

Applications

The VX 8617508 is primarily used in industrial enclosure technology, where multiple enclosures must be arranged in a row. It is especially suitable for applications requiring high mechanical stability and precise alignment of enclosures. Typical use cases include production facilities, automation systems, or data centers, where enclosures are mounted in a row to save space and ensure structured arrangement.

Functions and Equipment in Detail

The baying angle enables a firm and secure connection between the corners of bayed enclosures. The construction from sheet steel ensures high strength and load capacity, while the galvanized surface enables long service life even under demanding conditions. The packaging unit of 4 pieces allows simultaneous installation of multiple connections, making the installation process more efficient.

Technology Explained Simply

The baying angle is a mechanical component inserted into the corners of enclosures to connect them. The shape of the angle fits the edges of the enclosures, creating a stable and backlash-free connection. The galvanized surface protects the sheet steel from external influences such as moisture or humidity, extending the product’s service life. Mounting is done using the included screws, which are inserted into pre-drilled holes in the enclosure and the baying angle.

Compatibility and Accessories

The VX 8617508 is specifically designed for use with Rittal VX enclosure models. It is part of the VX system and is used in combination with other VX components to enable a modular and scalable enclosure arrangement. There are no additional accessories specifically recommended for this baying angle.

Mounting and Installation

Installation involves inserting the baying angle into the corner between two adjacent enclosures. The included mounting materials are inserted into the pre-drilled holes in the enclosure and the baying angle and tightened using a screwdriver or electric screwdriver. The installation is simple and can be performed by skilled personnel without special prior knowledge.

Operation

During operation, the baying angle ensures a stable and secure connection between enclosures. This prevents shifts or vibrations that may occur due to machine operation or external influences. The mechanical stability contributes to the safety of installed devices and prevents damage to enclosures or components inside. The galvanized surface ensures long service life, even in environments with high humidity or aggressive atmospheres.

Advantages in Operation

Using the VX 8617508 provides a reliable and durable connection between bayed enclosures. The simple mounting and included fastening materials reduce installation time and effort. The high mechanical stability and corrosion resistance of the galvanized surface ensure long service life and minimize maintenance requirements. The product is therefore a reliable solution for structured and stable enclosure arrangements in industrial applications.

General
Materialsteel sheet
Surface protectionZinc-plated
Scope of deliveryIncluding mounting hardware


Product data sheet
Datasheet for Rittal 8617508, EAN: 4028177957633

Questions & answers

What is the delivery time of Rittal 8617508 VX baying angle ?

The article Rittal 8617508 VX baying angle is currently in stock

According to our experience the article is ready for dispatch within 7 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8617508 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8617508 VX baying angle always at the best possible price. We can give you a discount of 2% on Rittal 8617508 VX baying angle if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
