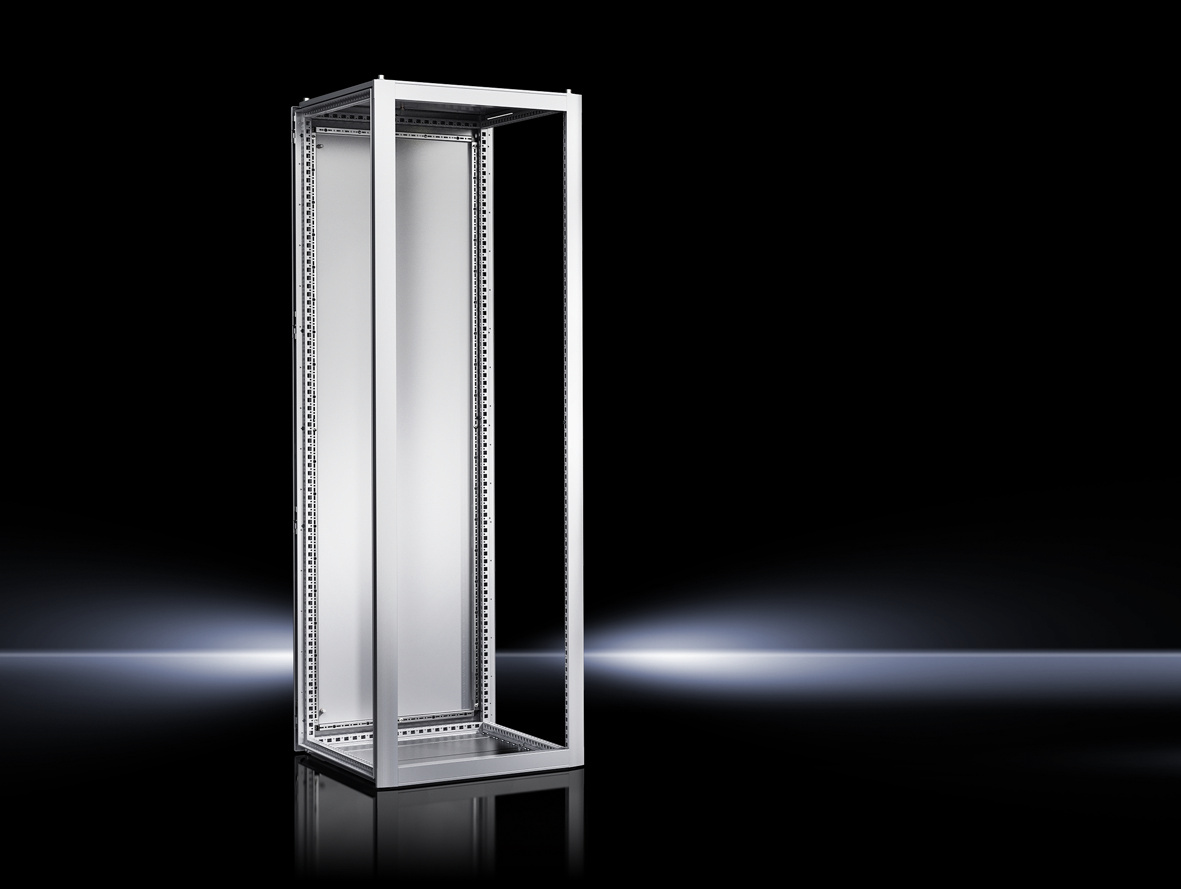

Rittal 8438000 VX electronics enclosure, W x H x D: 600x2000x800 mm
|
870,78 EUR |
|
|
( 1.036,23 EUR incl. VAT ) ≈ £728.84 | ≈ $956.99 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1440677 |
| Mfg Part No: | 8438000 |
| UPC/EAN: | 4028177920248 |
| Weight: | 72.2 kg |
| Type: | VX 8438.000 |
Product information for Rittal 8438000:
Applications
This enclosure is specifically designed for use with 48,3 cm ( 19 inch ) modules and inserts. It is suitable for industrial control systems, network units, server modules or other electronic devices operated in a protected, structured environment. The design with divided base plates and integrated base reinforcement allows secure fastening to the floor. The maximum load capacity is 15,000 N, enabling use in heavy industrial environments.
Functions and Equipment in Detail
The front frame is hinged on the right and held on the left by magnetic latches, allowing tool-free opening and closing. The rear door is also hinged, with a hinge on the right side, which can optionally be changed to the left side. The door is fitted with a PU foam seal and features a four-point locking bar lock with double bolt insert according to DIN 43668. The door opening is standard 130° and can be tool-free extended to 180°. The 48,3 cm ( 19 inch ) adapter profiles made of 2 mm steel sheet are mounted at the front and allow installation of standard 48,3 cm ( 19 inch ) devices. The roof plate is removable and fitted with a PU foam seal, ensuring a watertight seal. The base plates are divided into three parts, removable and replaceable, facilitating maintenance and cleaning.
Technology Explained Simply
The construction of the enclosure is based on a symmetrical profile frame design with closed and profiled hollow profiles. The horizontal profiles feature a groove above the seal, providing additional protection. The entire construction is equipped with square hole perforation, enabling the use of cage nuts and metric screws up to M8. The integrated blind rivet nuts M6 on the profiles allow secure fastening of fittings in accordance with the protection rating. The electrical conductivity between the roof and base plates and the frame ensures automatic equipotential bonding in accordance with DIN 62 208, enhancing operational safety. A QR code is printed on the roof, rear door and type plate, enabling quick access to product information and documentation.
Compatibility and Accessories
The enclosure is compatible with various accessories that extend its functionality. These include levelling feet M12, 48,3 cm ( 19 inch ) fasteners, transport eyes, monitor brackets, comfort handles for different locks, adapter pieces, system chassis, side panels, baying connectors, baying brackets, baying blocks, cable strain relief rail, cable entry profile, and baying angles. These elements allow individual adaptation to specific requirements such as transport, mounting, cable management or expansion of the enclosure.
Mounting and Installation
Mounting is done via the integrated base frame with base reinforcement, enabling fastening to the floor. The base plates are removable, facilitating installation and maintenance. The roof and base plates are electrically conductive to the frame, ensuring secure earthing. The square hole perforation all around allows flexible mounting of internal equipment and fittings.
Operational Advantages
The enclosure offers high mechanical stability and a robust construction suitable for industrial environments. Tool-free door mounting and maintenance, as well as a modular design with separate side panels and accessories, increase flexibility. The integrated seal and conductive connections between components ensure safe and reliable operation. The colour RAL 7035 provides a neutral, industrially recognised appearance that fits into various environments. The PCF value of 177.9 kg CO2 eq (Cat B) provides an overview of the product’s environmental impact using the Cradle-to-Gate method.
Scope of Delivery
The enclosure is delivered with the following parts: enclosure frame, front frame (hinged on the right, held on the left by magnetic latches), rear door (hinge on the right, changeable to left), roof plate, base plates, 48,3 cm ( 19 inch ) adapter profiles at the front.
| General | |
| Material | Cabinet frame: steel sheet, 1.5 mm, roof: steel sheet, 1.5 mm, front frame: aluminium extruded profiles with zinc die-cast corner pieces, rear door: steel sheet, 2.0 mm, base plates: steel sheet, 1.5 mm, 19" adapter profiles: steel sheet, 2 mm |
| Surface protection | Cabinet frame: dip-primed, roof and rear door: dip-primed, externally powder-coated, textured lacquer, front frame: powder-coated, base plates: galvanized |
| Colour | RAL 7035 |
| Scope of delivery | Cabinet frame, front frame (hinged on right, held on left with magnetic latches), rear door (hinged on right, reversible to left), roof sheet, base sheets, 19" adapter profiles, front |
| Width | 600 mm |
| Height | 2.000 mm |
| Depth | 800 mm |
| Component mounting height | 42 HE |
| PCF/VE (Cradle-to-Gate) | 177.9 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
