Rittal 8619330 VX adapter piece 48,3 cm ( 19 inch )

Your rating:
Average rating
product review for Rittal 8619330 VX adapter piece 48,3 cm ( 19 inch )
( 4.5 / 5 ) 23 ratings

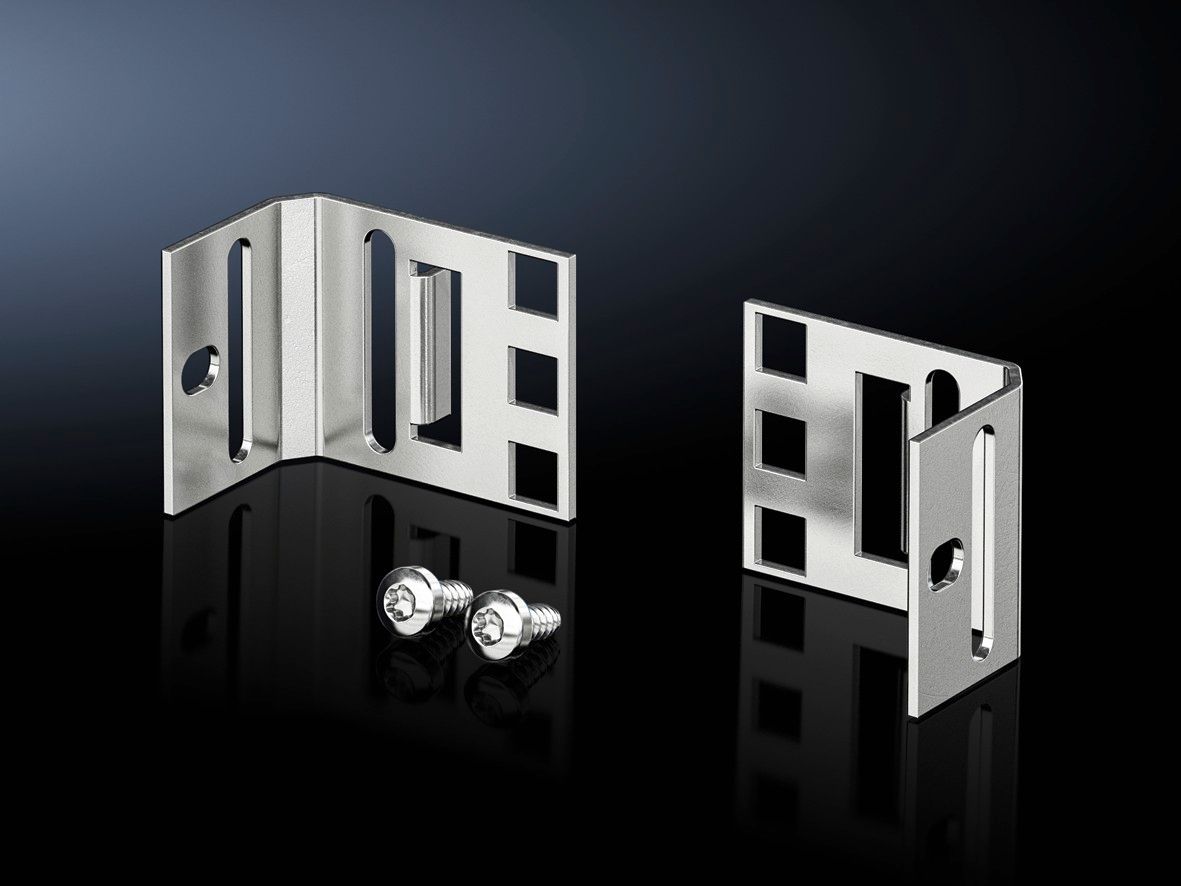

Rittal 8619330
This image may differ from the desired article.
Rittal 8619330Rittal 8619330
13,92 EUR
( 16,56 EUR incl. VAT )
≈ £11.65  |  ≈ $15.30
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 8619330 VX adapter piece 48,3 cm ( 19 inch )
Datasheet:file_download Download
Lieske Part No.:1440534
Mfg Part No: 8619330
UPC/EAN: 4028177927025
Weight:0.22 kg
Type:VX 8619.330

Product information for Rittal 8619330:

The Rittal VX 8619.330 is an adapter piece in 48,3 cm ( 19 inch ) format with a height of 1 HE, specifically designed for use in VX and VX SE control systems. It serves as an installation component for individual module carriers or other 48,3 cm ( 19 inch ) components intended for mounting within an enclosure. The product enables precise and standard-compliant installation of devices meeting the 48,3 cm ( 19 inch ) rack standard within Rittal VX systems.

Applications
This adapter piece is used in industrial enclosures, particularly in systems with a width of 600 mm. It is designed for installing module carriers, network components, or other 48,3 cm ( 19 inch ) units requiring vertical spacing of 1 HE (height unit). Typical applications are found in electrical and automation engineering, where modular and standardized device mounting is required.

Functions and Equipment in Detail
The product is made of steel sheet with a thickness of 2 mm, ensuring sufficient stability and mechanical strength for industrial use. The delivery includes fastening material required for mounting to the enclosure frame. The installation width is 48,3 cm ( 19 inch ) (482.6 mm), matching the international standard for rack and enclosure mounting. This refers to mounting on frames of 600 mm wide enclosures.

Technology Explained Simply
The designation 1 HE (height unit) corresponds to a height of 44.45 mm, which is the standard height for 48,3 cm ( 19 inch ) rack modules. The adapter piece is directly mounted to the enclosure frame and provides a flat, stable surface for component installation. The use of steel sheet ensures high mechanical load capacity and resistance to vibrations and mechanical stress during operation.

Compatibility and Accessories
The adapter piece is specifically designed for integration into VX and VX SE control systems. It can be used in combination with system chassis 18 x 64 mm to enable recessed installation in 600 mm wide enclosures. Compatible system chassis are available in widths of 600 mm and 800 mm, with the 600 mm version being directly compatible with the adapter piece. This combination allows flexible positioning of components that should not be mounted directly on the front of the enclosure.

Installation and Mounting
Mounting is performed on the enclosure frame using the fastening material included in the delivery. The installation width of 48,3 cm ( 19 inch ) (482.6 mm) is achieved when mounted on a 600 mm wide enclosure frame. Installation is tool-assisted and does not require additional mounting aids. The use of system chassis 18 x 64 mm enables recessed mounting, allowing components to be positioned further into the enclosure without altering the front mounting surface.

Operational Advantages
The adapter piece provides a standardized mounting surface, simplifying the installation of 48,3 cm ( 19 inch ) components and facilitating maintenance. The use of steel sheet ensures long service life and high stability. Compatibility with system chassis enhances mounting flexibility, especially when positioning module carriers that should not be mounted directly on the front of the enclosure. The inclusion of fastening material reduces installer effort, as no additional screws or brackets need to be procured.

General
MaterialSheet steel, 2 mm
Scope of deliveryIncluding mounting hardware
Height units1 HE
Installation dimensionsInstallation width for components: 19"
NoteThe 482.6 mm (19") dimension results from mounting on frames of 600 mm wide cabinets; offset installation in 600 mm wide cabinets possible via system chassis 18 x 64 mm


Product data sheet
Datasheet for Rittal 8619330, EAN: 4028177927025

Questions & answers

What is the delivery time of Rittal 8619330 VX adapter piece 48,3 cm ( 19 inch )?

The article Rittal 8619330 VX adapter piece 48,3 cm ( 19 inch ) is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8619330 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8619330 VX adapter piece 48,3 cm ( 19 inch ) always at the best possible price. We can give you a discount of 2% on Rittal 8619330 VX adapter piece 48,3 cm ( 19 inch ) if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
