Rittal 8613181 slide rail for VX adapter profile 800 mm

Your rating:
Average rating
product review for Rittal 8613181 slide rail for VX adapter profile 800 mm
( 5 / 5 ) 1 ratings

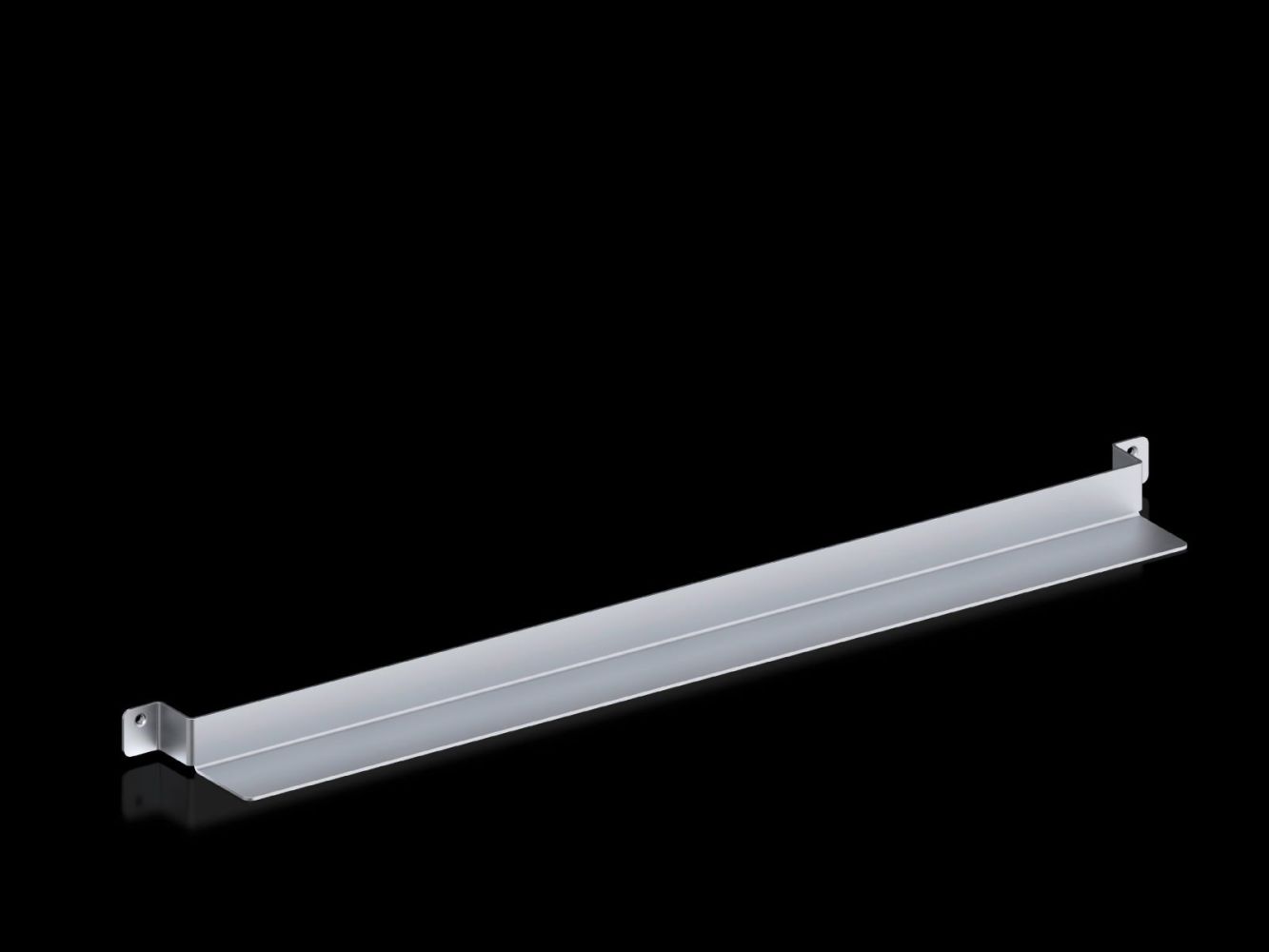

Rittal 8613181
This image may differ from the desired article.
Rittal 8613181Rittal 8613181Rittal 8613181
101,12 EUR
( 120,33 EUR incl. VAT )
≈ £84.64  |  ≈ $111.13
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 8613181 slide rail for VX adapter profile 800 mm
Datasheet:file_download Download
Lieske Part No.:1908935
Mfg Part No: 8613181
UPC/EAN: 4028177939004
Weight:8.82 kg
Type:VX 8613181

Product information for Rittal 8613181:

The Rittal VX 8613181 is a slide rail for use in VX enclosures with a depth of at least 800 mm. It serves as a mounting element between front and rear adapter profile 48,3 cm ( 19 inch ) or a adapter piece 48,3 cm ( 19 inch ), to securely and stably mount components such as network components, server modules or other 48,3 cm ( 19 inch ) devices within the enclosure. The slide rail enables easy and secure insertion and removal of devices, making maintenance and replacement operations more efficient. The construction is designed for use in industrial environments, with double-sided mounting ensuring stable anchoring within the enclosure.

Applications

The slide rail is specifically designed for enclosures of type VX with a depth of 800 mm or more. It is used in electrical and IT infrastructure where 48,3 cm ( 19 inch ) components must be mounted in enclosures. Typical application areas include industrial control systems, network centres, data processing installations, and building automation. Use in combination with adapter profiles or adapter pieces allows flexible adaptation to different enclosure configurations.

Functions and Equipment in Detail

The slide rail is made of sheet steel and is zinc-plated, ensuring high corrosion resistance and long service life in industrial environments. The surface treatment protects the material from moisture and oxidation, extending the product's lifespan. The delivery includes mounting hardware, required for installation between the adapter profiles. The slide rail is designed for an installation width of 48,3 cm ( 19 inch ), matching the standard width for rack and server components. The double-sided mounting enables secure and smooth movement of mounted devices.

Technology Explained Simply

The slide rail functions as a guidance system, mounted between two adapter profiles within the enclosure. The slide rail allows 48,3 cm ( 19 inch ) devices to be slid along the rail, facilitating access to connectors and plug-in connections. The use of sheet steel ensures high mechanical stability, while zinc plating protects the surface from environmental influences. Installation is carried out using the mounting hardware included in the delivery, ensuring a secure connection.

Compatibility and Accessories

The slide rail is specifically designed for enclosures of type VX with a depth of at least 800 mm. It is compatible with VX adapter profile 48,3 cm ( 19 inch ) as well as VX adapter piece 48,3 cm ( 19 inch ), both also available in the range. Combining with these adapters enables flexible and modular mounting of 48,3 cm ( 19 inch ) components within the enclosure. The slide rail is delivered in a packaging unit of 10 pieces, suitable for larger installations or series mounting.

Installation and Mounting

Mounting is carried out between the front and rear adapter profile or adapter piece within the enclosure. The double-sided mounting is performed using the mounting hardware included in the delivery. The slide rail is positioned to support the intended installation width of 48,3 cm ( 19 inch ). Installation is simple and can be quickly performed by skilled personnel.

Operational Advantages

Using the slide rail improves accessibility to mounted devices, as they can be slid along the rail. This facilitates maintenance, component replacement, and installation of new devices. The stable construction from zinc-plated sheet steel ensures long service life and high reliability. The double-sided mounting provides secure installation, even under frequent insertion and removal. Compatibility with standard 48,3 cm ( 19 inch ) components makes the slide rail a universally applicable component in industrial electrical and IT infrastructure.

General
Materialsteel sheet
Surface protectionZinc-plated
Scope of deliveryIncluding mounting hardware
Suitable forHousing type: VX, depth: = 800 mm
Installation dimensionsInstallation width for components: 19"


Product data sheet
Datasheet for Rittal 8613181, EAN: 4028177939004
