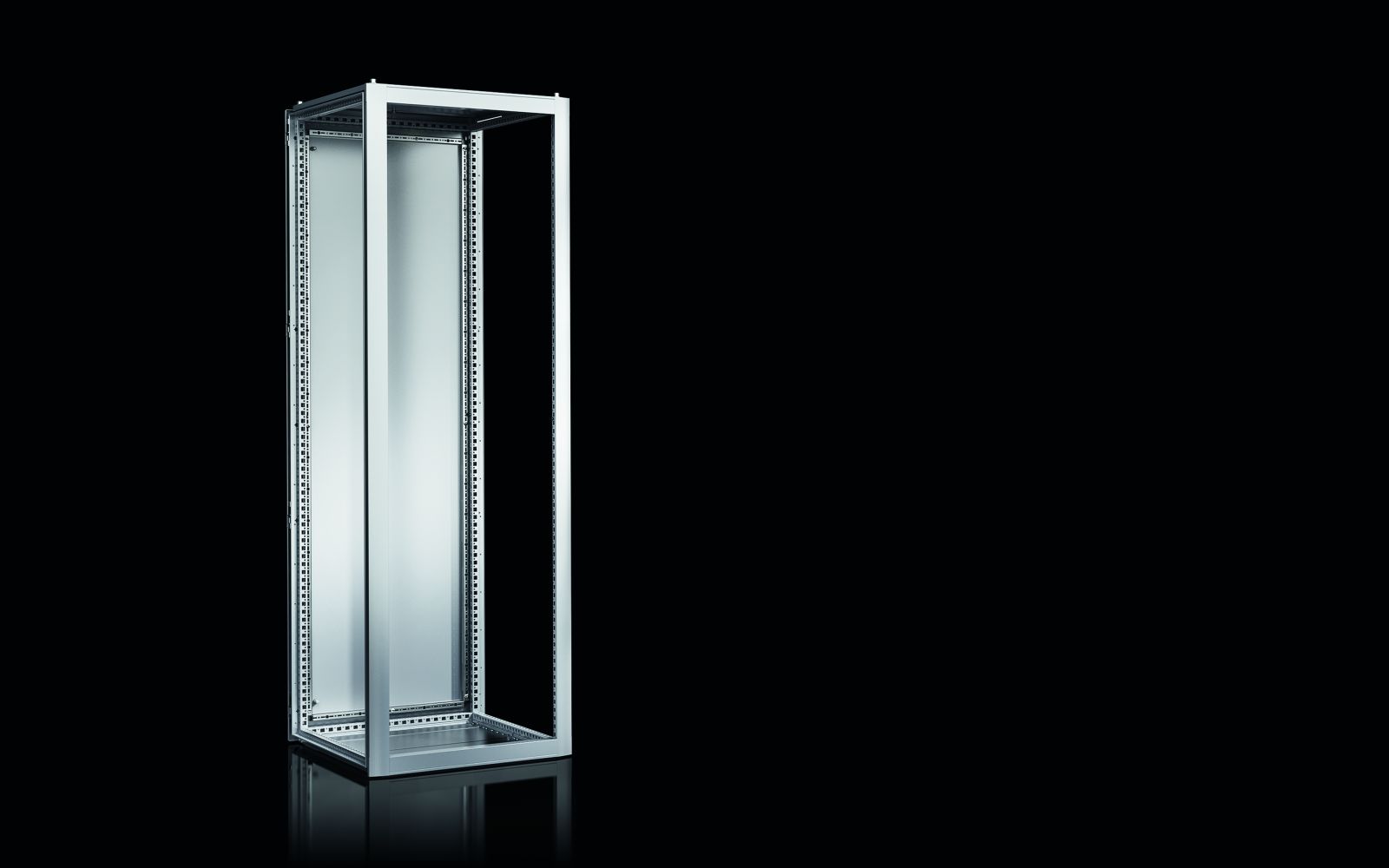

Rittal 8418000 VX electronics enclosure, W x H x D: 600x1600x800 mm
|
634,69 EUR |
|
|
( 755,28 EUR incl. VAT ) ≈ £531.24 | ≈ $697.52 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1440679 |
| Mfg Part No: | 8418000 |
| UPC/EAN: | 4028177920224 |
| Weight: | 63.2 kg |
| Type: | VX 8418.000 |
Product information for Rittal 8418000:
Applications
The enclosure is suitable for use in industrial environments where robust and flexible mounting of electronic components is required. It is particularly suitable for applications in automation technology, power supply, process control, and IT infrastructure. The symmetrical profile frame construction with 25 mm pitch perforation allows flexible mounting of components and accessories. The split base plates are removable and replaceable, facilitating maintenance and component replacement.
Functions and Equipment in Detail
The enclosure features a hinged front frame, hinged on the right side and held on the left side by magnetic latches. The rear door is also hinged, with a hinge on the right side that can be toollessly switched to the left side. The door is fitted with a PU foam seal and features a four-point locking rod lock with double bar insert according to DIN 43668. The door opening angle is 130° and can be toollessly extended to 180°. The roof plate is removable and equipped with roof mounting screws M12. The base plates are electrically conductive to the frame, ensuring automatic equipotential bonding in accordance with DIN 62 208. The mounting planes are accessible from inside and outside, enabling space-saving and quick internal assembly.
Technology Explained Simply
The construction of the enclosure is based on a symmetrical profile frame structure made of closed and profiled hollow sections. The horizontal profiles feature a groove above the seal, providing additional protection. The entire structure is equipped with square hole perforation, enabling the use of cage nuts and metric screws up to M8. The 48,3 cm ( 19 inch ) adapter profiles (482.6 mm) are mounted at the front, allowing installation of standard 48,3 cm ( 19 inch ) components. The installation height is 33 U, providing sufficient space for a wide range of components. The base reinforcement and welded base frame ensure high load capacity up to 15,000 N.
Compatibility and Accessories
The enclosure is bayable on all sides and can be expanded with various accessories. These include, for example, levelling feet M12, 48,3 cm ( 19 inch ) fasteners, transport eyes, monitor brackets, comfort handles, adapter pieces, system chassis, side panels, baying connectors, baying brackets, baying blocks, cable strain relief rails, cable entry profiles, and baying angles. These elements allow individual adaptation to specific operational requirements.
Mounting and Installation
Mounting is performed using integrated blind rivet nuts M6 on the profile, enabling protection-rated fastening of fittings. The base plates are removable and can be replaced if necessary. The roof and base plates are electrically conductive to the frame, ensuring safe earthing. The base reinforcement allows mounting to the floor via the inner side of the enclosure.
Advantages in Operation
The enclosure offers high mechanical stability and is designed for use in demanding environments. The tool-free adjustment of the door opening angle and the interchangeable door hinge increase flexibility during installation. The integrated seal and the conductive connection of the plates ensure reliable protection rating and electrical safety. QR codes on the roof, rear door, and nameplate enable unique identification and easy access to product information and documentation. The modular construction and wide range of accessories allow individual adaptation to different requirements in industrial operations.
| General | |
| Material | Cabinet frame: steel sheet, 1.5 mm, roof: steel sheet, 1.5 mm, front frame: aluminium extruded profiles with zinc die-cast corner pieces, rear door: steel sheet, 2.0 mm, base plates: steel sheet, 1.5 mm, 19" adapter profiles: steel sheet, 2 mm |
| Surface protection | Cabinet frame: dip-primed, roof and rear door: dip-primed, externally powder-coated, textured lacquer, front frame: powder-coated, base plates: galvanized |
| Colour | RAL 7035 |
| Scope of delivery | Cabinet frame, front frame (hinged on right, held on left with magnetic latches), rear door (hinged on right, reversible to left), roof sheet, base sheets, 19" adapter profiles, front |
| Width | 600 mm |
| Height | 1.600 mm |
| Depth | 800 mm |
| Component mounting height | 33 HE |
| PCF/VE (Cradle-to-Gate) | 155.7 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
