Rittal 8619300 VX adapter profile 48,3 cm ( 19 inch ), for min. enclosure height: 1600 mm

Your rating:
Average rating
product review for Rittal 8619300 VX adapter profile 48,3 cm ( 19 inch ), for min. enclosure height: 1600 mm
( 4.4 / 5 ) 19 ratings
Rittal 8619300
This image may differ from the desired article.
Rittal 8619300Rittal 8619300Rittal 8619300
68,66 EUR
( 81,71 EUR incl. VAT )
≈ £57.47  |  ≈ $75.46
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 8619300 VX adapter profile 48,3 cm ( 19 inch ), for min. enclosure height: 1600 mm
Datasheet:file_download Download
Lieske Part No.:1442124
Mfg Part No: 8619300
UPC/EAN: 4028177927056
Weight:4.02 kg
Type:VX 8619.300

Product information for Rittal 8619300:

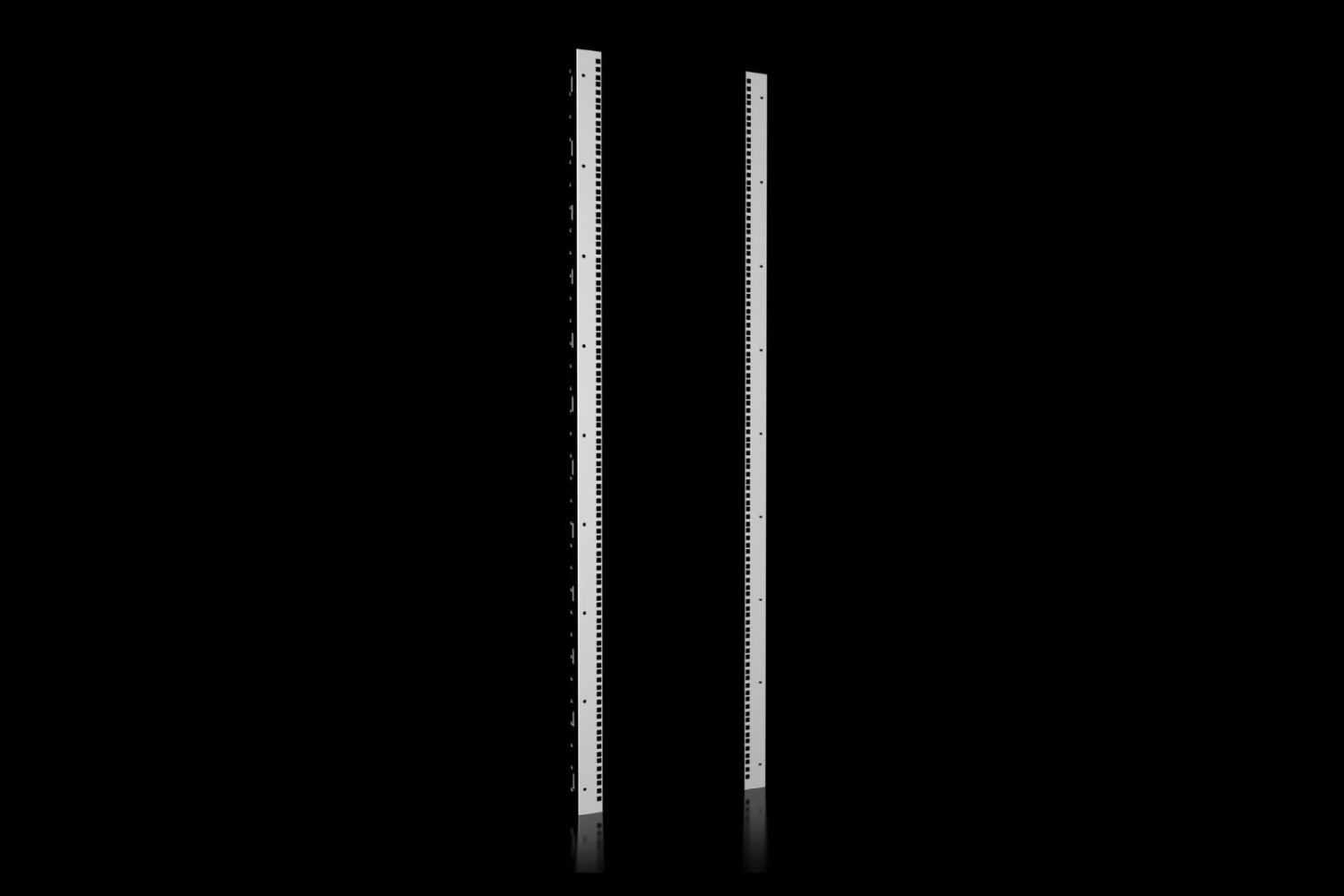

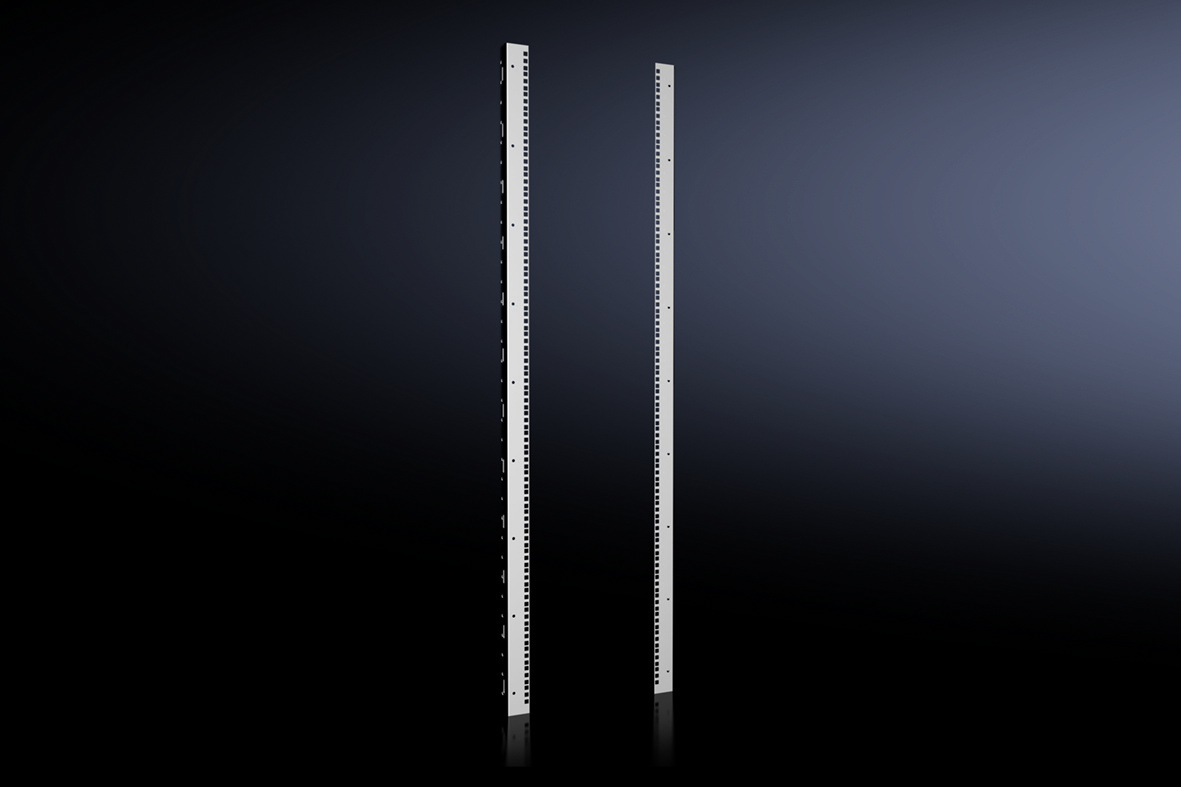

The Rittal VX 8619.300 is an adapter profile 48,3 cm ( 19 inch ) for mounting electronic components, module carriers, and other 48,3 cm ( 19 inch ) installations in industrial environments. It serves as a mounting element inside VX enclosures and enables the integration of standardized 48,3 cm ( 19 inch ) devices into cabinets that are not standardly equipped with such mounting surfaces. The profile is specifically designed for VX electronic cabinet rear panels and provides a secure mounting solution for vertical installation units. The minimum cabinet height is 1600 mm, with the profile having a height of 33 height units (HE). The installation width for components is 48,3 cm ( 19 inch ) (482.6 mm), matching the standard width for rack systems.

Applications

The adapter profile is used in industrial enclosures, particularly in VX systems with a width of 600 mm. It is suitable for mounting network devices, control units, servers, or other 48,3 cm ( 19 inch ) components that need to be installed in a cabinet lacking or having insufficient mounting surfaces. Installation typically occurs on the rear side of the electronic cabinet, enabling efficient use of internal space. For partial installations, the profile can be easily cut to adjust to the required length.

Functions and Equipment in Detail

The profile is made of sheet steel with a thickness of 2 mm, providing a robust and stable mounting base. The delivery includes mounting hardware required for attaching to the cabinet frame. Installation is performed on the frame of 600 mm wide cabinets, where the 48,3 cm ( 19 inch ) dimension (482.6 mm) is achieved through frame positioning. For recessed installations in 600 mm wide cabinets, system chassis 18 x 64 mm can be used, allowing spatial offset of mounted components.

Technology Explained Simply

The 48,3 cm ( 19 inch ) format is an international standard for mounting IT and electronic devices in racks. The adapter profile functions as a vertical mounting board attached to the cabinet frame. The 33 HE corresponds to a total height of approximately 1230 mm, sufficient for many standard applications. The use of 2 mm thick sheet steel ensures sufficient strength to support the weight of mounted devices. The ability to cut the profile provides flexibility for adapting to individual cabinet heights or specific mounting requirements.

Compatibility and Accessories

The profile is specifically designed for VX enclosures with a width of 600 mm and a minimum height of 1600 mm. It is compatible with system chassis 18 x 64 mm, which can be used in 600 mm wide cabinets for recessed installation. These chassis allow spatial offset of mounted components to optimize cable routing or air circulation, for example. Using system chassis requires corresponding mounting infrastructure within the cabinet.

Mounting and Installation

Installation is performed on the rear side of the VX electronic cabinet, where the profile is attached to the cabinet frame. Mounting is done using the included hardware. The 48,3 cm ( 19 inch ) installation width (482.6 mm) is achieved through frame positioning. For cabinets with a width of 600 mm, frame mounting is standard. If needed, the profile can be cut to adjust to the required height.

Operational Advantages

The adapter profile enables flexible integration of 48,3 cm ( 19 inch ) components into VX enclosures that do not standardly offer such mounting surfaces. The use of 2 mm thick sheet steel ensures stable mounting, even under higher loads. The ability to cut the profile provides adaptability to different cabinet heights. Mounting on the rear side of the cabinet optimizes internal space and allows orderly device placement. Using system chassis expands mounting options and supports structured cable routing.

General
MaterialSheet steel, 2 mm
Scope of deliveryIncluding mounting hardware
Height units33 HE
Installation dimensionsInstallation width for components: 19"
NoteThe 482.6 mm (19") dimension applies when mounted on the frame of 600 mm wide cabinets; offset installation in 600 mm wide cabinets possible via system chassis 18 x 64 mm; when installed in electronic cabinet: installation on rear side
Suitable forfor VX electronics cabinet rear panel


Product data sheet
Datasheet for Rittal 8619300, EAN: 4028177927056

Questions & answers

What is the delivery time of Rittal 8619300 VX adapter profile 48,3 cm ( 19 inch ), for min. enclosure height: 1600 mm?

The article Rittal 8619300 VX adapter profile 48,3 cm ( 19 inch ), for min. enclosure height: 1600 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8619300 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8619300 VX adapter profile 48,3 cm ( 19 inch ), for min. enclosure height: 1600 mm always at the best possible price. We can give you a discount of 2% on Rittal 8619300 VX adapter profile 48,3 cm ( 19 inch ), for min. enclosure height: 1600 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
