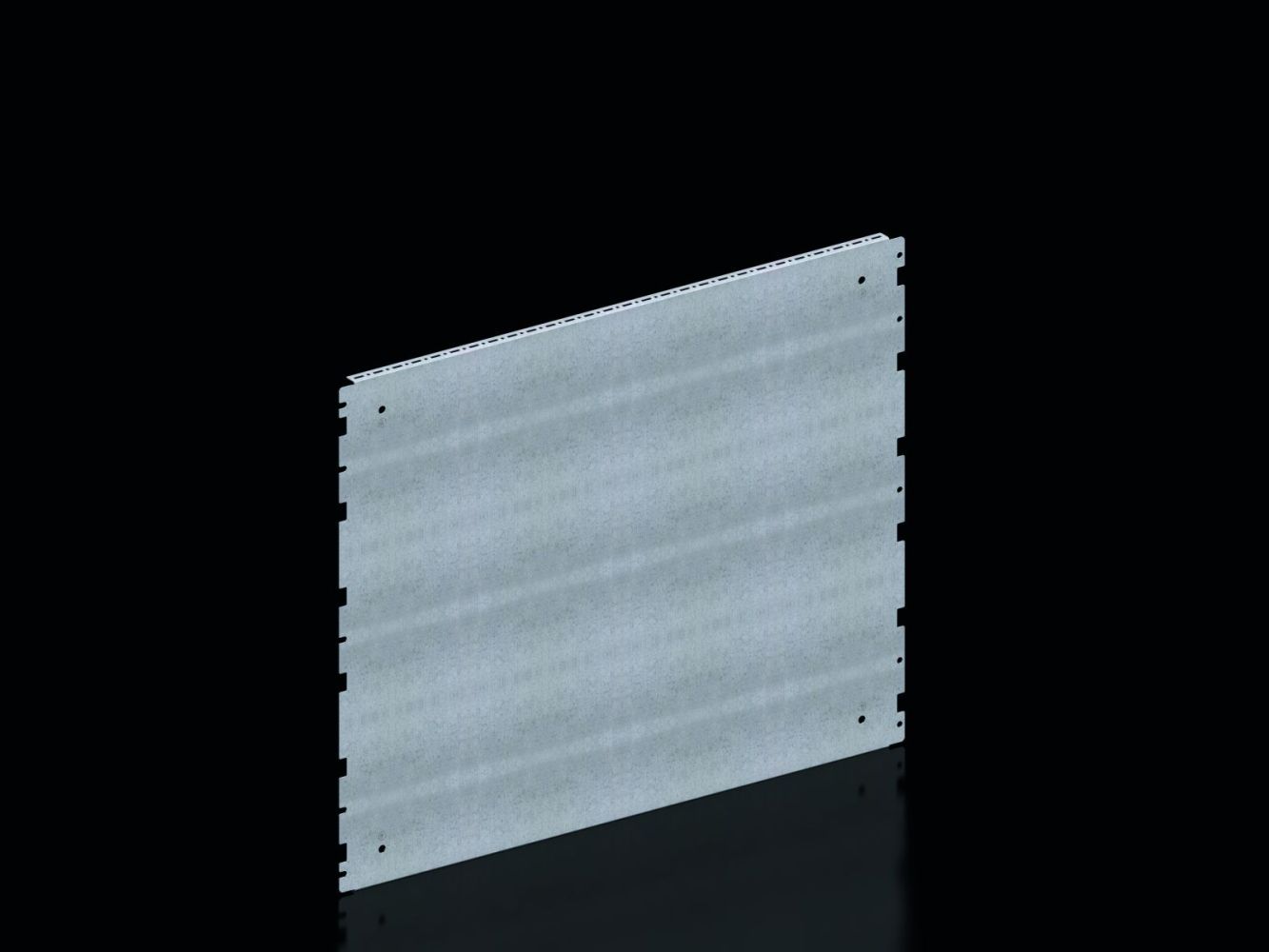

Rittal 8617665 VX partial mounting plate, mounting outside, W x H: 800x600 mm

Your rating:
Average rating
product review for Rittal 8617665 VX partial mounting plate, mounting outside, W x H: 800x600 mm
( 5 / 5 ) 3 ratings
Rittal 8617665
This image may differ from the desired article.
Rittal 8617665Rittal 8617665Rittal 8617665Rittal 8617665
-10% 52,21 EUR 58,24 EUR
( 62,13 EUR incl. VAT )
≈ £43.70  |  ≈ $57.38
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 8617665 VX partial mounting plate, mounting outside, W x H: 800x600 mm
Datasheet:file_download Download
Lieske Part No.:1908938
Mfg Part No: 8617665
UPC/EAN: 4028177947153
Weight:5.76 kg
Type:VX 8617665

Product information for Rittal 8617665:

The Rittal VX 8617665 is a partial mounting plate made of steel sheet with a thickness of 1.5 mm, specifically developed for use in the internal assembly of enclosures of type VX and VX SE. The plate serves to mount additional components and enables flexible, individual installation within the enclosure. With dimensions of 800 mm width and 600 mm height (effective usable area), it provides sufficient space for various electrical or electronic assemblies. The actual external dimensions are 738 mm in width and 598 mm in height, with the flange featuring system perforations to enable precise and quick fixation of components.

Applications
The partial mounting plate is ideal for use in industrial enclosures where modular and adaptable internal fitting is required. It is suitable, for example, for mounting controls, displays, fuses, relays, or other electrical assemblies. Its use in combination with enclosure types VX and VX SE with a depth of 800 mm is intended, ensuring optimal fit and mechanical stability. The system perforations on the flange support individual internal assembly and allow flexible positioning of components.

Functions and Equipment in Detail
The plate is made of galvanized steel sheet, providing high mechanical strength and corrosion protection. The surface is galvanized to ensure longer service life under industrial conditions. The delivery includes the required mounting materials, enabling secure mounting to the enclosure profiles. Mounting is done directly to the enclosure profile, and for VX SE enclosures, the use of a VX adapter rail is required to correctly secure the plate.

Technology Explained Simply
The partial mounting plate is a modular component integrated into the enclosure to create additional mounting surfaces. The use of steel sheet with 1.5 mm thickness ensures sufficient stability to safely support even heavier components. The galvanized surface protects the material from corrosion, especially in environments with high humidity or low aggressiveness. The system perforations on the flange allow quick and precise mounting of components without requiring additional drilling.

Compatibility and Accessories
The plate is specifically designed for enclosure types VX and VX SE, which have a depth of 800 mm. For VX SE enclosures, the use of a VX adapter rail is required to ensure secure mounting to the enclosure profiles. Compatibility is limited to these enclosure types; other enclosure models are not intended.

Mounting and Installation
Mounting is done directly to the enclosure profiles of the VX or VX SE enclosure. The included mounting materials enable easy and secure installation. For VX SE enclosures, the use of a VX adapter rail is necessary to correctly secure the plate. The system perforations on the flange facilitate mounting of additional components and allow flexible arrangement within the enclosure.

Advantages in Operation
The partial mounting plate provides a flexible platform for individual internal assembly and reduces the need for additional mounting elements. The integrated system perforations enable quick and precise fixation of components, reducing mounting time. The use of galvanized steel sheet ensures high mechanical strength and corrosion resistance, extending the plate’s service life under industrial conditions. Compatibility with VX and VX SE enclosure types with 800 mm depth ensures secure and stable mounting without additional modifications.

General
MaterialSheet steel, 1.5 mm
Surface protectionZinc-plated
Scope of deliveryIncluding mounting hardware
Mounting optionsMounting is directly onto the cabinet profile
NoteIn VX SE on cabinet profile in combination with adapter rail VX
Width738 mm
Height598 mm
Suitable for housing typeVX, VX SE
Suitable forHousing type: VX, VX SE, Width/depth: 800 mm


Product data sheet
Datasheet for Rittal 8617665, EAN: 4028177947153
