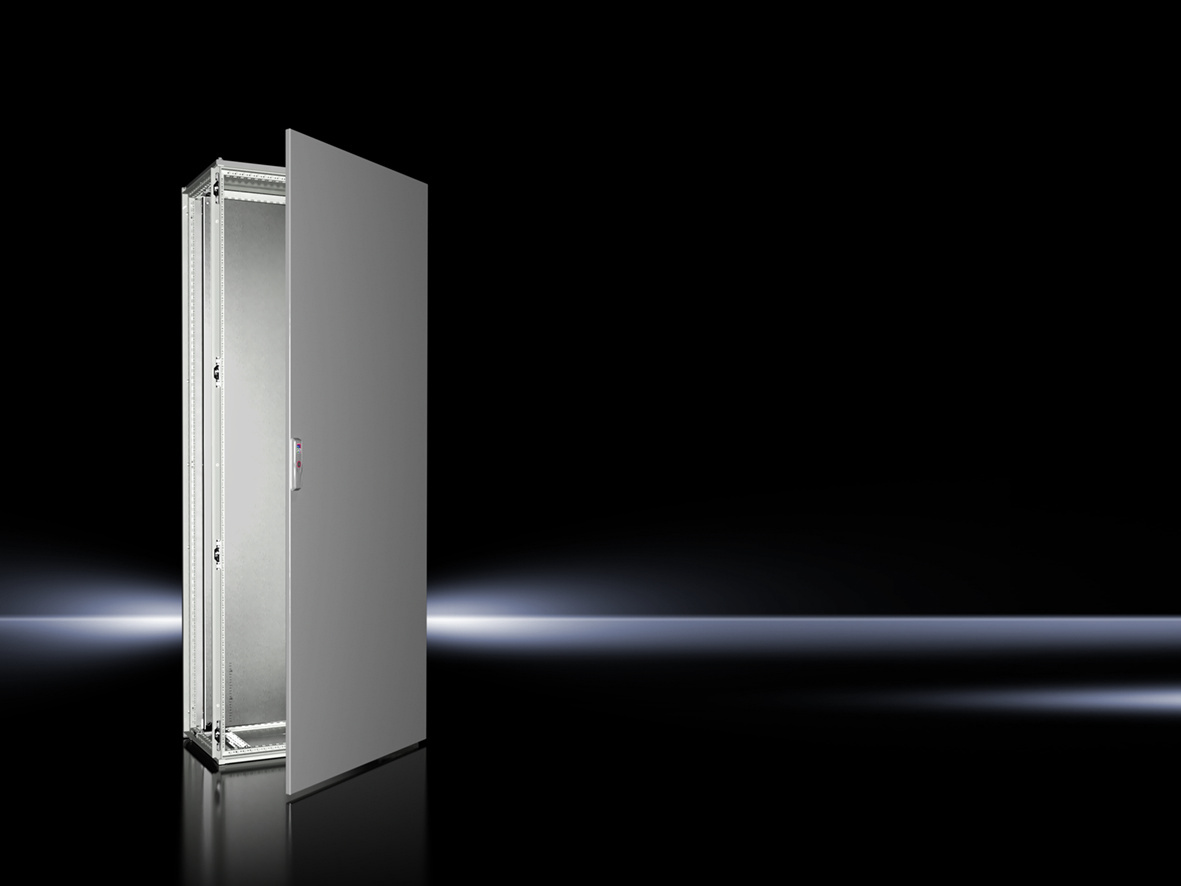

Rittal 8804000 VX bayed enclosure system, 1-door, W x H x D: 800x2000x400 mm,
|
609,07 EUR |
|
|
( 724,79 EUR incl. VAT ) ≈ £509.79 | ≈ $669.37 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1441712 |
| Mfg Part No: | 8804000 |
| UPC/EAN: | 4028177813823 |
| Weight: | 120.4 kg |
| Type: | VX 8804.000 |
Product information for Rittal 8804000:
Applications
This enclosure system is intended for use in industrial plants, such as machine building, manufacturing technology, or automation technology. The protection rating IP 55 ensures high protection against dust and splashing water, making it suitable for outdoor areas or damp indoor environments. The NEMA classification NEMA 1 and NEMA 12, as well as the type rating according to UL 50E (Type 1, Type 12), confirm suitability for dry and slightly contaminated environments. The IK code IK10 indicates high mechanical strength against mechanical impacts such as shock or impact.
Functions and Equipment in Detail
The enclosure system consists of an enclosure frame made of sheet steel with a wall thickness of 1.5 mm, dip-primed. The door, also made of sheet steel (2.0 mm), is powder-coated with a textured finish in RAL 7035 and features a PU foam seal. The door is standard right-hinged but can be toollessly reconfigured to left-hinged. The locking mechanism uses a 3 mm double bar according to DIN 43668, which is four-point locked. The door opening angle is 130° and can be toollessly extended to 180°. The clearance from the floor is 17 mm.
Technology Explained Simply
The mounting plate made of sheet steel (3.0 mm) is C-flanged on the sides and is depth-adjustable in 25 mm increments via integrated plastic glides and reusable mounting rails. It features an integrated mounting grid for easy positioning of components. The rear wall and roof plate are also made of sheet steel (1.5 mm), dip-primed and powder-coated, with PU foam sealing. Both are removable and screwed in place, with the roof secured using M12 fastening screws. The base plates are three-part, removable, and replaceable. The enclosure frame features a symmetrical profile frame construction with hole spacing in a 25 mm grid, enabling flexible mounting. The horizontal profiles have a groove above the seal for additional protection. The entire construction is loadable up to 15,000 N.
Compatibility and Accessories
The enclosure system is compatible with various accessories that meet individual requirements for enclosure installation. These include circuit diagram pockets for various sub-assemblies, levelling feet with an adjustment height of 18–43 mm, TS mounting brackets, C-profile rails, transport eyes, mounting plate spacers, dust protection strips, TFT/monitor brackets, comfort handles, cable entry ferrules in various diameters, multi-point locking mechanisms, and system chassis in various dimensions. These components enable application-specific adaptation of the enclosure system.
Mounting and Installation
Mounting is performed via the integrated mounting grid and hole spacing in a 25 mm grid. The mounting plate is depth-adjustable, allowing flexible adaptation to different components. Electrical conductivity between the rear wall, roof, base plates, and frame ensures automatic equipotential bonding according to DIN 62 208. Fixing to the base is achieved via the welded base frame with integrated base reinforcement.
Advantages in Operation
The enclosure system offers high mechanical stability, easy mounting and maintenance, and a high protection class. The modular design allows flexible expansion and adaptation to different requirements. The integrated mounting levels and hole grid simplify internal installation. The use of sheet steel with various surface treatments (dip-primed, powder-coated, galvanized) ensures high corrosion resistance and durability. QR codes on the roof, door, mounting plate, rear wall, and nameplate enable unique identification and marking of the enclosure system.
| General | |
| Material | Cabinet frame: steel sheet, 1.5 mm, roof: steel sheet, 1.5 mm, door: steel sheet, 2.0 mm, rear panel: steel sheet, 1.5 mm, base plates: steel sheet, 1.5 mm, mounting plate: steel sheet, 3.0 mm |
| Surface protection | Cabinet frame: dip-primed, door, roof and rear panel: dip-primed, externally powder-coated, textured lacquer, mounting plate and base sheets: galvanised |
| Colour | RAL 7035 |
| Scope of delivery | cabinet frame, door(s), door hinge right, reversible to left, roof sheet, rear panel, floor sheets, mounting plate, 2 mounting rails 18 x 39 mm, lock: 3 mm double bar |
| Width | 800 mm |
| Height | 2.000 mm |
| Depth | 400 mm |
| Mounting plate dimensions (W x H) | 699 mm x 1.896 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK10 |
| Number of doors | 1 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 339.13 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
