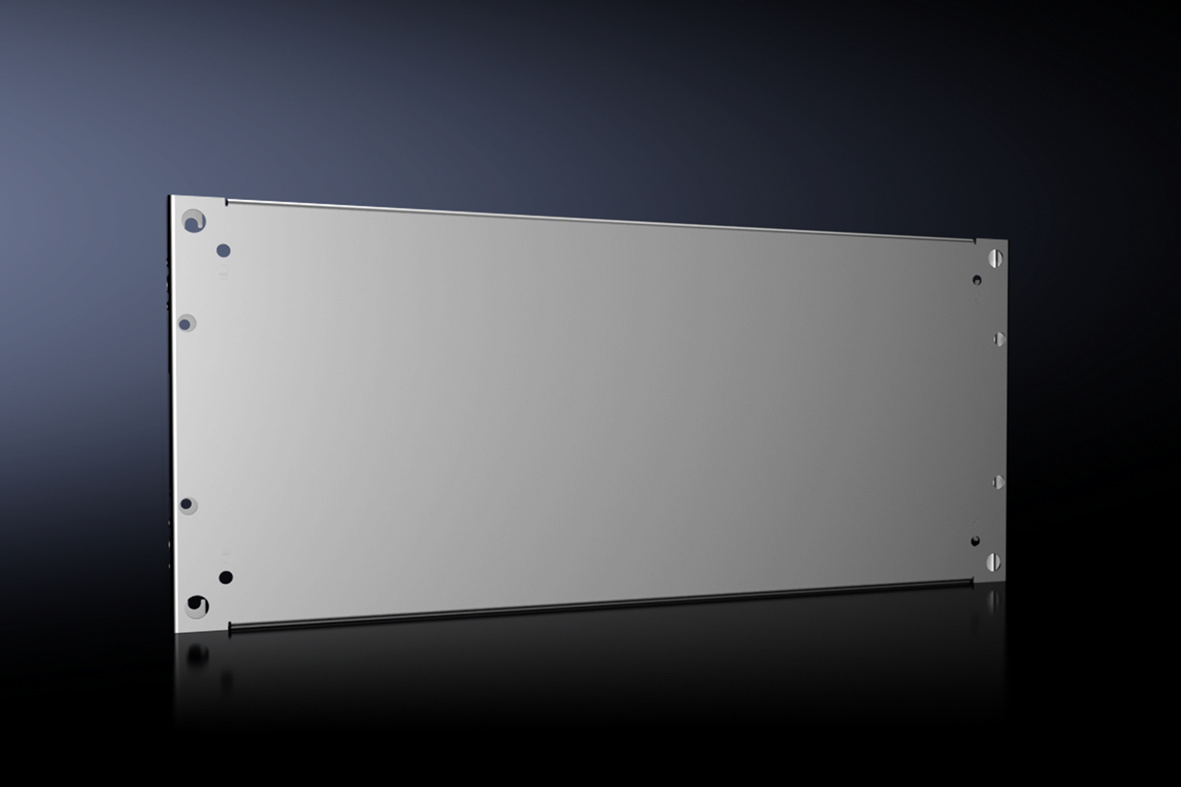

Rittal 8617560 VX partial mounting plate, W x H: 700x300 mm
|
46,35 EUR |
|
|
( 55,16 EUR incl. VAT ) ≈ £38.79 | ≈ $50.94 plus delivery charges: 100,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1440877 |
| Mfg Part No: | 8617560 |
| UPC/EAN: | 4028177919419 |
| Weight: | 5.78 kg |
| Type: | VX 8617.560 |
Product information for Rittal 8617560:
Applications
The partial mounting plate is designed for enclosures with a door width of 800 mm and adapts to enclosure types with a width of 400 mm or 800 mm and a depth of 400 mm or 800 mm. It is frequently used in industrial electrical engineering where a flexible and expandable mounting structure is required, for example in automation technology, control or distribution systems. The plate can be used in enclosures with standard construction as well as in extended builds.
Functions and Equipment in Detail
The plate can be installed either vertically as a standing mounting surface or horizontally as a flat base. Mounting is done directly to the enclosure profile. In extended builds, installation is carried out via system chassis at any mounting level within the enclosure. For multi-level installations, where multiple partial mounting plates are arranged in sequence, the plate can be equipped with a hinged mounting for swivelling, enabling quick access to the levels behind. The delivery includes the fastening material required for installation.
Technology Explained Simply
The use of sheet steel with a thickness of 2.5 mm ensures high mechanical stability and load capacity for mounted components. The zinc-coated surface provides protection against corrosion and is suitable for use in industrial environments. The dimensions of 700 mm width and 300 mm depth are matched to the standard dimensions of VX enclosure types to ensure optimal fit and mounting accuracy. The swivelling version allows for efficient maintenance and inspection, as individual levels can be accessed without dismantling the entire installation.
Compatibility and Accessories
The partial mounting plate is intended for enclosure types VX, VX SE and PC. For installation in VX SE, PC and IW, the VX adapter rail is required. The plate is not intended for other enclosure types not listed in the compatibility list. The use of the adapter rail enables integration into enclosures not originally designed for direct mounting of the partial mounting plate.
Mounting and Installation
Mounting is done either directly to the enclosure profile or via system chassis in extended builds. Fastening is done using the material included in the delivery. In multi-level installations, the plate can be mounted swivelling to facilitate access to rear levels. Installation requires no additional tools beyond standard mounting aids such as screwdrivers or wrenches.
Advantages in Operation
The partial mounting plate offers a flexible and modular mounting option within the enclosure, enabling optimal space utilisation and structured arrangement of components. The swivelling version improves maintainability and reduces time required for inspections and repairs. The use of zinc-coated sheet steel ensures long service life and high reliability in industrial applications. Compatibility with various enclosure types increases versatility and reduces the need for special adaptations during installation.
| General | |
| Material | Sheet steel, 2.5 mm |
| Surface protection | Zinc-plated |
| Scope of delivery | Including mounting hardware |
| Suitable for door width | 800 mm |
| Mounting options | Installation can be either vertical as upright mounting surface or horizontal as flat floor; mounting is directly to cabinet profile; with pre-assembled construction, mounting is via system chassis at any mounting level within the cabinet; with multi-level installation of partial mounting plates in sequence, these can be hinged for quick access to rear levels |
| Note | For installation in VX SE, PC, IW, the VX adapter rail is required |
| Width | 700 mm |
| Depth | 300 mm |
| Suitable for housing type | VX, VX SE, PC |
| Suitable for | Cabinet type: VX, VX SE, PC, Width: = 400 mm, = 800 mm, Depth: = 400 mm, = 800 mm |
| PCF/VE (Cradle-to-Gate) | 22 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 8617560 VX partial mounting plate, W x H: 700x300 mm?
The article Rittal 8617560 VX partial mounting plate, W x H: 700x300 mm is currently in stock
According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8617560 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 8617560 VX partial mounting plate, W x H: 700x300 mm always at the best possible price. We can give you a discount of 2% on Rittal 8617560 VX partial mounting plate, W x H: 700x300 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
