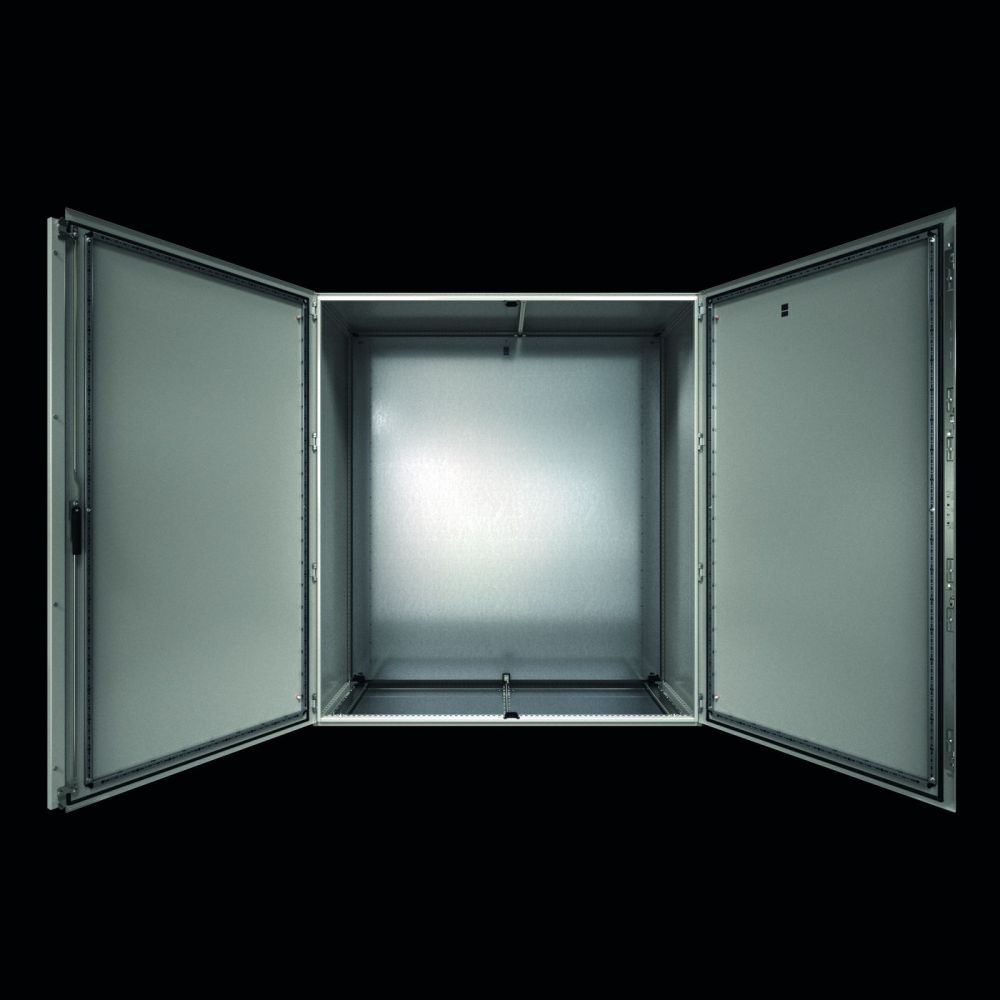

Rittal 5833600 VX SE system single enclosure 800x2000x500 mm steel
|
706,22 EUR |
|
|
( 840,40 EUR incl. VAT ) ≈ £591.11 | ≈ $776.14 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1910634 |
| Mfg Part No: | 5833600 |
| UPC/EAN: | 4028177959217 |
| Weight: | 136.2 kg |
| Type: | SE 5833600 |
Product information for Rittal 5833600:
Applications
This enclosure is designed for use in industrial environments where high mechanical and environmental resistance is required. It is suitable for use in production plants, automation systems, power supply installations, and building technology. The protection rating IP 55 according to EN 60 529 ensures protection against dust and splashing water, making it suitable for outdoor use or humid indoor environments. The NEMA classification includes NEMA 3R and NEMA 12, indicating suitability for dry and damp indoor environments as well as protection against splashing water. The UL 50E Type Ratings Type 1, Type 2, Type 3, Type 3R, and Type 12 confirm suitability for various environmental conditions, including light mechanical stress and protection against dust and splashing water.
Functions and Equipment in Detail
The enclosure is made of steel sheet with a wall thickness of 1.5 mm for the enclosure, rear panel, and base sheets. The door is made of 2.0 mm thick steel sheet, and the mounting plate is made of 3.0 mm thick steel sheet. The surface of the enclosure, door, and rear panel is dip-primed and externally powder-coated with textured paint in the colour RAL 7035. The mounting plate and base sheets are galvanized, providing an additional corrosion protection layer. The rear panel is removable and made as a single piece. The delivery includes two mounting rails with dimensions 18 x 39 mm and a lock with a 3 mm double bar. The door is equipped with a double bar lock, ensuring secure locking.
Technology Explained Simply
The IP 55 protection rating means the enclosure is protected against dust (dust-tight) and splashing water (from all directions). This makes it suitable for environments where moisture or splashing water may occur, such as in production halls or outdoor installations. The IK code IK10 indicates high mechanical strength, meaning the enclosure is resistant to mechanical impacts such as shocks or vibrations up to a certain energy level. The powder-coated surface in RAL 7035 provides a robust and durable coating that is resistant to weather influences and mechanical stress.
Compatibility and Accessories
The enclosure is compatible with various accessories that enable use in different application scenarios. These include, for example, VX plinth corner pieces with plinth trim panel, levelling feet with an adjustment height of 18 to 43 mm, system chassis for internal mounting, C-profile rails for mounting components, support rollers for mobility of the enclosure, transport eyes for freight shipping, and door latches for escape routes. Additionally, lock inserts made of zinc die-cast and comfort handles in the colour RAL 7035 are available, improving operation and safety.
Mounting and Installation
Mounting is done via the integrated mounting plate, which allows stable fixation of components and devices. The mounting rails (18 x 39 mm) are included in the delivery and facilitate the installation of enclosures and electrical components. The removable rear panel enables flexible mounting and maintenance of internal components. The door hinge can be changed to the left, allowing adaptation to the specific mounting environment. The use of levelling feet ensures level positioning of the enclosure on uneven surfaces.
Advantages in Operation
The enclosure offers high mechanical and environmental resistance through protection ratings IP 55, NEMA 3R, and NEMA 12, as well as the IK code IK10. The powder-coated surface in RAL 7035 ensures long service life and resistance to external influences. The integrated mounting plate and pre-installed mounting rails reduce installation time and facilitate maintenance. Compatibility with various accessories allows flexible adaptation to different requirements in industrial operation. The removable rear panel and changeable door hinge increase flexibility during mounting and use.
| General | |
| Material | Housing: steel sheet 1.5 mm, door: steel sheet, 2.0 mm, rear panel: steel sheet, 1.5 mm, base plates: steel sheet, 1.5 mm, mounting plate: steel sheet, 3.0 mm |
| Surface protection | Housing, door and rear panel: dip primed, externally powder coated, textured lacquer; mounting plate and base sheets: galvanised |
| Colour | RAL 7035 |
| Scope of delivery | enclosure top and sides closed, door(s), for single-door cabinets door hinge on right, reversible to left, mounting plate, base plates, rear panel, removable, locking: 3 mm double latch, 2 mounting rails 18 x 39 mm, rear panel, single-piece |
| Width | 800 mm |
| Height | 2.000 mm |
| Depth | 500 mm |
| Mounting plate dimensions (W x H) | 699 mm x 1.896 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 3R, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 2, Type 3, Type 3R, Type 12 |
| IK code | IK10 |
| Number of doors | 1 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 387.92 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
