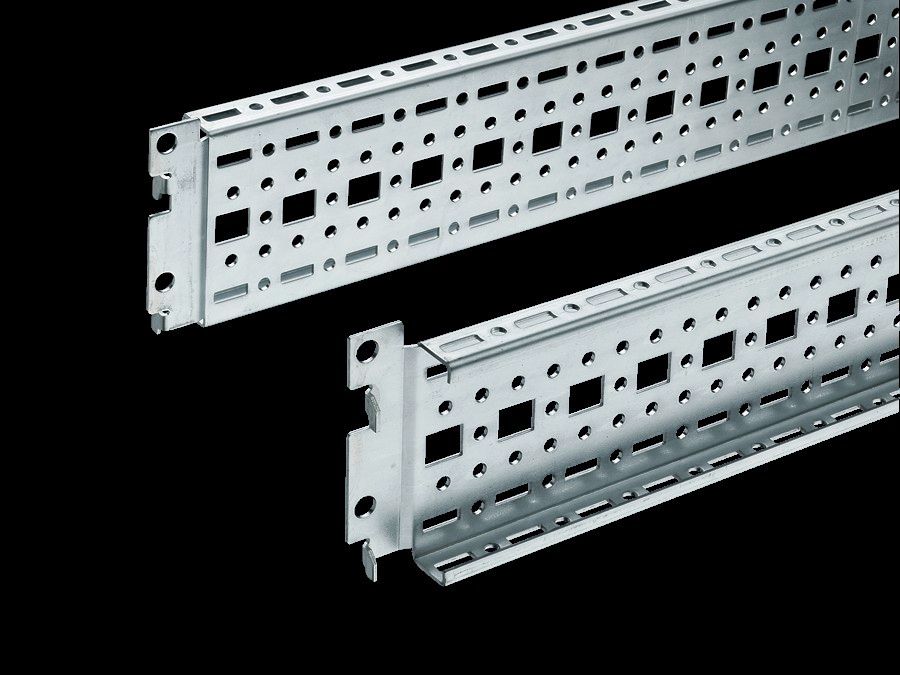

Rittal 8612050 TS system chassis 1=4 17x73 for internal W x D: 500 mm door: 600 L: 490 mm
|
43,82 EUR |
|
|
( 52,15 EUR incl. VAT ) ≈ £37.03 | ≈ $48.99 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 185754 |
| Mfg Part No: | 8612050 |
| UPC/EAN: | 4028177212084 |
| Weight: | 2.199 kg |
| Type: | TS 8612050 |
Further System Accessories from RittalFurther products in category System Accessories
All products of Rittal
Product information for Rittal 8612050:

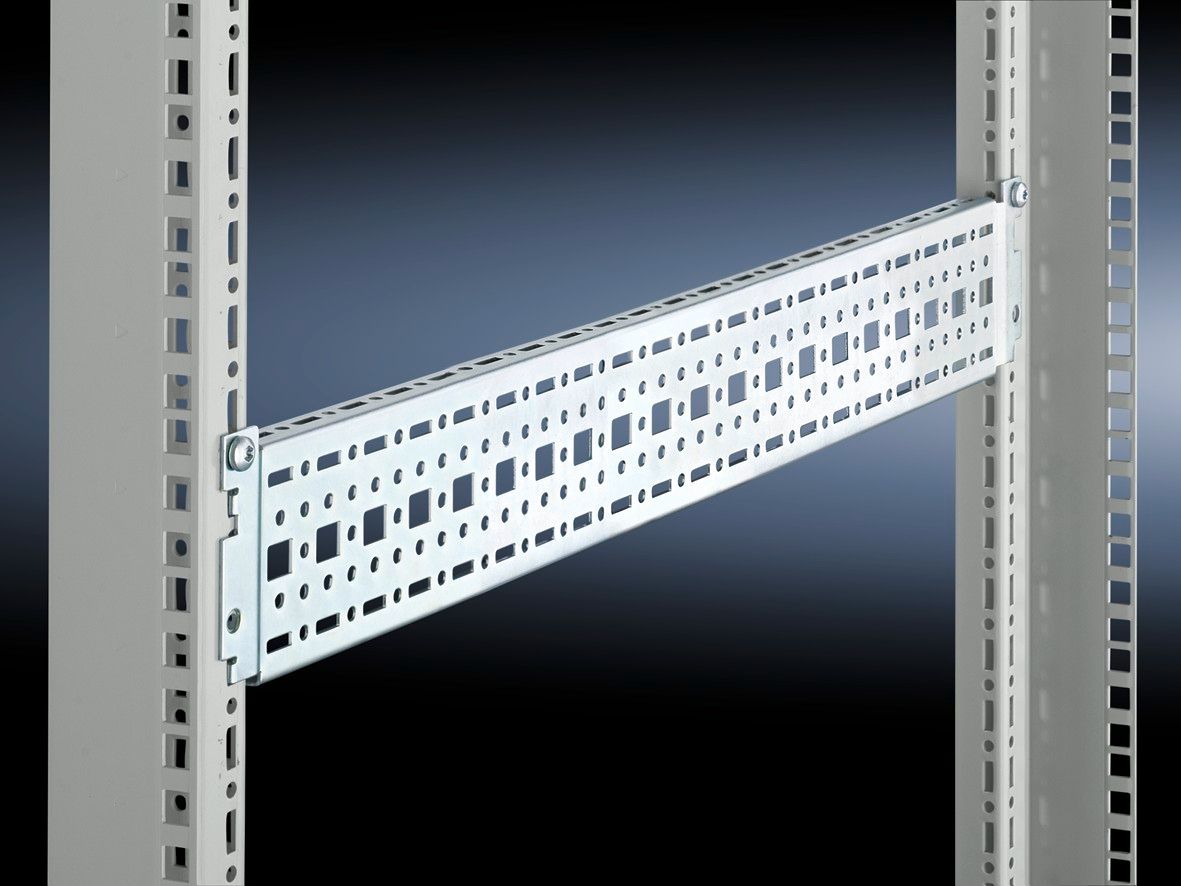

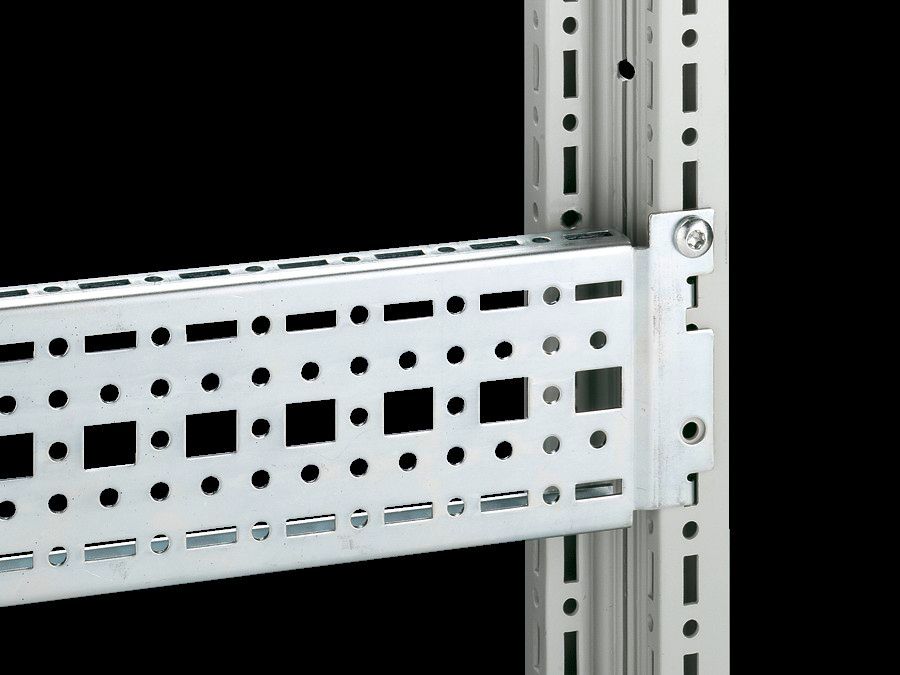

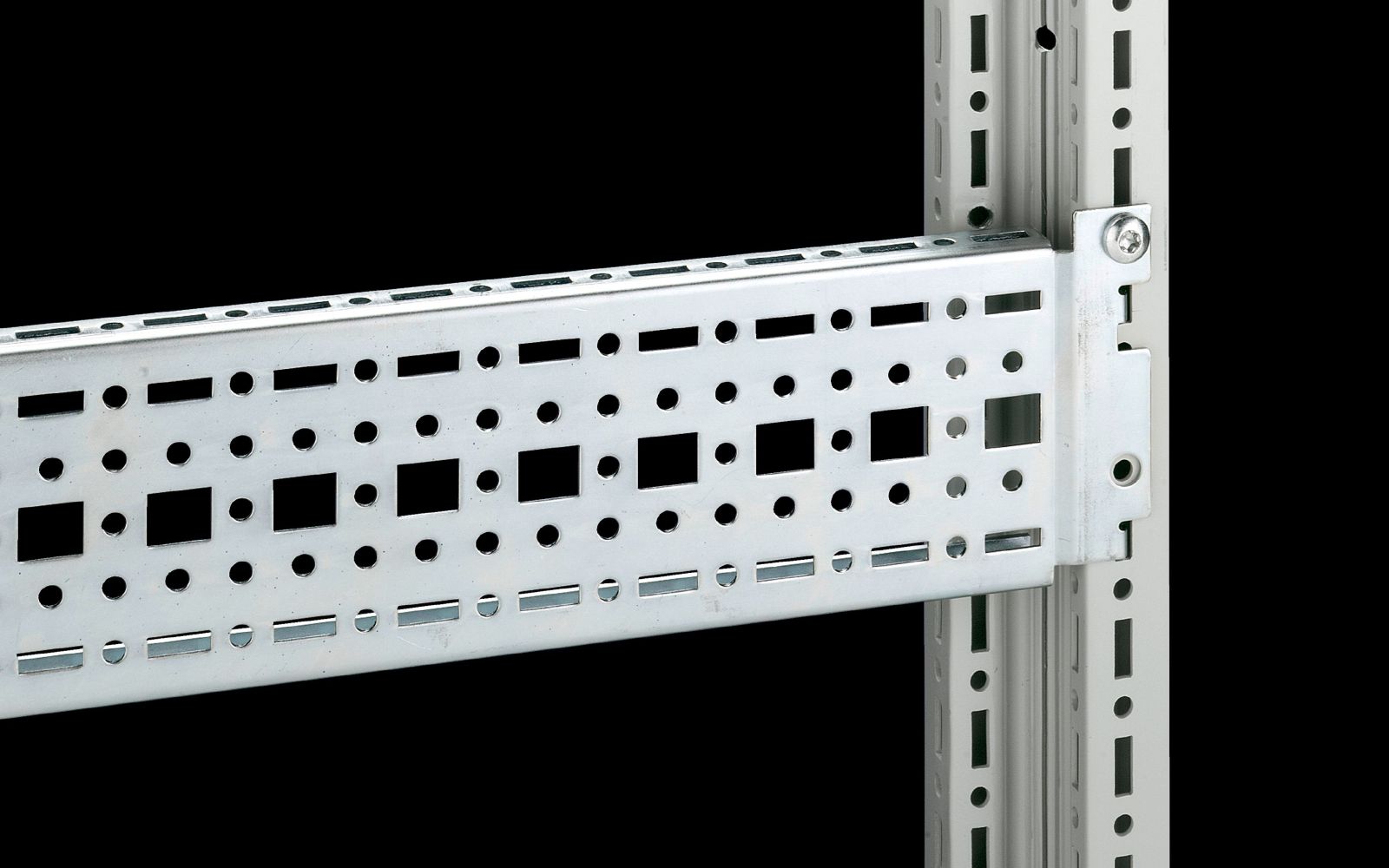

Variable, with 5 rows of holes for universal skeleton structures or partial assembly. Simply locate into the 482.6 mm (48,3 cm ( 19 inch )) system punchings and secure.
Material: Sheet steel
Surface finish: Zinc-plated
Assembly instruction: The rail for internal mounting is required when installing in CM, TP
Supply includes: Assembly screws
Packs of: 4 pc(s).
EAN: 4028177212084
Customs tariff number: 73269098
eCl@ss 5.1: 27189250
eCl@ss 7.0: 23159101
ETIM 6.0: EC002625
Design: For the inner mounting level and for mounting on doors
To fit: Width/depth: 500 mm
Dimensions: Length: 490 mm
Installation options: On the vertical TS enclosure section: On the inner mounting level, height-offset all-round
For SE, may additionally be mounted on the top horizontal section in the depth

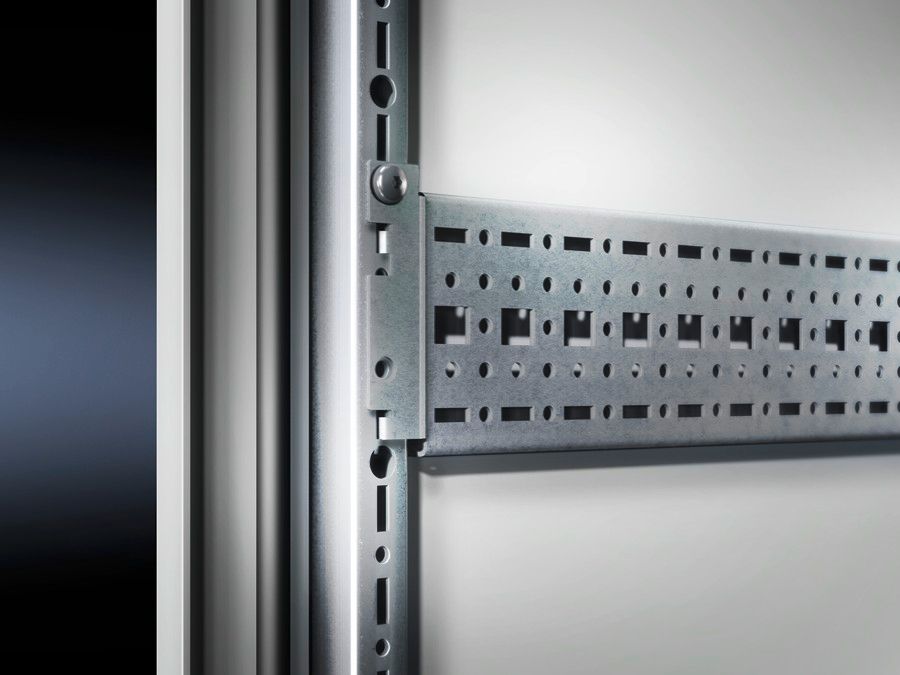

In the tubular door frame for TS, SE and PC
In CM and TP via rail for interior installation: In the width, for inner mounting level

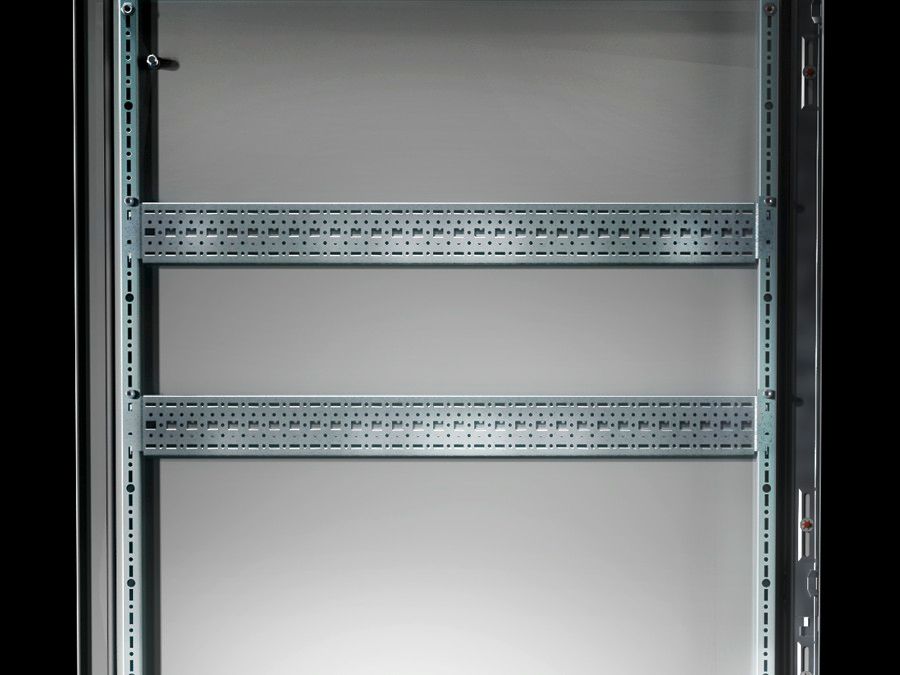

As a mounting kit for component shelves, simply locate and secure. One pack is sufficient for 2 component shelves. 100 kg surface load, static
To fit door width: 600 mm
Weight/pack: 2.26 kg
Material: Sheet steel
Surface finish: Zinc-plated
Assembly instruction: The rail for internal mounting is required when installing in CM, TP
Supply includes: Assembly screws
Packs of: 4 pc(s).
EAN: 4028177212084
Customs tariff number: 73269098
eCl@ss 5.1: 27189250
eCl@ss 7.0: 23159101
ETIM 6.0: EC002625
Design: For the inner mounting level and for mounting on doors
To fit: Width/depth: 500 mm
Dimensions: Length: 490 mm
Installation options: On the vertical TS enclosure section: On the inner mounting level, height-offset all-round
For SE, may additionally be mounted on the top horizontal section in the depth
In the tubular door frame for TS, SE and PC
In CM and TP via rail for interior installation: In the width, for inner mounting level
As a mounting kit for component shelves, simply locate and secure. One pack is sufficient for 2 component shelves. 100 kg surface load, static
To fit door width: 600 mm
Weight/pack: 2.26 kg
